Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

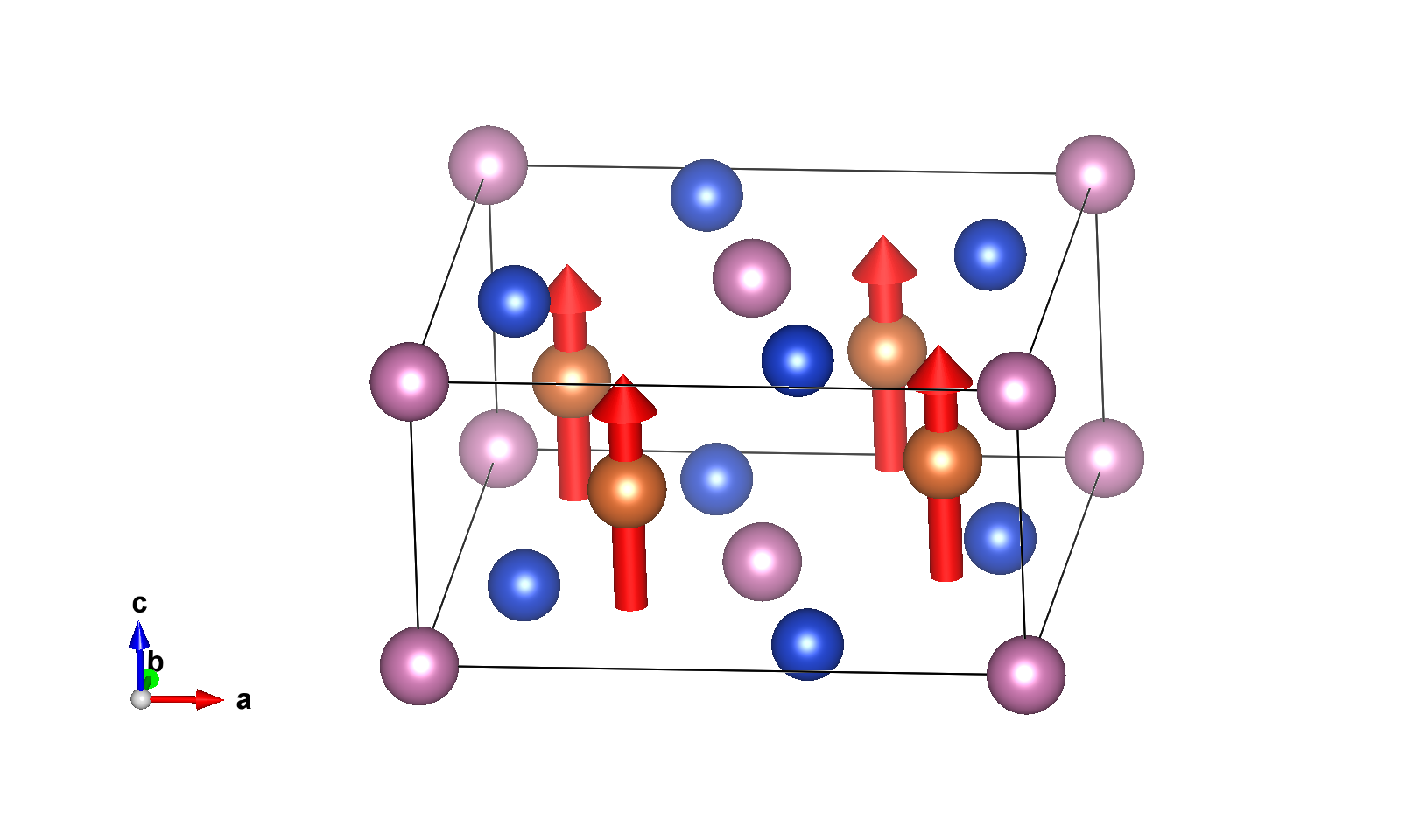

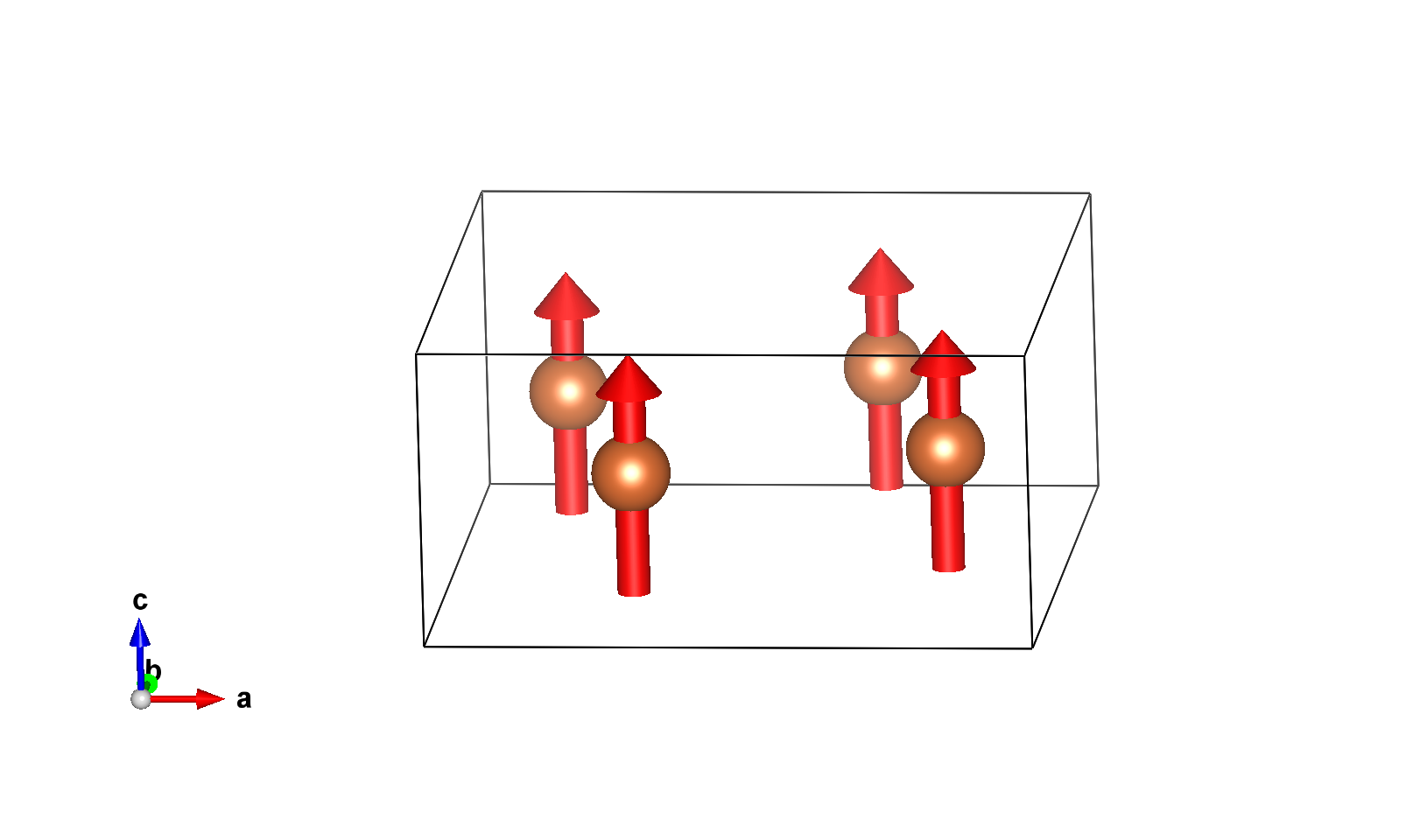

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Tm1	Tm	0.17189	0.67189	0.50000	4	0,0,m_z	0.0	0.0	6.66	6.66

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Cu1	Cu	0.37628	0.87628	0	4
In1	In	0	0	0	2

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.17189	0.67189	0.50000	0,0,m_z	6.66000
2	0.32811	0.17189	0.50000	0,0,m_z	6.66000
3	0.67189	0.82811	0.50000	0,0,m_z	6.66000
4	0.82811	0.32811	0.50000	0,0,m_z	6.66000

Atom	x	y	z
1	0.00000	0.00000	0.00000
2	0.50000	0.50000	0.00000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Tm1	Tm	0.17189	0.67189	0.50000	4	0,0,m_z	0.0	0.0	6.66	6.66

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.17189	0.67189	0.50000	0,0,m_z	6.66000
2	0.32811	0.17189	0.50000	0,0,m_z	6.66000
3	0.67189	0.82811	0.50000	0,0,m_z	6.66000
4	0.82811	0.32811	0.50000	0,0,m_z	6.66000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM3+	1	1	primary	1
