Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,-y,z+1/2,+1	{ 2₀₀₁ \| 0 0 1/2 }
3	-x,-y,-z,+1	{ -1 \| 0 }
4	x,y,-z+1/2,+1	{ m₀₀₁ \| 0 0 1/2 }
5	x,-y,-z,-1	{ 2'₁₀₀ \| 0 }
6	-x,y,-z+1/2,-1	{ 2'₀₁₀ \| 0 0 1/2 }
7	-x,y,z,-1	{ m'₁₀₀ \| 0 }
8	x,-y,z+1/2,-1	{ m'₀₁₀ \| 0 0 1/2 }
(1/2,1/2,0) + set click here to show and hide
9	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
10	-x+1/2,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 1/2 1/2 1/2 }
11	-x+1/2,-y+1/2,-z,+1	{ -1 \| 1/2 1/2 0 }
12	x+1/2,y+1/2,-z+1/2,+1	{ m₀₀₁ \| 1/2 1/2 1/2 }
13	x+1/2,-y+1/2,-z,-1	{ 2'₁₀₀ \| 1/2 1/2 0 }
14	-x+1/2,y+1/2,-z+1/2,-1	{ 2'₀₁₀ \| 1/2 1/2 1/2 }
15	-x+1/2,y+1/2,z,-1	{ m'₁₀₀ \| 1/2 1/2 0 }
16	x+1/2,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 1/2 1/2 1/2 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

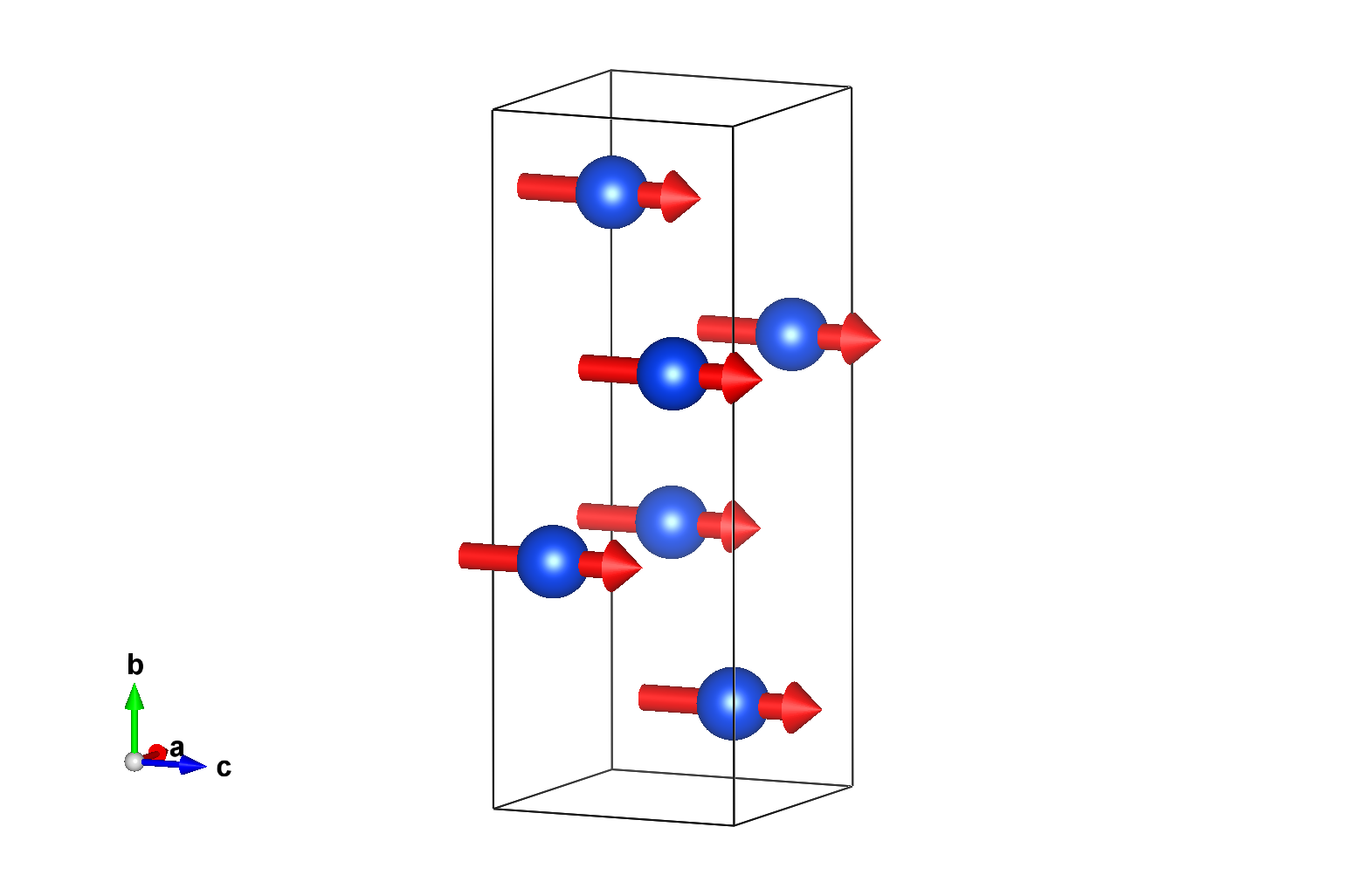

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.00000	0.35950	0.25000	4	0,0,m_z	0.0	0.0	6.2(2)	6.20

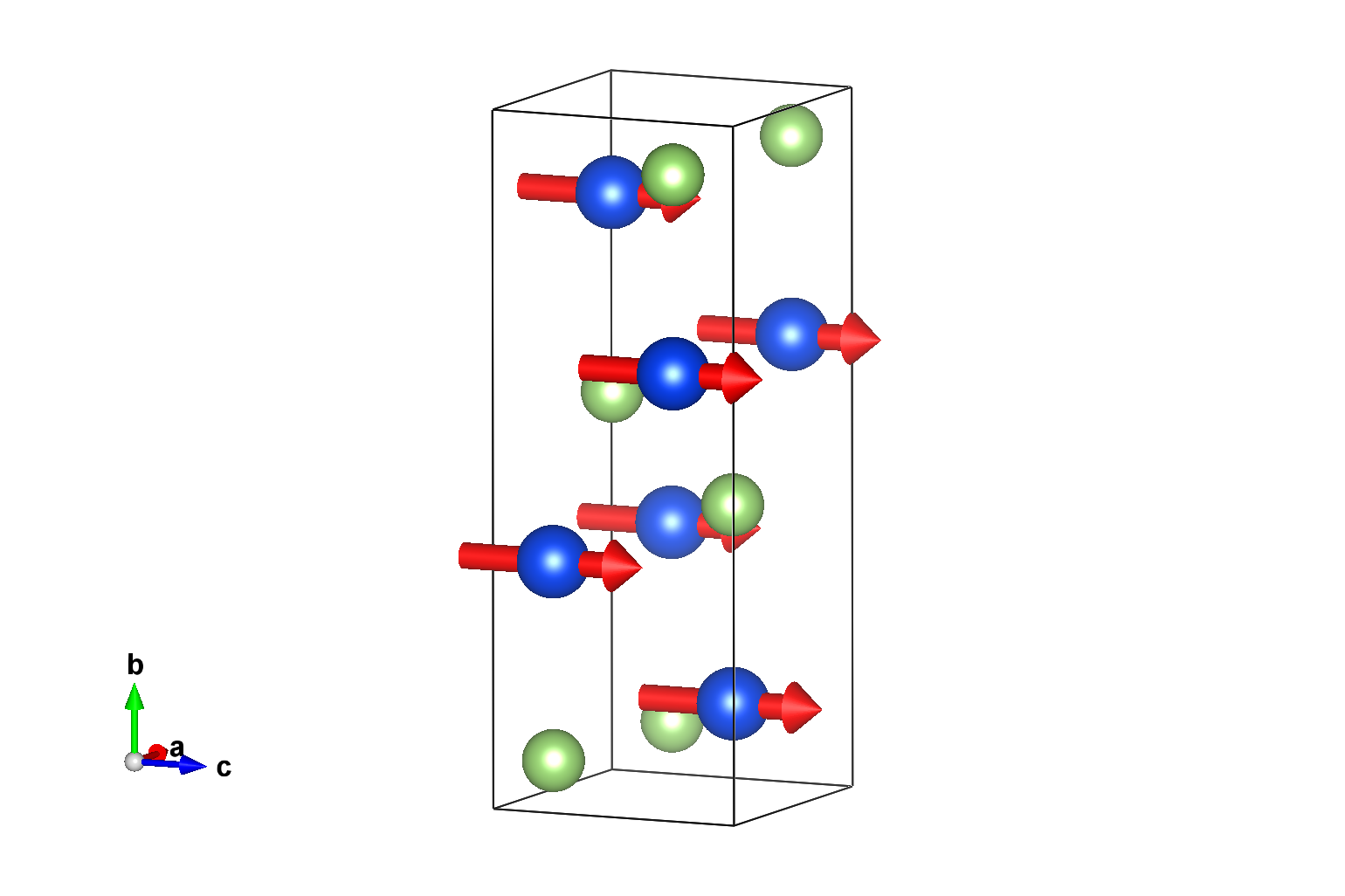

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ga1	Ga	0.00000	0.07520	0.25000	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.35950	0.25000	0,0,m_z	0.00000	0.00000	6.20000
2	0.00000	0.64050	0.75000	0,0,m_z	0.00000	0.00000	6.20000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.85950	0.25000	0,0,m_z	0.00000	0.00000	6.20000
4	0.50000	0.14050	0.75000	0,0,m_z	0.00000	0.00000	6.20000

Atom	x	y	z
1	0.00000	0.07520	0.25000
2	0.00000	0.92480	0.75000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.57520	0.25000
4	0.50000	0.42480	0.75000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.00000	0.35950	0.25000	4	0,0,m_z	0.0	0.0	6.2(2)	6.20

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.35950	0.25000	0,0,m_z	0.00000	0.00000	6.20000
2	0.00000	0.64050	0.75000	0,0,m_z	0.00000	0.00000	6.20000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.85950	0.25000	0,0,m_z	0.00000	0.00000	6.20000
4	0.50000	0.14050	0.75000	0,0,m_z	0.00000	0.00000	6.20000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2+	1	1	primary	1
