Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

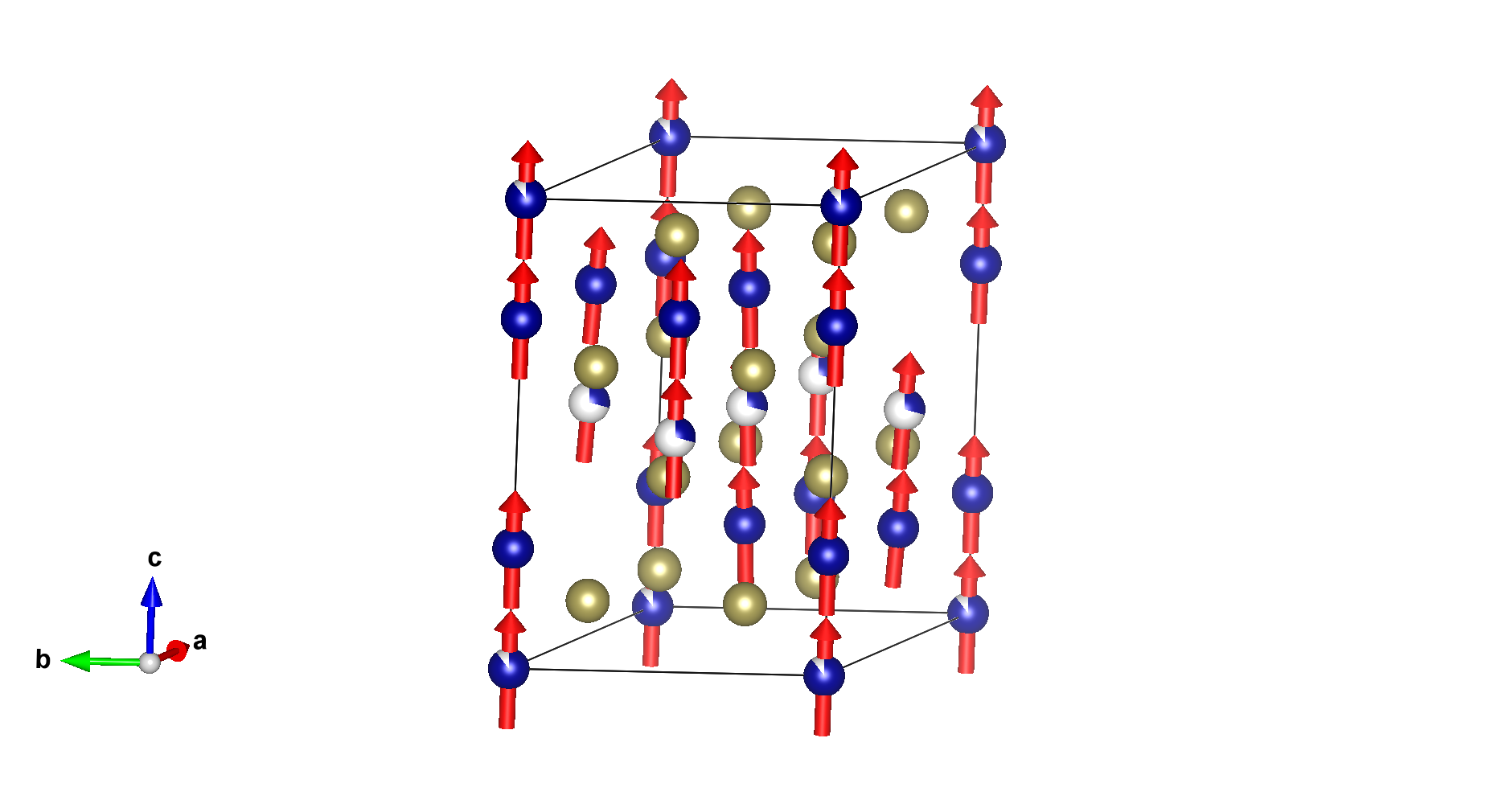

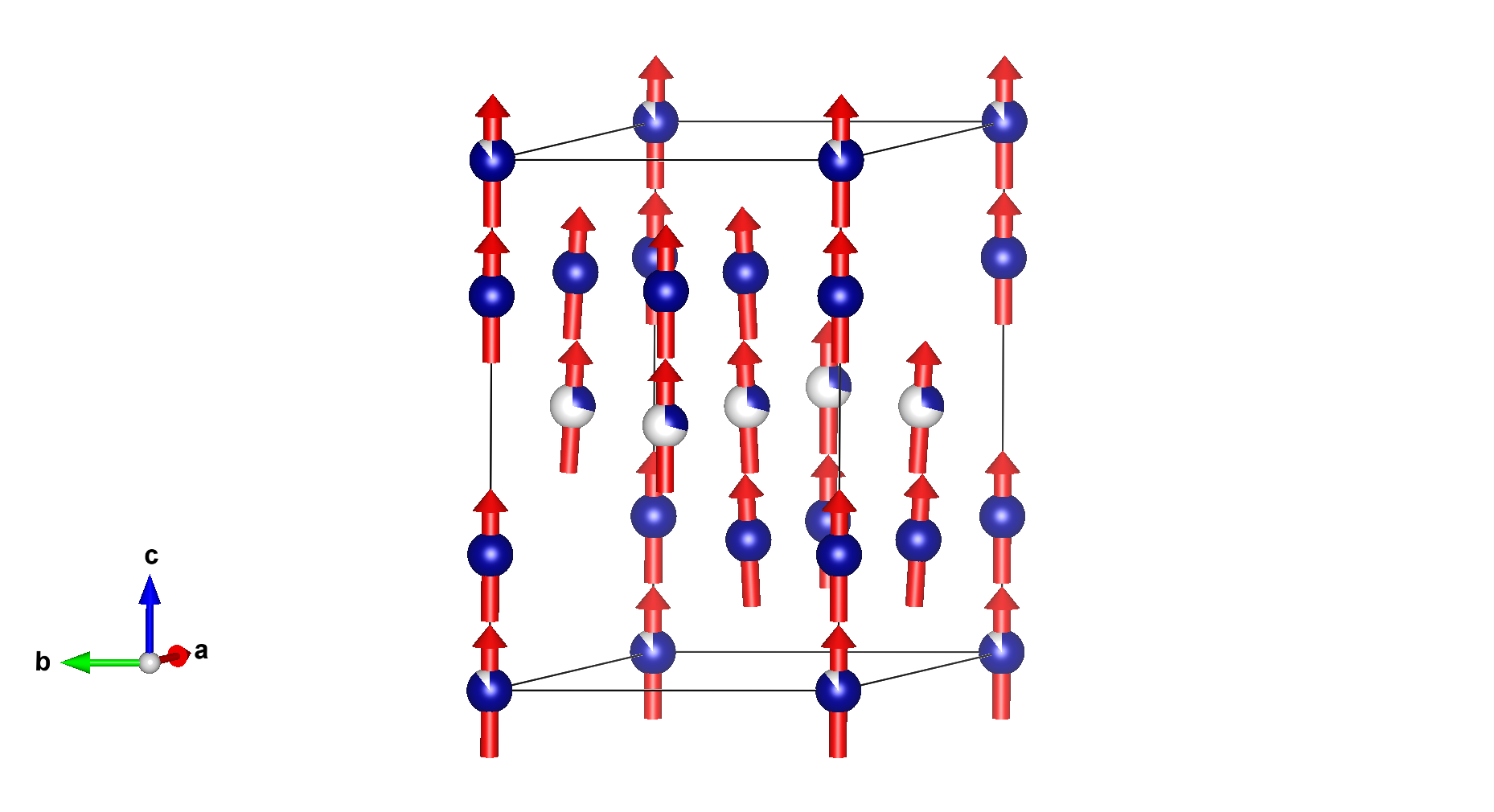

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cr1	Cr	0.00000	0.00000	0.00000	0.891	1	0,0,m_z	0.0	0.0	2.108	2.11
Cr2	Cr	0.00000	0.00000	0.25600	1.	2	0,0,m_z	0.0	0.0	2.108	2.11
Cr3	Cr	0.50430	0.49570	0.24760	1.	6	m_x,-m_x,m_z	-0.08	0.08	2.108	2.11
Cr4	Cr	0.50000	0.00000	0.50000	0.293	3	m_x,2m_x,m_z	-0.08	-0.16	2.108	2.11

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
Te1	Te	0.33333	0.66667	0.88340	1.	2
Te2	Te	0.33333	0.66667	0.36900	1.	2
Te3	Te	0.83280	0.16720	0.37790	1.	6
Te4	Te	0.16720	0.83280	0.12490	1.	6

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	2.10800

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.25600	0,0,m_z	0.00000	0.00000	2.10800
2	0.00000	0.00000	0.74400	0,0,m_z	0.00000	0.00000	2.10800

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.50430	0.49570	0.24760	m_x,-m_x,m_z	-0.08000	0.08000	2.10800
2	0.50430	0.00860	0.24760	m_x,2m_x,m_z	-0.08000	-0.16000	2.10800
3	0.99140	0.49570	0.24760	-2m_x,-m_x,m_z	0.16000	0.08000	2.10800
4	0.49570	0.50430	0.75240	m_x,-m_x,m_z	-0.08000	0.08000	2.10800
5	0.49570	0.99140	0.75240	m_x,2m_x,m_z	-0.08000	-0.16000	2.10800
6	0.00860	0.50430	0.75240	-2m_x,-m_x,m_z	0.16000	0.08000	2.10800

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.50000	0.00000	0.50000	m_x,2m_x,m_z	-0.08000	-0.16000	2.10800
2	0.00000	0.50000	0.50000	-2m_x,-m_x,m_z	0.16000	0.08000	2.10800
3	0.50000	0.50000	0.50000	m_x,-m_x,m_z	-0.08000	0.08000	2.10800

Atom	x	y	z
1	0.33333	0.66667	0.88340
2	0.66667	0.33333	0.11660

Atom	x	y	z
1	0.33333	0.66667	0.36900
2	0.66667	0.33333	0.63100

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cr1	Cr	0.00000	0.00000	0.00000	0.891	1	0,0,m_z	0.0	0.0	2.108	2.11
Cr2	Cr	0.00000	0.00000	0.25600	1.	2	0,0,m_z	0.0	0.0	2.108	2.11
Cr3	Cr	0.50430	0.49570	0.24760	1.	6	m_x,-m_x,m_z	-0.08	0.08	2.108	2.11
Cr4	Cr	0.50000	0.00000	0.50000	0.293	3	m_x,2m_x,m_z	-0.08	-0.16	2.108	2.11

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	2.10800

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.25600	0,0,m_z	0.00000	0.00000	2.10800
2	0.00000	0.00000	0.74400	0,0,m_z	0.00000	0.00000	2.10800

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.50430	0.49570	0.24760	m_x,-m_x,m_z	-0.08000	0.08000	2.10800
2	0.50430	0.00860	0.24760	m_x,2m_x,m_z	-0.08000	-0.16000	2.10800
3	0.99140	0.49570	0.24760	-2m_x,-m_x,m_z	0.16000	0.08000	2.10800
4	0.49570	0.50430	0.75240	m_x,-m_x,m_z	-0.08000	0.08000	2.10800
5	0.49570	0.99140	0.75240	m_x,2m_x,m_z	-0.08000	-0.16000	2.10800
6	0.00860	0.50430	0.75240	-2m_x,-m_x,m_z	0.16000	0.08000	2.10800

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.50000	0.00000	0.50000	m_x,2m_x,m_z	-0.08000	-0.16000	2.10800
2	0.00000	0.50000	0.50000	-2m_x,-m_x,m_z	0.16000	0.08000	2.10800
3	0.50000	0.50000	0.50000	m_x,-m_x,m_z	-0.08000	0.08000	2.10800

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2+	1	1	primary	6
