MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x,-y,-z+1/2,+1	{ 2₁₀₀ \| 0 0 1/2 }
3	-x+1/2,y,-z,+1	{ 2₀₁₀ \| 1/2 0 0 }
4	-x,-y+1/2,z,+1	{ 2₀₀₁ \| 0 1/2 0 }
5	z,x,y,+1	{ 3⁺₁₁₁ \| 0 }
6	y,z,x,+1	{ 3^-₁₁₁ \| 0 }
7	-y+1/2,z,-x,+1	{ 3^-_1-1-1 \| 1/2 0 0 }
8	-z,-x+1/2,y,+1	{ 3⁺_1-1-1 \| 0 1/2 0 }
9	-y,-z+1/2,x,+1	{ 3^-_-11-1 \| 0 1/2 0 }
10	z,-x,-y+1/2,+1	{ 3⁺_-11-1 \| 0 0 1/2 }
11	y,-z,-x+1/2,+1	{ 3^-_-1-11 \| 0 0 1/2 }
12	-z+1/2,x,-y,+1	{ 3⁺_-1-11 \| 1/2 0 0 }
13	-x,-y,-z,+1	{ -1 \| 0 }
14	-x,y,z+1/2,+1	{ m₁₀₀ \| 0 0 1/2 }
15	x+1/2,-y,z,+1	{ m₀₁₀ \| 1/2 0 0 }
16	x,y+1/2,-z,+1	{ m₀₀₁ \| 0 1/2 0 }
17	-z,-x,-y,+1	{ -3⁺₁₁₁ \| 0 }
18	-y,-z,-x,+1	{ -3^-₁₁₁ \| 0 }
19	y+1/2,-z,x,+1	{ -3^-_1-1-1 \| 1/2 0 0 }
20	z,x+1/2,-y,+1	{ -3⁺_1-1-1 \| 0 1/2 0 }
21	y,z+1/2,-x,+1	{ -3^-_-11-1 \| 0 1/2 0 }
22	-z,x,y+1/2,+1	{ -3⁺_-11-1 \| 0 0 1/2 }
23	-y,z,x+1/2,+1	{ -3^-_-1-11 \| 0 0 1/2 }
24	z+1/2,-x,y,+1	{ -3⁺_-1-11 \| 1/2 0 0 }
25	x+1/4,-z+1/4,y+3/4,-1	{ 4'⁺₁₀₀ \| 1/4 1/4 3/4 }
26	x+3/4,z+1/4,-y+1/4,-1	{ 4'^-₁₀₀ \| 3/4 1/4 1/4 }
27	z+3/4,y+1/4,-x+1/4,-1	{ 4'⁺₀₁₀ \| 3/4 1/4 1/4 }
28	-z+1/4,y+3/4,x+1/4,-1	{ 4'^-₀₁₀ \| 1/4 3/4 1/4 }
29	-y+1/4,x+3/4,z+1/4,-1	{ 4'⁺₀₀₁ \| 1/4 3/4 1/4 }
30	y+1/4,-x+1/4,z+3/4,-1	{ 4'^-₀₀₁ \| 1/4 1/4 3/4 }
31	y+3/4,x+1/4,-z+1/4,-1	{ 2'₁₁₀ \| 3/4 1/4 1/4 }
32	-y+1/4,-x+1/4,-z+1/4,-1	{ 2'_1-10 \| 1/4 1/4 1/4 }
33	-x+1/4,z+3/4,y+1/4,-1	{ 2'₀₁₁ \| 1/4 3/4 1/4 }
34	-x+1/4,-z+1/4,-y+1/4,-1	{ 2'_01-1 \| 1/4 1/4 1/4 }
35	z+1/4,-y+1/4,x+3/4,-1	{ 2'₁₀₁ \| 1/4 1/4 3/4 }
36	-z+1/4,-y+1/4,-x+1/4,-1	{ 2'_-101 \| 1/4 1/4 1/4 }
37	-x+1/4,z+1/4,-y+3/4,-1	{ -4'⁺₁₀₀ \| 1/4 1/4 3/4 }
38	-x+3/4,-z+1/4,y+1/4,-1	{ -4'^-₁₀₀ \| 3/4 1/4 1/4 }
39	-z+3/4,-y+1/4,x+1/4,-1	{ -4'⁺₀₁₀ \| 3/4 1/4 1/4 }
40	z+1/4,-y+3/4,-x+1/4,-1	{ -4'^-₀₁₀ \| 1/4 3/4 1/4 }
41	y+1/4,-x+3/4,-z+1/4,-1	{ -4'⁺₀₀₁ \| 1/4 3/4 1/4 }
42	-y+1/4,x+1/4,-z+3/4,-1	{ -4'^-₀₀₁ \| 1/4 1/4 3/4 }
43	-y+3/4,-x+1/4,z+1/4,-1	{ m'₁₁₀ \| 3/4 1/4 1/4 }
44	y+1/4,x+1/4,z+1/4,-1	{ m'_1-10 \| 1/4 1/4 1/4 }
45	x+1/4,-z+3/4,-y+1/4,-1	{ m'₀₁₁ \| 1/4 3/4 1/4 }
46	x+1/4,z+1/4,y+1/4,-1	{ m'_01-1 \| 1/4 1/4 1/4 }
47	-z+1/4,y+1/4,-x+3/4,-1	{ m'₁₀₁ \| 1/4 1/4 3/4 }
48	z+1/4,y+1/4,x+1/4,-1	{ m'_-101 \| 1/4 1/4 1/4 }
(1/2,1/2,1/2) + set click here to show and hide
49	x+1/2,y+1/2,z+1/2,+1	{ 1 \| 1/2 1/2 1/2 }
50	x+1/2,-y+1/2,-z,+1	{ 2₁₀₀ \| 1/2 1/2 0 }
51	-x,y+1/2,-z+1/2,+1	{ 2₀₁₀ \| 0 1/2 1/2 }
52	-x+1/2,-y,z+1/2,+1	{ 2₀₀₁ \| 1/2 0 1/2 }
53	z+1/2,x+1/2,y+1/2,+1	{ 3⁺₁₁₁ \| 1/2 1/2 1/2 }
54	y+1/2,z+1/2,x+1/2,+1	{ 3^-₁₁₁ \| 1/2 1/2 1/2 }
55	-y,z+1/2,-x+1/2,+1	{ 3^-_1-1-1 \| 0 1/2 1/2 }
56	-z+1/2,-x,y+1/2,+1	{ 3⁺_1-1-1 \| 1/2 0 1/2 }
57	-y+1/2,-z,x+1/2,+1	{ 3^-_-11-1 \| 1/2 0 1/2 }
58	z+1/2,-x+1/2,-y,+1	{ 3⁺_-11-1 \| 1/2 1/2 0 }
59	y+1/2,-z+1/2,-x,+1	{ 3^-_-1-11 \| 1/2 1/2 0 }
60	-z,x+1/2,-y+1/2,+1	{ 3⁺_-1-11 \| 0 1/2 1/2 }
61	-x+1/2,-y+1/2,-z+1/2,+1	{ -1 \| 1/2 1/2 1/2 }
62	-x+1/2,y+1/2,z,+1	{ m₁₀₀ \| 1/2 1/2 0 }
63	x,-y+1/2,z+1/2,+1	{ m₀₁₀ \| 0 1/2 1/2 }
64	x+1/2,y,-z+1/2,+1	{ m₀₀₁ \| 1/2 0 1/2 }
65	-z+1/2,-x+1/2,-y+1/2,+1	{ -3⁺₁₁₁ \| 1/2 1/2 1/2 }
66	-y+1/2,-z+1/2,-x+1/2,+1	{ -3^-₁₁₁ \| 1/2 1/2 1/2 }
67	y,-z+1/2,x+1/2,+1	{ -3^-_1-1-1 \| 0 1/2 1/2 }
68	z+1/2,x,-y+1/2,+1	{ -3⁺_1-1-1 \| 1/2 0 1/2 }
69	y+1/2,z,-x+1/2,+1	{ -3^-_-11-1 \| 1/2 0 1/2 }
70	-z+1/2,x+1/2,y,+1	{ -3⁺_-11-1 \| 1/2 1/2 0 }
71	-y+1/2,z+1/2,x,+1	{ -3^-_-1-11 \| 1/2 1/2 0 }
72	z,-x+1/2,y+1/2,+1	{ -3⁺_-1-11 \| 0 1/2 1/2 }
73	x+3/4,-z+3/4,y+1/4,-1	{ 4'⁺₁₀₀ \| 3/4 3/4 1/4 }
74	x+1/4,z+3/4,-y+3/4,-1	{ 4'^-₁₀₀ \| 1/4 3/4 3/4 }
75	z+1/4,y+3/4,-x+3/4,-1	{ 4'⁺₀₁₀ \| 1/4 3/4 3/4 }
76	-z+3/4,y+1/4,x+3/4,-1	{ 4'^-₀₁₀ \| 3/4 1/4 3/4 }
77	-y+3/4,x+1/4,z+3/4,-1	{ 4'⁺₀₀₁ \| 3/4 1/4 3/4 }
78	y+3/4,-x+3/4,z+1/4,-1	{ 4'^-₀₀₁ \| 3/4 3/4 1/4 }
79	y+1/4,x+3/4,-z+3/4,-1	{ 2'₁₁₀ \| 1/4 3/4 3/4 }
80	-y+3/4,-x+3/4,-z+3/4,-1	{ 2'_1-10 \| 3/4 3/4 3/4 }
81	-x+3/4,z+1/4,y+3/4,-1	{ 2'₀₁₁ \| 3/4 1/4 3/4 }
82	-x+3/4,-z+3/4,-y+3/4,-1	{ 2'_01-1 \| 3/4 3/4 3/4 }
83	z+3/4,-y+3/4,x+1/4,-1	{ 2'₁₀₁ \| 3/4 3/4 1/4 }
84	-z+3/4,-y+3/4,-x+3/4,-1	{ 2'_-101 \| 3/4 3/4 3/4 }
85	-x+3/4,z+3/4,-y+1/4,-1	{ -4'⁺₁₀₀ \| 3/4 3/4 1/4 }
86	-x+1/4,-z+3/4,y+3/4,-1	{ -4'^-₁₀₀ \| 1/4 3/4 3/4 }
87	-z+1/4,-y+3/4,x+3/4,-1	{ -4'⁺₀₁₀ \| 1/4 3/4 3/4 }
88	z+3/4,-y+1/4,-x+3/4,-1	{ -4'^-₀₁₀ \| 3/4 1/4 3/4 }
89	y+3/4,-x+1/4,-z+3/4,-1	{ -4'⁺₀₀₁ \| 3/4 1/4 3/4 }
90	-y+3/4,x+3/4,-z+1/4,-1	{ -4'^-₀₀₁ \| 3/4 3/4 1/4 }
91	-y+1/4,-x+3/4,z+3/4,-1	{ m'₁₁₀ \| 1/4 3/4 3/4 }
92	y+3/4,x+3/4,z+3/4,-1	{ m'_1-10 \| 3/4 3/4 3/4 }
93	x+3/4,-z+1/4,-y+3/4,-1	{ m'₀₁₁ \| 3/4 1/4 3/4 }
94	x+3/4,z+3/4,y+3/4,-1	{ m'_01-1 \| 3/4 3/4 3/4 }
95	-z+3/4,y+3/4,-x+1/4,-1	{ m'₁₀₁ \| 3/4 3/4 1/4 }
96	z+3/4,y+3/4,x+3/4,-1	{ m'_-101 \| 3/4 3/4 3/4 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	x,-y,-z,+1	2₁₀₀
3	-x,y,-z,+1	2₀₁₀
4	-x,-y,z,+1	2₀₀₁
5	z,x,y,+1	3⁺₁₁₁
6	y,z,x,+1	3^-₁₁₁
7	-y,z,-x,+1	3^-_1-1-1
8	-z,-x,y,+1	3⁺_1-1-1
9	-y,-z,x,+1	3^-_-11-1
10	z,-x,-y,+1	3⁺_-11-1
11	y,-z,-x,+1	3^-_-1-11
12	-z,x,-y,+1	3⁺_-1-11
13	-x,-y,-z,+1	-1
14	-x,y,z,+1	m₁₀₀
15	x,-y,z,+1	m₀₁₀
16	x,y,-z,+1	m₀₀₁
17	-z,-x,-y,+1	-3⁺₁₁₁
18	-y,-z,-x,+1	-3^-₁₁₁
19	y,-z,x,+1	-3^-_1-1-1
20	z,x,-y,+1	-3⁺_1-1-1
21	y,z,-x,+1	-3^-_-11-1
22	-z,x,y,+1	-3⁺_-11-1
23	-y,z,x,+1	-3^-_-1-11
24	z,-x,y,+1	-3⁺_-1-11
25	x,-z,y,-1	4'⁺₁₀₀
26	x,z,-y,-1	4'^-₁₀₀
27	z,y,-x,-1	4'⁺₀₁₀
28	-z,y,x,-1	4'^-₀₁₀
29	-y,x,z,-1	4'⁺₀₀₁
30	y,-x,z,-1	4'^-₀₀₁
31	y,x,-z,-1	2'₁₁₀
32	-y,-x,-z,-1	2'_1-10
33	-x,z,y,-1	2'₀₁₁
34	-x,-z,-y,-1	2'_01-1
35	z,-y,x,-1	2'₁₀₁
36	-z,-y,-x,-1	2'_-101
37	-x,z,-y,-1	-4'⁺₁₀₀
38	-x,-z,y,-1	-4'^-₁₀₀
39	-z,-y,x,-1	-4'⁺₀₁₀
40	z,-y,-x,-1	-4'^-₀₁₀
41	y,-x,-z,-1	-4'⁺₀₀₁
42	-y,x,-z,-1	-4'^-₀₀₁
43	-y,-x,z,-1	m'₁₁₀
44	y,x,z,-1	m'_1-10
45	x,-z,-y,-1	m'₀₁₁
46	x,z,y,-1	m'_01-1
47	-z,y,-x,-1	m'₁₀₁
48	z,y,x,-1	m'_-101

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Dy1	Dy	0.12500	0.00000	0.25000	24	m_x,0,0	-9.0(5)	0.0	0.0	9.00

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.12500	0.00000	0.25000	m_x,0,0	-9.00000	0.00000	0.00000
2	0.37500	0.00000	0.75000	-m_x,0,0	9.00000	0.00000	0.00000
3	0.25000	0.12500	0.00000	0,m_x,0	0.00000	-9.00000	0.00000
4	0.00000	0.25000	0.12500	0,0,m_x	0.00000	0.00000	-9.00000
5	0.50000	0.25000	0.87500	0,0,-m_x	0.00000	0.00000	9.00000
6	0.75000	0.37500	0.00000	0,-m_x,0	0.00000	9.00000	0.00000
7	0.87500	0.00000	0.75000	m_x,0,0	-9.00000	0.00000	0.00000
8	0.62500	0.00000	0.25000	-m_x,0,0	9.00000	0.00000	0.00000
9	0.75000	0.87500	0.00000	0,m_x,0	0.00000	-9.00000	0.00000
10	0.00000	0.75000	0.87500	0,0,m_x	0.00000	0.00000	-9.00000
11	0.50000	0.75000	0.12500	0,0,-m_x	0.00000	0.00000	9.00000
12	0.25000	0.62500	0.00000	0,-m_x,0	0.00000	9.00000	0.00000
(1/2,1/2,1/2) + set click here to show and hide
13	0.62500	0.50000	0.75000	m_x,0,0	-9.00000	0.00000	0.00000
14	0.87500	0.50000	0.25000	-m_x,0,0	9.00000	0.00000	0.00000
15	0.75000	0.62500	0.50000	0,m_x,0	0.00000	-9.00000	0.00000
16	0.50000	0.75000	0.62500	0,0,m_x	0.00000	0.00000	-9.00000
17	0.00000	0.75000	0.37500	0,0,-m_x	0.00000	0.00000	9.00000
18	0.25000	0.87500	0.50000	0,-m_x,0	0.00000	9.00000	0.00000
19	0.37500	0.50000	0.25000	m_x,0,0	-9.00000	0.00000	0.00000
20	0.12500	0.50000	0.75000	-m_x,0,0	9.00000	0.00000	0.00000
21	0.25000	0.37500	0.50000	0,m_x,0	0.00000	-9.00000	0.00000
22	0.50000	0.25000	0.37500	0,0,m_x	0.00000	0.00000	-9.00000
23	0.00000	0.25000	0.62500	0,0,-m_x	0.00000	0.00000	9.00000
24	0.75000	0.12500	0.50000	0,-m_x,0	0.00000	9.00000	0.00000

[Show all atoms in unit cell and their moment relations]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Dy1	Dy	0.12500	0.00000	0.25000	24	m_x,0,0	-9.0(5)	0.0	0.0	9.00

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.12500	0.00000	0.25000	m_x,0,0	-9.00000	0.00000	0.00000
2	0.37500	0.00000	0.75000	-m_x,0,0	9.00000	0.00000	0.00000
3	0.25000	0.12500	0.00000	0,m_x,0	0.00000	-9.00000	0.00000
4	0.00000	0.25000	0.12500	0,0,m_x	0.00000	0.00000	-9.00000
5	0.50000	0.25000	0.87500	0,0,-m_x	0.00000	0.00000	9.00000
6	0.75000	0.37500	0.00000	0,-m_x,0	0.00000	9.00000	0.00000
7	0.87500	0.00000	0.75000	m_x,0,0	-9.00000	0.00000	0.00000
8	0.62500	0.00000	0.25000	-m_x,0,0	9.00000	0.00000	0.00000
9	0.75000	0.87500	0.00000	0,m_x,0	0.00000	-9.00000	0.00000
10	0.00000	0.75000	0.87500	0,0,m_x	0.00000	0.00000	-9.00000
11	0.50000	0.75000	0.12500	0,0,-m_x	0.00000	0.00000	9.00000
12	0.25000	0.62500	0.00000	0,-m_x,0	0.00000	9.00000	0.00000
(1/2,1/2,1/2) + set click here to show and hide
13	0.62500	0.50000	0.75000	m_x,0,0	-9.00000	0.00000	0.00000
14	0.87500	0.50000	0.25000	-m_x,0,0	9.00000	0.00000	0.00000
15	0.75000	0.62500	0.50000	0,m_x,0	0.00000	-9.00000	0.00000
16	0.50000	0.75000	0.62500	0,0,m_x	0.00000	0.00000	-9.00000
17	0.00000	0.75000	0.37500	0,0,-m_x	0.00000	0.00000	9.00000
18	0.25000	0.87500	0.50000	0,-m_x,0	0.00000	9.00000	0.00000
19	0.37500	0.50000	0.25000	m_x,0,0	-9.00000	0.00000	0.00000
20	0.12500	0.50000	0.75000	-m_x,0,0	9.00000	0.00000	0.00000
21	0.25000	0.37500	0.50000	0,m_x,0	0.00000	-9.00000	0.00000
22	0.50000	0.25000	0.37500	0,0,m_x	0.00000	0.00000	-9.00000
23	0.00000	0.25000	0.62500	0,0,-m_x	0.00000	0.00000	9.00000
24	0.75000	0.12500	0.50000	0,-m_x,0	0.00000	9.00000	0.00000

[Show all magnetic atoms in unit cell and their moment relations]

MAGNDATA: A Collection of magnetic structures with portable cif-type files

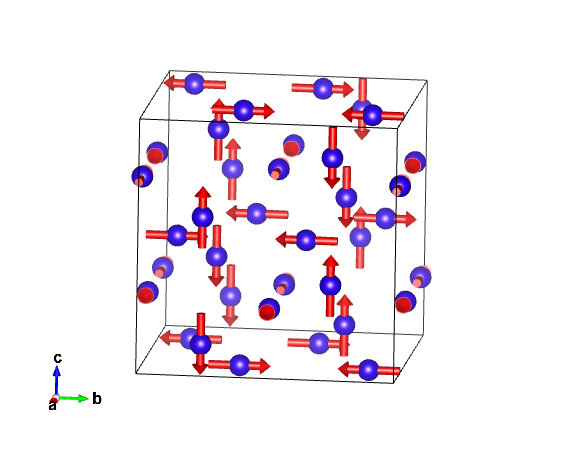

Dy₃Al₅O₁₂ (#0.127)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

Dy3Al5O12 (#0.127)

Dy₃Al₅O₁₂ (#0.127)
