Symmetry operations of the magnetic space group in the setting used:

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn_1	Mn	0.00000	0.00000	0.00000	8	0,m_y,m_z	0.0	0.81(5)	1.66(4)	1.85
Tm_1	Tm	0.00000	0.00000	0.50000	8	0,m_y,m_z	0.0	-0.05(5)	2.31(5)	2.31

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
O1_1	O	0.00000	0.25000	0.37500	4
O2_1	O	0.00000	0.25000	0.07940	8
O2_2	O	0.20440	0.45440	0.87500	16

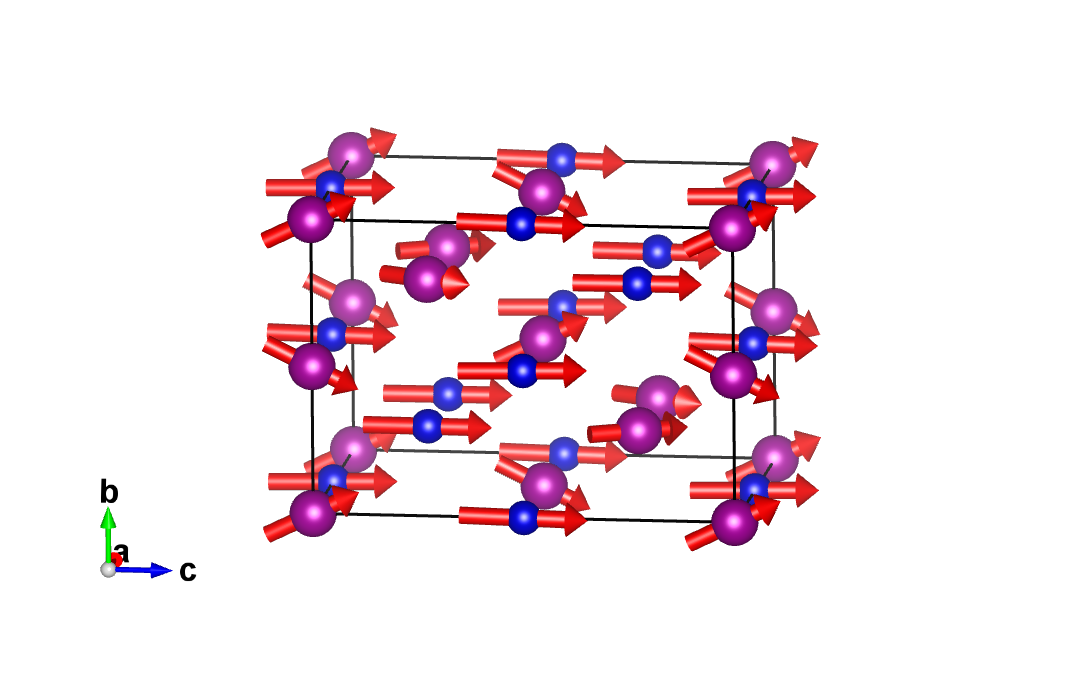

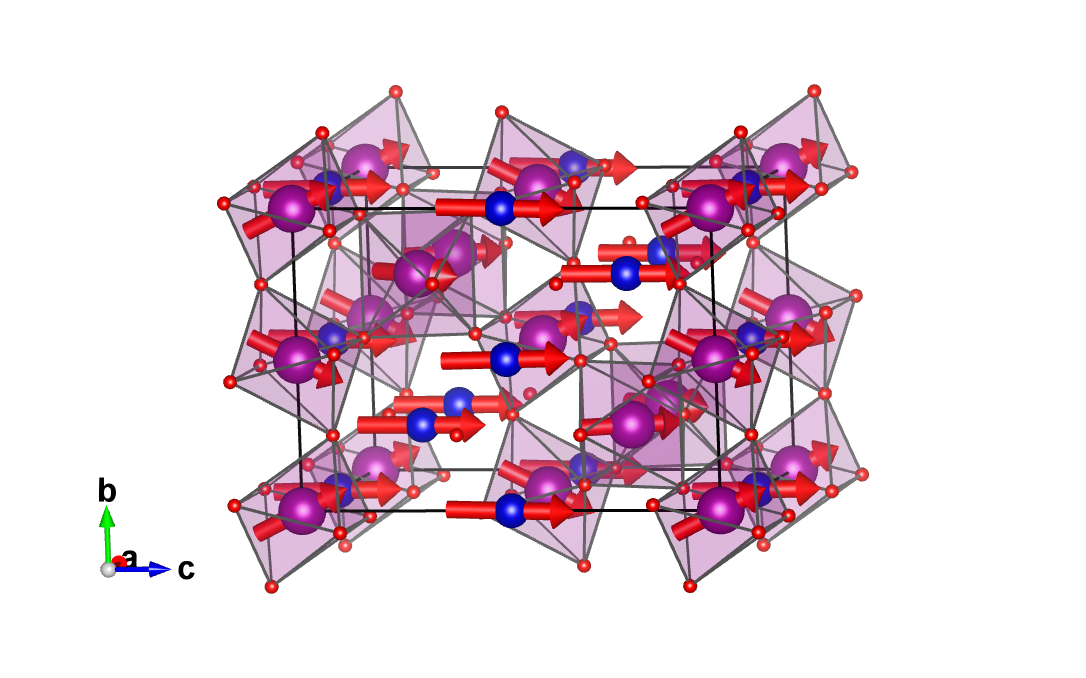

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Mn_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,m_y,m_z	0.00000	0.81000	1.66000
2	0.00000	0.50000	0.00000	0,-m_y,m_z	0.00000	-0.81000	1.66000
3	0.25000	0.75000	0.25000	-m_y,0,m_z	-0.81000	0.00000	1.66000
4	0.75000	0.75000	0.25000	m_y,0,m_z	0.81000	0.00000	1.66000
5	0.50000	0.50000	0.50000	0,m_y,m_z	0.00000	0.81000	1.66000
6	0.50000	0.00000	0.50000	0,-m_y,m_z	0.00000	-0.81000	1.66000
7	0.75000	0.25000	0.75000	-m_y,0,m_z	-0.81000	0.00000	1.66000
8	0.25000	0.25000	0.75000	m_y,0,m_z	0.81000	0.00000	1.66000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	0,m_y,m_z	0.00000	-0.05000	2.31000
2	0.00000	0.50000	0.50000	0,-m_y,m_z	0.00000	0.05000	2.31000
3	0.25000	0.75000	0.75000	-m_y,0,m_z	0.05000	0.00000	2.31000
4	0.75000	0.75000	0.75000	m_y,0,m_z	-0.05000	0.00000	2.31000
5	0.50000	0.50000	0.00000	0,m_y,m_z	0.00000	-0.05000	2.31000
6	0.50000	0.00000	0.00000	0,-m_y,m_z	0.00000	0.05000	2.31000
7	0.75000	0.25000	0.25000	-m_y,0,m_z	0.05000	0.00000	2.31000
8	0.25000	0.25000	0.25000	m_y,0,m_z	-0.05000	0.00000	2.31000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom O1_1:

Set of atoms in the unit cell related by symmetry with the atom O2_1:

Set of atoms in the unit cell related by symmetry with the atom O2_2:

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn_1	Mn	0.00000	0.00000	0.00000	8	0,m_y,m_z	0.0	0.81(5)	1.66(4)	1.85
Tm_1	Tm	0.00000	0.00000	0.50000	8	0,m_y,m_z	0.0	-0.05(5)	2.31(5)	2.31

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mGM4+	3	3	special	primary	4
