Transformation matrix from the parent setting (a_p,b_p,c_p) to the standard setting of the parent space group (a_pst,b_pst,c_pst):

[Hide]

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x,-y+1/2,-z+1/4,+1	{ 2₁₀₀ \| 0 1/2 1/4 }
3	-x,y+1/2,-z+1/4,+1	{ 2₀₁₀ \| 0 1/2 1/4 }
4	-x,-y,z,+1	{ 2₀₀₁ \| 0 }
5	y,-x,-z,+1	{ -4⁺₀₀₁ \| 0 }
6	-y,x,-z,+1	{ -4^-₀₀₁ \| 0 }
7	-y,-x+1/2,z+1/4,+1	{ m₁₁₀ \| 0 1/2 1/4 }
8	y,x+1/2,z+1/4,+1	{ m_1-10 \| 0 1/2 1/4 }
9	-y,x+1/2,z+1/4,-1	{ 4'⁺₀₀₁ \| 0 1/2 1/4 }
10	y,-x+1/2,z+1/4,-1	{ 4'^-₀₀₁ \| 0 1/2 1/4 }
11	y,x,-z,-1	{ 2'₁₁₀ \| 0 }
12	-y,-x,-z,-1	{ 2'_1-10 \| 0 }
13	-x,-y+1/2,-z+1/4,-1	{ -1' \| 0 1/2 1/4 }
14	-x,y,z,-1	{ m'₁₀₀ \| 0 }
15	x,-y,z,-1	{ m'₀₁₀ \| 0 }
16	x,y+1/2,-z+1/4,-1	{ m'₀₀₁ \| 0 1/2 1/4 }
(1/2,1/2,1/2) + set click here to show and hide
17	x+1/2,y+1/2,z+1/2,+1	{ 1 \| 1/2 1/2 1/2 }
18	x+1/2,-y,-z+3/4,+1	{ 2₁₀₀ \| 1/2 0 3/4 }
19	-x+1/2,y,-z+3/4,+1	{ 2₀₁₀ \| 1/2 0 3/4 }
20	-x+1/2,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 1/2 1/2 1/2 }
21	y+1/2,-x+1/2,-z+1/2,+1	{ -4⁺₀₀₁ \| 1/2 1/2 1/2 }
22	-y+1/2,x+1/2,-z+1/2,+1	{ -4^-₀₀₁ \| 1/2 1/2 1/2 }
23	-y+1/2,-x,z+3/4,+1	{ m₁₁₀ \| 1/2 0 3/4 }
24	y+1/2,x,z+3/4,+1	{ m_1-10 \| 1/2 0 3/4 }
25	-y+1/2,x,z+3/4,-1	{ 4'⁺₀₀₁ \| 1/2 0 3/4 }
26	y+1/2,-x,z+3/4,-1	{ 4'^-₀₀₁ \| 1/2 0 3/4 }
27	y+1/2,x+1/2,-z+1/2,-1	{ 2'₁₁₀ \| 1/2 1/2 1/2 }
28	-y+1/2,-x+1/2,-z+1/2,-1	{ 2'_1-10 \| 1/2 1/2 1/2 }
29	-x+1/2,-y,-z+3/4,-1	{ -1' \| 1/2 0 3/4 }
30	-x+1/2,y+1/2,z+1/2,-1	{ m'₁₀₀ \| 1/2 1/2 1/2 }
31	x+1/2,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 1/2 1/2 1/2 }
32	x+1/2,y,-z+3/4,-1	{ m'₀₀₁ \| 1/2 0 3/4 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

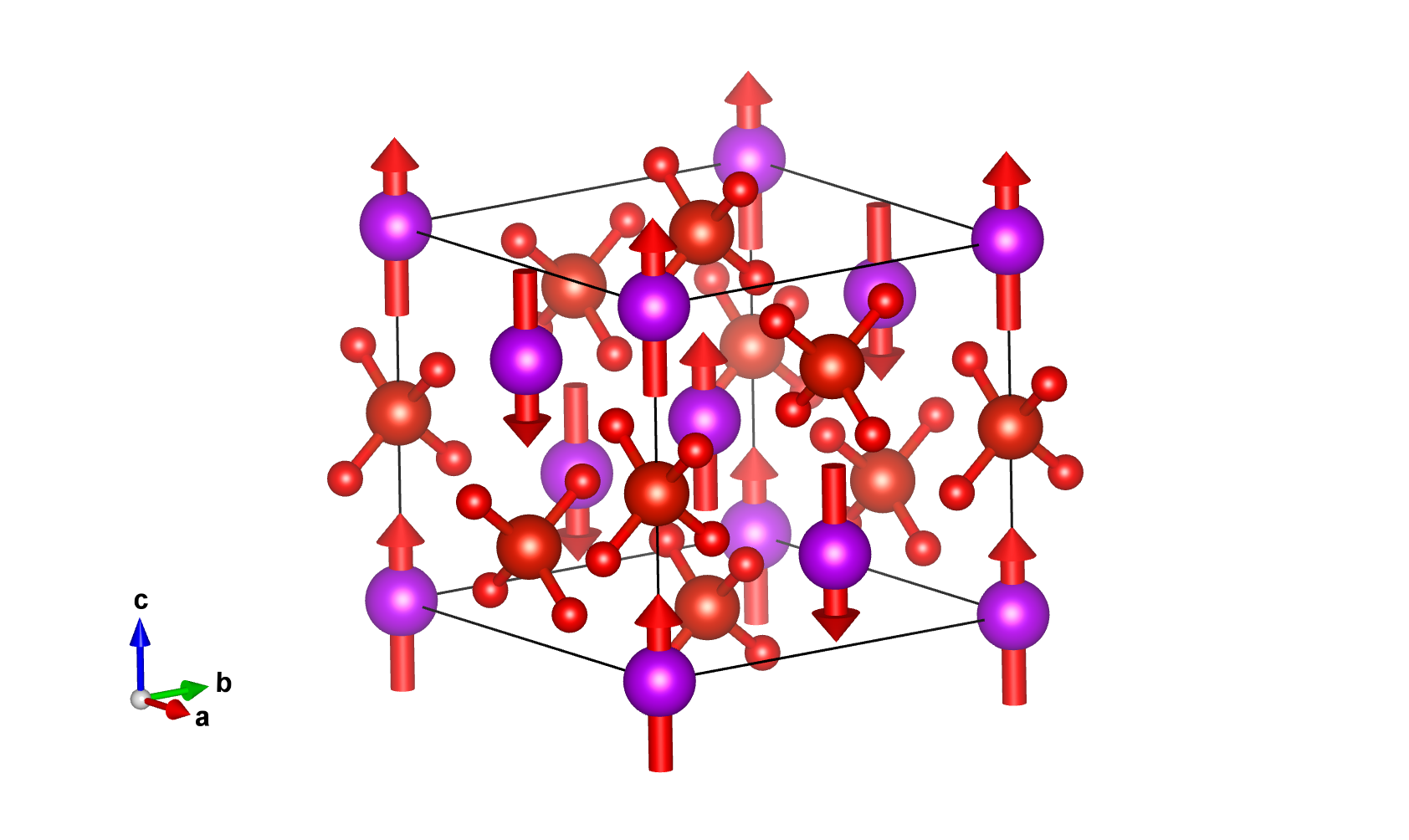

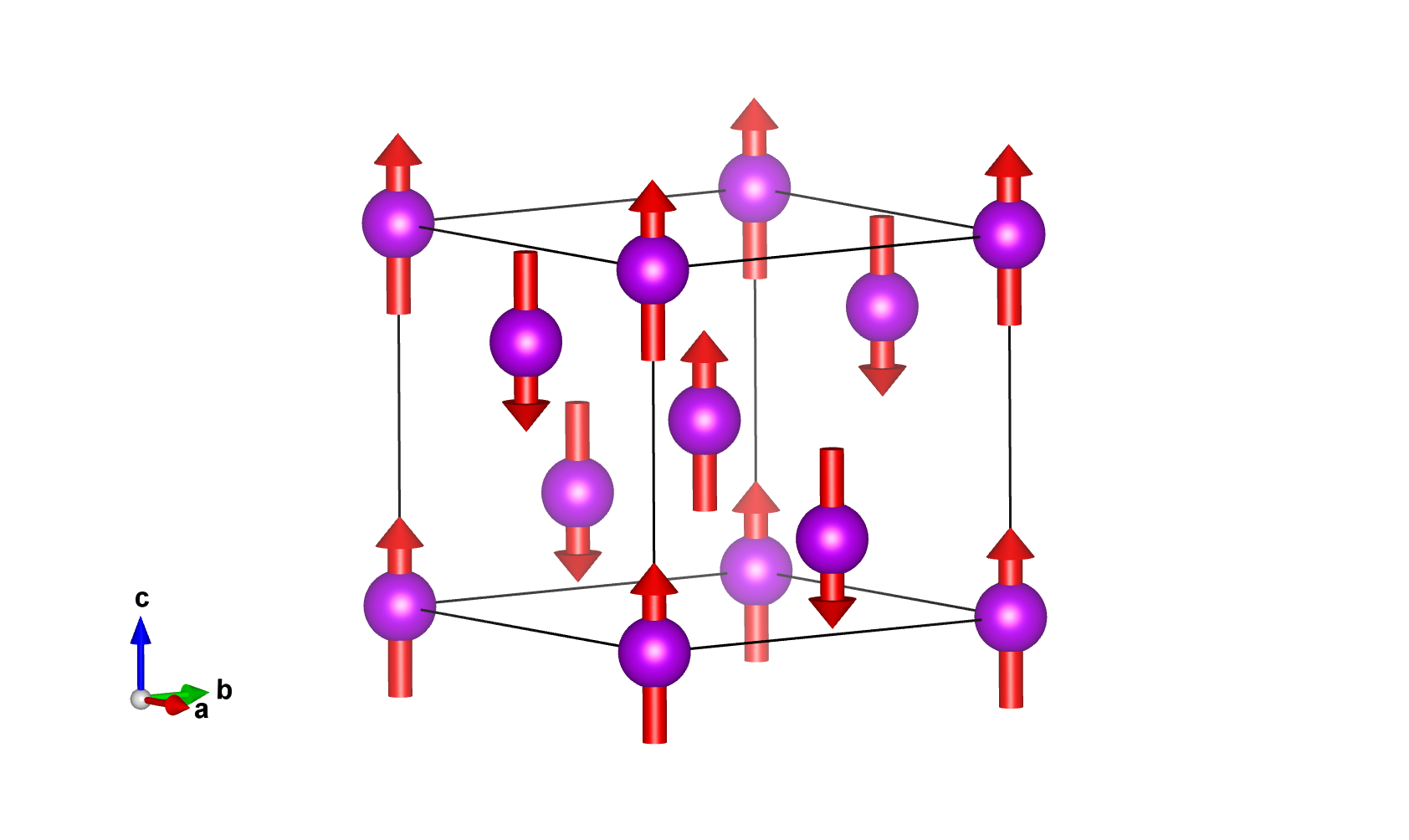

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Gd1	Gd	0.0	0.0	0.0	4	0,0,m_z	0.0	0.0	7.	7.00

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
V1	V	0.00000	0.00000	0.50000	4
O1	O	0.00000	0.15360	0.35210	16

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	7.00000
2	0.00000	0.50000	0.25000	0,0,-m_z	0.00000	0.00000	-7.00000
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.50000	0.50000	0,0,m_z	0.00000	0.00000	7.00000
4	0.50000	0.00000	0.75000	0,0,-m_z	0.00000	0.00000	-7.00000

Atom	x	y	z
1	0.00000	0.00000	0.50000
2	0.00000	0.50000	0.75000
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.50000	0.00000
4	0.50000	0.00000	0.25000

Atom	x	y	z
1	0.00000	0.15360	0.35210
2	0.00000	0.34640	0.89790
3	0.00000	0.65360	0.89790
4	0.00000	0.84640	0.35210
5	0.15360	0.00000	0.64790
6	0.84640	0.00000	0.64790
7	0.84640	0.50000	0.60210
8	0.15360	0.50000	0.60210
(1/2,1/2,1/2) + set click here to show and hide
9	0.50000	0.65360	0.85210
10	0.50000	0.84640	0.39790
11	0.50000	0.15360	0.39790
12	0.50000	0.34640	0.85210
13	0.65360	0.50000	0.14790
14	0.34640	0.50000	0.14790
15	0.34640	0.00000	0.10210
16	0.65360	0.00000	0.10210

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Gd1	Gd	0.0	0.0	0.0	4	0,0,m_z	0.0	0.0	7.	7.00

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	7.00000
2	0.00000	0.50000	0.25000	0,0,-m_z	0.00000	0.00000	-7.00000
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.50000	0.50000	0,0,m_z	0.00000	0.00000	7.00000
4	0.50000	0.00000	0.75000	0,0,-m_z	0.00000	0.00000	-7.00000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2-	1	1	primary	1
