Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-y,x-y,z,+1	{ 3⁺₀₀₁ \| 0 }
3	-x+y,-x,z,+1	{ 3^-₀₀₁ \| 0 }
4	-x,-y,-z,+1	{ -1 \| 0 }
5	y,-x+y,-z,+1	{ -3⁺₀₀₁ \| 0 }
6	x-y,x,-z,+1	{ -3^-₀₀₁ \| 0 }
7	x-y,-y,-z,-1	{ 2'₁₀₀ \| 0 }
8	y,x,-z,-1	{ 2'₁₁₀ \| 0 }
9	-x,-x+y,-z,-1	{ 2'₀₁₀ \| 0 }
10	-x+y,y,z,-1	{ m'₁₀₀ \| 0 }
11	-y,-x,z,-1	{ m'₁₁₀ \| 0 }
12	x,x-y,z,-1	{ m'₀₁₀ \| 0 }
(1/3,2/3,2/3) + set click here to show and hide
13	x+1/3,y+2/3,z+2/3,+1	{ 1 \| 1/3 2/3 2/3 }
14	-y+1/3,x-y+2/3,z+2/3,+1	{ 3⁺₀₀₁ \| 1/3 2/3 2/3 }
15	-x+y+1/3,-x+2/3,z+2/3,+1	{ 3^-₀₀₁ \| 1/3 2/3 2/3 }
16	-x+1/3,-y+2/3,-z+2/3,+1	{ -1 \| 1/3 2/3 2/3 }
17	y+1/3,-x+y+2/3,-z+2/3,+1	{ -3⁺₀₀₁ \| 1/3 2/3 2/3 }
18	x-y+1/3,x+2/3,-z+2/3,+1	{ -3^-₀₀₁ \| 1/3 2/3 2/3 }
19	x-y+1/3,-y+2/3,-z+2/3,-1	{ 2'₁₀₀ \| 1/3 2/3 2/3 }
20	y+1/3,x+2/3,-z+2/3,-1	{ 2'₁₁₀ \| 1/3 2/3 2/3 }
21	-x+1/3,-x+y+2/3,-z+2/3,-1	{ 2'₀₁₀ \| 1/3 2/3 2/3 }
22	-x+y+1/3,y+2/3,z+2/3,-1	{ m'₁₀₀ \| 1/3 2/3 2/3 }
23	-y+1/3,-x+2/3,z+2/3,-1	{ m'₁₁₀ \| 1/3 2/3 2/3 }
24	x+1/3,x-y+2/3,z+2/3,-1	{ m'₀₁₀ \| 1/3 2/3 2/3 }
(2/3,1/3,1/3) + set click here to show and hide
25	x+2/3,y+1/3,z+1/3,+1	{ 1 \| 2/3 1/3 1/3 }
26	-y+2/3,x-y+1/3,z+1/3,+1	{ 3⁺₀₀₁ \| 2/3 1/3 1/3 }
27	-x+y+2/3,-x+1/3,z+1/3,+1	{ 3^-₀₀₁ \| 2/3 1/3 1/3 }
28	-x+2/3,-y+1/3,-z+1/3,+1	{ -1 \| 2/3 1/3 1/3 }
29	y+2/3,-x+y+1/3,-z+1/3,+1	{ -3⁺₀₀₁ \| 2/3 1/3 1/3 }
30	x-y+2/3,x+1/3,-z+1/3,+1	{ -3^-₀₀₁ \| 2/3 1/3 1/3 }
31	x-y+2/3,-y+1/3,-z+1/3,-1	{ 2'₁₀₀ \| 2/3 1/3 1/3 }
32	y+2/3,x+1/3,-z+1/3,-1	{ 2'₁₁₀ \| 2/3 1/3 1/3 }
33	-x+2/3,-x+y+1/3,-z+1/3,-1	{ 2'₀₁₀ \| 2/3 1/3 1/3 }
34	-x+y+2/3,y+1/3,z+1/3,-1	{ m'₁₀₀ \| 2/3 1/3 1/3 }
35	-y+2/3,-x+1/3,z+1/3,-1	{ m'₁₁₀ \| 2/3 1/3 1/3 }
36	x+2/3,x-y+1/3,z+1/3,-1	{ m'₀₁₀ \| 2/3 1/3 1/3 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-y,x-y,z,+1	3⁺₀₀₁
3	-x+y,-x,z,+1	3^-₀₀₁
4	-x,-y,-z,+1	-1
5	y,-x+y,-z,+1	-3⁺₀₀₁
6	x-y,x,-z,+1	-3^-₀₀₁
7	x-y,-y,-z,-1	2'₁₀₀
8	y,x,-z,-1	2'₁₁₀
9	-x,-x+y,-z,-1	2'₀₁₀
10	-x+y,y,z,-1	m'₁₀₀
11	-y,-x,z,-1	m'₁₁₀
12	x,x-y,z,-1	m'₀₁₀

Magnetic atoms:

Label	Atom type	x	z	Multiplicity	Symmetry constraints on M	M_z	\|M\|
Tb1	Tb	0.00000	0.12640	6	0,0,m_z	8.30(5)	8.30
Co1	Co	0.00000	0.50000	3	0,0,m_z	1.30(4)	1.30
Co2	Co	0.50000	0.00000	9	m_x,2m_x,m_z	1.19(3)	1.19

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.12640	0,0,m_z	0.00000	0.00000	8.30000
2	0.00000	0.00000	0.87360	0,0,m_z	0.00000	0.00000	8.30000
(1/3,2/3,2/3) + set click here to show and hide
3	0.33333	0.66667	0.79307	0,0,m_z	0.00000	0.00000	8.30000
4	0.33333	0.66667	0.54027	0,0,m_z	0.00000	0.00000	8.30000
(2/3,1/3,1/3) + set click here to show and hide
5	0.66667	0.33333	0.45973	0,0,m_z	0.00000	0.00000	8.30000
6	0.66667	0.33333	0.20693	0,0,m_z	0.00000	0.00000	8.30000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	0,0,m_z	0.00000	0.00000	1.30000
(1/3,2/3,2/3) + set click here to show and hide
2	0.33333	0.66667	0.16667	0,0,m_z	0.00000	0.00000	1.30000
(2/3,1/3,1/3) + set click here to show and hide
3	0.66667	0.33333	0.83333	0,0,m_z	0.00000	0.00000	1.30000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.50000	0.00000	0.00000	m_x,2m_x,m_z	0.00000	0.00000	1.19000
2	0.00000	0.50000	0.00000	-2m_x,-m_x,m_z	0.00000	0.00000	1.19000
3	0.50000	0.50000	0.00000	m_x,-m_x,m_z	0.00000	0.00000	1.19000
(1/3,2/3,2/3) + set click here to show and hide
4	0.83333	0.66667	0.66667	m_x,2m_x,m_z	0.00000	0.00000	1.19000
5	0.33333	0.16667	0.66667	-2m_x,-m_x,m_z	0.00000	0.00000	1.19000
6	0.83333	0.16667	0.66667	m_x,-m_x,m_z	0.00000	0.00000	1.19000
(2/3,1/3,1/3) + set click here to show and hide
7	0.16667	0.33333	0.33333	m_x,2m_x,m_z	0.00000	0.00000	1.19000
8	0.66667	0.83333	0.33333	-2m_x,-m_x,m_z	0.00000	0.00000	1.19000
9	0.16667	0.83333	0.33333	m_x,-m_x,m_z	0.00000	0.00000	1.19000

[Show all atoms in unit cell and their moment relations]

Label	Atom type	x	z	Multiplicity	Symmetry constraints on M	M_z	\|M\|
Tb1	Tb	0.00000	0.12640	6	0,0,m_z	8.30(5)	8.30
Co1	Co	0.00000	0.50000	3	0,0,m_z	1.30(4)	1.30
Co2	Co	0.50000	0.00000	9	m_x,2m_x,m_z	1.19(3)	1.19

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.12640	0,0,m_z	0.00000	0.00000	8.30000
2	0.00000	0.00000	0.87360	0,0,m_z	0.00000	0.00000	8.30000
(1/3,2/3,2/3) + set click here to show and hide
3	0.33333	0.66667	0.79307	0,0,m_z	0.00000	0.00000	8.30000
4	0.33333	0.66667	0.54027	0,0,m_z	0.00000	0.00000	8.30000
(2/3,1/3,1/3) + set click here to show and hide
5	0.66667	0.33333	0.45973	0,0,m_z	0.00000	0.00000	8.30000
6	0.66667	0.33333	0.20693	0,0,m_z	0.00000	0.00000	8.30000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	0,0,m_z	0.00000	0.00000	1.30000
(1/3,2/3,2/3) + set click here to show and hide
2	0.33333	0.66667	0.16667	0,0,m_z	0.00000	0.00000	1.30000
(2/3,1/3,1/3) + set click here to show and hide
3	0.66667	0.33333	0.83333	0,0,m_z	0.00000	0.00000	1.30000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.50000	0.00000	0.00000	m_x,2m_x,m_z	0.00000	0.00000	1.19000
2	0.00000	0.50000	0.00000	-2m_x,-m_x,m_z	0.00000	0.00000	1.19000
3	0.50000	0.50000	0.00000	m_x,-m_x,m_z	0.00000	0.00000	1.19000
(1/3,2/3,2/3) + set click here to show and hide
4	0.83333	0.66667	0.66667	m_x,2m_x,m_z	0.00000	0.00000	1.19000
5	0.33333	0.16667	0.66667	-2m_x,-m_x,m_z	0.00000	0.00000	1.19000
6	0.83333	0.16667	0.66667	m_x,-m_x,m_z	0.00000	0.00000	1.19000
(2/3,1/3,1/3) + set click here to show and hide
7	0.16667	0.33333	0.33333	m_x,2m_x,m_z	0.00000	0.00000	1.19000
8	0.66667	0.83333	0.33333	-2m_x,-m_x,m_z	0.00000	0.00000	1.19000
9	0.16667	0.83333	0.33333	m_x,-m_x,m_z	0.00000	0.00000	1.19000

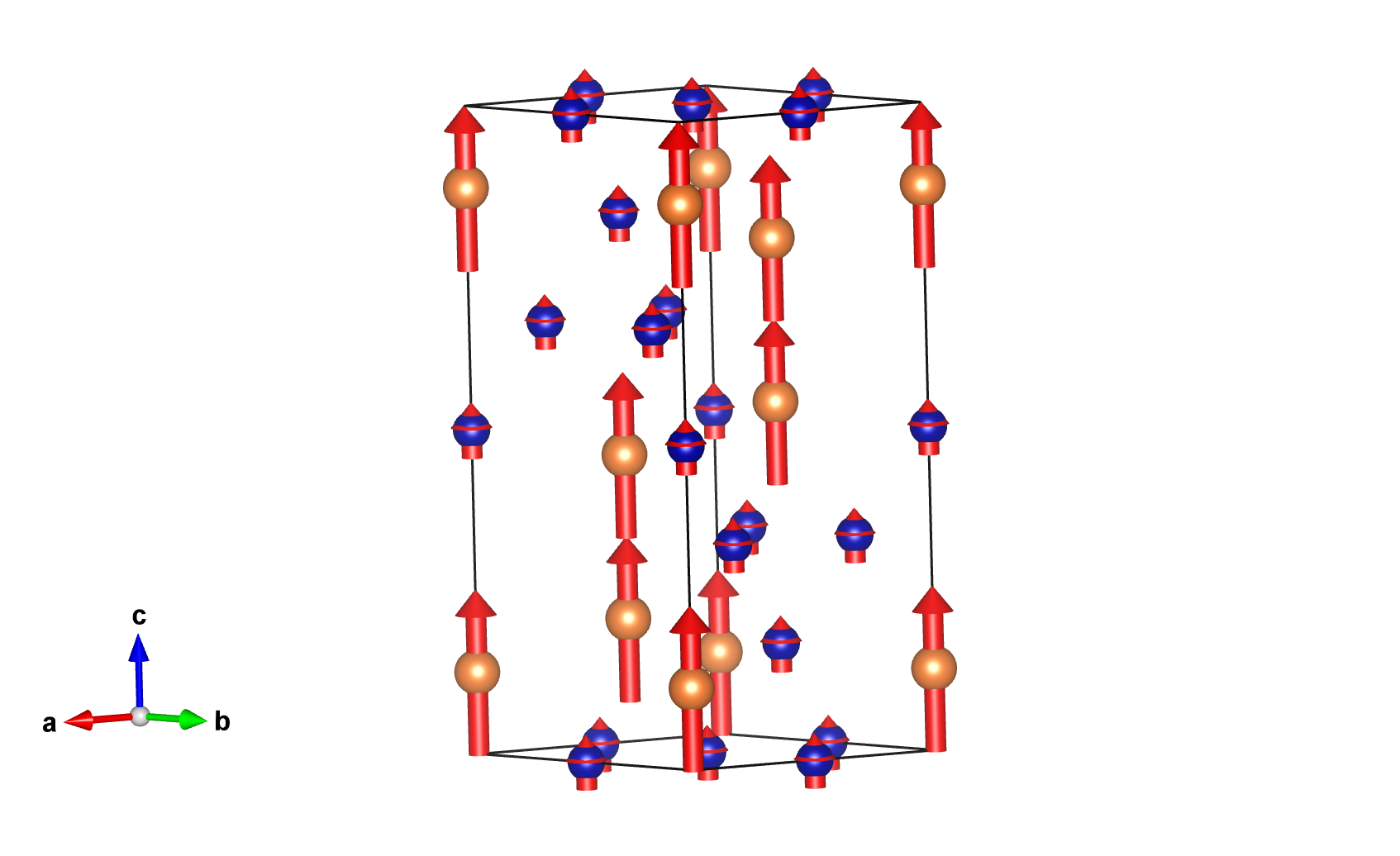

[Show all magnetic atoms in unit cell and their moment relations]

label	dim. full irrep	dim. small irrep	direction	action	number of modes	presence
mGM4+	3	3	special	primary	3
mGM2+	1	1		secondary	1	yes

MAGNDATA: A Collection of magnetic structures with portable cif-type files

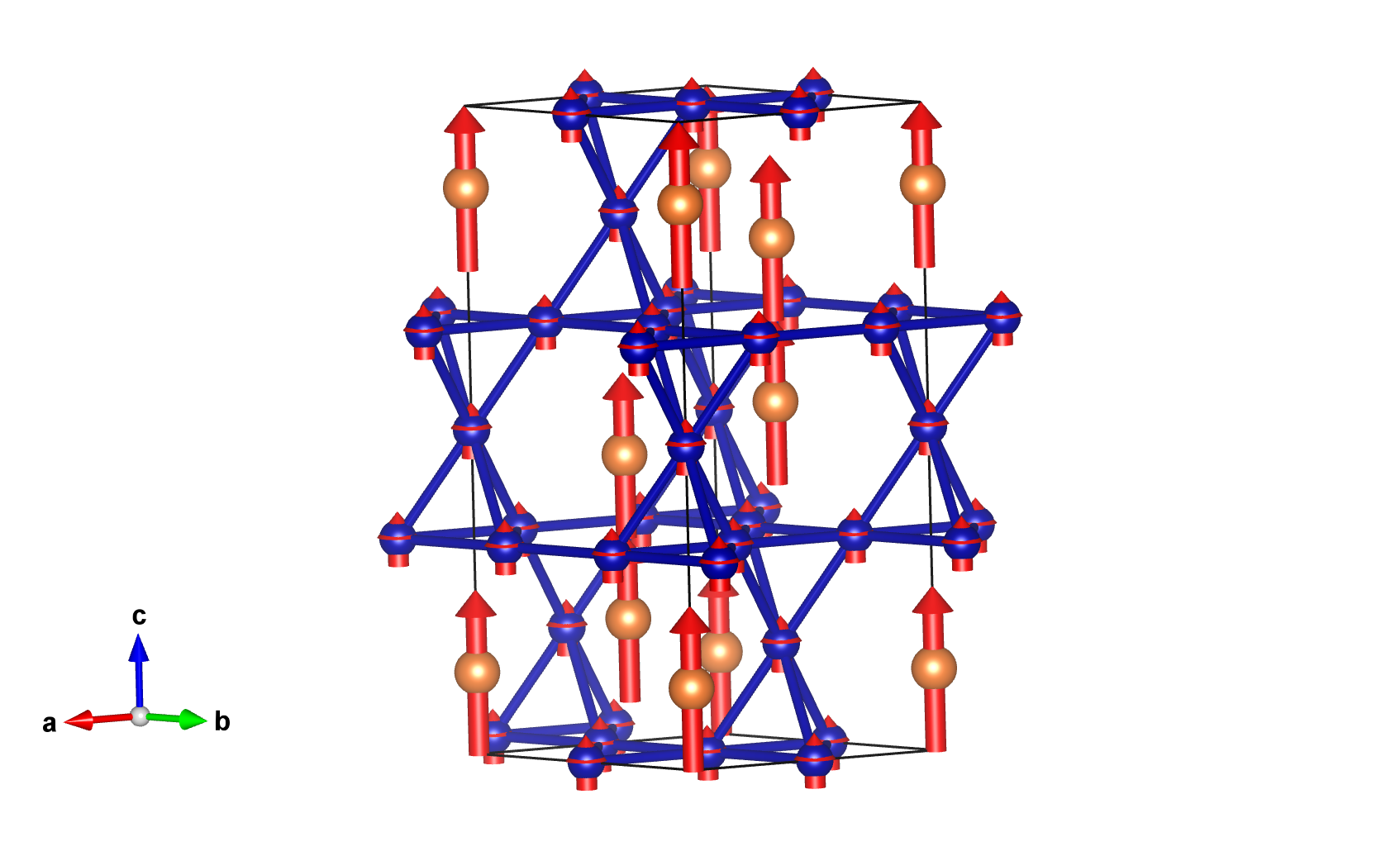

TbCo₂ (#0.228)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

TbCo2 (#0.228)

TbCo₂ (#0.228)
