Symmetry operations of the magnetic space group in the setting used:

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
U1	U	0.14200	0.46300	0.50000	1.	6	m_x,m_y,0	0.07	2.31	2.28
U2	U	0.39100	0.11400	0.00000	1.	6	m_x,m_y,0	-1.28	0.34	1.48
U3	U	0.00000	0.00000	0.30400	1.	2	0,0,m_z	0.0	0.0	0.00

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
Au1	Au	0.07920	0.26800	0.23190	1.	12
Au2	Au	0.11600	0.49440	0.15300	1.	12
Au3	Au	0.44300	0.10300	0.33430	1.	12
Au4	Au	0.23700	0.05800	0.50000	1.	6
Au5	Au	0.86400	0.97300	0.00000	0.5	6
Au6	Au	0.33333	0.66667	0.31000	1.	4
Au7	Au	0.33333	0.66667	0.00000	1.	2

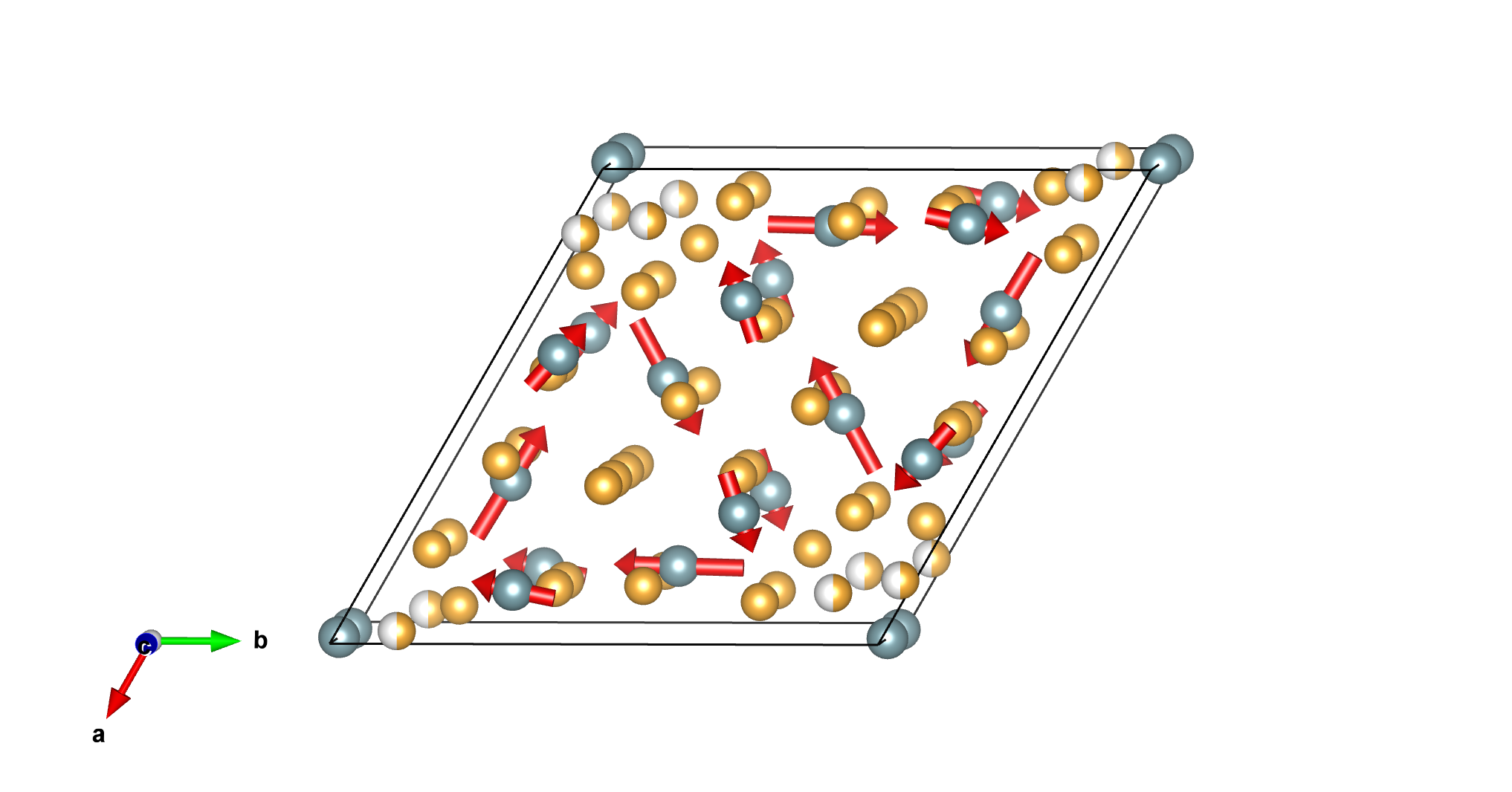

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

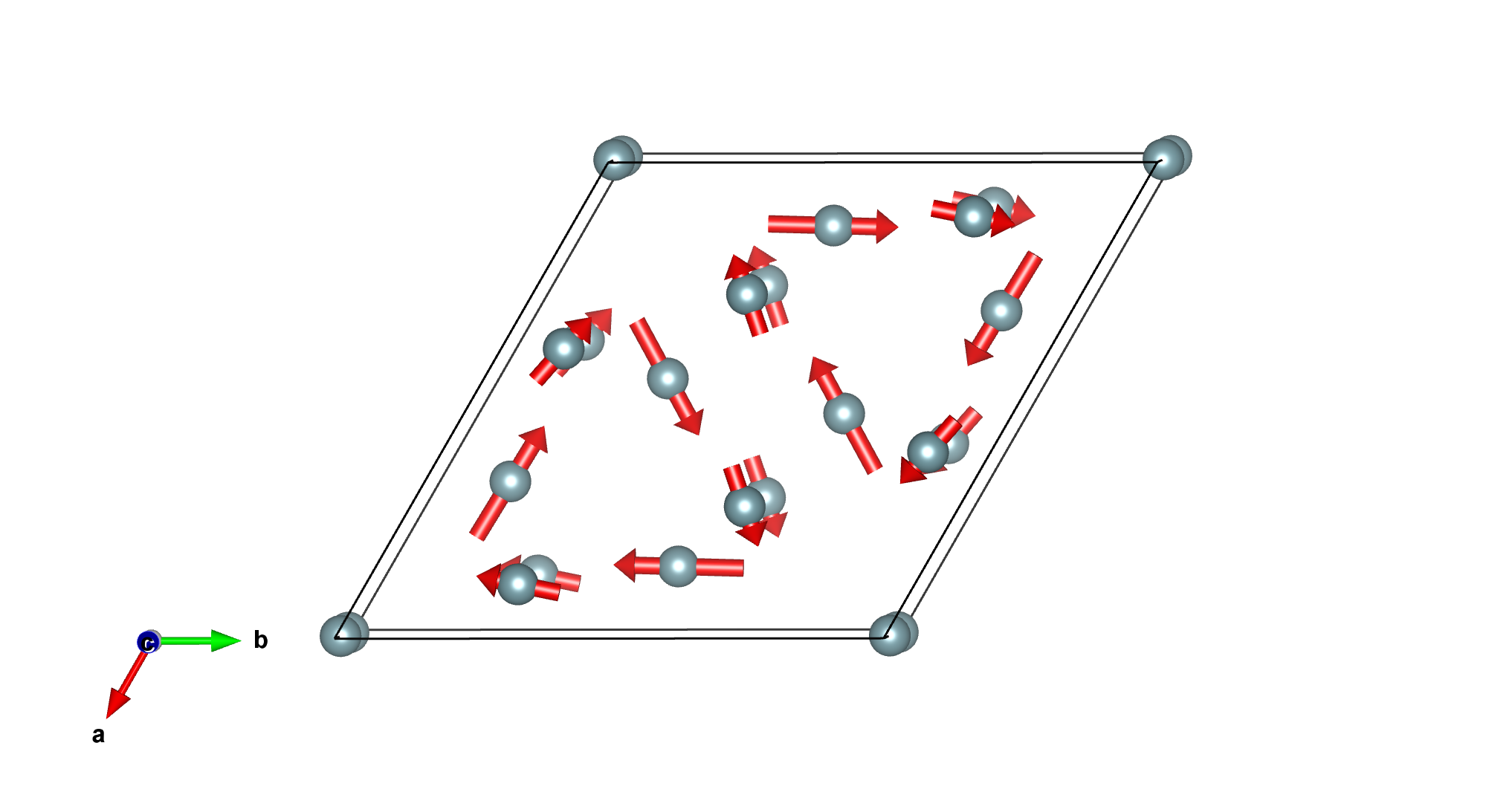

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom U1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y
1	0.14200	0.46300	0.50000	m_x,m_y,0	0.07000	2.31000
2	0.67900	0.14200	0.50000	m_x-m_y,m_x,0	-2.24000	0.07000
3	0.53700	0.67900	0.50000	-m_y,m_x-m_y,0	-2.31000	-2.24000
4	0.85800	0.53700	0.50000	-m_x,-m_y,0	-0.07000	-2.31000
5	0.32100	0.85800	0.50000	-m_x+m_y,-m_x,0	2.24000	-0.07000
6	0.46300	0.32100	0.50000	m_y,-m_x+m_y,0	2.31000	2.24000

Set of atoms in the unit cell related by symmetry with the magnetic atom U2:

Atom	x	y	Symmetry constraints on M	M_x	M_y
1	0.39100	0.11400	m_x,m_y,0	-1.28000	0.34000
2	0.27700	0.39100	m_x-m_y,m_x,0	-1.62000	-1.28000
3	0.88600	0.27700	-m_y,m_x-m_y,0	-0.34000	-1.62000
4	0.60900	0.88600	-m_x,-m_y,0	1.28000	-0.34000
5	0.72300	0.60900	-m_x+m_y,-m_x,0	1.62000	1.28000
6	0.11400	0.72300	m_y,-m_x+m_y,0	0.34000	1.62000

Set of atoms in the unit cell related by symmetry with the magnetic atom U3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.30400	0,0,m_z	0.00000	0.00000	0.00000
2	0.00000	0.00000	0.69600	0,0,-m_z	0.00000	0.00000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Au1:

Set of atoms in the unit cell related by symmetry with the atom Au2:

Set of atoms in the unit cell related by symmetry with the atom Au3:

Set of atoms in the unit cell related by symmetry with the atom Au4:

Set of atoms in the unit cell related by symmetry with the atom Au5:

Set of atoms in the unit cell related by symmetry with the atom Au6:

Set of atoms in the unit cell related by symmetry with the atom Au7:

Atom	x	y	z
1	0.33333	0.66667	0.00000
2	0.66666	0.33333	0.00000

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
U1	U	0.14200	0.46300	0.50000	6	m_x,m_y,0	0.07	2.31	2.28
U2	U	0.39100	0.11400	0.00000	6	m_x,m_y,0	-1.28	0.34	1.48
U3	U	0.00000	0.00000	0.30400	2	0,0,m_z	0.0	0.0	0.00

label	dim. small irrep	dim. full irrep	action	number of modes
mGM1-	1	1	primary	5
