Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,-y+1/2,z,+1	{ 2₀₀₁ \| 0 1/2 0 }
3	y+1/4,-x+3/4,-z+3/4,+1	{ -4⁺₀₀₁ \| 1/4 3/4 3/4 }
4	-y+3/4,x+3/4,-z+3/4,+1	{ -4^-₀₀₁ \| 3/4 3/4 3/4 }
5	-y+3/4,x+1/4,z+1/4,-1	{ 4'⁺₀₀₁ \| 3/4 1/4 1/4 }
6	y+1/4,-x+1/4,z+1/4,-1	{ 4'^-₀₀₁ \| 1/4 1/4 1/4 }
7	-x,-y,-z,-1	{ -1' \| 0 }
8	x,y+1/2,-z,-1	{ m'₀₀₁ \| 0 1/2 0 }
(1/2,1/2,1/2) + set click here to show and hide
9	x+1/2,y+1/2,z+1/2,+1	{ 1 \| 1/2 1/2 1/2 }
10	-x+1/2,-y,z+1/2,+1	{ 2₀₀₁ \| 1/2 0 1/2 }
11	y+3/4,-x+1/4,-z+1/4,+1	{ -4⁺₀₀₁ \| 3/4 1/4 1/4 }
12	-y+1/4,x+1/4,-z+1/4,+1	{ -4^-₀₀₁ \| 1/4 1/4 1/4 }
13	-y+1/4,x+3/4,z+3/4,-1	{ 4'⁺₀₀₁ \| 1/4 3/4 3/4 }
14	y+3/4,-x+3/4,z+3/4,-1	{ 4'^-₀₀₁ \| 3/4 3/4 3/4 }
15	-x+1/2,-y+1/2,-z+1/2,-1	{ -1' \| 1/2 1/2 1/2 }
16	x+1/2,y,-z+1/2,-1	{ m'₀₀₁ \| 1/2 0 1/2 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

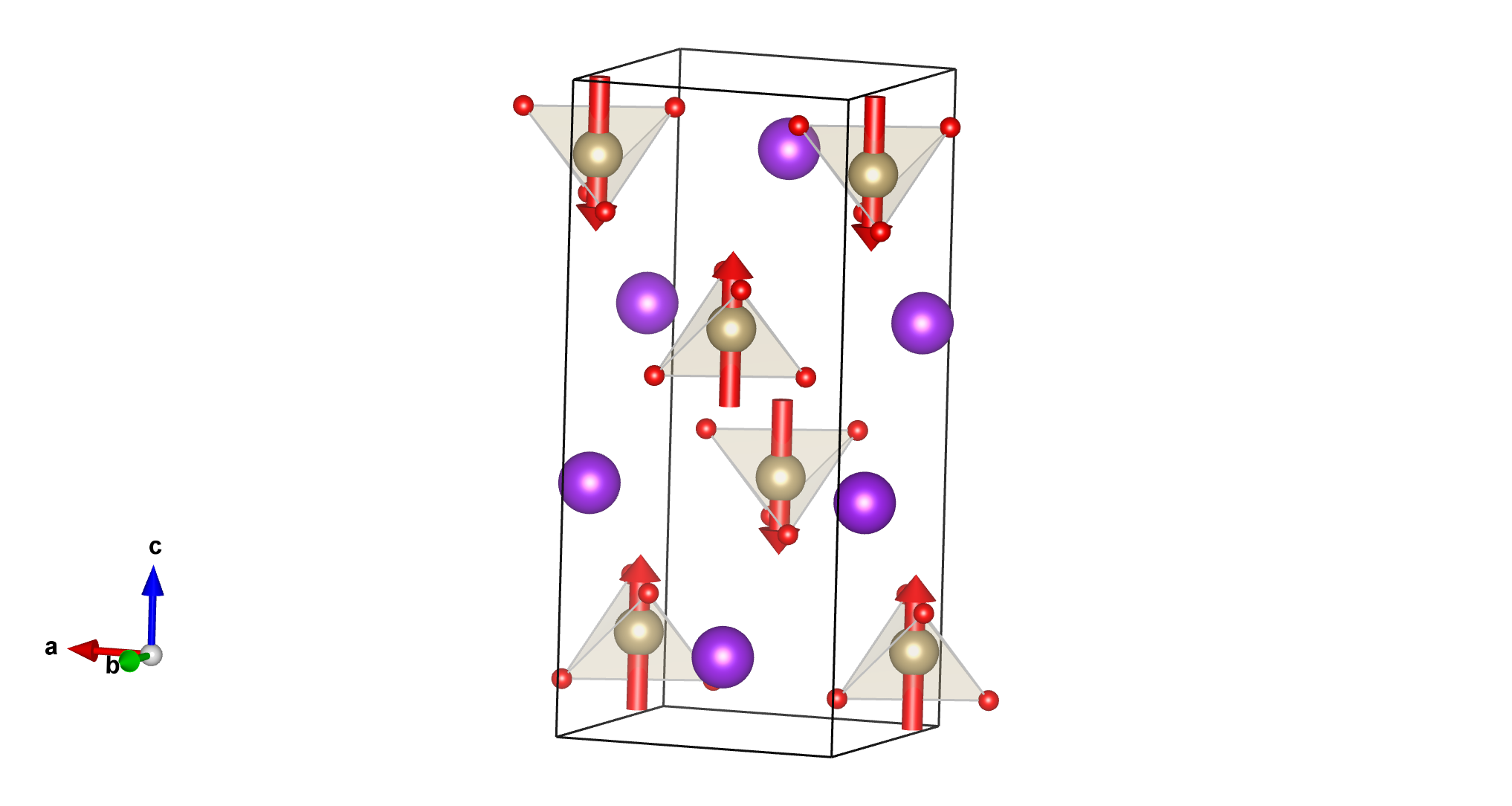

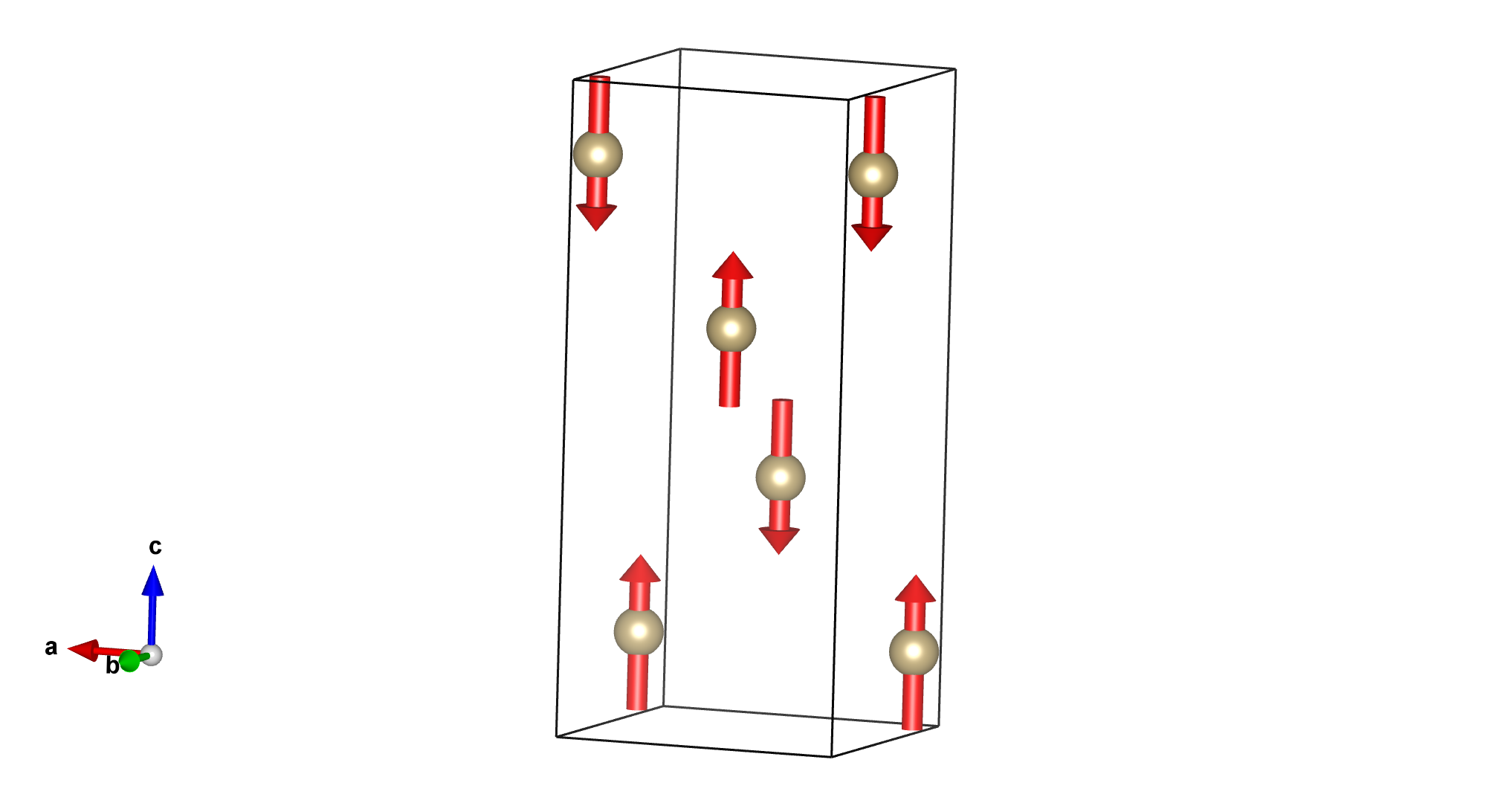

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Os1	Os	0.00000	0.25000	0.12500	4	0,0,m_z	0.0	0.0	0.46(18)	0.46

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
K1	K	0.00000	0.25000	0.62500	4
O1	O	0.11960	0.02140	0.19780	16

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.25000	0.12500	0,0,m_z	0.00000	0.00000	0.46000
2	0.50000	0.25000	0.37500	0,0,-m_z	0.00000	0.00000	-0.46000
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.75000	0.62500	0,0,m_z	0.00000	0.00000	0.46000
4	0.00000	0.75000	0.87500	0,0,-m_z	0.00000	0.00000	-0.46000

Atom	x	y	z
1	0.00000	0.25000	0.62500
2	0.50000	0.25000	0.87500
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.75000	0.12500
4	0.00000	0.75000	0.37500

Atom	x	y	z
1	0.11960	0.02140	0.19780
2	0.88040	0.47860	0.19780
3	0.27140	0.63040	0.55220
4	0.72860	0.86960	0.55220
5	0.72860	0.36960	0.44780
6	0.27140	0.13040	0.44780
7	0.88040	0.97860	0.80220
8	0.11960	0.52140	0.80220
(1/2,1/2,1/2) + set click here to show and hide
9	0.61960	0.52140	0.69780
10	0.38040	0.97860	0.69780
11	0.77140	0.13040	0.05220
12	0.22860	0.36960	0.05220
13	0.22860	0.86960	0.94780
14	0.77140	0.63040	0.94780
15	0.38040	0.47860	0.30220
16	0.61960	0.02140	0.30220

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Os1	Os	0.00000	0.25000	0.12500	4	0,0,m_z	0.0	0.0	0.46(18)	0.46

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.25000	0.12500	0,0,m_z	0.00000	0.00000	0.46000
2	0.50000	0.25000	0.37500	0,0,-m_z	0.00000	0.00000	-0.46000
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.75000	0.62500	0,0,m_z	0.00000	0.00000	0.46000
4	0.00000	0.75000	0.87500	0,0,-m_z	0.00000	0.00000	-0.46000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2-	1	1	primary	1
