MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x,-y,-z,+1	{ 2₁₀₀ \| 0 }
3	-x,y+1/2,-z,+1	{ 2₀₁₀ \| 0 1/2 0 }
4	-x,-y+1/2,z,+1	{ 2₀₀₁ \| 0 1/2 0 }
5	-x,-y,-z,-1	{ -1' \| 0 }
6	-x,y,z,-1	{ m'₁₀₀ \| 0 }
7	x,-y+1/2,z,-1	{ m'₀₁₀ \| 0 1/2 0 }
8	x,y+1/2,-z,-1	{ m'₀₀₁ \| 0 1/2 0 }
(1/2,1/2,1/2) + set click here to show and hide
9	x+1/2,y+1/2,z+1/2,+1	{ 1 \| 1/2 1/2 1/2 }
10	x+1/2,-y+1/2,-z+1/2,+1	{ 2₁₀₀ \| 1/2 1/2 1/2 }
11	-x+1/2,y,-z+1/2,+1	{ 2₀₁₀ \| 1/2 0 1/2 }
12	-x+1/2,-y,z+1/2,+1	{ 2₀₀₁ \| 1/2 0 1/2 }
13	-x+1/2,-y+1/2,-z+1/2,-1	{ -1' \| 1/2 1/2 1/2 }
14	-x+1/2,y+1/2,z+1/2,-1	{ m'₁₀₀ \| 1/2 1/2 1/2 }
15	x+1/2,-y,z+1/2,-1	{ m'₀₁₀ \| 1/2 0 1/2 }
16	x+1/2,y,-z+1/2,-1	{ m'₀₀₁ \| 1/2 0 1/2 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

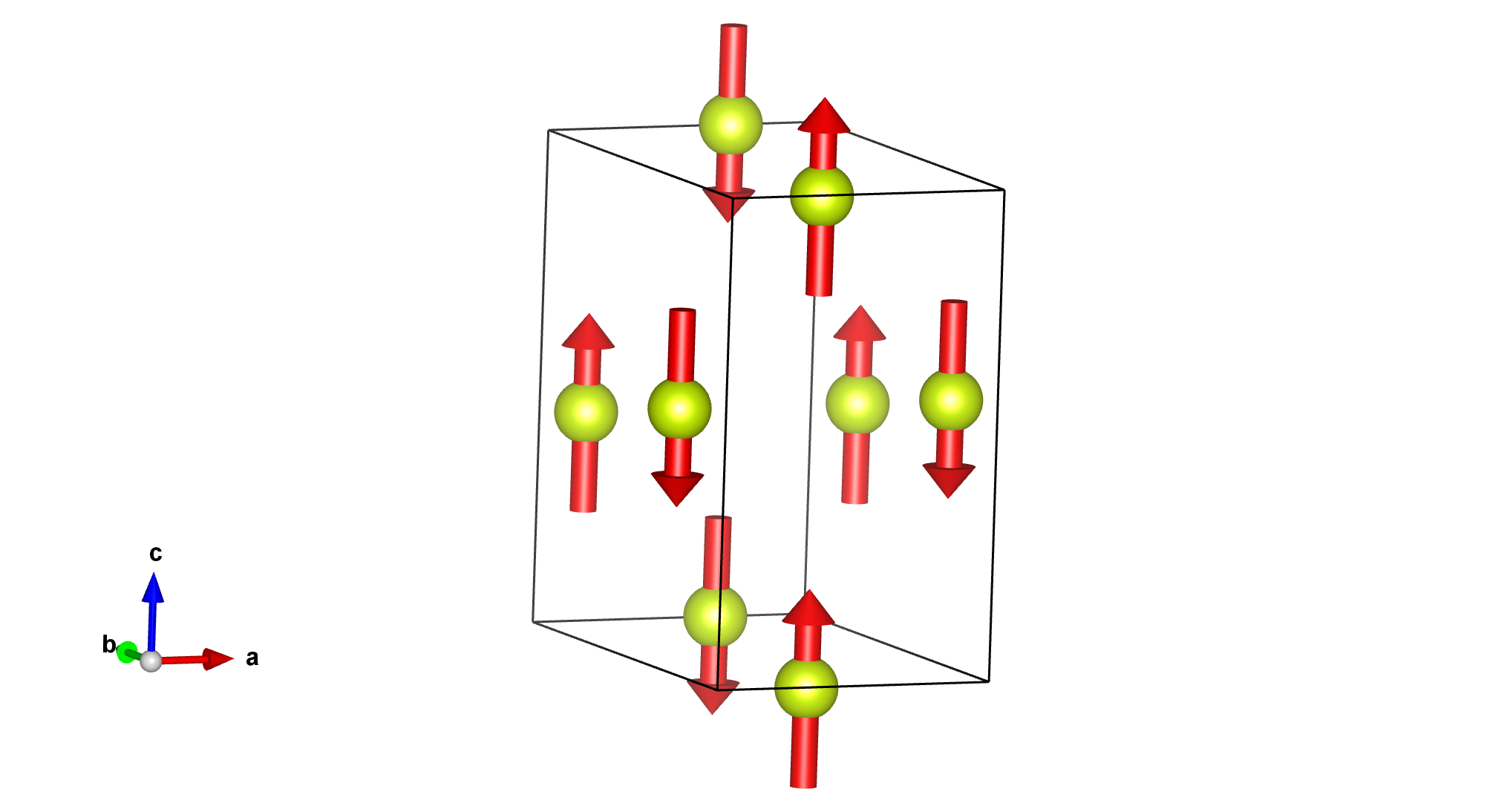

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ce1	Ce	0.00000	0.25000	0.53800	4	0,0,m_z	0.0	0.0	-0.33(2)	0.33

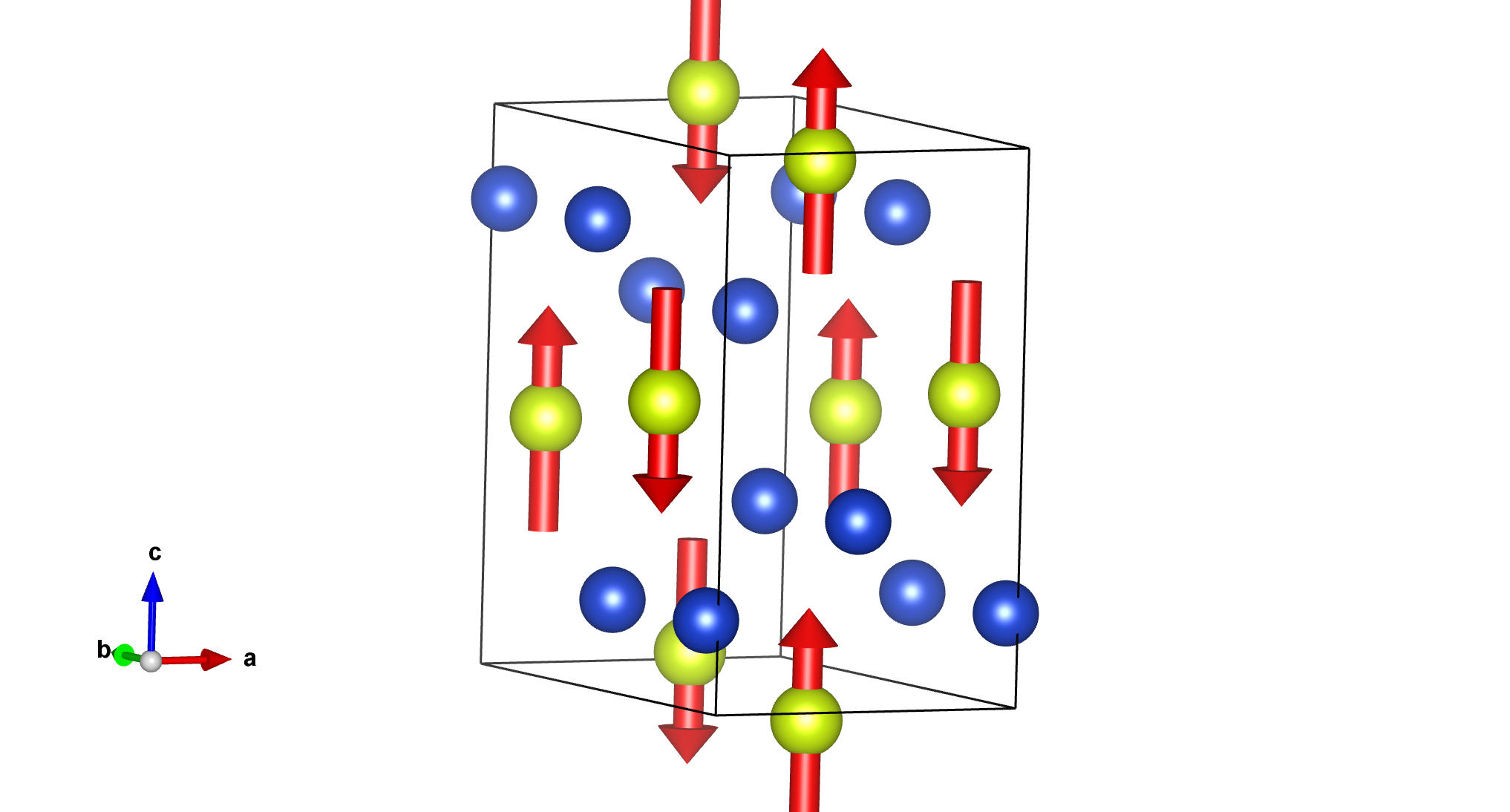

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Cu1	Cu	0.00000	0.05100	0.16500	8

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.25000	0.53800	0,0,m_z	0.00000	0.00000	-0.33000
2	0.00000	0.75000	0.46200	0,0,-m_z	0.00000	0.00000	0.33000
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.75000	0.03800	0,0,m_z	0.00000	0.00000	-0.33000
4	0.50000	0.25000	0.96200	0,0,-m_z	0.00000	0.00000	0.33000

Atom	x	y	z
1	0.00000	0.05100	0.16500
2	0.00000	0.94900	0.83500
3	0.00000	0.55100	0.83500
4	0.00000	0.44900	0.16500
(1/2,1/2,1/2) + set click here to show and hide
5	0.50000	0.55100	0.66500
6	0.50000	0.44900	0.33500
7	0.50000	0.05100	0.33500
8	0.50000	0.94900	0.66500

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ce1	Ce	0.00000	0.25000	0.53800	4	0,0,m_z	0.0	0.0	-0.33(2)	0.33

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.25000	0.53800	0,0,m_z	0.00000	0.00000	-0.33000
2	0.00000	0.75000	0.46200	0,0,-m_z	0.00000	0.00000	0.33000
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.75000	0.03800	0,0,m_z	0.00000	0.00000	-0.33000
4	0.50000	0.25000	0.96200	0,0,-m_z	0.00000	0.00000	0.33000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM1-	1	1	primary	1
