MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

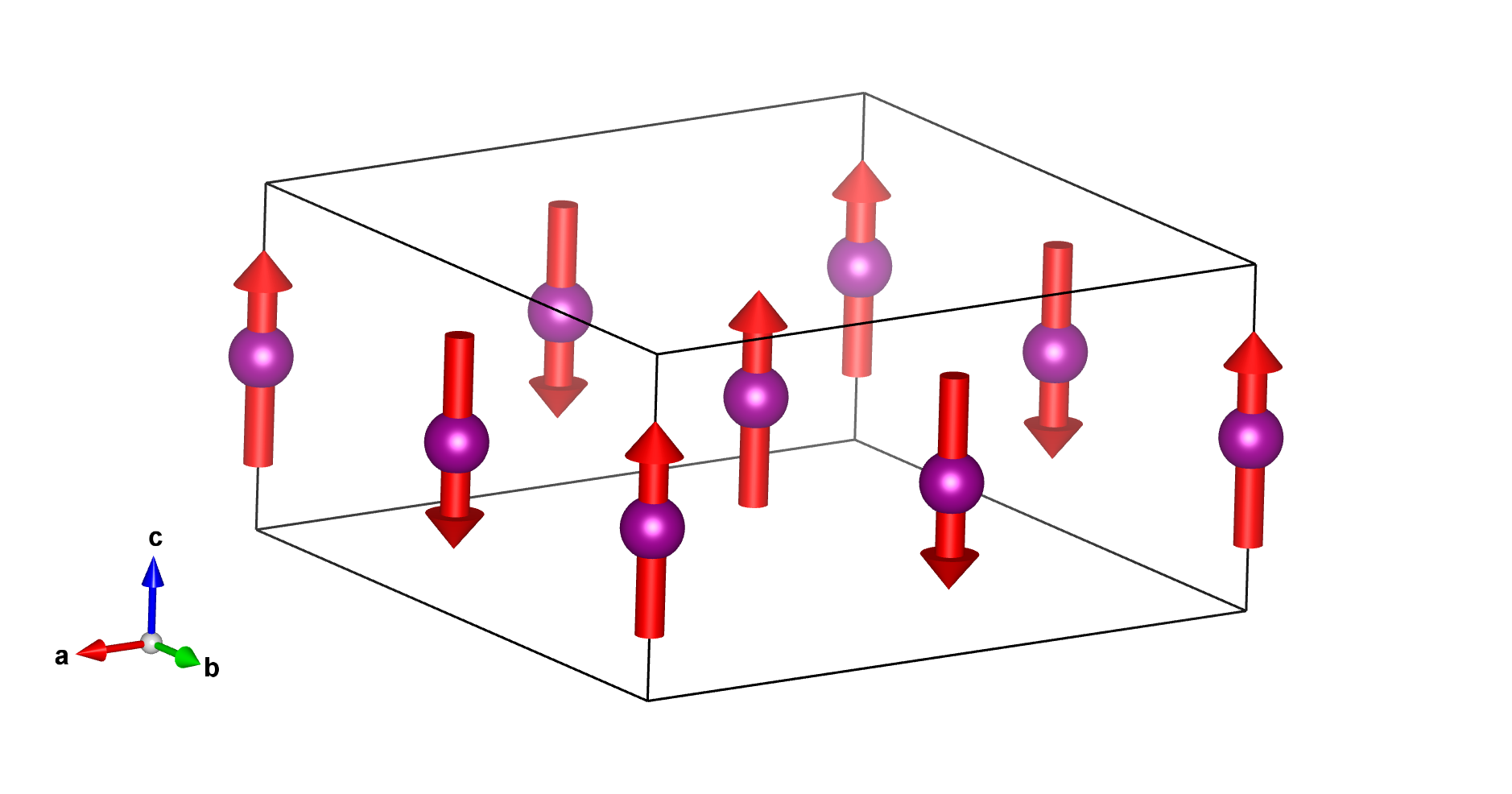

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.00000	0.50000	4	m_x,-m_x,m_z	0.0	0.0	4.68(2)	4.68

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Zr1	Zr	0.25000	0.25000	0.50000	2
Ge1	Ge	0.51610	0.25000	0.00000	8
O1	O	0.62670	0.37330	0.16510	8
O2	O	0.16870	0.07320	0.26220	16

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.00000	0.00000	0.50000	m_x,-m_x,m_z	4.68000
2	0.00000	0.50000	0.50000	m_x,m_x,-m_z	-4.68000
3	0.50000	0.00000	0.50000	-m_x,-m_x,-m_z	-4.68000
4	0.50000	0.50000	0.50000	-m_x,m_x,m_z	4.68000

Atom	x	y	z
1	0.25000	0.25000	0.50000
2	0.75000	0.75000	0.50000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.00000	0.50000	4	m_x,-m_x,m_z	0.0	0.0	4.68(2)	4.68

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.00000	0.00000	0.50000	m_x,-m_x,m_z	4.68000
2	0.00000	0.50000	0.50000	m_x,m_x,-m_z	-4.68000
3	0.50000	0.00000	0.50000	-m_x,-m_x,-m_z	-4.68000
4	0.50000	0.50000	0.50000	-m_x,m_x,m_z	4.68000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2+	1	1	primary	2
