MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

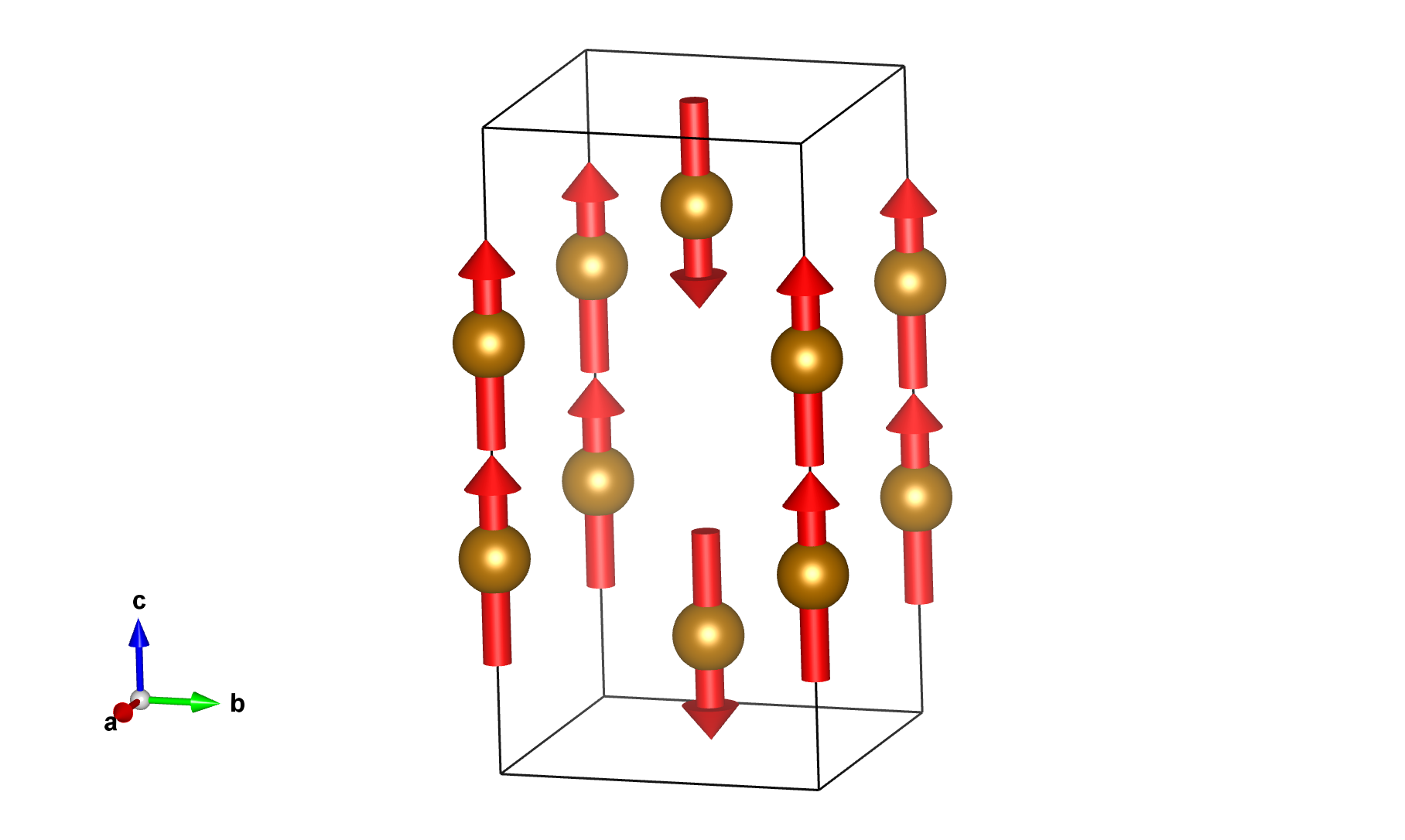

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.00000	0.00000	0.33330	4	0,0,m_z	0.0	0.0	4.4(3)	4.40

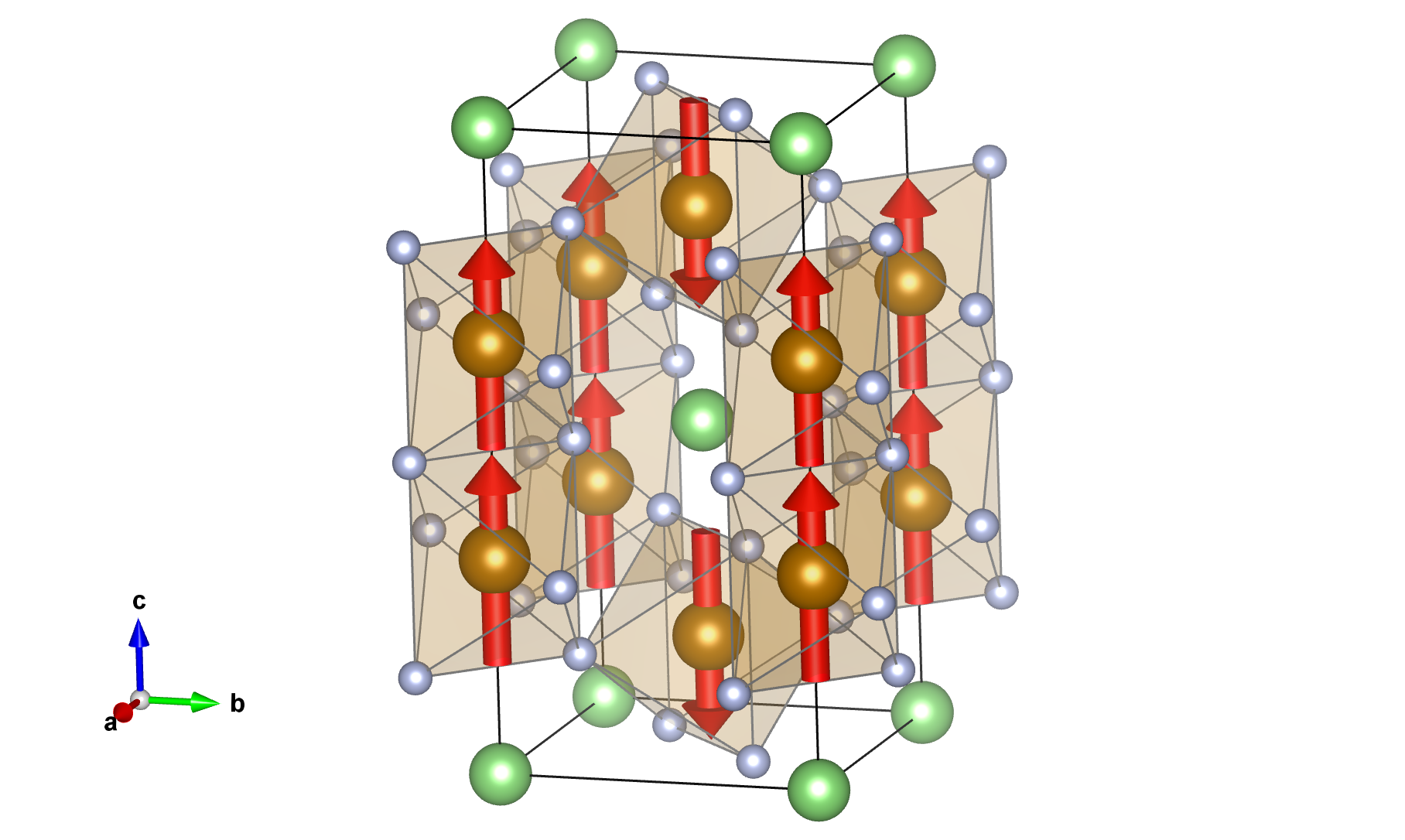

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Li1	Li	0.00000	0.00000	0.00000	2
F1	F	0.30500	0.30500	0.00000	4
F2	F	0.30500	0.30500	0.33300	8

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.00000	0.00000	0.33330	0,0,m_z	4.40000
2	0.50000	0.50000	0.16670	0,0,-m_z	-4.40000
3	0.00000	0.00000	0.66670	0,0,m_z	4.40000
4	0.50000	0.50000	0.83330	0,0,-m_z	-4.40000

Atom	x	y	z
1	0.00000	0.00000	0.00000
2	0.50000	0.50000	0.50000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.00000	0.00000	0.33330	4	0,0,m_z	0.0	0.0	4.4(3)	4.40

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.00000	0.00000	0.33330	0,0,m_z	4.40000
2	0.50000	0.50000	0.16670	0,0,-m_z	-4.40000
3	0.00000	0.00000	0.66670	0,0,m_z	4.40000
4	0.50000	0.50000	0.83330	0,0,-m_z	-4.40000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2+	1	1	primary	1

MAGNDATA: A Collection of magnetic structures with portable cif-type files
