MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

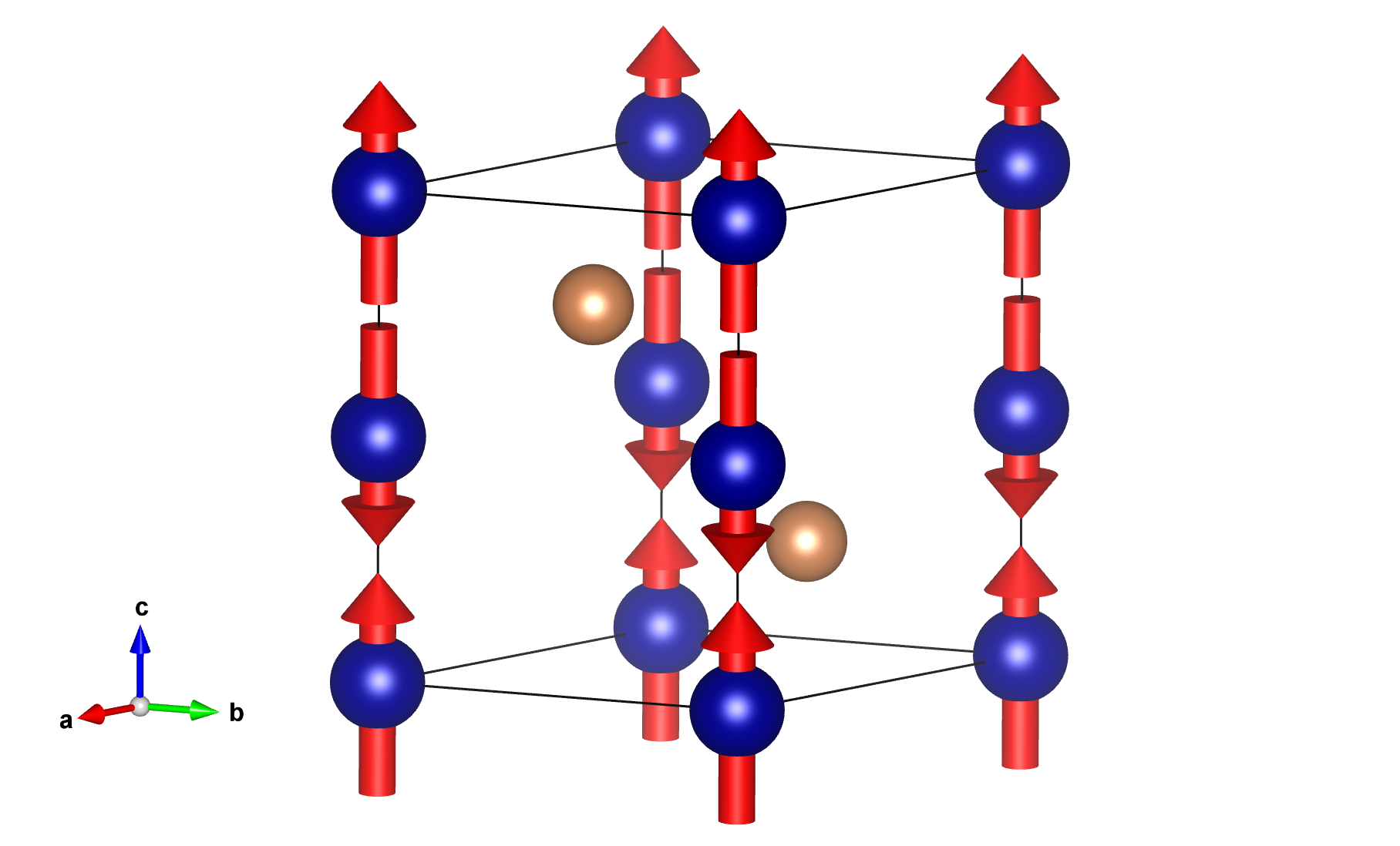

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cr1	Cr	0.00000	0.00000	0.00000	2	0,0,m_z	0.0	0.0	2.45	2.45

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Sb1	Sb	0.33333	0.66667	0.25000	2

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	2.45000
2	0.00000	0.00000	0.50000	0,0,-m_z	0.00000	0.00000	-2.45000

Atom	x	y	z
1	0.33333	0.66667	0.25000
2	0.66667	0.33333	0.75000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cr1	Cr	0.00000	0.00000	0.00000	2	0,0,m_z	0.0	0.0	2.45	2.45

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	2.45000
2	0.00000	0.00000	0.50000	0,0,-m_z	0.00000	0.00000	-2.45000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM4+	1	1	primary	1

MAGNDATA: A Collection of magnetic structures with portable cif-type files
