MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

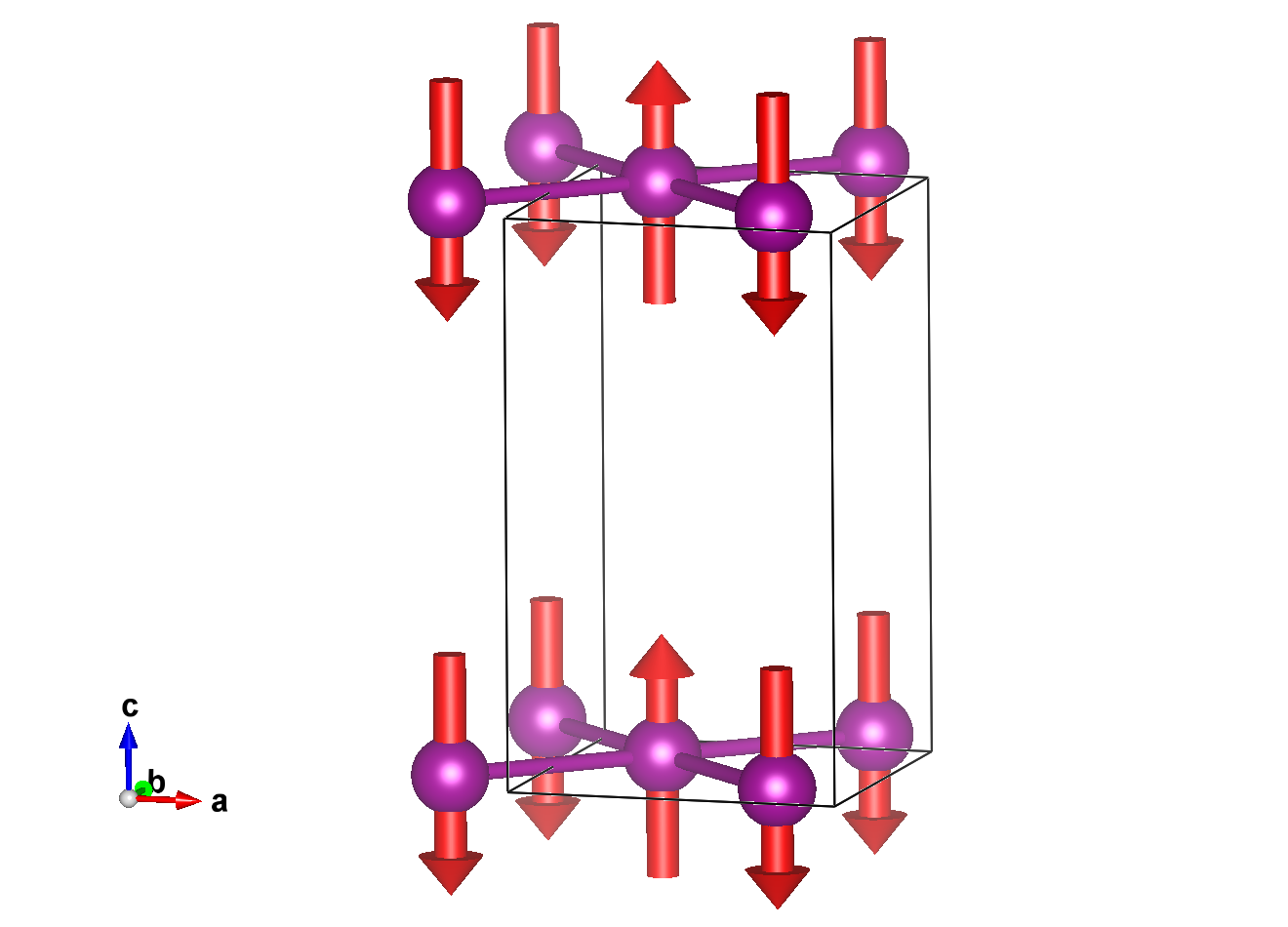

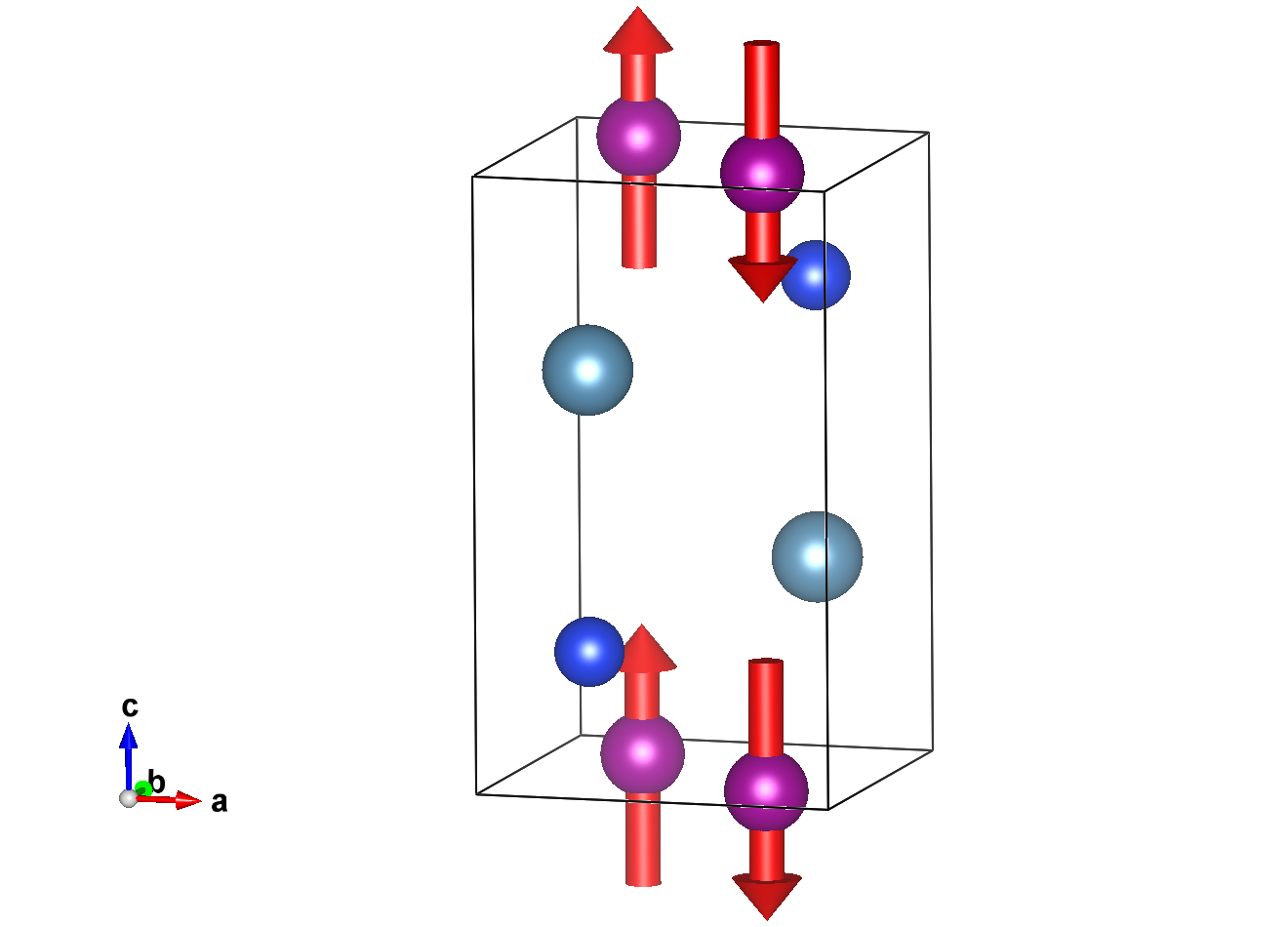

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.25000	0.75000	0.00000	2	0,0,m_z	0.0	0.0	3.27(4)	3.27

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ca1	Ca	0.25000	0.25000	0.669(2)	2
Si1	Si	0.25000	0.25000	0.213(3)	2

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.75000	0.00000	0,0,m_z	0.00000	0.00000	3.27000
2	0.75000	0.25000	0.00000	0,0,-m_z	0.00000	0.00000	-3.27000

Atom	x	y	z
1	0.25000	0.25000	0.66900
2	0.75000	0.75000	0.33100

Atom	x	y	z
1	0.25000	0.25000	0.21300
2	0.75000	0.75000	0.78700

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.25000	0.75000	0.00000	2	0,0,m_z	0.0	0.0	3.27(4)	3.27

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.75000	0.00000	0,0,m_z	0.00000	0.00000	3.27000
2	0.75000	0.25000	0.00000	0,0,-m_z	0.00000	0.00000	-3.27000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2-	1	1	primary	1

MAGNDATA: A Collection of magnetic structures with portable cif-type files
