Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

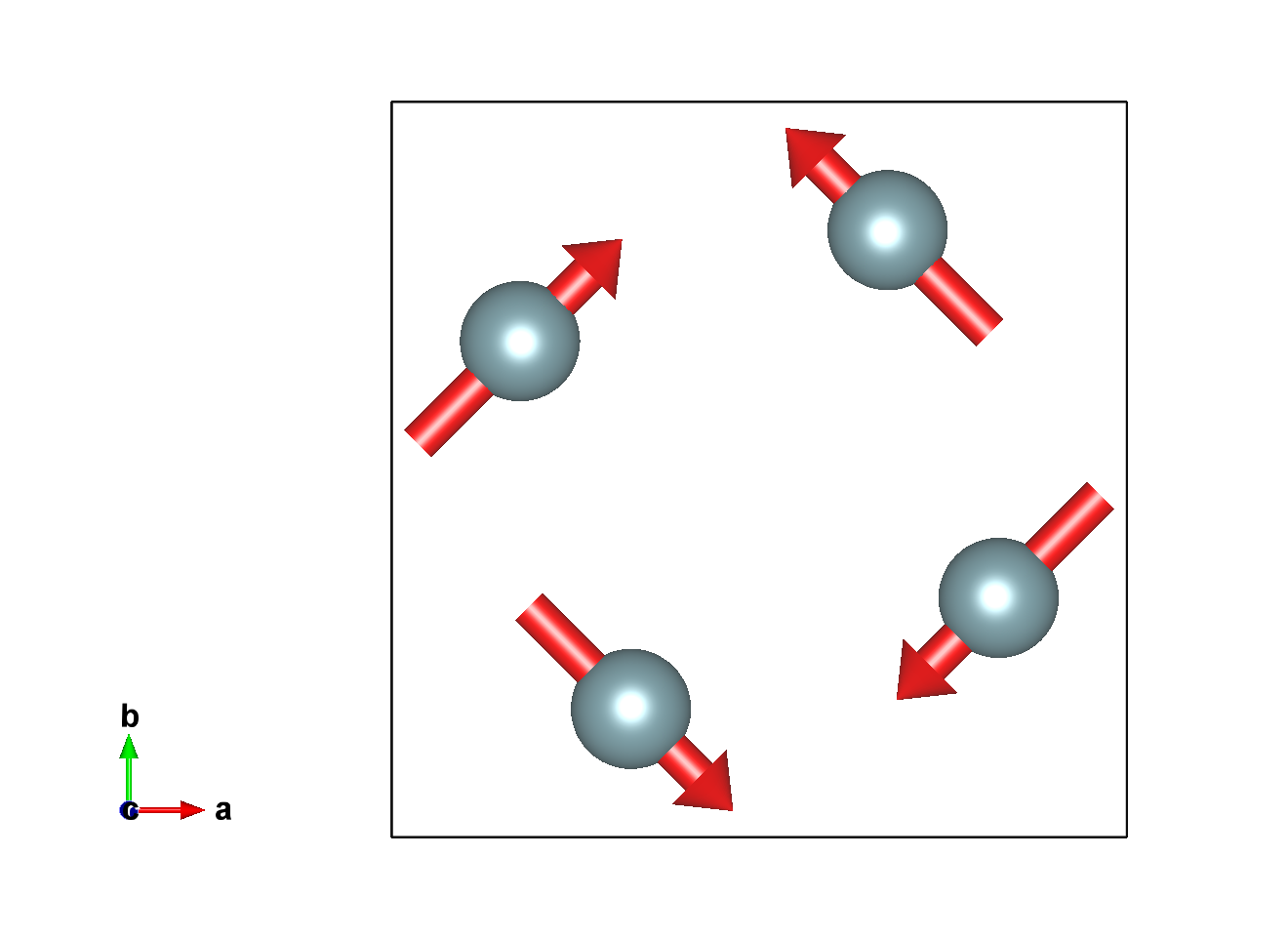

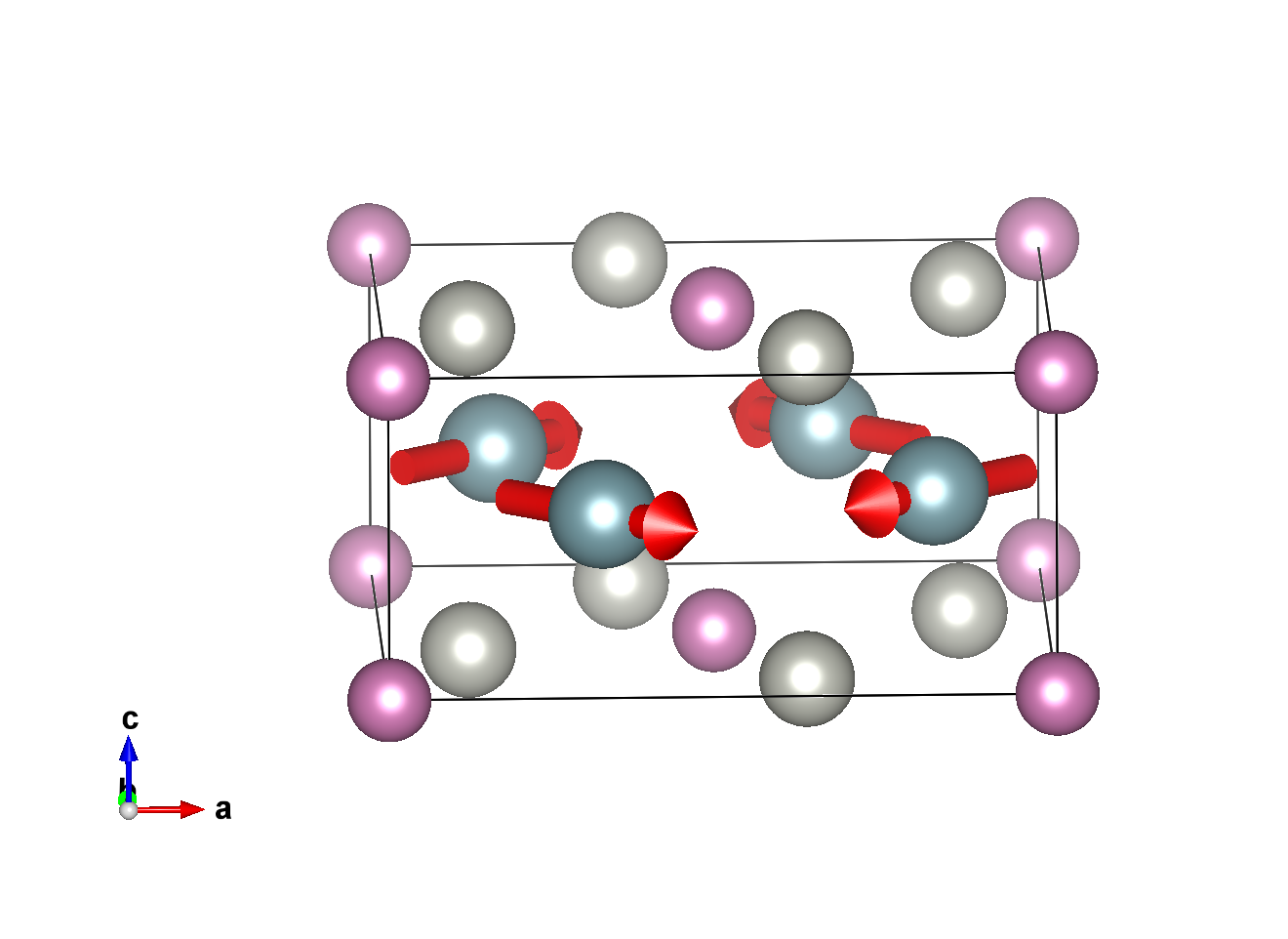

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
U1	U	0.17450	0.67450	0.50000	4	m_x,m_x,0	1.22	1.22	0.0	1.73

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
In1	In	0.00000	0.00000	0.00000	2
Pd1	Pd	0.37130	0.87130	0.00000	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y
1	0.17450	0.67450	0.50000	m_x,m_x,0	1.22000	1.22000
2	0.82550	0.32550	0.50000	-m_x,-m_x,0	-1.22000	-1.22000
3	0.67450	0.82550	0.50000	-m_x,m_x,0	-1.22000	1.22000
4	0.32550	0.17450	0.50000	m_x,-m_x,0	1.22000	-1.22000

Atom	x	y	z
1	0.00000	0.00000	0.00000
2	0.50000	0.50000	0.00000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
U1	U	0.17450	0.67450	0.50000	4	m_x,m_x,0	1.22	1.22	0.0	1.73

Atom	x	y	z	Symmetry constraints on M	M_x	M_y
1	0.17450	0.67450	0.50000	m_x,m_x,0	1.22000	1.22000
2	0.82550	0.32550	0.50000	-m_x,-m_x,0	-1.22000	-1.22000
3	0.67450	0.82550	0.50000	-m_x,m_x,0	-1.22000	1.22000
4	0.32550	0.17450	0.50000	m_x,-m_x,0	1.22000	-1.22000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM4-	1	1	primary	1
