Transformation matrix from the parent setting (a_p,b_p,c_p) to the standard setting of the parent space group (a_pst,b_pst,c_pst):

[Hide]

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

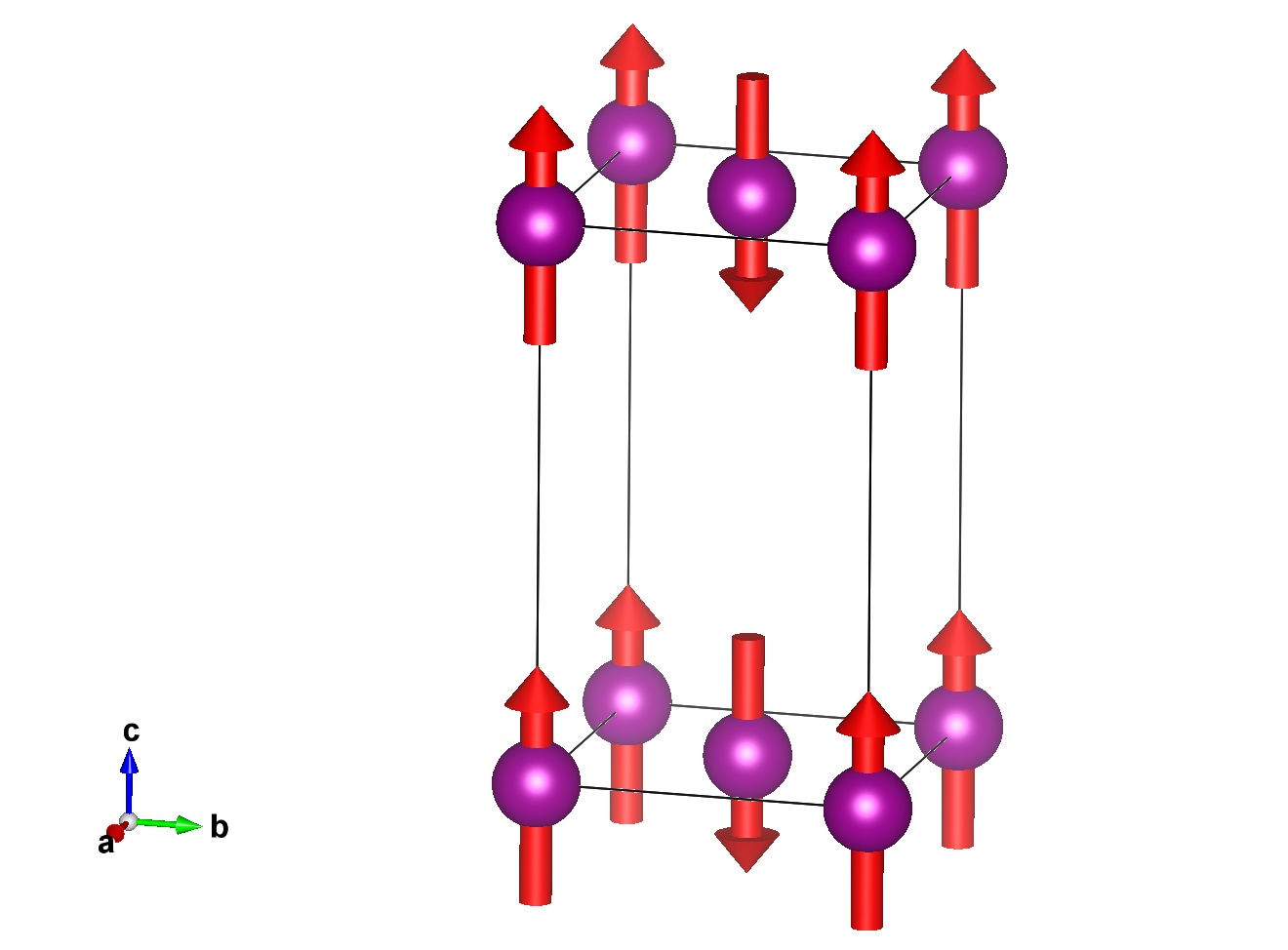

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.00000	0.00000	2	0,0,m_z	0.0	0.0	3.45(4)	3.45

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Na1	Na	0.00000	0.50000	0.643(2)	2
As1	As	0.00000	0.50000	0.211(1)	2

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	3.45000
2	0.50000	0.50000	0.00000	0,0,-m_z	0.00000	0.00000	-3.45000

Atom	x	y	z
1	0.00000	0.50000	0.64300
2	0.50000	0.00000	0.35700

Atom	x	y	z
1	0.00000	0.50000	0.21100
2	0.50000	0.00000	0.78900

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.00000	0.00000	2	0,0,m_z	0.0	0.0	3.45(4)	3.45

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	3.45000
2	0.50000	0.50000	0.00000	0,0,-m_z	0.00000	0.00000	-3.45000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2-	1	1	primary	1
