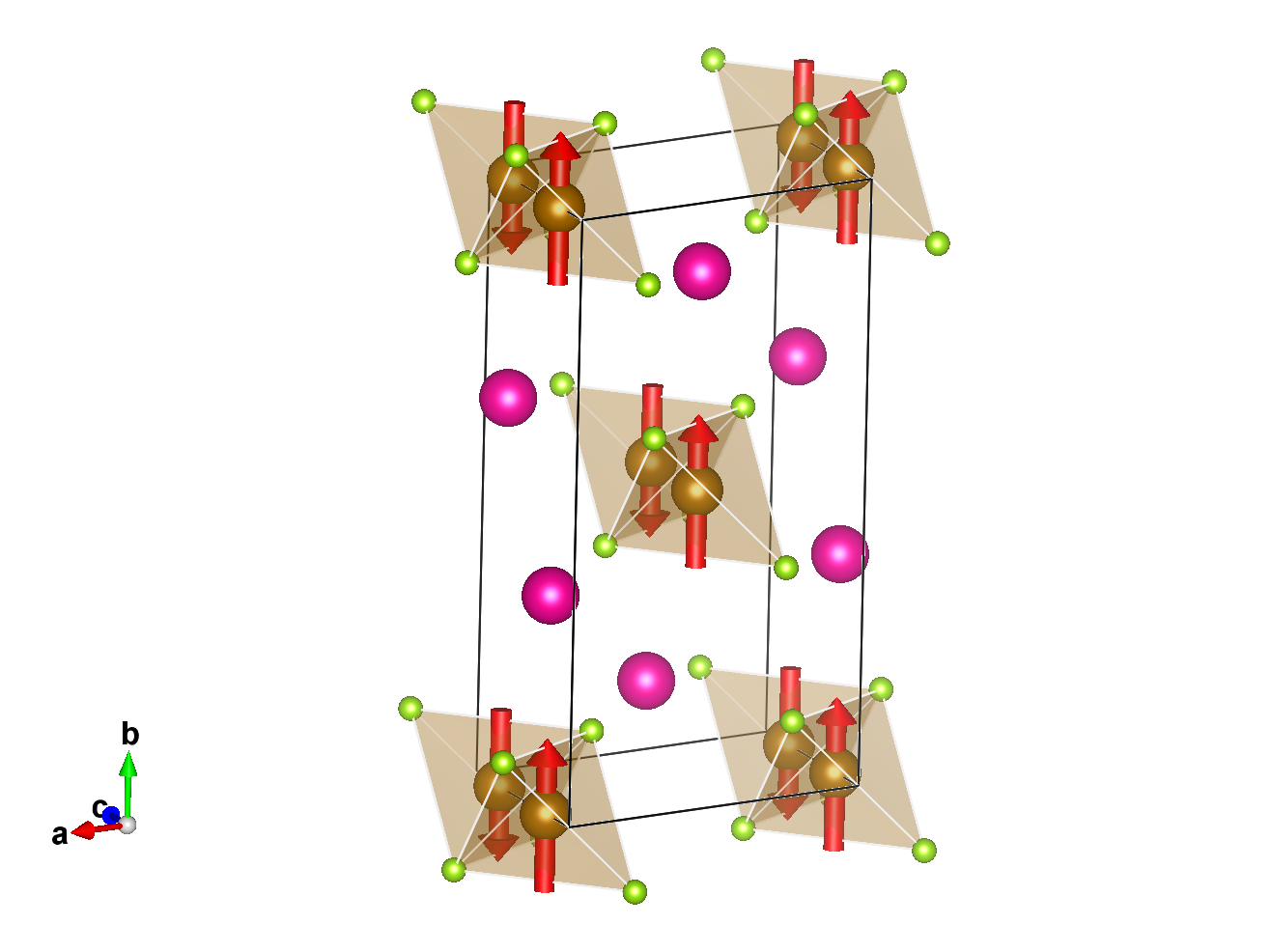

Magnetic structure with all atoms

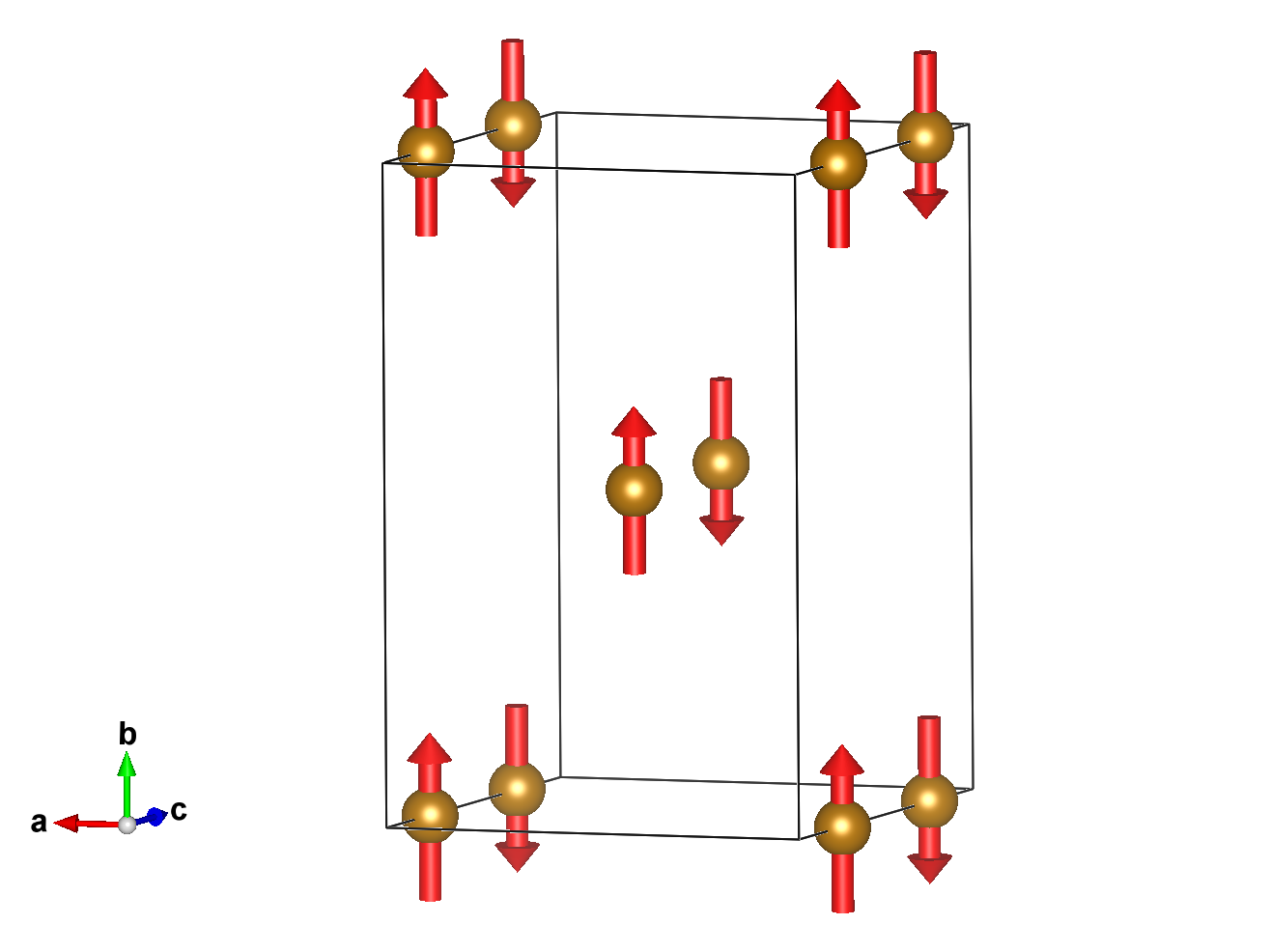

Magnetic structure with only magnetic atoms

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,y,-z+1/2,+1	{ 2₀₁₀ \| 0 0 1/2 }
3	-x,-y,-z,-1	{ -1' \| 0 }
4	x,-y,z+1/2,-1	{ m'₀₁₀ \| 0 0 1/2 }
(1/2,1/2,0) + set click here to show and hide
5	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
6	-x+1/2,y+1/2,-z+1/2,+1	{ 2₀₁₀ \| 1/2 1/2 1/2 }
7	-x+1/2,-y+1/2,-z,-1	{ -1' \| 1/2 1/2 0 }
8	x+1/2,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 1/2 1/2 1/2 }

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,y,-z,+1	2₀₁₀
3	-x,-y,-z,-1	-1'
4	x,-y,z,-1	m'₀₁₀

Label	Atom type	x	y	z	Multiplicity
Rb1	Rb	0.00000	0.3596(12)	0.25000	4
Se1	Se	0.1992(10)	0.1105(6)	0.1056(25)	8

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.99900	0.25000	0,m_y,0	0.00000	2.66000	0.00000
2	0.00000	0.00100	0.75000	0,-m_y,0	0.00000	-2.66000	0.00000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.49900	0.25000	0,m_y,0	0.00000	2.66000	0.00000
4	0.50000	0.50100	0.75000	0,-m_y,0	0.00000	-2.66000	0.00000

Atom	x	y	z
1	0.00000	0.35960	0.25000
2	0.00000	0.64040	0.75000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.85960	0.25000
4	0.50000	0.14040	0.75000

Atom	x	y	z
1	0.19920	0.11050	0.10560
2	0.80080	0.11050	0.39440
3	0.80080	0.88950	0.89440
4	0.19920	0.88950	0.60560
(1/2,1/2,0) + set click here to show and hide
5	0.69920	0.61050	0.10560
6	0.30080	0.61050	0.39440
7	0.30080	0.38950	0.89440
8	0.69920	0.38950	0.60560

Reference: W. Bronger, A. Kyas, P. Muller, JOURNAL OF SOLID STATE CHEMISTRY (1987) 70 262 - 270
DOI: 10.1016/0022-4596(87)90065-X
Atomic positions from: same reference

Parent space group (paramagnetic phase): C2/c (#15)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 249(1) K
Experiment Temperature: 14 K

Lattice parameters of the magnetic unit cell:
7.389(1) 11.918(2) 5.629(1) 90.00 112.55(1) 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: C2/c' (#15.88) (standard setting)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 2/m' (5.4.15)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.00000	0.9990(9)	0.25000	4	0,m_y,0	0.0	2.66(5)	0.0	2.66

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.99900	0.25000	0,m_y,0	0.00000	2.66000	0.00000
2	0.00000	0.00100	0.75000	0,-m_y,0	0.00000	-2.66000	0.00000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.49900	0.25000	0,m_y,0	0.00000	2.66000	0.00000
4	0.50000	0.50100	0.75000	0,-m_y,0	0.00000	-2.66000	0.00000

[Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:

label	dim. small irrep	dim. full irrep	action	number of modes
mGM1-	1	1	primary	1

Comments:

Comments (symmetry):

1k magnetic structure
k-maximal magnetic symmetry
1-dim irrep as primary
