MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the parent setting (a_p,b_p,c_p) to the standard setting of the parent space group (a_pst,b_pst,c_pst):

[Hide]

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

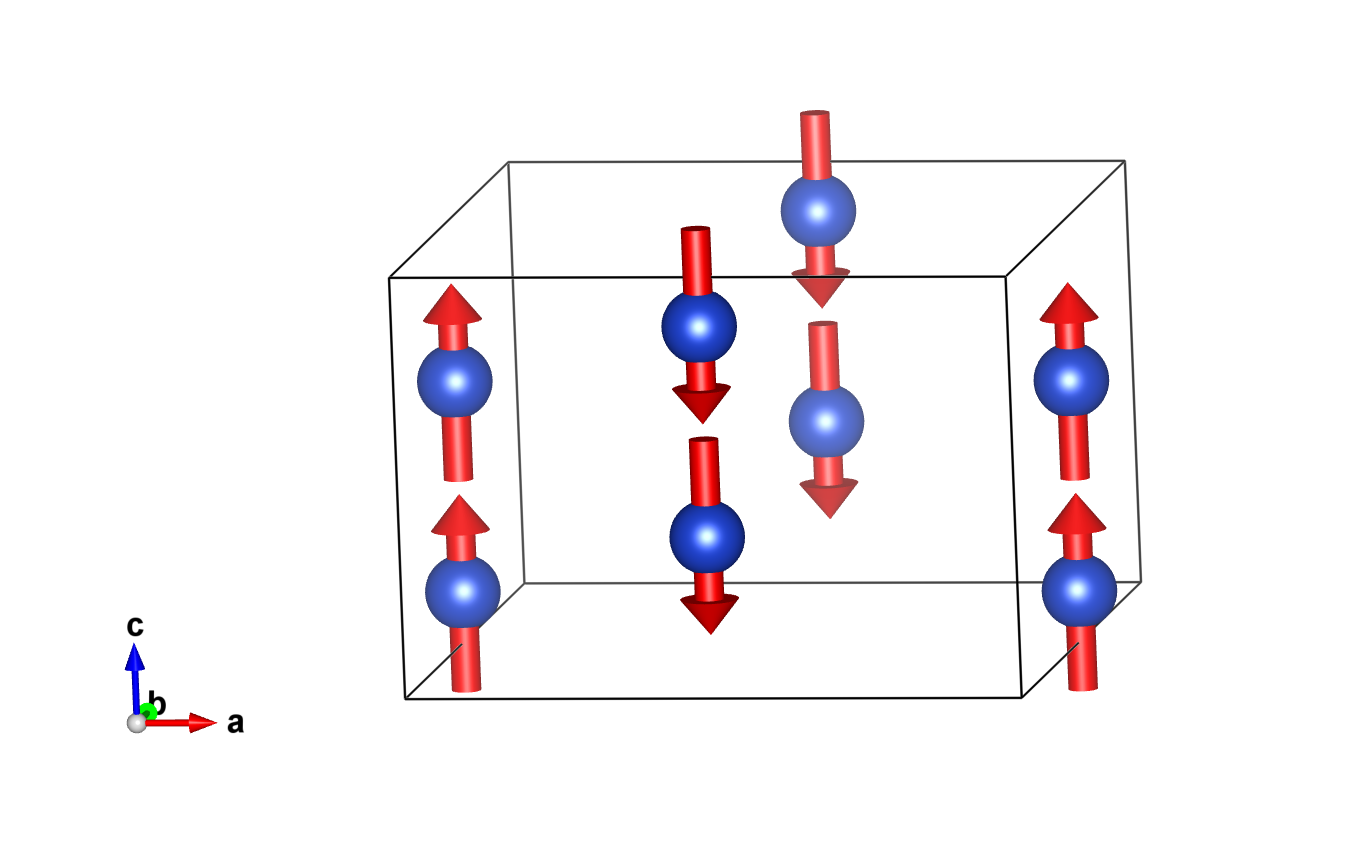

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cu1	Cu	0.0	0.5	0.117	4	0,0,m_z	0.0	0.0	0.45(2)	0.45

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Bi1	Bi	0.169	0.169	0.25000	8
O1	O	0.292(1)	0.106(1)	-0.044(1)	16

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.00000	0.50000	0.11700	0,0,m_z	0.45000
2	0.50000	0.00000	0.38300	0,0,-m_z	-0.45000
3	0.50000	0.00000	0.88300	0,0,-m_z	-0.45000
4	0.00000	0.50000	0.61700	0,0,m_z	0.45000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cu1	Cu	0.0	0.5	0.117	4	0,0,m_z	0.0	0.0	0.45(2)	0.45

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.00000	0.50000	0.11700	0,0,m_z	0.45000
2	0.50000	0.00000	0.38300	0,0,-m_z	-0.45000
3	0.50000	0.00000	0.88300	0,0,-m_z	-0.45000
4	0.00000	0.50000	0.61700	0,0,m_z	0.45000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM1-	1	1	primary	1
