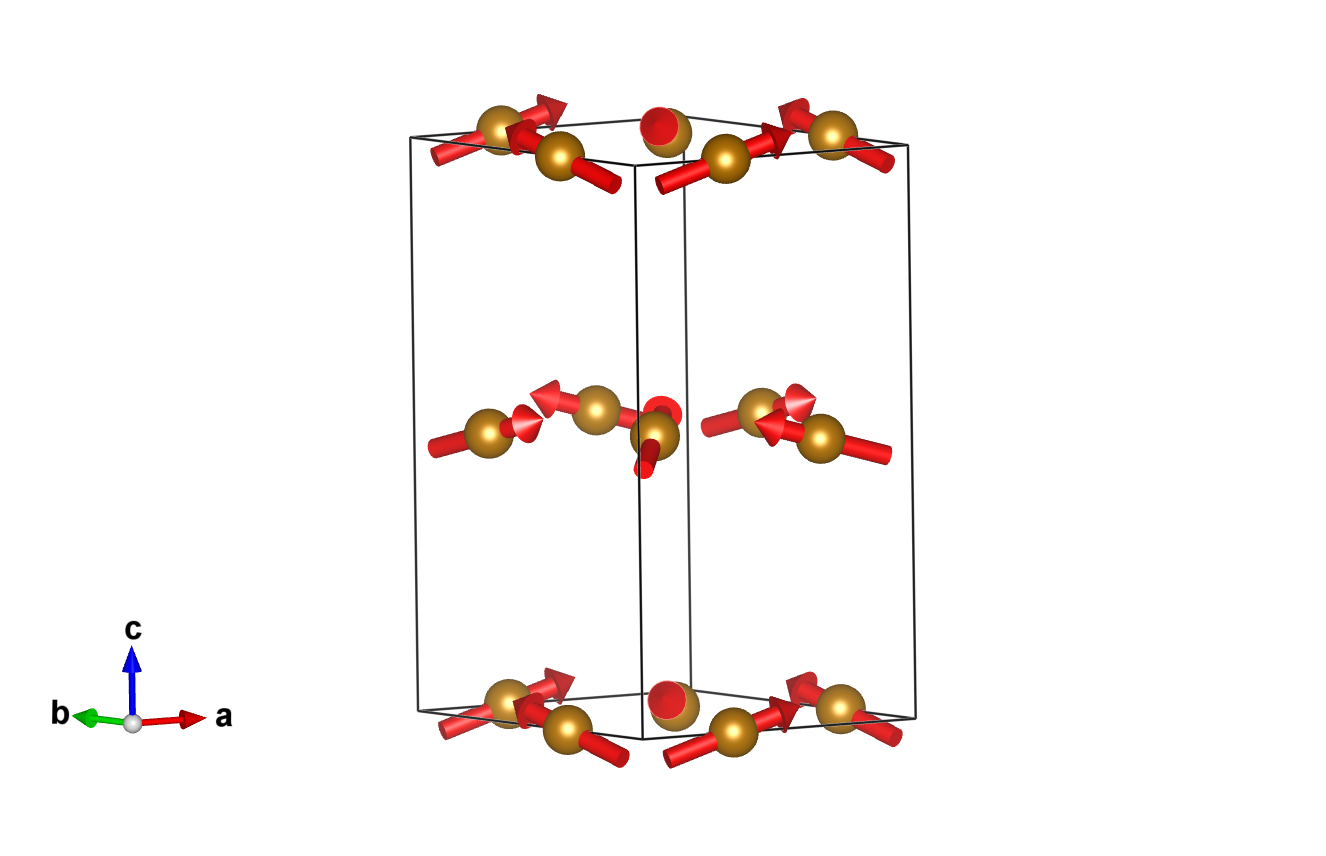

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:
Magnetic atoms:
Set of atoms in the unit cell related by symmetry with the magnetic atom Fe1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
| 1 | 0.33333 | 0.00000 | 0.00000 | mx,0,mz | 2.51100 | 0.00000 | 0.78300 |
| 2 | 0.33333 | 0.33333 | 0.50000 | mx,mx,mz | 2.51100 | 2.51100 | 0.78300 |
| 3 | 0.00000 | 0.33333 | 0.00000 | 0,mx,mz | 0.00000 | 2.51100 | 0.78300 |
| 4 | 0.66667 | 0.00000 | 0.50000 | -mx,0,mz | -2.51100 | 0.00000 | 0.78300 |
| 5 | 0.66667 | 0.66667 | 0.00000 | -mx,-mx,mz | -2.51100 | -2.51100 | 0.78300 |
| 6 | 0.00000 | 0.66667 | 0.50000 | 0,-mx,mz | 0.00000 | -2.51100 | 0.78300 |
Non-magnetic atoms:
Set of atoms in the unit cell related by symmetry with the atom Yb1:
| Atom | x | y | z |
| 1 | 0.00000 | 0.00000 | 0.26847 |
| 2 | 0.00000 | 0.00000 | 0.76847 |
Set of atoms in the unit cell related by symmetry with the atom Sc1:
| Atom | x | y | z |
| 1 | 0.00000 | 0.00000 | 0.26847 |
| 2 | 0.00000 | 0.00000 | 0.76847 |
Set of atoms in the unit cell related by symmetry with the atom Yb2:
| Atom | x | y | z |
| 1 | 0.33333 | 0.66667 | 0.23632 |
| 2 | 0.66666 | 0.33333 | 0.73632 |
| 3 | 0.33334 | 0.66667 | 0.73632 |
| 4 | 0.66667 | 0.33334 | 0.23632 |
Set of atoms in the unit cell related by symmetry with the atom Sc2:
| Atom | x | y | z |
| 1 | 0.33333 | 0.66667 | 0.23632 |
| 2 | 0.66666 | 0.33333 | 0.73632 |
| 3 | 0.33334 | 0.66667 | 0.73632 |
| 4 | 0.66667 | 0.33334 | 0.23632 |
Set of atoms in the unit cell related by symmetry with the atom O1:
| Atom | x | y | z |
| 1 | 0.33061 | 0.00000 | 0.17040 |
| 2 | 0.33061 | 0.33061 | 0.67040 |
| 3 | 0.00000 | 0.33061 | 0.17040 |
| 4 | 0.66939 | 0.00000 | 0.67040 |
| 5 | 0.66939 | 0.66939 | 0.17040 |
| 6 | 0.00000 | 0.66939 | 0.67040 |
Set of atoms in the unit cell related by symmetry with the atom O2:
| Atom | x | y | z |
| 1 | 0.63231 | 0.00000 | 0.33802 |
| 2 | 0.63231 | 0.63231 | 0.83802 |
| 3 | 0.00000 | 0.63231 | 0.33802 |
| 4 | 0.36769 | 0.00000 | 0.83802 |
| 5 | 0.36769 | 0.36769 | 0.33802 |
| 6 | 0.00000 | 0.36769 | 0.83802 |
Set of atoms in the unit cell related by symmetry with the atom O3:
| Atom | x | y | z |
| 1 | 0.00000 | 0.00000 | 0.47629 |
| 2 | 0.00000 | 0.00000 | 0.97629 |
Set of atoms in the unit cell related by symmetry with the atom O4:
| Atom | x | y | z |
| 1 | 0.33333 | 0.66667 | 0.01236 |
| 2 | 0.66666 | 0.33333 | 0.51236 |
| 3 | 0.33334 | 0.66667 | 0.51236 |
| 4 | 0.66667 | 0.33334 | 0.01236 |
