MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

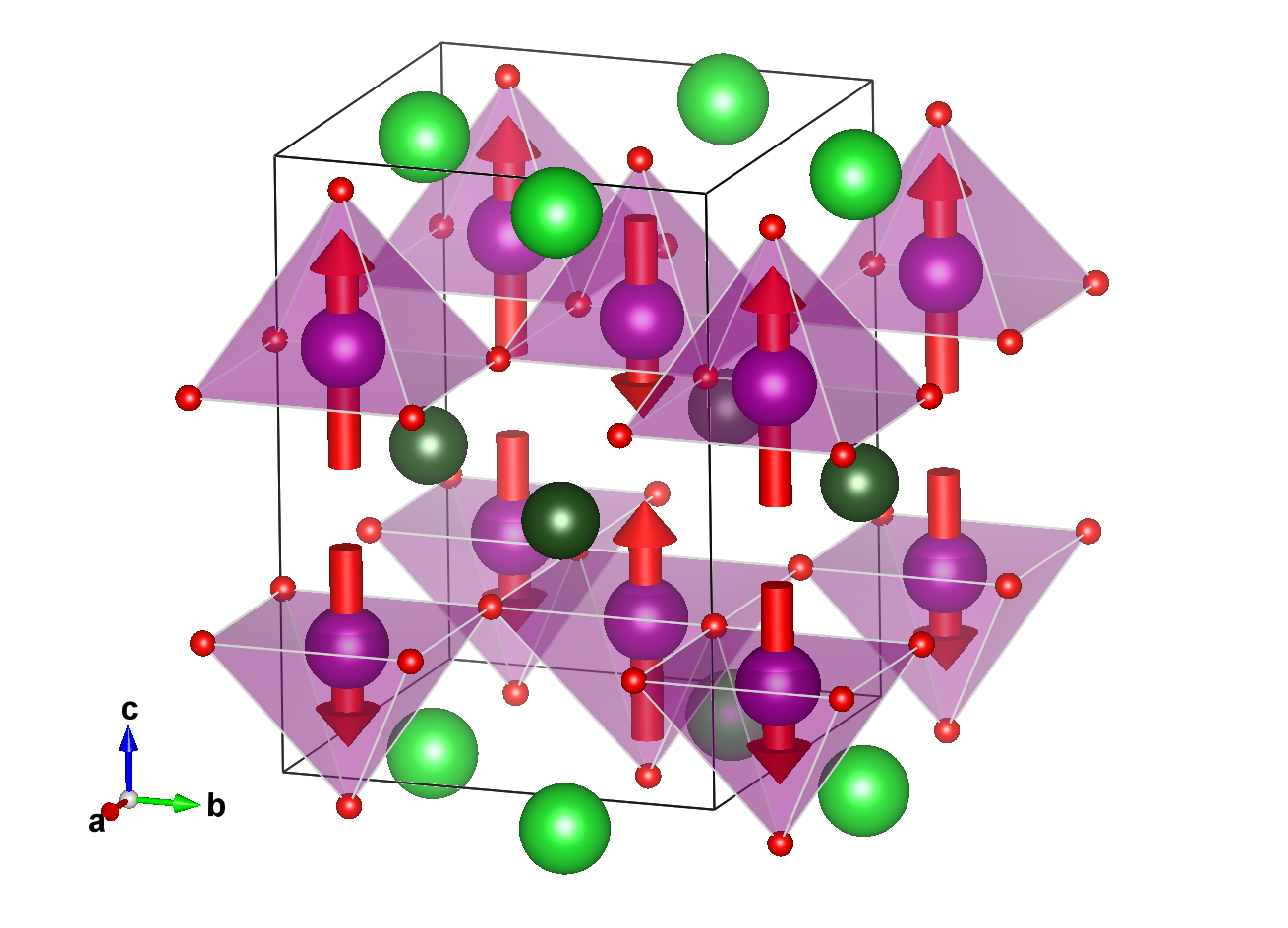

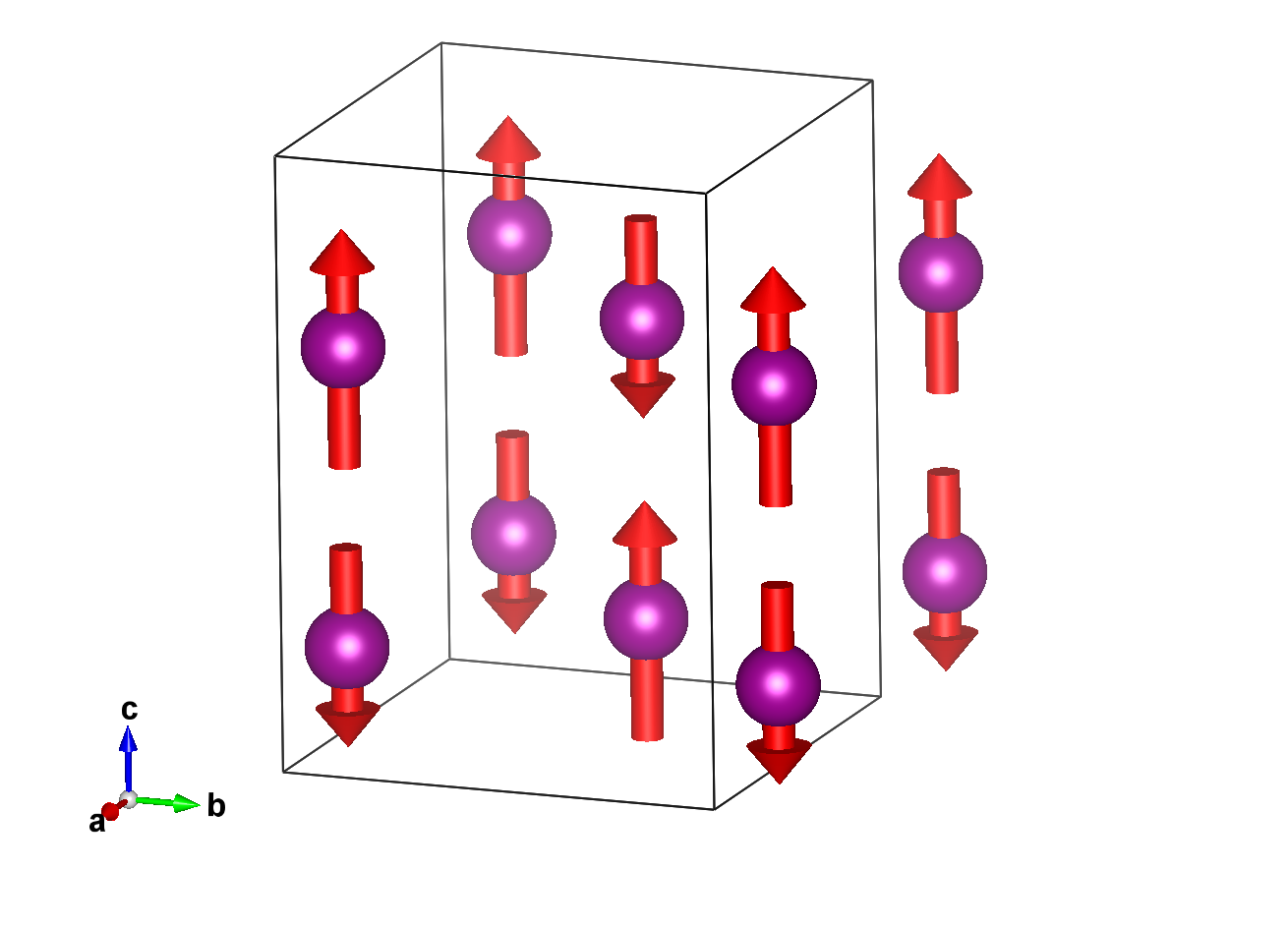

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.25000	0.25000	0.26370	2	0,0,m_z	0.0	0.0	-2.7(1)	2.70
Mn2	Mn	0.25000	0.25000	0.75110	2	0,0,m_z	0.0	0.0	3.2(1)	3.20

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
La1	La	0.75000	0.25000	0.50000	2
Ba1	Ba	0.75000	0.25000	0.00000	2
O1	O	0.49080	0.49080	0.29990	8
O2	O	0.25000	0.25000	0.00610	2

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.26370	0,0,m_z	0.00000	0.00000	-2.70000
2	0.75000	0.75000	0.73630	0,0,m_z	0.00000	0.00000	-2.70000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.75110	0,0,m_z	0.00000	0.00000	3.20000
2	0.75000	0.75000	0.24890	0,0,m_z	0.00000	0.00000	3.20000

Atom	x	y	z
1	0.75000	0.25000	0.50000
2	0.25000	0.75000	0.50000

Atom	x	y	z
1	0.75000	0.25000	0.00000
2	0.25000	0.75000	0.00000

Atom	x	y	z
1	0.25000	0.25000	0.00610
2	0.75000	0.75000	0.99390

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.25000	0.25000	0.26370	2	0,0,m_z	0.0	0.0	-2.7(1)	2.70
Mn2	Mn	0.25000	0.25000	0.75110	2	0,0,m_z	0.0	0.0	3.2(1)	3.20

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.26370	0,0,m_z	0.00000	0.00000	-2.70000
2	0.75000	0.75000	0.73630	0,0,m_z	0.00000	0.00000	-2.70000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.75110	0,0,m_z	0.00000	0.00000	3.20000
2	0.75000	0.75000	0.24890	0,0,m_z	0.00000	0.00000	3.20000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM3+	1	1	primary	2
