MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-z,-x,-y,+1	{ -3⁺₁₁₁ \| 0 }
3	-y,-z,-x,+1	{ -3^-₁₁₁ \| 0 }
4	y+1/2,-z,x,+1	{ -3^-_1-1-1 \| 1/2 0 0 }
5	-z,x,y+1/2,+1	{ -3⁺_-11-1 \| 0 0 1/2 }
6	z,x+1/2,-y,+1	{ -3⁺_1-1-1 \| 0 1/2 0 }
7	y,z+1/2,-x,+1	{ -3^-_-11-1 \| 0 1/2 0 }
8	-y,z,x+1/2,+1	{ -3^-_-1-11 \| 0 0 1/2 }
9	z+1/2,-x,y,+1	{ -3⁺_-1-11 \| 1/2 0 0 }
10	x,y+1/2,-z,+1	{ m₀₀₁ \| 0 1/2 0 }
11	x,-y,-z+1/2,+1	{ 2₁₀₀ \| 0 0 1/2 }
12	-x+1/2,y,-z,+1	{ 2₀₁₀ \| 1/2 0 0 }
13	-z+1/4,-y+1/4,-x+1/4,-1	{ 2'_-101 \| 1/4 1/4 1/4 }
14	-y+1/4,-x+1/4,-z+1/4,-1	{ 2'_1-10 \| 1/4 1/4 1/4 }
15	x+1/4,z+1/4,y+1/4,-1	{ m'_01-1 \| 1/4 1/4 1/4 }
16	y+1/4,-x+1/4,z+3/4,-1	{ 4'^-₀₀₁ \| 1/4 1/4 3/4 }
17	y+3/4,x+1/4,-z+1/4,-1	{ 2'₁₁₀ \| 3/4 1/4 1/4 }
18	-x+1/4,z+1/4,-y+3/4,-1	{ -4'⁺₁₀₀ \| 1/4 1/4 3/4 }
19	-z+1/4,y+3/4,x+1/4,-1	{ 4'^-₀₁₀ \| 1/4 3/4 1/4 }
20	-z+3/4,-y+1/4,x+1/4,-1	{ -4'⁺₀₁₀ \| 3/4 1/4 1/4 }
21	-x+3/4,-z+1/4,y+1/4,-1	{ -4'^-₁₀₀ \| 3/4 1/4 1/4 }
22	-x+1/4,z+3/4,y+1/4,-1	{ 2'₀₁₁ \| 1/4 3/4 1/4 }
23	z+1/4,-y+1/4,x+3/4,-1	{ 2'₁₀₁ \| 1/4 1/4 3/4 }
24	-y+1/4,x+3/4,z+1/4,-1	{ 4'⁺₀₀₁ \| 1/4 3/4 1/4 }
25	-x,-y,-z,+1	{ -1 \| 0 }
26	z,x,y,+1	{ 3⁺₁₁₁ \| 0 }
27	y,z,x,+1	{ 3^-₁₁₁ \| 0 }
28	-y+1/2,z,-x,+1	{ 3^-_1-1-1 \| 1/2 0 0 }
29	z,-x,-y+1/2,+1	{ 3⁺_-11-1 \| 0 0 1/2 }
30	-z,-x+1/2,y,+1	{ 3⁺_1-1-1 \| 0 1/2 0 }
31	-y,-z+1/2,x,+1	{ 3^-_-11-1 \| 0 1/2 0 }
32	y,-z,-x+1/2,+1	{ 3^-_-1-11 \| 0 0 1/2 }
33	-z+1/2,x,-y,+1	{ 3⁺_-1-11 \| 1/2 0 0 }
34	-x,-y+1/2,z,+1	{ 2₀₀₁ \| 0 1/2 0 }
35	-x,y,z+1/2,+1	{ m₁₀₀ \| 0 0 1/2 }
36	x+1/2,-y,z,+1	{ m₀₁₀ \| 1/2 0 0 }
37	z+3/4,y+3/4,x+3/4,-1	{ m'_-101 \| 3/4 3/4 3/4 }
38	y+3/4,x+3/4,z+3/4,-1	{ m'_1-10 \| 3/4 3/4 3/4 }
39	-x+3/4,-z+3/4,-y+3/4,-1	{ 2'_01-1 \| 3/4 3/4 3/4 }
40	-y+3/4,x+3/4,-z+1/4,-1	{ -4'^-₀₀₁ \| 3/4 3/4 1/4 }
41	-y+1/4,-x+3/4,z+3/4,-1	{ m'₁₁₀ \| 1/4 3/4 3/4 }
42	x+3/4,-z+3/4,y+1/4,-1	{ 4'⁺₁₀₀ \| 3/4 3/4 1/4 }
43	z+3/4,-y+1/4,-x+3/4,-1	{ -4'^-₀₁₀ \| 3/4 1/4 3/4 }
44	z+1/4,y+3/4,-x+3/4,-1	{ 4'⁺₀₁₀ \| 1/4 3/4 3/4 }
45	x+1/4,z+3/4,-y+3/4,-1	{ 4'^-₁₀₀ \| 1/4 3/4 3/4 }
46	x+3/4,-z+1/4,-y+3/4,-1	{ m'₀₁₁ \| 3/4 1/4 3/4 }
47	-z+3/4,y+3/4,-x+1/4,-1	{ m'₁₀₁ \| 3/4 3/4 1/4 }
48	y+3/4,-x+1/4,-z+3/4,-1	{ -4'⁺₀₀₁ \| 3/4 1/4 3/4 }
(1/2,1/2,1/2) + set click here to show and hide
49	x+1/2,y+1/2,z+1/2,+1	{ 1 \| 1/2 1/2 1/2 }
50	-z+1/2,-x+1/2,-y+1/2,+1	{ -3⁺₁₁₁ \| 1/2 1/2 1/2 }
51	-y+1/2,-z+1/2,-x+1/2,+1	{ -3^-₁₁₁ \| 1/2 1/2 1/2 }
52	y,-z+1/2,x+1/2,+1	{ -3^-_1-1-1 \| 0 1/2 1/2 }
53	-z+1/2,x+1/2,y,+1	{ -3⁺_-11-1 \| 1/2 1/2 0 }
54	z+1/2,x,-y+1/2,+1	{ -3⁺_1-1-1 \| 1/2 0 1/2 }
55	y+1/2,z,-x+1/2,+1	{ -3^-_-11-1 \| 1/2 0 1/2 }
56	-y+1/2,z+1/2,x,+1	{ -3^-_-1-11 \| 1/2 1/2 0 }
57	z,-x+1/2,y+1/2,+1	{ -3⁺_-1-11 \| 0 1/2 1/2 }
58	x+1/2,y,-z+1/2,+1	{ m₀₀₁ \| 1/2 0 1/2 }
59	x+1/2,-y+1/2,-z,+1	{ 2₁₀₀ \| 1/2 1/2 0 }
60	-x,y+1/2,-z+1/2,+1	{ 2₀₁₀ \| 0 1/2 1/2 }
61	-z+3/4,-y+3/4,-x+3/4,-1	{ 2'_-101 \| 3/4 3/4 3/4 }
62	-y+3/4,-x+3/4,-z+3/4,-1	{ 2'_1-10 \| 3/4 3/4 3/4 }
63	x+3/4,z+3/4,y+3/4,-1	{ m'_01-1 \| 3/4 3/4 3/4 }
64	y+3/4,-x+3/4,z+1/4,-1	{ 4'^-₀₀₁ \| 3/4 3/4 1/4 }
65	y+1/4,x+3/4,-z+3/4,-1	{ 2'₁₁₀ \| 1/4 3/4 3/4 }
66	-x+3/4,z+3/4,-y+1/4,-1	{ -4'⁺₁₀₀ \| 3/4 3/4 1/4 }
67	-z+3/4,y+1/4,x+3/4,-1	{ 4'^-₀₁₀ \| 3/4 1/4 3/4 }
68	-z+1/4,-y+3/4,x+3/4,-1	{ -4'⁺₀₁₀ \| 1/4 3/4 3/4 }
69	-x+1/4,-z+3/4,y+3/4,-1	{ -4'^-₁₀₀ \| 1/4 3/4 3/4 }
70	-x+3/4,z+1/4,y+3/4,-1	{ 2'₀₁₁ \| 3/4 1/4 3/4 }
71	z+3/4,-y+3/4,x+1/4,-1	{ 2'₁₀₁ \| 3/4 3/4 1/4 }
72	-y+3/4,x+1/4,z+3/4,-1	{ 4'⁺₀₀₁ \| 3/4 1/4 3/4 }
73	-x+1/2,-y+1/2,-z+1/2,+1	{ -1 \| 1/2 1/2 1/2 }
74	z+1/2,x+1/2,y+1/2,+1	{ 3⁺₁₁₁ \| 1/2 1/2 1/2 }
75	y+1/2,z+1/2,x+1/2,+1	{ 3^-₁₁₁ \| 1/2 1/2 1/2 }
76	-y,z+1/2,-x+1/2,+1	{ 3^-_1-1-1 \| 0 1/2 1/2 }
77	z+1/2,-x+1/2,-y,+1	{ 3⁺_-11-1 \| 1/2 1/2 0 }
78	-z+1/2,-x,y+1/2,+1	{ 3⁺_1-1-1 \| 1/2 0 1/2 }
79	-y+1/2,-z,x+1/2,+1	{ 3^-_-11-1 \| 1/2 0 1/2 }
80	y+1/2,-z+1/2,-x,+1	{ 3^-_-1-11 \| 1/2 1/2 0 }
81	-z,x+1/2,-y+1/2,+1	{ 3⁺_-1-11 \| 0 1/2 1/2 }
82	-x+1/2,-y,z+1/2,+1	{ 2₀₀₁ \| 1/2 0 1/2 }
83	-x+1/2,y+1/2,z,+1	{ m₁₀₀ \| 1/2 1/2 0 }
84	x,-y+1/2,z+1/2,+1	{ m₀₁₀ \| 0 1/2 1/2 }
85	z+1/4,y+1/4,x+1/4,-1	{ m'_-101 \| 1/4 1/4 1/4 }
86	y+1/4,x+1/4,z+1/4,-1	{ m'_1-10 \| 1/4 1/4 1/4 }
87	-x+1/4,-z+1/4,-y+1/4,-1	{ 2'_01-1 \| 1/4 1/4 1/4 }
88	-y+1/4,x+1/4,-z+3/4,-1	{ -4'^-₀₀₁ \| 1/4 1/4 3/4 }
89	-y+3/4,-x+1/4,z+1/4,-1	{ m'₁₁₀ \| 3/4 1/4 1/4 }
90	x+1/4,-z+1/4,y+3/4,-1	{ 4'⁺₁₀₀ \| 1/4 1/4 3/4 }
91	z+1/4,-y+3/4,-x+1/4,-1	{ -4'^-₀₁₀ \| 1/4 3/4 1/4 }
92	z+3/4,y+1/4,-x+1/4,-1	{ 4'⁺₀₁₀ \| 3/4 1/4 1/4 }
93	x+3/4,z+1/4,-y+1/4,-1	{ 4'^-₁₀₀ \| 3/4 1/4 1/4 }
94	x+1/4,-z+3/4,-y+1/4,-1	{ m'₀₁₁ \| 1/4 3/4 1/4 }
95	-z+1/4,y+1/4,-x+3/4,-1	{ m'₁₀₁ \| 1/4 1/4 3/4 }
96	y+1/4,-x+3/4,-z+1/4,-1	{ -4'⁺₀₀₁ \| 1/4 3/4 1/4 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-z,-x,-y,+1	-3⁺₁₁₁
3	-y,-z,-x,+1	-3^-₁₁₁
4	y,-z,x,+1	-3^-_1-1-1
5	-z,x,y,+1	-3⁺_-11-1
6	z,x,-y,+1	-3⁺_1-1-1
7	y,z,-x,+1	-3^-_-11-1
8	-y,z,x,+1	-3^-_-1-11
9	z,-x,y,+1	-3⁺_-1-11
10	x,y,-z,+1	m₀₀₁
11	x,-y,-z,+1	2₁₀₀
12	-x,y,-z,+1	2₀₁₀
13	-z,-y,-x,-1	2'_-101
14	-y,-x,-z,-1	2'_1-10
15	x,z,y,-1	m'_01-1
16	y,-x,z,-1	4'^-₀₀₁
17	y,x,-z,-1	2'₁₁₀
18	-x,z,-y,-1	-4'⁺₁₀₀
19	-z,y,x,-1	4'^-₀₁₀
20	-z,-y,x,-1	-4'⁺₀₁₀
21	-x,-z,y,-1	-4'^-₁₀₀
22	-x,z,y,-1	2'₀₁₁
23	z,-y,x,-1	2'₁₀₁
24	-y,x,z,-1	4'⁺₀₀₁
25	-x,-y,-z,+1	-1
26	z,x,y,+1	3⁺₁₁₁
27	y,z,x,+1	3^-₁₁₁
28	-y,z,-x,+1	3^-_1-1-1
29	z,-x,-y,+1	3⁺_-11-1
30	-z,-x,y,+1	3⁺_1-1-1
31	-y,-z,x,+1	3^-_-11-1
32	y,-z,-x,+1	3^-_-1-11
33	-z,x,-y,+1	3⁺_-1-11
34	-x,-y,z,+1	2₀₀₁
35	-x,y,z,+1	m₁₀₀
36	x,-y,z,+1	m₀₁₀
37	z,y,x,-1	m'_-101
38	y,x,z,-1	m'_1-10
39	-x,-z,-y,-1	2'_01-1
40	-y,x,-z,-1	-4'^-₀₀₁
41	-y,-x,z,-1	m'₁₁₀
42	x,-z,y,-1	4'⁺₁₀₀
43	z,-y,-x,-1	-4'^-₀₁₀
44	z,y,-x,-1	4'⁺₀₁₀
45	x,z,-y,-1	4'^-₁₀₀
46	x,-z,-y,-1	m'₀₁₁
47	-z,y,-x,-1	m'₁₀₁
48	y,-x,-z,-1	-4'⁺₀₀₁

[Hide]

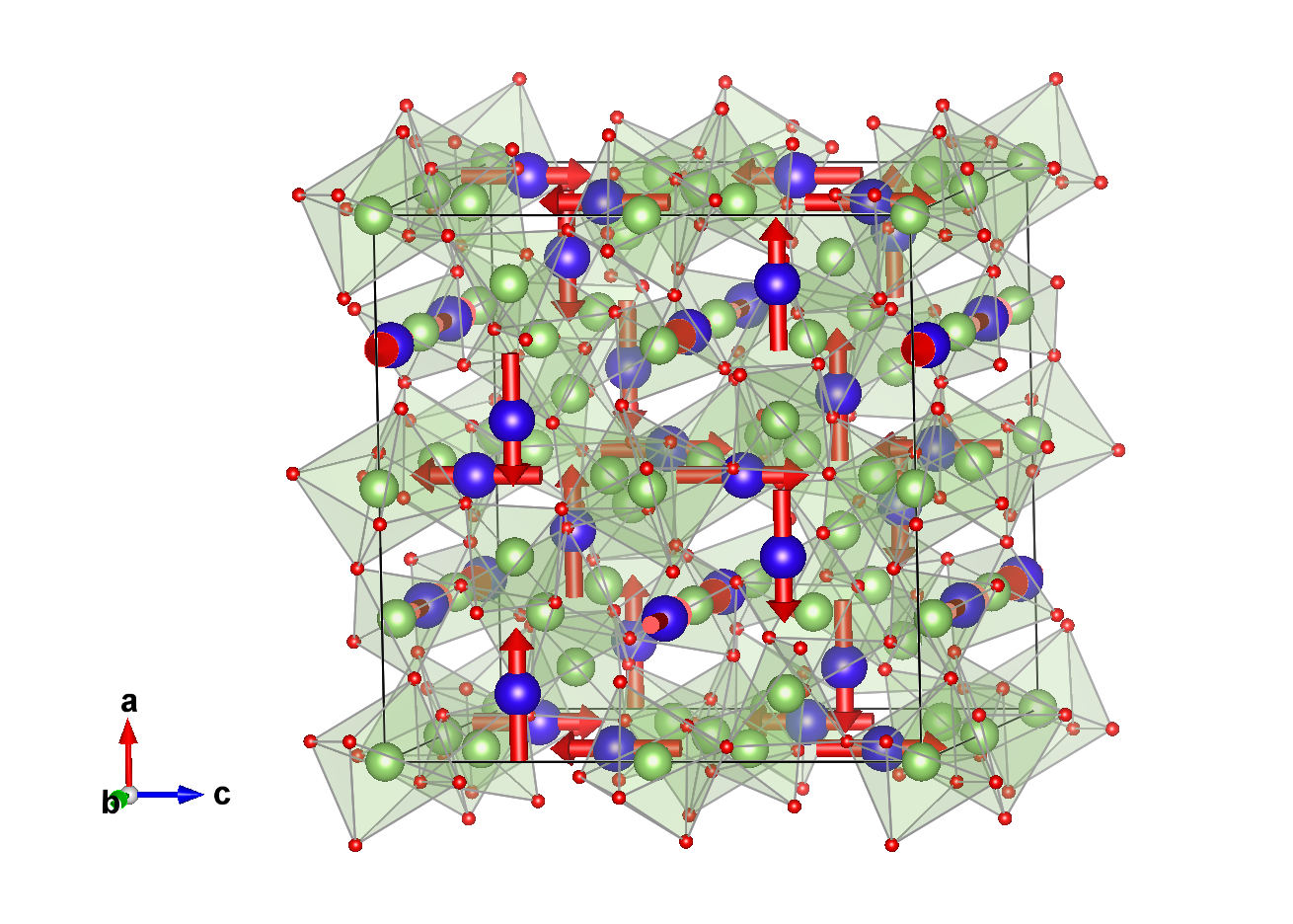

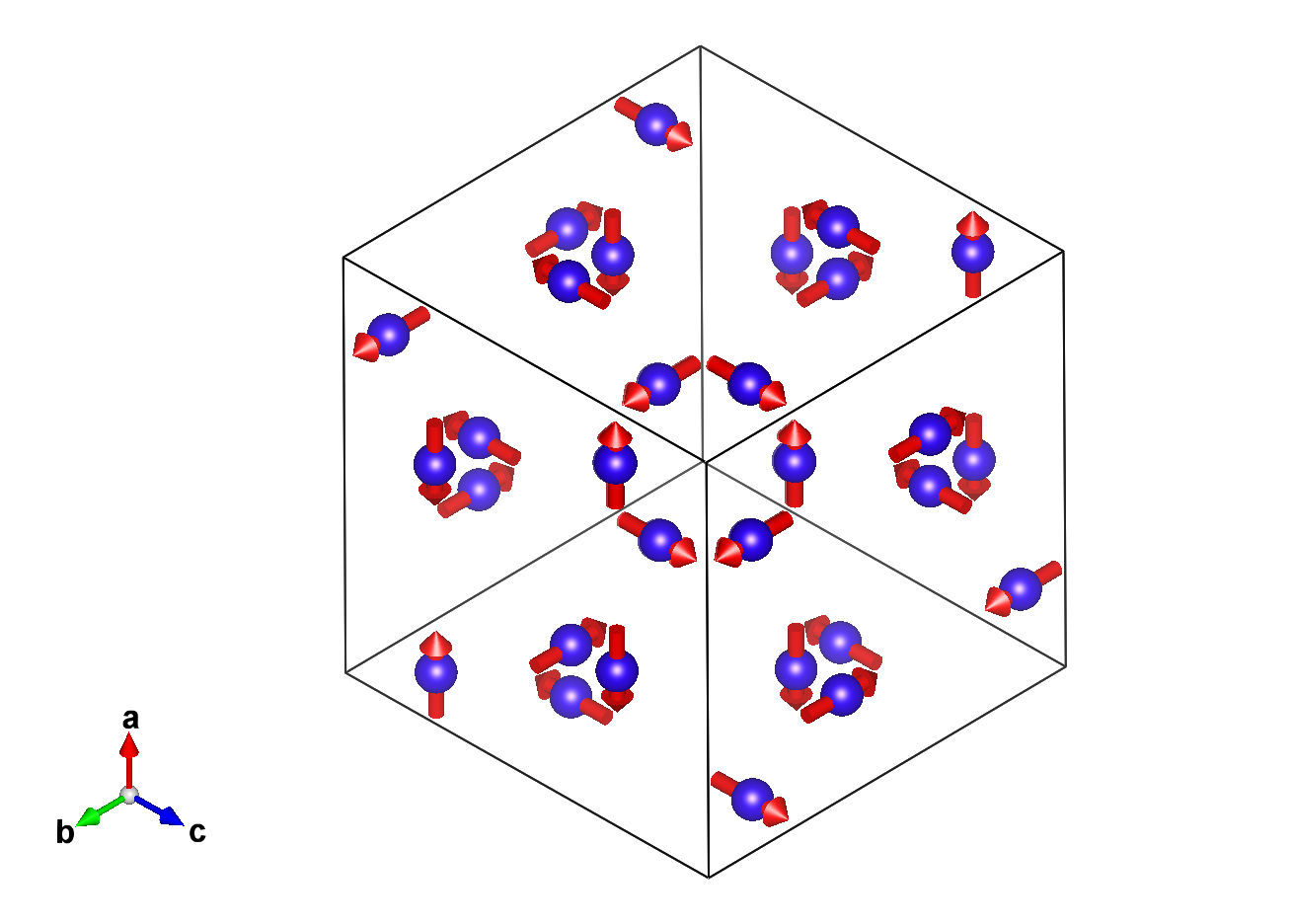

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Dy1	Dy	0.12500	0.00000	0.25000	24	m_x,0,0	3.092(7)	0.0	0.0	3.09

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ga1	Ga	0.00000	0.00000	0.00000	16
Ga2	Ga	0.37500	0.00000	0.25000	24
O1	O	-0.0323	0.05115	0.14904	96

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Dy1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.12500	0.00000	0.25000	m_x,0,0	3.09200	0.00000	0.00000
2	0.75000	0.87500	0.00000	0,m_x,0	0.00000	3.09200	0.00000
3	0.00000	0.75000	0.87500	0,0,m_x	0.00000	0.00000	3.09200
4	0.50000	0.75000	0.12500	0,0,-m_x	0.00000	0.00000	-3.09200
5	0.75000	0.12500	0.50000	0,-m_x,0	0.00000	-3.09200	0.00000
6	0.12500	0.50000	0.75000	-m_x,0,0	-3.09200	0.00000	0.00000
7	0.37500	0.00000	0.75000	-m_x,0,0	-3.09200	0.00000	0.00000
8	0.00000	0.25000	0.12500	0,0,m_x	0.00000	0.00000	3.09200
9	0.25000	0.12500	0.00000	0,m_x,0	0.00000	3.09200	0.00000
10	0.37500	0.50000	0.25000	m_x,0,0	3.09200	0.00000	0.00000
11	0.75000	0.37500	0.00000	0,-m_x,0	0.00000	-3.09200	0.00000
12	0.00000	0.75000	0.37500	0,0,-m_x	0.00000	0.00000	-3.09200
(1/2,1/2,1/2) + set click here to show and hide
13	0.62500	0.50000	0.75000	m_x,0,0	3.09200	0.00000	0.00000
14	0.25000	0.37500	0.50000	0,m_x,0	0.00000	3.09200	0.00000
15	0.50000	0.25000	0.37500	0,0,m_x	0.00000	0.00000	3.09200
16	0.00000	0.25000	0.62500	0,0,-m_x	0.00000	0.00000	-3.09200
17	0.25000	0.62500	0.00000	0,-m_x,0	0.00000	-3.09200	0.00000
18	0.62500	0.00000	0.25000	-m_x,0,0	-3.09200	0.00000	0.00000
19	0.87500	0.50000	0.25000	-m_x,0,0	-3.09200	0.00000	0.00000
20	0.50000	0.75000	0.62500	0,0,m_x	0.00000	0.00000	3.09200
21	0.75000	0.62500	0.50000	0,m_x,0	0.00000	3.09200	0.00000
22	0.87500	0.00000	0.75000	m_x,0,0	3.09200	0.00000	0.00000
23	0.25000	0.87500	0.50000	0,-m_x,0	0.00000	-3.09200	0.00000
24	0.50000	0.25000	0.87500	0,0,-m_x	0.00000	0.00000	-3.09200

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Ga1:

Atom	x	y	z
1	0.00000	0.00000	0.00000
2	0.50000	0.00000	0.00000
3	0.00000	0.00000	0.50000
4	0.00000	0.50000	0.00000
5	0.25000	0.25000	0.25000
6	0.25000	0.25000	0.75000
7	0.75000	0.25000	0.25000
8	0.25000	0.75000	0.25000
(1/2,1/2,1/2) + set click here to show and hide
9	0.50000	0.50000	0.50000
10	0.00000	0.50000	0.50000
11	0.50000	0.50000	0.00000
12	0.50000	0.00000	0.50000
13	0.75000	0.75000	0.75000
14	0.75000	0.75000	0.25000
15	0.25000	0.75000	0.75000
16	0.75000	0.25000	0.75000

Set of atoms in the unit cell related by symmetry with the atom Ga2:

Atom	x	y	z
1	0.37500	0.00000	0.25000
2	0.75000	0.62500	0.00000
3	0.00000	0.75000	0.62500
4	0.50000	0.75000	0.37500
5	0.75000	0.37500	0.50000
6	0.37500	0.50000	0.75000
7	0.12500	0.00000	0.75000
8	0.50000	0.25000	0.62500
9	0.62500	0.00000	0.75000
10	0.25000	0.37500	0.00000
11	0.00000	0.25000	0.37500
12	0.25000	0.62500	0.50000
(1/2,1/2,1/2) + set click here to show and hide
13	0.87500	0.50000	0.75000
14	0.25000	0.12500	0.50000
15	0.50000	0.25000	0.12500
16	0.00000	0.25000	0.87500
17	0.25000	0.87500	0.00000
18	0.87500	0.00000	0.25000
19	0.62500	0.50000	0.25000
20	0.00000	0.75000	0.12500
21	0.12500	0.50000	0.25000
22	0.75000	0.87500	0.50000
23	0.50000	0.75000	0.87500
24	0.75000	0.12500	0.00000

Set of atoms in the unit cell related by symmetry with the atom O1:

Atom	x	y	z
1	0.96770	0.05115	0.14904
2	0.85096	0.03230	0.94885
3	0.94885	0.85096	0.03230
4	0.55115	0.85096	0.96770
5	0.85096	0.96770	0.55115
6	0.14904	0.46770	0.94885
7	0.05115	0.64904	0.03230
8	0.94885	0.14904	0.46770
9	0.64904	0.03230	0.05115
10	0.96770	0.55115	0.85096
11	0.96770	0.94885	0.35096
12	0.53230	0.05115	0.85096
13	0.10096	0.19885	0.28230
14	0.19885	0.28230	0.10096
15	0.21770	0.39904	0.30115
16	0.30115	0.28230	0.89904
17	0.80115	0.21770	0.10096
18	0.28230	0.39904	0.69885
19	0.10096	0.80115	0.21770
20	0.60096	0.19885	0.21770
21	0.78230	0.10096	0.30115
22	0.28230	0.89904	0.30115
23	0.39904	0.19885	0.71770
24	0.19885	0.71770	0.39904
25	0.03230	0.94885	0.85096
26	0.14904	0.96770	0.05115
27	0.05115	0.14904	0.96770
28	0.44885	0.14904	0.03230
29	0.14904	0.03230	0.44885
30	0.85096	0.53230	0.05115
31	0.94885	0.35096	0.96770
32	0.05115	0.85096	0.53230
33	0.35096	0.96770	0.94885
34	0.03230	0.44885	0.14904
35	0.03230	0.05115	0.64904
36	0.46770	0.94885	0.14904
37	0.89904	0.80115	0.71770
38	0.80115	0.71770	0.89904
39	0.78230	0.60096	0.69885
40	0.69885	0.71770	0.10096
41	0.19885	0.78230	0.89904
42	0.71770	0.60096	0.30115
43	0.89904	0.19885	0.78230
44	0.39904	0.80115	0.78230
45	0.21770	0.89904	0.69885
46	0.71770	0.10096	0.69885
47	0.60096	0.80115	0.28230
48	0.80115	0.28230	0.60096
(1/2,1/2,1/2) + set click here to show and hide
49	0.46770	0.55115	0.64904
50	0.35096	0.53230	0.44885
51	0.44885	0.35096	0.53230
52	0.05115	0.35096	0.46770
53	0.35096	0.46770	0.05115
54	0.64904	0.96770	0.44885
55	0.55115	0.14904	0.53230
56	0.44885	0.64904	0.96770
57	0.14904	0.53230	0.55115
58	0.46770	0.05115	0.35096
59	0.46770	0.44885	0.85096
60	0.03230	0.55115	0.35096
61	0.60096	0.69885	0.78230
62	0.69885	0.78230	0.60096
63	0.71770	0.89904	0.80115
64	0.80115	0.78230	0.39904
65	0.30115	0.71770	0.60096
66	0.78230	0.89904	0.19885
67	0.60096	0.30115	0.71770
68	0.10096	0.69885	0.71770
69	0.28230	0.60096	0.80115
70	0.78230	0.39904	0.80115
71	0.89904	0.69885	0.21770
72	0.69885	0.21770	0.89904
73	0.53230	0.44885	0.35096
74	0.64904	0.46770	0.55115
75	0.55115	0.64904	0.46770
76	0.94885	0.64904	0.53230
77	0.64904	0.53230	0.94885
78	0.35096	0.03230	0.55115
79	0.44885	0.85096	0.46770
80	0.55115	0.35096	0.03230
81	0.85096	0.46770	0.44885
82	0.53230	0.94885	0.64904
83	0.53230	0.55115	0.14904
84	0.96770	0.44885	0.64904
85	0.39904	0.30115	0.21770
86	0.30115	0.21770	0.39904
87	0.28230	0.10096	0.19885
88	0.19885	0.21770	0.60096
89	0.69885	0.28230	0.39904
90	0.21770	0.10096	0.80115
91	0.39904	0.69885	0.28230
92	0.89904	0.30115	0.28230
93	0.71770	0.39904	0.19885
94	0.21770	0.60096	0.19885
95	0.10096	0.30115	0.78230
96	0.30115	0.78230	0.10096

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Dy1	Dy	0.12500	0.00000	0.25000	24	m_x,0,0	3.092(7)	0.0	0.0	3.09

[Show all magnetic atoms in unit cell and their moment relations]

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2+	1	1	primary	1

MAGNDATA: A Collection of magnetic structures with portable cif-type files

Dy₃Ga₅O₁₂ (#0.740)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

Dy3Ga5O12 (#0.740)

Dy₃Ga₅O₁₂ (#0.740)
