MAGNDATA - Collection of Magnetic Structures

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-y+1/2,x+1/2,z+1/2,+1	{ 4⁺₀₀₁ \| 1/2 1/2 1/2 }
3	y+1/2,-x+1/2,z+1/2,+1	{ 4^-₀₀₁ \| 1/2 1/2 1/2 }
4	-x,-y,z,+1	{ 2₀₀₁ \| 0 }
5	-x+1/2,-y+1/2,-z,+1	{ -1 \| 1/2 1/2 0 }
6	y,-x,-z+1/2,+1	{ -4⁺₀₀₁ \| 0 0 1/2 }
7	-y,x,-z+1/2,+1	{ -4^-₀₀₁ \| 0 0 1/2 }
8	x+1/2,y+1/2,-z,+1	{ m₀₀₁ \| 1/2 1/2 0 }
(1/2,1/2,0)' + set click here to show and hide
9	x+1/2,y+1/2,z,-1	{ 1' \| 1/2 1/2 0 }
10	-y,x,z+1/2,-1	{ 4'⁺₀₀₁ \| 0 0 1/2 }
11	y,-x,z+1/2,-1	{ 4'^-₀₀₁ \| 0 0 1/2 }
12	-x+1/2,-y+1/2,z,-1	{ 2'₀₀₁ \| 1/2 1/2 0 }
13	-x,-y,-z,-1	{ -1' \| 0 }
14	y+1/2,-x+1/2,-z+1/2,-1	{ -4'⁺₀₀₁ \| 1/2 1/2 1/2 }
15	-y+1/2,x+1/2,-z+1/2,-1	{ -4'^-₀₀₁ \| 1/2 1/2 1/2 }
16	x,y,-z,-1	{ m'₀₀₁ \| 0 }

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,-y,z,+1	2₀₀₁
3	-y,x,z,+1	4⁺₀₀₁
4	y,-x,z,+1	4^-₀₀₁
5	-x,-y,-z,+1	-1
6	x,y,-z,+1	m₀₀₁
7	y,-x,-z,+1	-4⁺₀₀₁
8	-y,x,-z,+1	-4^-₀₀₁
1' + set click here to show and hide
9	x,y,z,-1	1'
10	-x,-y,z,-1	2'₀₀₁
11	-y,x,z,-1	4'⁺₀₀₁
12	y,-x,z,-1	4'^-₀₀₁
13	-x,-y,-z,-1	-1'
14	x,y,-z,-1	m'₀₀₁
15	y,-x,-z,-1	-4'⁺₀₀₁
16	-y,x,-z,-1	-4'^-₀₀₁

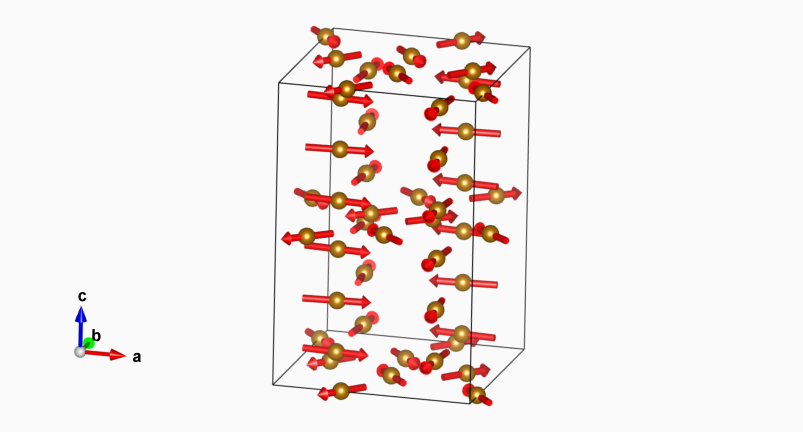

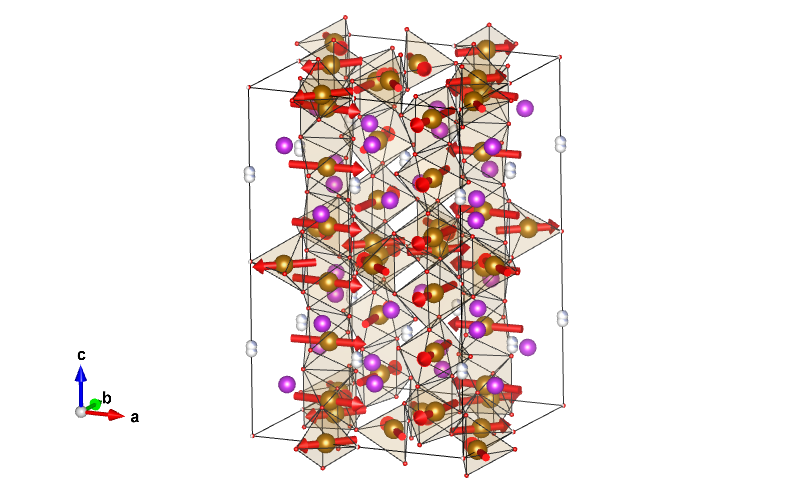

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
Fe1_1	Fe	0.25000	0.25000	0.08010	1.0000	8	m_x,m_y,0	4.05	-0.35	4.07
Fe1_2	Fe	0.25000	0.25000	0.41990	1.0000	8	m_x,m_y,0	4.05	-0.35	4.07
Fe2_1	Fe	0.00630	0.84480	0.00000	1.0000	8	m_x,m_y,0	2.18	-2.53	3.34
Fe2_2	Fe	0.00630	-0.34480	0.50000	1.0000	8	m_x,m_y,0	2.53	-2.18	3.34
Fe3	Fe	0.25000	0.25000	0.25000	1.0000	8	m_x,m_y,0	4.05	0.35	4.07

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
Bi11	Bi	0.00501	0.66439	0.15718	1.0000	16
Bi13	Bi	0.00501	0.83561	0.34282	1.0000	16
O11	O	0.00000	0.00000	0.00000	0.5000	4
O13	O	0.00000	0.50000	0.50000	0.5000	4
O21	O	0.70772	0.58406	0.58635	1.0000	16
O23	O	0.70772	0.91594	0.91365	1.0000	16
F11	F	0.00000	0.00000	0.25840	0.2500	8
F13	F	0.00000	0.50000	0.25840	0.2500	8
O31	O	0.77220	0.36270	0.00000	1.0000	8
O33	O	0.77220	0.13730	0.50000	1.0000	8
O41	O	0.74370	0.57620	0.75000	1.0000	16
O51	O	0.86070	0.72073	0.33318	1.0000	16
O53	O	0.86070	0.77927	0.16682	1.0000	16

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe1_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.08010	m_x,m_y,0	4.05000	-0.35000	0.00000
2	0.25000	0.75000	0.58010	-m_y,m_x,0	0.35000	4.05000	0.00000
3	0.25000	0.25000	0.91990	m_x,m_y,0	4.05000	-0.35000	0.00000
4	0.25000	0.75000	0.41990	-m_y,m_x,0	0.35000	4.05000	0.00000
(1/2,1/2,0)' + set click here to show and hide
5	0.75000	0.75000	0.08010	-m_x,-m_y,0	-4.05000	0.35000	0.00000
6	0.75000	0.25000	0.58010	m_y,-m_x,0	-0.35000	-4.05000	0.00000
7	0.75000	0.75000	0.91990	-m_x,-m_y,0	-4.05000	0.35000	0.00000
8	0.75000	0.25000	0.41990	m_y,-m_x,0	-0.35000	-4.05000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe1_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.41990	m_x,m_y,0	4.05000	-0.35000	0.00000
2	0.25000	0.75000	0.91990	-m_y,m_x,0	0.35000	4.05000	0.00000
3	0.25000	0.25000	0.58010	m_x,m_y,0	4.05000	-0.35000	0.00000
4	0.25000	0.75000	0.08010	-m_y,m_x,0	0.35000	4.05000	0.00000
(1/2,1/2,0)' + set click here to show and hide
5	0.75000	0.75000	0.41990	-m_x,-m_y,0	-4.05000	0.35000	0.00000
6	0.75000	0.25000	0.91990	m_y,-m_x,0	-0.35000	-4.05000	0.00000
7	0.75000	0.75000	0.58010	-m_x,-m_y,0	-4.05000	0.35000	0.00000
8	0.75000	0.25000	0.08010	m_y,-m_x,0	-0.35000	-4.05000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe2_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00630	0.84480	0.00000	m_x,m_y,0	2.18000	-2.53000	0.00000
2	0.65520	0.50630	0.50000	-m_y,m_x,0	2.53000	2.18000	0.00000
3	0.34480	0.49370	0.50000	m_y,-m_x,0	-2.53000	-2.18000	0.00000
4	0.99370	0.15520	0.00000	-m_x,-m_y,0	-2.18000	2.53000	0.00000
(1/2,1/2,0)' + set click here to show and hide
5	0.50630	0.34480	0.00000	-m_x,-m_y,0	-2.18000	2.53000	0.00000
6	0.15520	0.00630	0.50000	m_y,-m_x,0	-2.53000	-2.18000	0.00000
7	0.84480	0.99370	0.50000	-m_y,m_x,0	2.53000	2.18000	0.00000
8	0.49370	0.65520	0.00000	m_x,m_y,0	2.18000	-2.53000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe2_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00630	0.65520	0.50000	m_x,m_y,0	2.53000	-2.18000	0.00000
2	0.84480	0.50630	0.00000	-m_y,m_x,0	2.18000	2.53000	0.00000
3	0.15520	0.49370	0.00000	m_y,-m_x,0	-2.18000	-2.53000	0.00000
4	0.99370	0.34480	0.50000	-m_x,-m_y,0	-2.53000	2.18000	0.00000
(1/2,1/2,0)' + set click here to show and hide
5	0.50630	0.15520	0.50000	-m_x,-m_y,0	-2.53000	2.18000	0.00000
6	0.34480	0.00630	0.00000	m_y,-m_x,0	-2.18000	-2.53000	0.00000
7	0.65520	0.99370	0.00000	-m_y,m_x,0	2.18000	2.53000	0.00000
8	0.49370	0.84480	0.50000	m_x,m_y,0	2.53000	-2.18000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.25000	m_x,m_y,0	4.05000	0.35000	0.00000
2	0.25000	0.75000	0.75000	-m_y,m_x,0	-0.35000	4.05000	0.00000
3	0.25000	0.25000	0.75000	m_x,m_y,0	4.05000	0.35000	0.00000
4	0.25000	0.75000	0.25000	-m_y,m_x,0	-0.35000	4.05000	0.00000
(1/2,1/2,0)' + set click here to show and hide
5	0.75000	0.75000	0.25000	-m_x,-m_y,0	-4.05000	-0.35000	0.00000
6	0.75000	0.25000	0.75000	m_y,-m_x,0	0.35000	-4.05000	0.00000
7	0.75000	0.75000	0.75000	-m_x,-m_y,0	-4.05000	-0.35000	0.00000
8	0.75000	0.25000	0.25000	m_y,-m_x,0	0.35000	-4.05000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Bi11:

Atom	x	y	z
1	0.00501	0.66439	0.15718
2	0.83561	0.50501	0.65718
3	0.16439	0.49499	0.65718
4	0.99499	0.33561	0.15718
5	0.49499	0.83561	0.84282
6	0.66439	0.99499	0.34282
7	0.33561	0.00501	0.34282
8	0.50501	0.16439	0.84282
(1/2,1/2,0)' + set click here to show and hide
9	0.50501	0.16439	0.15718
10	0.33561	0.00501	0.65718
11	0.66439	0.99499	0.65718
12	0.49499	0.83561	0.15718
13	0.99499	0.33561	0.84282
14	0.16439	0.49499	0.34282
15	0.83561	0.50501	0.34282
16	0.00501	0.66439	0.84282

Set of atoms in the unit cell related by symmetry with the atom Bi13:

Atom	x	y	z
1	0.00501	0.83561	0.34282
2	0.66439	0.50501	0.84282
3	0.33561	0.49499	0.84282
4	0.99499	0.16439	0.34282
5	0.49499	0.66439	0.65718
6	0.83561	0.99499	0.15718
7	0.16439	0.00501	0.15718
8	0.50501	0.33561	0.65718
(1/2,1/2,0)' + set click here to show and hide
9	0.50501	0.33561	0.34282
10	0.16439	0.00501	0.84282
11	0.83561	0.99499	0.84282
12	0.49499	0.66439	0.34282
13	0.99499	0.16439	0.65718
14	0.33561	0.49499	0.15718
15	0.66439	0.50501	0.15718
16	0.00501	0.83561	0.65718

Set of atoms in the unit cell related by symmetry with the atom O11:

Atom	x	y	z
1	0.00000	0.00000	0.00000
2	0.50000	0.50000	0.50000
(1/2,1/2,0)' + set click here to show and hide
3	0.50000	0.50000	0.00000
4	0.00000	0.00000	0.50000

Set of atoms in the unit cell related by symmetry with the atom O13:

Atom	x	y	z
1	0.00000	0.50000	0.50000
2	0.00000	0.50000	0.00000
(1/2,1/2,0)' + set click here to show and hide
3	0.50000	0.00000	0.50000
4	0.50000	0.00000	0.00000

Set of atoms in the unit cell related by symmetry with the atom O21:

Atom	x	y	z
1	0.70772	0.58406	0.58635
2	0.91594	0.20772	0.08635
3	0.08406	0.79228	0.08635
4	0.29228	0.41594	0.58635
5	0.79228	0.91594	0.41365
6	0.58406	0.29228	0.91365
7	0.41594	0.70772	0.91365
8	0.20772	0.08406	0.41365
(1/2,1/2,0)' + set click here to show and hide
9	0.20772	0.08406	0.58635
10	0.41594	0.70772	0.08635
11	0.58406	0.29228	0.08635
12	0.79228	0.91594	0.58635
13	0.29228	0.41594	0.41365
14	0.08406	0.79228	0.91365
15	0.91594	0.20772	0.91365
16	0.70772	0.58406	0.41365

Set of atoms in the unit cell related by symmetry with the atom O23:

Atom	x	y	z
1	0.70772	0.91594	0.91365
2	0.58406	0.20772	0.41365
3	0.41594	0.79228	0.41365
4	0.29228	0.08406	0.91365
5	0.79228	0.58406	0.08635
6	0.91594	0.29228	0.58635
7	0.08406	0.70772	0.58635
8	0.20772	0.41594	0.08635
(1/2,1/2,0)' + set click here to show and hide
9	0.20772	0.41594	0.91365
10	0.08406	0.70772	0.41365
11	0.91594	0.29228	0.41365
12	0.79228	0.58406	0.91365
13	0.29228	0.08406	0.08635
14	0.41594	0.79228	0.58635
15	0.58406	0.20772	0.58635
16	0.70772	0.91594	0.08635

Set of atoms in the unit cell related by symmetry with the atom F11:

Atom	x	y	z
1	0.00000	0.00000	0.25840
2	0.50000	0.50000	0.75840
3	0.50000	0.50000	0.74160
4	0.00000	0.00000	0.24160
(1/2,1/2,0)' + set click here to show and hide
5	0.50000	0.50000	0.25840
6	0.00000	0.00000	0.75840
7	0.00000	0.00000	0.74160
8	0.50000	0.50000	0.24160

Set of atoms in the unit cell related by symmetry with the atom F13:

Atom	x	y	z
1	0.00000	0.50000	0.25840
2	0.00000	0.50000	0.75840
3	0.50000	0.00000	0.74160
4	0.50000	0.00000	0.24160
(1/2,1/2,0)' + set click here to show and hide
5	0.50000	0.00000	0.25840
6	0.50000	0.00000	0.75840
7	0.00000	0.50000	0.74160
8	0.00000	0.50000	0.24160

Set of atoms in the unit cell related by symmetry with the atom O31:

Atom	x	y	z
1	0.77220	0.36270	0.00000
2	0.13730	0.27220	0.50000
3	0.86270	0.72780	0.50000
4	0.22780	0.63730	0.00000
(1/2,1/2,0)' + set click here to show and hide
5	0.27220	0.86270	0.00000
6	0.63730	0.77220	0.50000
7	0.36270	0.22780	0.50000
8	0.72780	0.13730	0.00000

Set of atoms in the unit cell related by symmetry with the atom O33:

Atom	x	y	z
1	0.77220	0.13730	0.50000
2	0.36270	0.27220	0.00000
3	0.63730	0.72780	0.00000
4	0.22780	0.86270	0.50000
(1/2,1/2,0)' + set click here to show and hide
5	0.27220	0.63730	0.50000
6	0.86270	0.77220	0.00000
7	0.13730	0.22780	0.00000
8	0.72780	0.36270	0.50000

Set of atoms in the unit cell related by symmetry with the atom O41:

Atom	x	y	z
1	0.74370	0.57620	0.75000
2	0.92380	0.24370	0.25000
3	0.07620	0.75630	0.25000
4	0.25630	0.42380	0.75000
5	0.75630	0.92380	0.25000
6	0.57620	0.25630	0.75000
7	0.42380	0.74370	0.75000
8	0.24370	0.07620	0.25000
(1/2,1/2,0)' + set click here to show and hide
9	0.24370	0.07620	0.75000
10	0.42380	0.74370	0.25000
11	0.57620	0.25630	0.25000
12	0.75630	0.92380	0.75000
13	0.25630	0.42380	0.25000
14	0.07620	0.75630	0.75000
15	0.92380	0.24370	0.75000
16	0.74370	0.57620	0.25000

Set of atoms in the unit cell related by symmetry with the atom O51:

Atom	x	y	z
1	0.86070	0.72073	0.33318
2	0.77927	0.36070	0.83318
3	0.22073	0.63930	0.83318
4	0.13930	0.27927	0.33318
5	0.63930	0.77927	0.66682
6	0.72073	0.13930	0.16682
7	0.27927	0.86070	0.16682
8	0.36070	0.22073	0.66682
(1/2,1/2,0)' + set click here to show and hide
9	0.36070	0.22073	0.33318
10	0.27927	0.86070	0.83318
11	0.72073	0.13930	0.83318
12	0.63930	0.77927	0.33318
13	0.13930	0.27927	0.66682
14	0.22073	0.63930	0.16682
15	0.77927	0.36070	0.16682
16	0.86070	0.72073	0.66682

Set of atoms in the unit cell related by symmetry with the atom O53:

Atom	x	y	z
1	0.86070	0.77927	0.16682
2	0.72073	0.36070	0.66682
3	0.27927	0.63930	0.66682
4	0.13930	0.22073	0.16682
5	0.63930	0.72073	0.83318
6	0.77927	0.13930	0.33318
7	0.22073	0.86070	0.33318
8	0.36070	0.27927	0.83318
(1/2,1/2,0)' + set click here to show and hide
9	0.36070	0.27927	0.16682
10	0.22073	0.86070	0.66682
11	0.77927	0.13930	0.66682
12	0.63930	0.72073	0.16682
13	0.13930	0.22073	0.83318
14	0.27927	0.63930	0.33318
15	0.72073	0.36070	0.33318
16	0.86070	0.77927	0.83318

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
Fe1_1	Fe	0.25000	0.25000	0.08010	8	m_x,m_y,0	4.05	-0.35	4.07
Fe1_2	Fe	0.25000	0.25000	0.41990	8	m_x,m_y,0	4.05	-0.35	4.07
Fe2_1	Fe	0.00630	0.84480	0.00000	8	m_x,m_y,0	2.18	-2.53	3.34
Fe2_2	Fe	0.00630	-0.34480	0.50000	8	m_x,m_y,0	2.53	-2.18	3.34
Fe3	Fe	0.25000	0.25000	0.25000	8	m_x,m_y,0	4.05	0.35	4.07

[Show all magnetic atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:
