Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x+1/2,-y+1/2,-z,+1	{ 2₁₀₀ \| 1/2 1/2 0 }
3	-x+1/2,y+1/2,-z,+1	{ 2₀₁₀ \| 1/2 1/2 0 }
4	-x,-y,z,+1	{ 2₀₀₁ \| 0 }
5	-x,-y,-z,+1	{ -1 \| 0 }
6	-x+1/2,y+1/2,z,+1	{ m₁₀₀ \| 1/2 1/2 0 }
7	x+1/2,-y+1/2,z,+1	{ m₀₁₀ \| 1/2 1/2 0 }
8	x,y,-z,+1	{ m₀₀₁ \| 0 }
(0,0,1/2)' + set click here to show and hide
9	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
10	x+1/2,-y+1/2,-z+1/2,-1	{ 2'₁₀₀ \| 1/2 1/2 1/2 }
11	-x+1/2,y+1/2,-z+1/2,-1	{ 2'₀₁₀ \| 1/2 1/2 1/2 }
12	-x,-y,z+1/2,-1	{ 2'₀₀₁ \| 0 0 1/2 }
13	-x,-y,-z+1/2,-1	{ -1' \| 0 0 1/2 }
14	-x+1/2,y+1/2,z+1/2,-1	{ m'₁₀₀ \| 1/2 1/2 1/2 }
15	x+1/2,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 1/2 1/2 1/2 }
16	x,y,-z+1/2,-1	{ m'₀₀₁ \| 0 0 1/2 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	x,-y,-z,+1	2₁₀₀
3	-x,y,-z,+1	2₀₁₀
4	-x,-y,z,+1	2₀₀₁
5	-x,-y,-z,+1	-1
6	-x,y,z,+1	m₁₀₀
7	x,-y,z,+1	m₀₁₀
8	x,y,-z,+1	m₀₀₁
1' + set click here to show and hide
9	x,y,z,-1	1'
10	x,-y,-z,-1	2'₁₀₀
11	-x,y,-z,-1	2'₀₁₀
12	-x,-y,z,-1	2'₀₀₁
13	-x,-y,-z,-1	-1'
14	-x,y,z,-1	m'₁₀₀
15	x,-y,z,-1	m'₀₁₀
16	x,y,-z,-1	m'₀₀₁

[Hide]

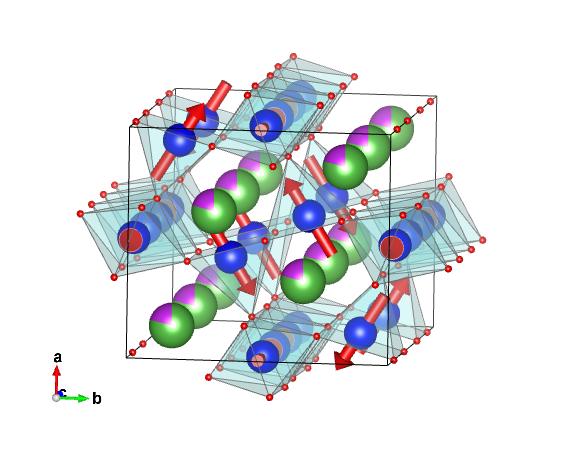

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.50000	0.12850	1.	8	0,0,m_z	0.0	0.0	1.58(8)	1.58
Mn2	Mn	0.40600	0.35170	0.25000	1.	8	m_x,m_y,0	-1.55(7)	0.98(11)	0.0	1.83

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
La1	La	0.14600	0.17220	0.00000	0.8	8
Bi1	Bi	0.14600	0.17220	0.00000	0.2	8
O1	O	0.00000	0.00000	0.13900	1.	8
O2	O	0.15270	0.44920	0.00000	1.	8
O3	O	0.15020	0.43480	0.25000	1.	8
O4	O	0.40430	0.20540	0.12750	1.	16

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

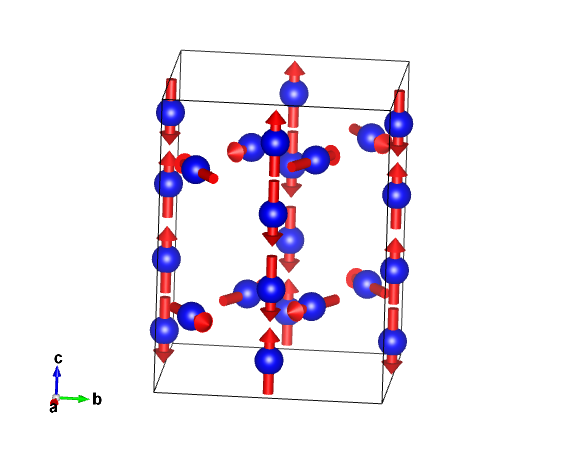

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Mn1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.50000	0.12850	0,0,m_z	0.00000	0.00000	1.58000
2	0.50000	0.00000	0.87150	0,0,-m_z	0.00000	0.00000	-1.58000
3	0.00000	0.50000	0.87150	0,0,m_z	0.00000	0.00000	1.58000
4	0.50000	0.00000	0.12850	0,0,-m_z	0.00000	0.00000	-1.58000
(0,0,1/2)' + set click here to show and hide
5	0.00000	0.50000	0.62850	0,0,-m_z	0.00000	0.00000	-1.58000
6	0.50000	0.00000	0.37150	0,0,m_z	0.00000	0.00000	1.58000
7	0.00000	0.50000	0.37150	0,0,-m_z	0.00000	0.00000	-1.58000
8	0.50000	0.00000	0.62850	0,0,m_z	0.00000	0.00000	1.58000

Set of atoms in the unit cell related by symmetry with the magnetic atom Mn2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.40600	0.35170	0.25000	m_x,m_y,0	-1.55000	0.98000	0.00000
2	0.90600	0.14830	0.75000	m_x,-m_y,0	-1.55000	-0.98000	0.00000
3	0.09400	0.85170	0.75000	-m_x,m_y,0	1.55000	0.98000	0.00000
4	0.59400	0.64830	0.25000	-m_x,-m_y,0	1.55000	-0.98000	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.40600	0.35170	0.75000	-m_x,-m_y,0	1.55000	-0.98000	0.00000
6	0.90600	0.14830	0.25000	-m_x,m_y,0	1.55000	0.98000	0.00000
7	0.09400	0.85170	0.25000	m_x,-m_y,0	-1.55000	-0.98000	0.00000
8	0.59400	0.64830	0.75000	m_x,m_y,0	-1.55000	0.98000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom La1:

Atom	x	y	z
1	0.14600	0.17220	0.00000
2	0.64600	0.32780	0.00000
3	0.35400	0.67220	0.00000
4	0.85400	0.82780	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.14600	0.17220	0.50000
6	0.64600	0.32780	0.50000
7	0.35400	0.67220	0.50000
8	0.85400	0.82780	0.50000

Set of atoms in the unit cell related by symmetry with the atom Bi1:

Atom	x	y	z
1	0.14600	0.17220	0.00000
2	0.64600	0.32780	0.00000
3	0.35400	0.67220	0.00000
4	0.85400	0.82780	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.14600	0.17220	0.50000
6	0.64600	0.32780	0.50000
7	0.35400	0.67220	0.50000
8	0.85400	0.82780	0.50000

Set of atoms in the unit cell related by symmetry with the atom O1:

Atom	x	y	z
1	0.00000	0.00000	0.13900
2	0.50000	0.50000	0.86100
3	0.00000	0.00000	0.86100
4	0.50000	0.50000	0.13900
(0,0,1/2)' + set click here to show and hide
5	0.00000	0.00000	0.63900
6	0.50000	0.50000	0.36100
7	0.00000	0.00000	0.36100
8	0.50000	0.50000	0.63900

Set of atoms in the unit cell related by symmetry with the atom O2:

Atom	x	y	z
1	0.15270	0.44920	0.00000
2	0.65270	0.05080	0.00000
3	0.34730	0.94920	0.00000
4	0.84730	0.55080	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.15270	0.44920	0.50000
6	0.65270	0.05080	0.50000
7	0.34730	0.94920	0.50000
8	0.84730	0.55080	0.50000

Set of atoms in the unit cell related by symmetry with the atom O3:

Atom	x	y	z
1	0.15020	0.43480	0.25000
2	0.65020	0.06520	0.75000
3	0.34980	0.93480	0.75000
4	0.84980	0.56520	0.25000
(0,0,1/2)' + set click here to show and hide
5	0.15020	0.43480	0.75000
6	0.65020	0.06520	0.25000
7	0.34980	0.93480	0.25000
8	0.84980	0.56520	0.75000

Set of atoms in the unit cell related by symmetry with the atom O4:

Atom	x	y	z
1	0.40430	0.20540	0.12750
2	0.90430	0.29460	0.87250
3	0.09570	0.70540	0.87250
4	0.59570	0.79460	0.12750
5	0.59570	0.79460	0.87250
6	0.09570	0.70540	0.12750
7	0.90430	0.29460	0.12750
8	0.40430	0.20540	0.87250
(0,0,1/2)' + set click here to show and hide
9	0.40430	0.20540	0.62750
10	0.90430	0.29460	0.37250
11	0.09570	0.70540	0.37250
12	0.59570	0.79460	0.62750
13	0.59570	0.79460	0.37250
14	0.09570	0.70540	0.62750
15	0.90430	0.29460	0.62750
16	0.40430	0.20540	0.37250

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.50000	0.12850	8	0,0,m_z	0.0	0.0	1.58(8)	1.58
Mn2	Mn	0.40600	0.35170	0.25000	8	m_x,m_y,0	-1.55(7)	0.98(11)	0.0	1.83
