MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-y+1/2,-x,-z+1/2,+1	{ 2_1-10 \| 1/2 0 1/2 }
3	-x,-y,-z,+1	{ -1 \| 0 }
4	y+1/2,x,z+1/2,+1	{ m_1-10 \| 1/2 0 1/2 }
(1/2,1/2,0) + set click here to show and hide
5	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
6	-y,-x+1/2,-z+1/2,+1	{ 2_1-10 \| 0 1/2 1/2 }
7	-x+1/2,-y+1/2,-z,+1	{ -1 \| 1/2 1/2 0 }
8	y,x+1/2,z+1/2,+1	{ m_1-10 \| 0 1/2 1/2 }
(1/2,0,1/2)' + set click here to show and hide
9	x+1/2,y,z+1/2,-1	{ 1' \| 1/2 0 1/2 }
10	-y,-x,-z,-1	{ 2'_1-10 \| 0 }
11	-x+1/2,-y,-z+1/2,-1	{ -1' \| 1/2 0 1/2 }
12	y,x,z,-1	{ m'_1-10 \| 0 }
(0,1/2,1/2)' + set click here to show and hide
13	x,y+1/2,z+1/2,-1	{ 1' \| 0 1/2 1/2 }
14	-y+1/2,-x+1/2,-z,-1	{ 2'_1-10 \| 1/2 1/2 0 }
15	-x,-y+1/2,-z+1/2,-1	{ -1' \| 0 1/2 1/2 }
16	y+1/2,x+1/2,z,-1	{ m'_1-10 \| 1/2 1/2 0 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-y,-x,-z,+1	2_1-10
3	-x,-y,-z,+1	-1
4	y,x,z,+1	m_1-10
1' + set click here to show and hide
5	x,y,z,-1	1'
6	-y,-x,-z,-1	2'_1-10
7	-x,-y,-z,-1	-1'
8	y,x,z,-1	m'_1-10

[Hide]

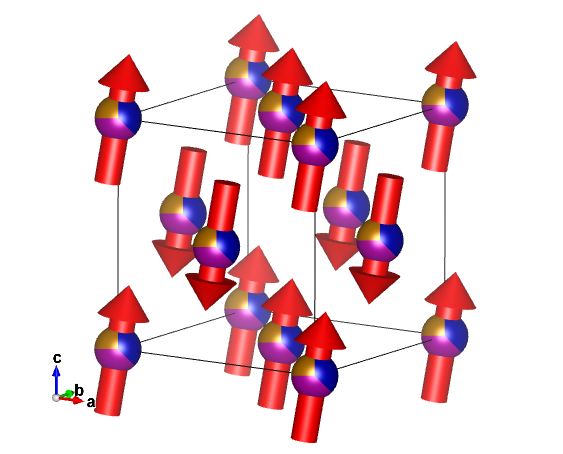

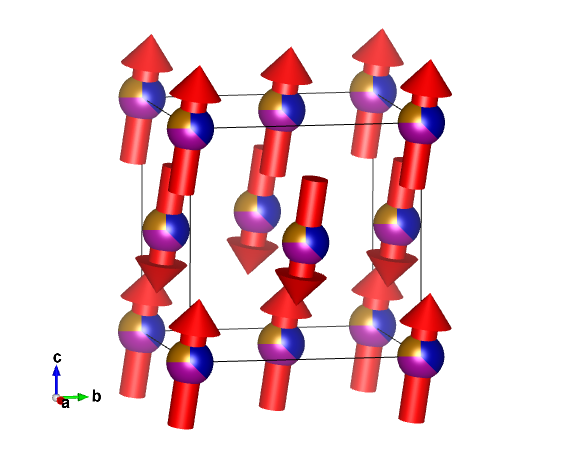

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.00000	0.00000	0.00000	0.375	4	m_x,m_x,m_z	0.08	0.08	0.66	0.67

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
Mn1	Mn	0.00000	0.00000	0.00000	0.375	4
Fe1	Fe	0.00000	0.00000	0.00000	0.25	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_x,m_z	0.08000	0.08000	0.66000
(1/2,1/2,0) + set click here to show and hide
2	0.50000	0.50000	0.00000	m_x,m_x,m_z	0.08000	0.08000	0.66000
(1/2,0,1/2)' + set click here to show and hide
3	0.50000	0.00000	0.50000	-m_x,-m_x,-m_z	-0.08000	-0.08000	-0.66000
(0,1/2,1/2)' + set click here to show and hide
4	0.00000	0.50000	0.50000	-m_x,-m_x,-m_z	-0.08000	-0.08000	-0.66000

Atom	x	y	z
1	0.00000	0.00000	0.00000
(1/2,1/2,0) + set click here to show and hide
2	0.50000	0.50000	0.00000
(1/2,0,1/2)' + set click here to show and hide
3	0.50000	0.00000	0.50000
(0,1/2,1/2)' + set click here to show and hide
4	0.00000	0.50000	0.50000

Atom	x	y	z
1	0.00000	0.00000	0.00000
(1/2,1/2,0) + set click here to show and hide
2	0.50000	0.50000	0.00000
(1/2,0,1/2)' + set click here to show and hide
3	0.50000	0.00000	0.50000
(0,1/2,1/2)' + set click here to show and hide
4	0.00000	0.50000	0.50000

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.00000	0.00000	0.00000	0.375	4	m_x,m_x,m_z	0.08	0.08	0.66	0.67

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_x,m_z	0.08000	0.08000	0.66000
(1/2,1/2,0) + set click here to show and hide
2	0.50000	0.50000	0.00000	m_x,m_x,m_z	0.08000	0.08000	0.66000
(1/2,0,1/2)' + set click here to show and hide
3	0.50000	0.00000	0.50000	-m_x,-m_x,-m_z	-0.08000	-0.08000	-0.66000
(0,1/2,1/2)' + set click here to show and hide
4	0.00000	0.50000	0.50000	-m_x,-m_x,-m_z	-0.08000	-0.08000	-0.66000
