Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,-y,z,+1	{ 2₀₀₁ \| 0 }
3	y,-x,-z,+1	{ -4⁺₀₀₁ \| 0 }
4	-y,x,-z,+1	{ -4^-₀₀₁ \| 0 }
5	x,-y,-z,-1	{ 2'₁₀₀ \| 0 }
6	-x,y,-z,-1	{ 2'₀₁₀ \| 0 }
7	y,x,z,-1	{ m'_1-10 \| 0 }
8	-y,-x,z,-1	{ m'₁₁₀ \| 0 }
(0,1/2,1/2) + set click here to show and hide
9	x,y+1/2,z+1/2,+1	{ 1 \| 0 1/2 1/2 }
10	-x,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 0 1/2 1/2 }
11	y,-x+1/2,-z+1/2,+1	{ -4⁺₀₀₁ \| 0 1/2 1/2 }
12	-y,x+1/2,-z+1/2,+1	{ -4^-₀₀₁ \| 0 1/2 1/2 }
13	x,-y+1/2,-z+1/2,-1	{ 2'₁₀₀ \| 0 1/2 1/2 }
14	-x,y+1/2,-z+1/2,-1	{ 2'₀₁₀ \| 0 1/2 1/2 }
15	y,x+1/2,z+1/2,-1	{ m'_1-10 \| 0 1/2 1/2 }
16	-y,-x+1/2,z+1/2,-1	{ m'₁₁₀ \| 0 1/2 1/2 }
(1/2,0,1/2) + set click here to show and hide
17	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
18	-x+1/2,-y,z+1/2,+1	{ 2₀₀₁ \| 1/2 0 1/2 }
19	y+1/2,-x,-z+1/2,+1	{ -4⁺₀₀₁ \| 1/2 0 1/2 }
20	-y+1/2,x,-z+1/2,+1	{ -4^-₀₀₁ \| 1/2 0 1/2 }
21	x+1/2,-y,-z+1/2,-1	{ 2'₁₀₀ \| 1/2 0 1/2 }
22	-x+1/2,y,-z+1/2,-1	{ 2'₀₁₀ \| 1/2 0 1/2 }
23	y+1/2,x,z+1/2,-1	{ m'_1-10 \| 1/2 0 1/2 }
24	-y+1/2,-x,z+1/2,-1	{ m'₁₁₀ \| 1/2 0 1/2 }
(1/2,1/2,0) + set click here to show and hide
25	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
26	-x+1/2,-y+1/2,z,+1	{ 2₀₀₁ \| 1/2 1/2 0 }
27	y+1/2,-x+1/2,-z,+1	{ -4⁺₀₀₁ \| 1/2 1/2 0 }
28	-y+1/2,x+1/2,-z,+1	{ -4^-₀₀₁ \| 1/2 1/2 0 }
29	x+1/2,-y+1/2,-z,-1	{ 2'₁₀₀ \| 1/2 1/2 0 }
30	-x+1/2,y+1/2,-z,-1	{ 2'₀₁₀ \| 1/2 1/2 0 }
31	y+1/2,x+1/2,z,-1	{ m'_1-10 \| 1/2 1/2 0 }
32	-y+1/2,-x+1/2,z,-1	{ m'₁₁₀ \| 1/2 1/2 0 }

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.75000	0.75000	0.75000	4	0,0,m_z	0.0	0.0	-2.54(16)	2.54
Cr1	Cr	0.37260	0.37260	0.37260	16	m_x,m_x,m_z	0.0	0.0	0.28(11)	0.28

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Li1	Li	0.00000	0.00000	0.00000	4
O1	O	0.13720	0.13720	0.13720	16
O2	O	0.61710	0.61710	0.61710	16

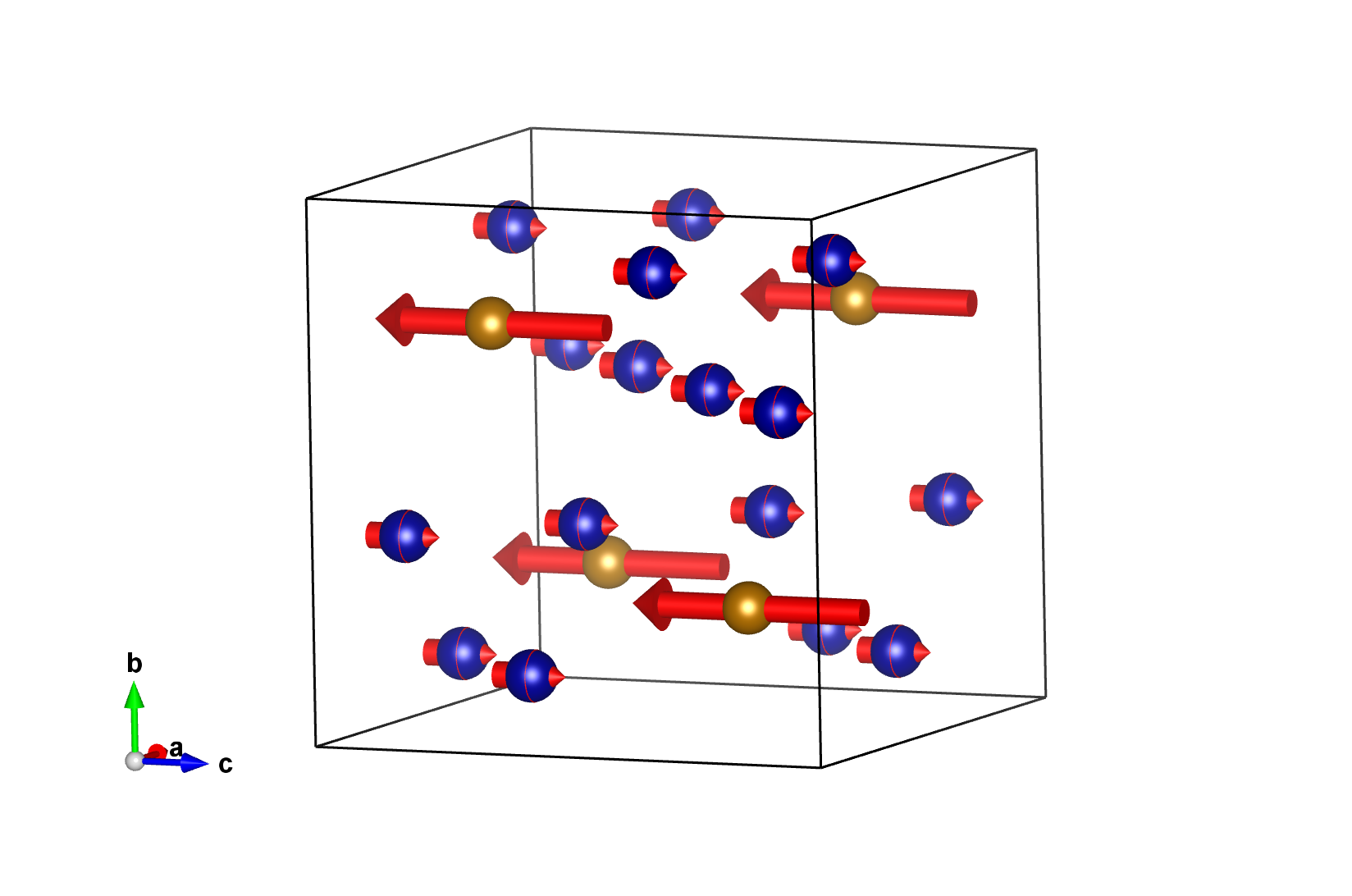

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.75000	0.75000	0.75000	0,0,m_z	0.00000	0.00000	-2.54000
(0,1/2,1/2) + set click here to show and hide
2	0.75000	0.25000	0.25000	0,0,m_z	0.00000	0.00000	-2.54000
(1/2,0,1/2) + set click here to show and hide
3	0.25000	0.75000	0.25000	0,0,m_z	0.00000	0.00000	-2.54000
(1/2,1/2,0) + set click here to show and hide
4	0.25000	0.25000	0.75000	0,0,m_z	0.00000	0.00000	-2.54000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.37260	0.37260	0.37260	m_x,m_x,m_z	0.00000	0.00000	0.28000
2	0.62740	0.62740	0.37260	-m_x,-m_x,m_z	0.00000	0.00000	0.28000
3	0.37260	0.62740	0.62740	-m_x,m_x,m_z	0.00000	0.00000	0.28000
4	0.62740	0.37260	0.62740	m_x,-m_x,m_z	0.00000	0.00000	0.28000
(0,1/2,1/2) + set click here to show and hide
5	0.37260	0.87260	0.87260	m_x,m_x,m_z	0.00000	0.00000	0.28000
6	0.62740	0.12740	0.87260	-m_x,-m_x,m_z	0.00000	0.00000	0.28000
7	0.37260	0.12740	0.12740	-m_x,m_x,m_z	0.00000	0.00000	0.28000
8	0.62740	0.87260	0.12740	m_x,-m_x,m_z	0.00000	0.00000	0.28000
(1/2,0,1/2) + set click here to show and hide
9	0.87260	0.37260	0.87260	m_x,m_x,m_z	0.00000	0.00000	0.28000
10	0.12740	0.62740	0.87260	-m_x,-m_x,m_z	0.00000	0.00000	0.28000
11	0.87260	0.62740	0.12740	-m_x,m_x,m_z	0.00000	0.00000	0.28000
12	0.12740	0.37260	0.12740	m_x,-m_x,m_z	0.00000	0.00000	0.28000
(1/2,1/2,0) + set click here to show and hide
13	0.87260	0.87260	0.37260	m_x,m_x,m_z	0.00000	0.00000	0.28000
14	0.12740	0.12740	0.37260	-m_x,-m_x,m_z	0.00000	0.00000	0.28000
15	0.87260	0.12740	0.62740	-m_x,m_x,m_z	0.00000	0.00000	0.28000
16	0.12740	0.87260	0.62740	m_x,-m_x,m_z	0.00000	0.00000	0.28000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Li1:

Atom	x	y	z
1	0.00000	0.00000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.00000	0.50000	0.50000
(1/2,0,1/2) + set click here to show and hide
3	0.50000	0.00000	0.50000
(1/2,1/2,0) + set click here to show and hide
4	0.50000	0.50000	0.00000

Set of atoms in the unit cell related by symmetry with the atom O1:

Atom	x	y	z
1	0.13720	0.13720	0.13720
2	0.86280	0.86280	0.13720
3	0.13720	0.86280	0.86280
4	0.86280	0.13720	0.86280
(0,1/2,1/2) + set click here to show and hide
5	0.13720	0.63720	0.63720
6	0.86280	0.36280	0.63720
7	0.13720	0.36280	0.36280
8	0.86280	0.63720	0.36280
(1/2,0,1/2) + set click here to show and hide
9	0.63720	0.13720	0.63720
10	0.36280	0.86280	0.63720
11	0.63720	0.86280	0.36280
12	0.36280	0.13720	0.36280
(1/2,1/2,0) + set click here to show and hide
13	0.63720	0.63720	0.13720
14	0.36280	0.36280	0.13720
15	0.63720	0.36280	0.86280
16	0.36280	0.63720	0.86280

Set of atoms in the unit cell related by symmetry with the atom O2:

Atom	x	y	z
1	0.61710	0.61710	0.61710
2	0.38290	0.38290	0.61710
3	0.61710	0.38290	0.38290
4	0.38290	0.61710	0.38290
(0,1/2,1/2) + set click here to show and hide
5	0.61710	0.11710	0.11710
6	0.38290	0.88290	0.11710
7	0.61710	0.88290	0.88290
8	0.38290	0.11710	0.88290
(1/2,0,1/2) + set click here to show and hide
9	0.11710	0.61710	0.11710
10	0.88290	0.38290	0.11710
11	0.11710	0.38290	0.88290
12	0.88290	0.61710	0.88290
(1/2,1/2,0) + set click here to show and hide
13	0.11710	0.11710	0.61710
14	0.88290	0.88290	0.61710
15	0.11710	0.88290	0.38290
16	0.88290	0.11710	0.38290

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.75000	0.75000	0.75000	4	0,0,m_z	0.0	0.0	-2.54(16)	2.54
Cr1	Cr	0.37260	0.37260	0.37260	16	m_x,m_x,m_z	0.0	0.0	0.28(11)	0.28

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mGM5	3	3	special	primary	3
