MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	y,x+1/2,-z,+1	{ 2₁₁₀ \| 0 1/2 0 }
3	-y,-x+1/4,-z+1/2,+1	{ 2_1-10 \| 0 1/4 1/2 }
4	-x+1/4,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 1/4 1/2 1/2 }
5	-x,-y+1/4,-z+1/2,+1	{ -1 \| 0 1/4 1/2 }
6	-y+1/4,-x+1/2,z+1/2,+1	{ m₁₁₀ \| 1/4 1/2 1/2 }
7	y+3/4,x+1/4,z,+1	{ m_1-10 \| 3/4 1/4 0 }
8	x+1/4,y+1/4,-z,+1	{ m₀₀₁ \| 1/4 1/4 0 }
(1/4,3/4,0) + set click here to show and hide
9	x+1/4,y+3/4,z,+1	{ 1 \| 1/4 3/4 0 }
10	y+1/4,x+1/4,-z,+1	{ 2₁₁₀ \| 1/4 1/4 0 }
11	-y+1/4,-x,-z+1/2,+1	{ 2_1-10 \| 1/4 0 1/2 }
12	-x+1/2,-y+1/4,z+1/2,+1	{ 2₀₀₁ \| 1/2 1/4 1/2 }
13	-x+1/4,-y,-z+1/2,+1	{ -1 \| 1/4 0 1/2 }
14	-y+1/2,-x+1/4,z+1/2,+1	{ m₁₁₀ \| 1/2 1/4 1/2 }
15	y,x,z,+1	{ m_1-10 \| 0 }
16	x+1/2,y,-z,+1	{ m₀₀₁ \| 1/2 0 0 }
(1/2,1/2,0) + set click here to show and hide
17	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
18	y+1/2,x,-z,+1	{ 2₁₁₀ \| 1/2 0 0 }
19	-y+1/2,-x+3/4,-z+1/2,+1	{ 2_1-10 \| 1/2 3/4 1/2 }
20	-x+3/4,-y,z+1/2,+1	{ 2₀₀₁ \| 3/4 0 1/2 }
21	-x+1/2,-y+3/4,-z+1/2,+1	{ -1 \| 1/2 3/4 1/2 }
22	-y+3/4,-x,z+1/2,+1	{ m₁₁₀ \| 3/4 0 1/2 }
23	y+1/4,x+3/4,z,+1	{ m_1-10 \| 1/4 3/4 0 }
24	x+3/4,y+3/4,-z,+1	{ m₀₀₁ \| 3/4 3/4 0 }
(3/4,1/4,0) + set click here to show and hide
25	x+3/4,y+1/4,z,+1	{ 1 \| 3/4 1/4 0 }
26	y+3/4,x+3/4,-z,+1	{ 2₁₁₀ \| 3/4 3/4 0 }
27	-y+3/4,-x+1/2,-z+1/2,+1	{ 2_1-10 \| 3/4 1/2 1/2 }
28	-x,-y+3/4,z+1/2,+1	{ 2₀₀₁ \| 0 3/4 1/2 }
29	-x+3/4,-y+1/2,-z+1/2,+1	{ -1 \| 3/4 1/2 1/2 }
30	-y,-x+3/4,z+1/2,+1	{ m₁₁₀ \| 0 3/4 1/2 }
31	y+1/2,x+1/2,z,+1	{ m_1-10 \| 1/2 1/2 0 }
32	x,y+1/2,-z,+1	{ m₀₀₁ \| 0 1/2 0 }
(1/4,1/4,0)' + set click here to show and hide
33	x+1/4,y+1/4,z,-1	{ 1' \| 1/4 1/4 0 }
34	y+1/4,x+3/4,-z,-1	{ 2'₁₁₀ \| 1/4 3/4 0 }
35	-y+1/4,-x+1/2,-z+1/2,-1	{ 2'_1-10 \| 1/4 1/2 1/2 }
36	-x+1/2,-y+3/4,z+1/2,-1	{ 2'₀₀₁ \| 1/2 3/4 1/2 }
37	-x+1/4,-y+1/2,-z+1/2,-1	{ -1' \| 1/4 1/2 1/2 }
38	-y+1/2,-x+3/4,z+1/2,-1	{ m'₁₁₀ \| 1/2 3/4 1/2 }
39	y,x+1/2,z,-1	{ m'_1-10 \| 0 1/2 0 }
40	x+1/2,y+1/2,-z,-1	{ m'₀₀₁ \| 1/2 1/2 0 }
(1/2,0,0)' + set click here to show and hide
41	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
42	y+1/2,x+1/2,-z,-1	{ 2'₁₁₀ \| 1/2 1/2 0 }
43	-y+1/2,-x+1/4,-z+1/2,-1	{ 2'_1-10 \| 1/2 1/4 1/2 }
44	-x+3/4,-y+1/2,z+1/2,-1	{ 2'₀₀₁ \| 3/4 1/2 1/2 }
45	-x+1/2,-y+1/4,-z+1/2,-1	{ -1' \| 1/2 1/4 1/2 }
46	-y+3/4,-x+1/2,z+1/2,-1	{ m'₁₁₀ \| 3/4 1/2 1/2 }
47	y+1/4,x+1/4,z,-1	{ m'_1-10 \| 1/4 1/4 0 }
48	x+3/4,y+1/4,-z,-1	{ m'₀₀₁ \| 3/4 1/4 0 }
(3/4,3/4,0)' + set click here to show and hide
49	x+3/4,y+3/4,z,-1	{ 1' \| 3/4 3/4 0 }
50	y+3/4,x+1/4,-z,-1	{ 2'₁₁₀ \| 3/4 1/4 0 }
51	-y+3/4,-x,-z+1/2,-1	{ 2'_1-10 \| 3/4 0 1/2 }
52	-x,-y+1/4,z+1/2,-1	{ 2'₀₀₁ \| 0 1/4 1/2 }
53	-x+3/4,-y,-z+1/2,-1	{ -1' \| 3/4 0 1/2 }
54	-y,-x+1/4,z+1/2,-1	{ m'₁₁₀ \| 0 1/4 1/2 }
55	y+1/2,x,z,-1	{ m'_1-10 \| 1/2 0 0 }
56	x,y,-z,-1	{ m'₀₀₁ \| 0 }
(0,1/2,0)' + set click here to show and hide
57	x,y+1/2,z,-1	{ 1' \| 0 1/2 0 }
58	y,x,-z,-1	{ 2'₁₁₀ \| 0 }
59	-y,-x+3/4,-z+1/2,-1	{ 2'_1-10 \| 0 3/4 1/2 }
60	-x+1/4,-y,z+1/2,-1	{ 2'₀₀₁ \| 1/4 0 1/2 }
61	-x,-y+3/4,-z+1/2,-1	{ -1' \| 0 3/4 1/2 }
62	-y+1/4,-x,z+1/2,-1	{ m'₁₁₀ \| 1/4 0 1/2 }
63	y+3/4,x+3/4,z,-1	{ m'_1-10 \| 3/4 3/4 0 }
64	x+1/4,y+3/4,-z,-1	{ m'₀₀₁ \| 1/4 3/4 0 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	y,x,-z,+1	2₁₁₀
3	-y,-x,-z,+1	2_1-10
4	-x,-y,z,+1	2₀₀₁
5	-x,-y,-z,+1	-1
6	-y,-x,z,+1	m₁₁₀
7	y,x,z,+1	m_1-10
8	x,y,-z,+1	m₀₀₁
1' + set click here to show and hide
9	x,y,z,-1	1'
10	y,x,-z,-1	2'₁₁₀
11	-y,-x,-z,-1	2'_1-10
12	-x,-y,z,-1	2'₀₀₁
13	-x,-y,-z,-1	-1'
14	-y,-x,z,-1	m'₁₁₀
15	y,x,z,-1	m'_1-10
16	x,y,-z,-1	m'₀₀₁

[Hide]

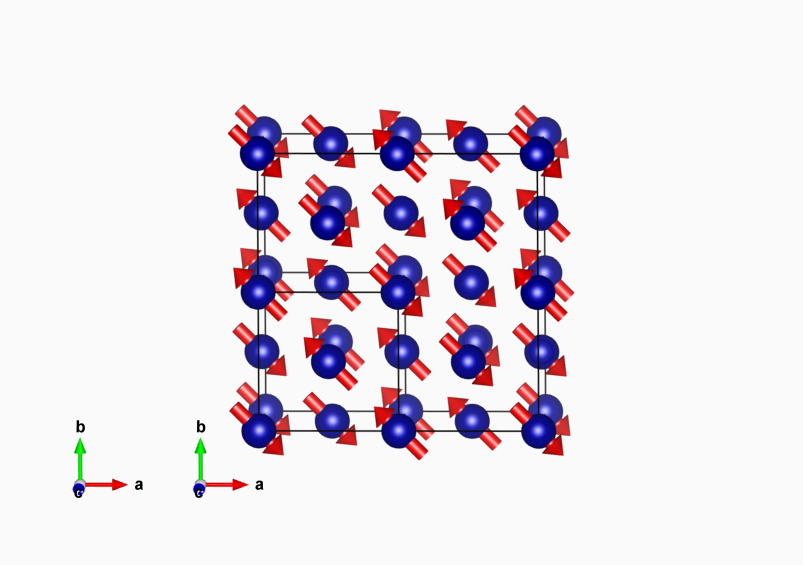

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cr1	Cr	0.00000	0.00000	0.00000	16	m_x,-m_x,0	1.7	-1.7	0.0	2.40

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
N1	N	0.00000	0.75000	0.00000	16

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,-m_x,0	1.70000	-1.70000	0.00000
2	0.00000	0.25000	0.50000	m_x,-m_x,0	1.70000	-1.70000	0.00000
(1/4,3/4,0) + set click here to show and hide
3	0.25000	0.75000	0.00000	m_x,-m_x,0	1.70000	-1.70000	0.00000
4	0.25000	0.00000	0.50000	m_x,-m_x,0	1.70000	-1.70000	0.00000
(1/2,1/2,0) + set click here to show and hide
5	0.50000	0.50000	0.00000	m_x,-m_x,0	1.70000	-1.70000	0.00000
6	0.50000	0.75000	0.50000	m_x,-m_x,0	1.70000	-1.70000	0.00000
(3/4,1/4,0) + set click here to show and hide
7	0.75000	0.25000	0.00000	m_x,-m_x,0	1.70000	-1.70000	0.00000
8	0.75000	0.50000	0.50000	m_x,-m_x,0	1.70000	-1.70000	0.00000
(1/4,1/4,0)' + set click here to show and hide
9	0.25000	0.25000	0.00000	-m_x,m_x,0	-1.70000	1.70000	0.00000
10	0.25000	0.50000	0.50000	-m_x,m_x,0	-1.70000	1.70000	0.00000
(1/2,0,0)' + set click here to show and hide
11	0.50000	0.00000	0.00000	-m_x,m_x,0	-1.70000	1.70000	0.00000
12	0.50000	0.25000	0.50000	-m_x,m_x,0	-1.70000	1.70000	0.00000
(3/4,3/4,0)' + set click here to show and hide
13	0.75000	0.75000	0.00000	-m_x,m_x,0	-1.70000	1.70000	0.00000
14	0.75000	0.00000	0.50000	-m_x,m_x,0	-1.70000	1.70000	0.00000
(0,1/2,0)' + set click here to show and hide
15	0.00000	0.50000	0.00000	-m_x,m_x,0	-1.70000	1.70000	0.00000
16	0.00000	0.75000	0.50000	-m_x,m_x,0	-1.70000	1.70000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom N1:

Atom	x	y	z
1	0.00000	0.75000	0.00000
2	0.25000	0.25000	0.50000
(1/4,3/4,0) + set click here to show and hide
3	0.25000	0.50000	0.00000
4	0.50000	0.00000	0.50000
(1/2,1/2,0) + set click here to show and hide
5	0.50000	0.25000	0.00000
6	0.75000	0.75000	0.50000
(3/4,1/4,0) + set click here to show and hide
7	0.75000	0.00000	0.00000
8	0.00000	0.50000	0.50000
(1/4,1/4,0)' + set click here to show and hide
9	0.25000	0.00000	0.00000
10	0.50000	0.50000	0.50000
(1/2,0,0)' + set click here to show and hide
11	0.50000	0.75000	0.00000
12	0.75000	0.25000	0.50000
(3/4,3/4,0)' + set click here to show and hide
13	0.75000	0.50000	0.00000
14	0.00000	0.00000	0.50000
(0,1/2,0)' + set click here to show and hide
15	0.00000	0.25000	0.00000
16	0.25000	0.75000	0.50000

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cr1	Cr	0.00000	0.00000	0.00000	16	m_x,-m_x,0	1.7	-1.7	0.0	2.40

[Show all magnetic atoms in unit cell and their moment relations]

label	dim. full irrep	dim. small irrep	direction	action
mSM3	12	2	special	primary

MAGNDATA: A Collection of magnetic structures with portable cif-type files

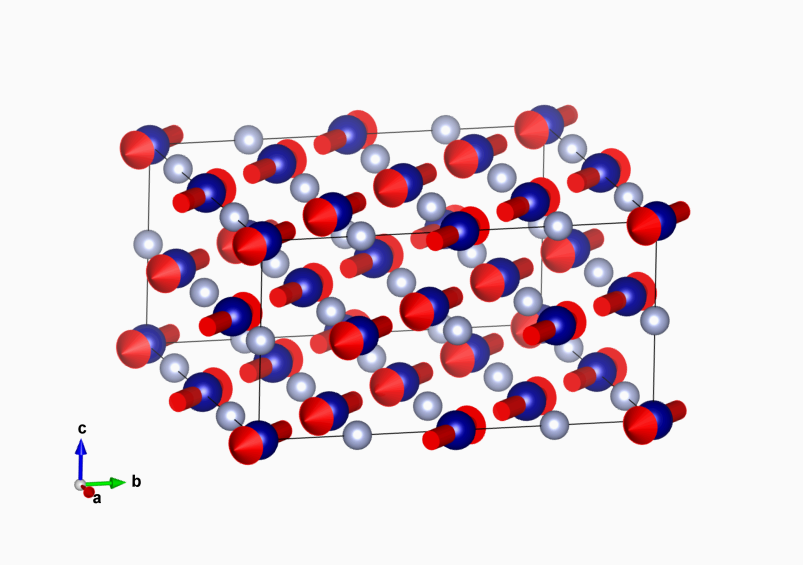

CrN (#1.28)
