Collection of Magnetic Structures
|
MAGNDATA
Collection of Magnetic Structures
|
 |

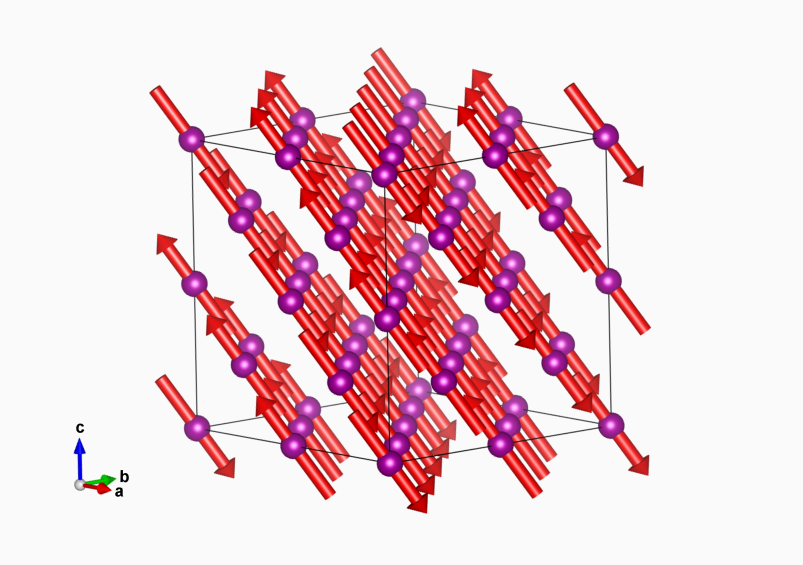

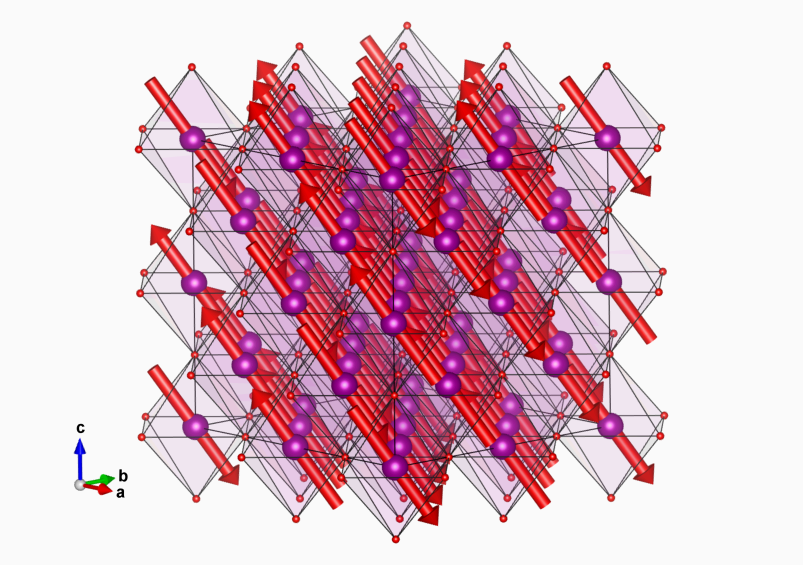

 Magnetic structure with all atoms |  Magnetic structure with only magnetic atoms |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | { 1 | 0 } | |
| 2 | -y+3/4,-x+3/4,-z,+1 | { 21-10 | 3/4 3/4 0 } | |
| 3 | -x+1/4,-y+3/4,-z,+1 | { -1 | 1/4 3/4 0 } | |
| 4 | y,x+1/2,z,+1 | { m1-10 | 0 1/2 0 } | |
| (0,1/4,3/4) + set click here to show and hide | |||
| 5 | x,y+1/4,z+3/4,+1 | { 1 | 0 1/4 3/4 } | |
| 6 | -y+3/4,-x,-z+3/4,+1 | { 21-10 | 3/4 0 3/4 } | |
| 7 | -x+1/4,-y,-z+3/4,+1 | { -1 | 1/4 0 3/4 } | |
| 8 | y,x+3/4,z+3/4,+1 | { m1-10 | 0 3/4 3/4 } | |
| (0,1/2,1/2) + set click here to show and hide | |||
| 9 | x,y+1/2,z+1/2,+1 | { 1 | 0 1/2 1/2 } | |
| 10 | -y+3/4,-x+1/4,-z+1/2,+1 | { 21-10 | 3/4 1/4 1/2 } | |
| 11 | -x+1/4,-y+1/4,-z+1/2,+1 | { -1 | 1/4 1/4 1/2 } | |
| 12 | y,x,z+1/2,+1 | { m1-10 | 0 0 1/2 } | |
| (0,3/4,1/4) + set click here to show and hide | |||
| 13 | x,y+3/4,z+1/4,+1 | { 1 | 0 3/4 1/4 } | |
| 14 | -y+3/4,-x+1/2,-z+1/4,+1 | { 21-10 | 3/4 1/2 1/4 } | |
| 15 | -x+1/4,-y+1/2,-z+1/4,+1 | { -1 | 1/4 1/2 1/4 } | |
| 16 | y,x+1/4,z+1/4,+1 | { m1-10 | 0 1/4 1/4 } | |
| (1/4,0,3/4) + set click here to show and hide | |||
| 17 | x+1/4,y,z+3/4,+1 | { 1 | 1/4 0 3/4 } | |
| 18 | -y,-x+3/4,-z+3/4,+1 | { 21-10 | 0 3/4 3/4 } | |
| 19 | -x+1/2,-y+3/4,-z+3/4,+1 | { -1 | 1/2 3/4 3/4 } | |
| 20 | y+1/4,x+1/2,z+3/4,+1 | { m1-10 | 1/4 1/2 3/4 } | |
| (1/4,1/4,1/2) + set click here to show and hide | |||
| 21 | x+1/4,y+1/4,z+1/2,+1 | { 1 | 1/4 1/4 1/2 } | |
| 22 | -y,-x,-z+1/2,+1 | { 21-10 | 0 0 1/2 } | |
| 23 | -x+1/2,-y,-z+1/2,+1 | { -1 | 1/2 0 1/2 } | |
| 24 | y+1/4,x+3/4,z+1/2,+1 | { m1-10 | 1/4 3/4 1/2 } | |
| (1/4,1/2,1/4) + set click here to show and hide | |||
| 25 | x+1/4,y+1/2,z+1/4,+1 | { 1 | 1/4 1/2 1/4 } | |
| 26 | -y,-x+1/4,-z+1/4,+1 | { 21-10 | 0 1/4 1/4 } | |
| 27 | -x+1/2,-y+1/4,-z+1/4,+1 | { -1 | 1/2 1/4 1/4 } | |
| 28 | y+1/4,x,z+1/4,+1 | { m1-10 | 1/4 0 1/4 } | |
| (1/4,3/4,0) + set click here to show and hide | |||
| 29 | x+1/4,y+3/4,z,+1 | { 1 | 1/4 3/4 0 } | |
| 30 | -y,-x+1/2,-z,+1 | { 21-10 | 0 1/2 0 } | |
| 31 | -x+1/2,-y+1/2,-z,+1 | { -1 | 1/2 1/2 0 } | |
| 32 | y+1/4,x+1/4,z,+1 | { m1-10 | 1/4 1/4 0 } | |
| (1/2,0,1/2) + set click here to show and hide | |||
| 33 | x+1/2,y,z+1/2,+1 | { 1 | 1/2 0 1/2 } | |
| 34 | -y+1/4,-x+3/4,-z+1/2,+1 | { 21-10 | 1/4 3/4 1/2 } | |
| 35 | -x+3/4,-y+3/4,-z+1/2,+1 | { -1 | 3/4 3/4 1/2 } | |
| 36 | y+1/2,x+1/2,z+1/2,+1 | { m1-10 | 1/2 1/2 1/2 } | |
| (1/2,1/4,1/4) + set click here to show and hide | |||
| 37 | x+1/2,y+1/4,z+1/4,+1 | { 1 | 1/2 1/4 1/4 } | |
| 38 | -y+1/4,-x,-z+1/4,+1 | { 21-10 | 1/4 0 1/4 } | |
| 39 | -x+3/4,-y,-z+1/4,+1 | { -1 | 3/4 0 1/4 } | |
| 40 | y+1/2,x+3/4,z+1/4,+1 | { m1-10 | 1/2 3/4 1/4 } | |
| (1/2,1/2,0) + set click here to show and hide | |||
| 41 | x+1/2,y+1/2,z,+1 | { 1 | 1/2 1/2 0 } | |
| 42 | -y+1/4,-x+1/4,-z,+1 | { 21-10 | 1/4 1/4 0 } | |
| 43 | -x+3/4,-y+1/4,-z,+1 | { -1 | 3/4 1/4 0 } | |
| 44 | y+1/2,x,z,+1 | { m1-10 | 1/2 0 0 } | |
| (1/2,3/4,3/4) + set click here to show and hide | |||
| 45 | x+1/2,y+3/4,z+3/4,+1 | { 1 | 1/2 3/4 3/4 } | |
| 46 | -y+1/4,-x+1/2,-z+3/4,+1 | { 21-10 | 1/4 1/2 3/4 } | |
| 47 | -x+3/4,-y+1/2,-z+3/4,+1 | { -1 | 3/4 1/2 3/4 } | |
| 48 | y+1/2,x+1/4,z+3/4,+1 | { m1-10 | 1/2 1/4 3/4 } | |
| (3/4,0,1/4) + set click here to show and hide | |||
| 49 | x+3/4,y,z+1/4,+1 | { 1 | 3/4 0 1/4 } | |
| 50 | -y+1/2,-x+3/4,-z+1/4,+1 | { 21-10 | 1/2 3/4 1/4 } | |
| 51 | -x,-y+3/4,-z+1/4,+1 | { -1 | 0 3/4 1/4 } | |
| 52 | y+3/4,x+1/2,z+1/4,+1 | { m1-10 | 3/4 1/2 1/4 } | |
| (3/4,1/4,0) + set click here to show and hide | |||
| 53 | x+3/4,y+1/4,z,+1 | { 1 | 3/4 1/4 0 } | |
| 54 | -y+1/2,-x,-z,+1 | { 21-10 | 1/2 0 0 } | |
| 55 | -x,-y,-z,+1 | { -1 | 0 } | |
| 56 | y+3/4,x+3/4,z,+1 | { m1-10 | 3/4 3/4 0 } | |
| (3/4,1/2,3/4) + set click here to show and hide | |||
| 57 | x+3/4,y+1/2,z+3/4,+1 | { 1 | 3/4 1/2 3/4 } | |
| 58 | -y+1/2,-x+1/4,-z+3/4,+1 | { 21-10 | 1/2 1/4 3/4 } | |
| 59 | -x,-y+1/4,-z+3/4,+1 | { -1 | 0 1/4 3/4 } | |
| 60 | y+3/4,x,z+3/4,+1 | { m1-10 | 3/4 0 3/4 } | |
| (3/4,3/4,1/2) + set click here to show and hide | |||
| 61 | x+3/4,y+3/4,z+1/2,+1 | { 1 | 3/4 3/4 1/2 } | |
| 62 | -y+1/2,-x+1/2,-z+1/2,+1 | { 21-10 | 1/2 1/2 1/2 } | |
| 63 | -x,-y+1/2,-z+1/2,+1 | { -1 | 0 1/2 1/2 } | |
| 64 | y+3/4,x+1/4,z+1/2,+1 | { m1-10 | 3/4 1/4 1/2 } | |
| (3/4,3/4,0)' + set click here to show and hide | |||
| 65 | x+3/4,y+3/4,z,-1 | { 1' | 3/4 3/4 0 } | |
| 66 | -y+1/2,-x+1/2,-z,-1 | { 2'1-10 | 1/2 1/2 0 } | |
| 67 | -x,-y+1/2,-z,-1 | { -1' | 0 1/2 0 } | |
| 68 | y+3/4,x+1/4,z,-1 | { m'1-10 | 3/4 1/4 0 } | |
| (3/4,0,3/4)' + set click here to show and hide | |||
| 69 | x+3/4,y,z+3/4,-1 | { 1' | 3/4 0 3/4 } | |
| 70 | -y+1/2,-x+3/4,-z+3/4,-1 | { 2'1-10 | 1/2 3/4 3/4 } | |
| 71 | -x,-y+3/4,-z+3/4,-1 | { -1' | 0 3/4 3/4 } | |
| 72 | y+3/4,x+1/2,z+3/4,-1 | { m'1-10 | 3/4 1/2 3/4 } | |
| (3/4,1/4,1/2)' + set click here to show and hide | |||
| 73 | x+3/4,y+1/4,z+1/2,-1 | { 1' | 3/4 1/4 1/2 } | |
| 74 | -y+1/2,-x,-z+1/2,-1 | { 2'1-10 | 1/2 0 1/2 } | |
| 75 | -x,-y,-z+1/2,-1 | { -1' | 0 0 1/2 } | |
| 76 | y+3/4,x+3/4,z+1/2,-1 | { m'1-10 | 3/4 3/4 1/2 } | |
| (3/4,1/2,1/4)' + set click here to show and hide | |||
| 77 | x+3/4,y+1/2,z+1/4,-1 | { 1' | 3/4 1/2 1/4 } | |
| 78 | -y+1/2,-x+1/4,-z+1/4,-1 | { 2'1-10 | 1/2 1/4 1/4 } | |
| 79 | -x,-y+1/4,-z+1/4,-1 | { -1' | 0 1/4 1/4 } | |
| 80 | y+3/4,x,z+1/4,-1 | { m'1-10 | 3/4 0 1/4 } | |
| (0,3/4,3/4)' + set click here to show and hide | |||
| 81 | x,y+3/4,z+3/4,-1 | { 1' | 0 3/4 3/4 } | |
| 82 | -y+3/4,-x+1/2,-z+3/4,-1 | { 2'1-10 | 3/4 1/2 3/4 } | |
| 83 | -x+1/4,-y+1/2,-z+3/4,-1 | { -1' | 1/4 1/2 3/4 } | |
| 84 | y,x+1/4,z+3/4,-1 | { m'1-10 | 0 1/4 3/4 } | |
| (0,0,1/2)' + set click here to show and hide | |||
| 85 | x,y,z+1/2,-1 | { 1' | 0 0 1/2 } | |
| 86 | -y+3/4,-x+3/4,-z+1/2,-1 | { 2'1-10 | 3/4 3/4 1/2 } | |
| 87 | -x+1/4,-y+3/4,-z+1/2,-1 | { -1' | 1/4 3/4 1/2 } | |
| 88 | y,x+1/2,z+1/2,-1 | { m'1-10 | 0 1/2 1/2 } | |
| (0,1/4,1/4)' + set click here to show and hide | |||
| 89 | x,y+1/4,z+1/4,-1 | { 1' | 0 1/4 1/4 } | |
| 90 | -y+3/4,-x,-z+1/4,-1 | { 2'1-10 | 3/4 0 1/4 } | |
| 91 | -x+1/4,-y,-z+1/4,-1 | { -1' | 1/4 0 1/4 } | |
| 92 | y,x+3/4,z+1/4,-1 | { m'1-10 | 0 3/4 1/4 } | |
| (0,1/2,0)' + set click here to show and hide | |||
| 93 | x,y+1/2,z,-1 | { 1' | 0 1/2 0 } | |
| 94 | -y+3/4,-x+1/4,-z,-1 | { 2'1-10 | 3/4 1/4 0 } | |
| 95 | -x+1/4,-y+1/4,-z,-1 | { -1' | 1/4 1/4 0 } | |
| 96 | y,x,z,-1 | { m'1-10 | 0 } | |
| (1/4,3/4,1/2)' + set click here to show and hide | |||
| 97 | x+1/4,y+3/4,z+1/2,-1 | { 1' | 1/4 3/4 1/2 } | |
| 98 | -y,-x+1/2,-z+1/2,-1 | { 2'1-10 | 0 1/2 1/2 } | |
| 99 | -x+1/2,-y+1/2,-z+1/2,-1 | { -1' | 1/2 1/2 1/2 } | |
| 100 | y+1/4,x+1/4,z+1/2,-1 | { m'1-10 | 1/4 1/4 1/2 } | |
| (1/4,0,1/4)' + set click here to show and hide | |||
| 101 | x+1/4,y,z+1/4,-1 | { 1' | 1/4 0 1/4 } | |
| 102 | -y,-x+3/4,-z+1/4,-1 | { 2'1-10 | 0 3/4 1/4 } | |
| 103 | -x+1/2,-y+3/4,-z+1/4,-1 | { -1' | 1/2 3/4 1/4 } | |
| 104 | y+1/4,x+1/2,z+1/4,-1 | { m'1-10 | 1/4 1/2 1/4 } | |
| (1/4,1/4,0)' + set click here to show and hide | |||
| 105 | x+1/4,y+1/4,z,-1 | { 1' | 1/4 1/4 0 } | |
| 106 | -y,-x,-z,-1 | { 2'1-10 | 0 } | |
| 107 | -x+1/2,-y,-z,-1 | { -1' | 1/2 0 0 } | |
| 108 | y+1/4,x+3/4,z,-1 | { m'1-10 | 1/4 3/4 0 } | |
| (1/4,1/2,3/4)' + set click here to show and hide | |||
| 109 | x+1/4,y+1/2,z+3/4,-1 | { 1' | 1/4 1/2 3/4 } | |
| 110 | -y,-x+1/4,-z+3/4,-1 | { 2'1-10 | 0 1/4 3/4 } | |
| 111 | -x+1/2,-y+1/4,-z+3/4,-1 | { -1' | 1/2 1/4 3/4 } | |
| 112 | y+1/4,x,z+3/4,-1 | { m'1-10 | 1/4 0 3/4 } | |
| (1/2,3/4,1/4)' + set click here to show and hide | |||
| 113 | x+1/2,y+3/4,z+1/4,-1 | { 1' | 1/2 3/4 1/4 } | |
| 114 | -y+1/4,-x+1/2,-z+1/4,-1 | { 2'1-10 | 1/4 1/2 1/4 } | |
| 115 | -x+3/4,-y+1/2,-z+1/4,-1 | { -1' | 3/4 1/2 1/4 } | |
| 116 | y+1/2,x+1/4,z+1/4,-1 | { m'1-10 | 1/2 1/4 1/4 } | |
| (1/2,0,0)' + set click here to show and hide | |||
| 117 | x+1/2,y,z,-1 | { 1' | 1/2 0 0 } | |
| 118 | -y+1/4,-x+3/4,-z,-1 | { 2'1-10 | 1/4 3/4 0 } | |
| 119 | -x+3/4,-y+3/4,-z,-1 | { -1' | 3/4 3/4 0 } | |
| 120 | y+1/2,x+1/2,z,-1 | { m'1-10 | 1/2 1/2 0 } | |
| (1/2,1/4,3/4)' + set click here to show and hide | |||
| 121 | x+1/2,y+1/4,z+3/4,-1 | { 1' | 1/2 1/4 3/4 } | |
| 122 | -y+1/4,-x,-z+3/4,-1 | { 2'1-10 | 1/4 0 3/4 } | |
| 123 | -x+3/4,-y,-z+3/4,-1 | { -1' | 3/4 0 3/4 } | |
| 124 | y+1/2,x+3/4,z+3/4,-1 | { m'1-10 | 1/2 3/4 3/4 } | |
| (1/2,1/2,1/2)' + set click here to show and hide | |||
| 125 | x+1/2,y+1/2,z+1/2,-1 | { 1' | 1/2 1/2 1/2 } | |
| 126 | -y+1/4,-x+1/4,-z+1/2,-1 | { 2'1-10 | 1/4 1/4 1/2 } | |
| 127 | -x+3/4,-y+1/4,-z+1/2,-1 | { -1' | 3/4 1/4 1/2 } | |
| 128 | y+1/2,x,z+1/2,-1 | { m'1-10 | 1/2 0 1/2 } | |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | 1 | |
| 2 | -y,-x,-z,+1 | 21-10 | |
| 3 | -x,-y,-z,+1 | -1 | |
| 4 | y,x,z,+1 | m1-10 | |
| 1' + set click here to show and hide | |||
| 5 | x,y,z,-1 | 1' | |
| 6 | -y,-x,-z,-1 | 2'1-10 | |
| 7 | -x,-y,-z,-1 | -1' | |
| 8 | y,x,z,-1 | m'1-10 | |
| Label | Atom type | x | y | z | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|
| Mn1 | Mn | 0.00000 | 0.00000 | 0.00000 | 32 | mx,mx,mz | 2.31 | 2.31 | -4.62 | 5.66 |
| Label | Atom type | x | y | z | Multiplicity |
|---|---|---|---|---|---|
| O1 | O | 0.75000 | 0.50000 | 0.00000 | 32 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Mn1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.00000 | 0.00000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (0,1/4,3/4) + set click here to show and hide | |||||||
| 2 | 0.00000 | 0.25000 | 0.75000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 3 | 0.00000 | 0.50000 | 0.50000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (0,3/4,1/4) + set click here to show and hide | |||||||
| 4 | 0.00000 | 0.75000 | 0.25000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/4,0,3/4) + set click here to show and hide | |||||||
| 5 | 0.25000 | 0.00000 | 0.75000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 6 | 0.25000 | 0.25000 | 0.50000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/4,1/2,1/4) + set click here to show and hide | |||||||
| 7 | 0.25000 | 0.50000 | 0.25000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 8 | 0.25000 | 0.75000 | 0.00000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 9 | 0.50000 | 0.00000 | 0.50000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/2,1/4,1/4) + set click here to show and hide | |||||||
| 10 | 0.50000 | 0.25000 | 0.25000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 11 | 0.50000 | 0.50000 | 0.00000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/2,3/4,3/4) + set click here to show and hide | |||||||
| 12 | 0.50000 | 0.75000 | 0.75000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (3/4,0,1/4) + set click here to show and hide | |||||||
| 13 | 0.75000 | 0.00000 | 0.25000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 14 | 0.75000 | 0.25000 | 0.00000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (3/4,1/2,3/4) + set click here to show and hide | |||||||
| 15 | 0.75000 | 0.50000 | 0.75000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 16 | 0.75000 | 0.75000 | 0.50000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 17 | 0.75000 | 0.75000 | 0.00000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (3/4,0,3/4)' + set click here to show and hide | |||||||
| 18 | 0.75000 | 0.00000 | 0.75000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 19 | 0.75000 | 0.25000 | 0.50000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (3/4,1/2,1/4)' + set click here to show and hide | |||||||
| 20 | 0.75000 | 0.50000 | 0.25000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (0,3/4,3/4)' + set click here to show and hide | |||||||
| 21 | 0.00000 | 0.75000 | 0.75000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 22 | 0.00000 | 0.00000 | 0.50000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (0,1/4,1/4)' + set click here to show and hide | |||||||
| 23 | 0.00000 | 0.25000 | 0.25000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 24 | 0.00000 | 0.50000 | 0.00000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 25 | 0.25000 | 0.75000 | 0.50000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/4,0,1/4)' + set click here to show and hide | |||||||
| 26 | 0.25000 | 0.00000 | 0.25000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 27 | 0.25000 | 0.25000 | 0.00000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/4,1/2,3/4)' + set click here to show and hide | |||||||
| 28 | 0.25000 | 0.50000 | 0.75000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/2,3/4,1/4)' + set click here to show and hide | |||||||
| 29 | 0.50000 | 0.75000 | 0.25000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 30 | 0.50000 | 0.00000 | 0.00000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/2,1/4,3/4)' + set click here to show and hide | |||||||
| 31 | 0.50000 | 0.25000 | 0.75000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 32 | 0.50000 | 0.50000 | 0.50000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
Set of atoms in the unit cell related by symmetry with the atom O1:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.75000 | 0.50000 | 0.00000 | ||||
| (0,1/4,3/4) + set click here to show and hide | |||||||
| 2 | 0.75000 | 0.75000 | 0.75000 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 3 | 0.75000 | 0.00000 | 0.50000 | ||||
| (0,3/4,1/4) + set click here to show and hide | |||||||
| 4 | 0.75000 | 0.25000 | 0.25000 | ||||
| (1/4,0,3/4) + set click here to show and hide | |||||||
| 5 | 0.00000 | 0.50000 | 0.75000 | ||||
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 6 | 0.00000 | 0.75000 | 0.50000 | ||||
| (1/4,1/2,1/4) + set click here to show and hide | |||||||
| 7 | 0.00000 | 0.00000 | 0.25000 | ||||
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 8 | 0.00000 | 0.25000 | 0.00000 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 9 | 0.25000 | 0.50000 | 0.50000 | ||||
| (1/2,1/4,1/4) + set click here to show and hide | |||||||
| 10 | 0.25000 | 0.75000 | 0.25000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 11 | 0.25000 | 0.00000 | 0.00000 | ||||
| (1/2,3/4,3/4) + set click here to show and hide | |||||||
| 12 | 0.25000 | 0.25000 | 0.75000 | ||||
| (3/4,0,1/4) + set click here to show and hide | |||||||
| 13 | 0.50000 | 0.50000 | 0.25000 | ||||
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 14 | 0.50000 | 0.75000 | 0.00000 | ||||
| (3/4,1/2,3/4) + set click here to show and hide | |||||||
| 15 | 0.50000 | 0.00000 | 0.75000 | ||||
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 16 | 0.50000 | 0.25000 | 0.50000 | ||||
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 17 | 0.50000 | 0.25000 | 0.00000 | ||||
| (3/4,0,3/4)' + set click here to show and hide | |||||||
| 18 | 0.50000 | 0.50000 | 0.75000 | ||||
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 19 | 0.50000 | 0.75000 | 0.50000 | ||||
| (3/4,1/2,1/4)' + set click here to show and hide | |||||||
| 20 | 0.50000 | 0.00000 | 0.25000 | ||||
| (0,3/4,3/4)' + set click here to show and hide | |||||||
| 21 | 0.75000 | 0.25000 | 0.75000 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 22 | 0.75000 | 0.50000 | 0.50000 | ||||
| (0,1/4,1/4)' + set click here to show and hide | |||||||
| 23 | 0.75000 | 0.75000 | 0.25000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 24 | 0.75000 | 0.00000 | 0.00000 | ||||
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 25 | 0.00000 | 0.25000 | 0.50000 | ||||
| (1/4,0,1/4)' + set click here to show and hide | |||||||
| 26 | 0.00000 | 0.50000 | 0.25000 | ||||
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 27 | 0.00000 | 0.75000 | 0.00000 | ||||
| (1/4,1/2,3/4)' + set click here to show and hide | |||||||
| 28 | 0.00000 | 0.00000 | 0.75000 | ||||
| (1/2,3/4,1/4)' + set click here to show and hide | |||||||
| 29 | 0.25000 | 0.25000 | 0.25000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 30 | 0.25000 | 0.50000 | 0.00000 | ||||
| (1/2,1/4,3/4)' + set click here to show and hide | |||||||
| 31 | 0.25000 | 0.75000 | 0.75000 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 32 | 0.25000 | 0.00000 | 0.50000 | ||||
| Label | Atom type | x | y | z | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|
| Mn1 | Mn | 0.00000 | 0.00000 | 0.00000 | 32 | mx,mx,mz | 2.31 | 2.31 | -4.62 | 5.66 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Mn1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.00000 | 0.00000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (0,1/4,3/4) + set click here to show and hide | |||||||
| 2 | 0.00000 | 0.25000 | 0.75000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 3 | 0.00000 | 0.50000 | 0.50000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (0,3/4,1/4) + set click here to show and hide | |||||||
| 4 | 0.00000 | 0.75000 | 0.25000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/4,0,3/4) + set click here to show and hide | |||||||
| 5 | 0.25000 | 0.00000 | 0.75000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 6 | 0.25000 | 0.25000 | 0.50000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/4,1/2,1/4) + set click here to show and hide | |||||||
| 7 | 0.25000 | 0.50000 | 0.25000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 8 | 0.25000 | 0.75000 | 0.00000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 9 | 0.50000 | 0.00000 | 0.50000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/2,1/4,1/4) + set click here to show and hide | |||||||
| 10 | 0.50000 | 0.25000 | 0.25000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 11 | 0.50000 | 0.50000 | 0.00000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (1/2,3/4,3/4) + set click here to show and hide | |||||||
| 12 | 0.50000 | 0.75000 | 0.75000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (3/4,0,1/4) + set click here to show and hide | |||||||
| 13 | 0.75000 | 0.00000 | 0.25000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 14 | 0.75000 | 0.25000 | 0.00000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (3/4,1/2,3/4) + set click here to show and hide | |||||||
| 15 | 0.75000 | 0.50000 | 0.75000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 16 | 0.75000 | 0.75000 | 0.50000 | mx,mx,mz | 2.31000 | 2.31000 | -4.62000 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 17 | 0.75000 | 0.75000 | 0.00000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (3/4,0,3/4)' + set click here to show and hide | |||||||
| 18 | 0.75000 | 0.00000 | 0.75000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 19 | 0.75000 | 0.25000 | 0.50000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (3/4,1/2,1/4)' + set click here to show and hide | |||||||
| 20 | 0.75000 | 0.50000 | 0.25000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (0,3/4,3/4)' + set click here to show and hide | |||||||
| 21 | 0.00000 | 0.75000 | 0.75000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 22 | 0.00000 | 0.00000 | 0.50000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (0,1/4,1/4)' + set click here to show and hide | |||||||
| 23 | 0.00000 | 0.25000 | 0.25000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 24 | 0.00000 | 0.50000 | 0.00000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 25 | 0.25000 | 0.75000 | 0.50000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/4,0,1/4)' + set click here to show and hide | |||||||
| 26 | 0.25000 | 0.00000 | 0.25000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 27 | 0.25000 | 0.25000 | 0.00000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/4,1/2,3/4)' + set click here to show and hide | |||||||
| 28 | 0.25000 | 0.50000 | 0.75000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/2,3/4,1/4)' + set click here to show and hide | |||||||
| 29 | 0.50000 | 0.75000 | 0.25000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 30 | 0.50000 | 0.00000 | 0.00000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/2,1/4,3/4)' + set click here to show and hide | |||||||
| 31 | 0.50000 | 0.25000 | 0.75000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 32 | 0.50000 | 0.50000 | 0.50000 | -mx,-mx,-mz | -2.31000 | -2.31000 | 4.62000 |
| label | dim. full irrep | dim. small irrep | direction | action |
| mL3+ | 8 | 2 | special | primary |
|
Bilbao Crystallographic Server https://www.cryst.ehu.es |
For comments, please mail to administrador.bcs@ehu.eus |
