Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x+1/2,-y+1/2,-z,+1	{ 2₁₀₀ \| 1/2 1/2 0 }
3	-x+1/2,y+1/2,-z,+1	{ 2₀₁₀ \| 1/2 1/2 0 }
4	-x,-y,z,+1	{ 2₀₀₁ \| 0 }
5	-x,-y,-z,+1	{ -1 \| 0 }
6	-x+1/2,y+1/2,z,+1	{ m₁₀₀ \| 1/2 1/2 0 }
7	x+1/2,-y+1/2,z,+1	{ m₀₁₀ \| 1/2 1/2 0 }
8	x,y,-z,+1	{ m₀₀₁ \| 0 }
(0,0,1/2)' + set click here to show and hide
9	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
10	x+1/2,-y+1/2,-z+1/2,-1	{ 2'₁₀₀ \| 1/2 1/2 1/2 }
11	-x+1/2,y+1/2,-z+1/2,-1	{ 2'₀₁₀ \| 1/2 1/2 1/2 }
12	-x,-y,z+1/2,-1	{ 2'₀₀₁ \| 0 0 1/2 }
13	-x,-y,-z+1/2,-1	{ -1' \| 0 0 1/2 }
14	-x+1/2,y+1/2,z+1/2,-1	{ m'₁₀₀ \| 1/2 1/2 1/2 }
15	x+1/2,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 1/2 1/2 1/2 }
16	x,y,-z+1/2,-1	{ m'₀₀₁ \| 0 0 1/2 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	x,-y,-z,+1	2₁₀₀
3	-x,y,-z,+1	2₀₁₀
4	-x,-y,z,+1	2₀₀₁
5	-x,-y,-z,+1	-1
6	-x,y,z,+1	m₁₀₀
7	x,-y,z,+1	m₀₁₀
8	x,y,-z,+1	m₀₀₁
1' + set click here to show and hide
9	x,y,z,-1	1'
10	x,-y,-z,-1	2'₁₀₀
11	-x,y,-z,-1	2'₀₁₀
12	-x,-y,z,-1	2'₀₀₁
13	-x,-y,-z,-1	-1'
14	-x,y,z,-1	m'₁₀₀
15	x,-y,z,-1	m'₀₁₀
16	x,y,-z,-1	m'₀₀₁

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.50000	0.13050	8	0,0,m_z	0.0	0.0	-1.61(7)	1.61
Mn2	Mn	0.41140	0.35330	0.25000	8	m_x,m_y,0	2.28(4)	-1.23(8)	0.0	2.59

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
La1	La	0.14510	0.17360	0.00000	8
O1	O	0.00000	0.00000	0.13905	8
O2	O	0.15250	0.44970	0.00000	8
O3	O	0.15250	0.43740	0.25000	8
O4	O	0.40680	0.20610	0.12700	16

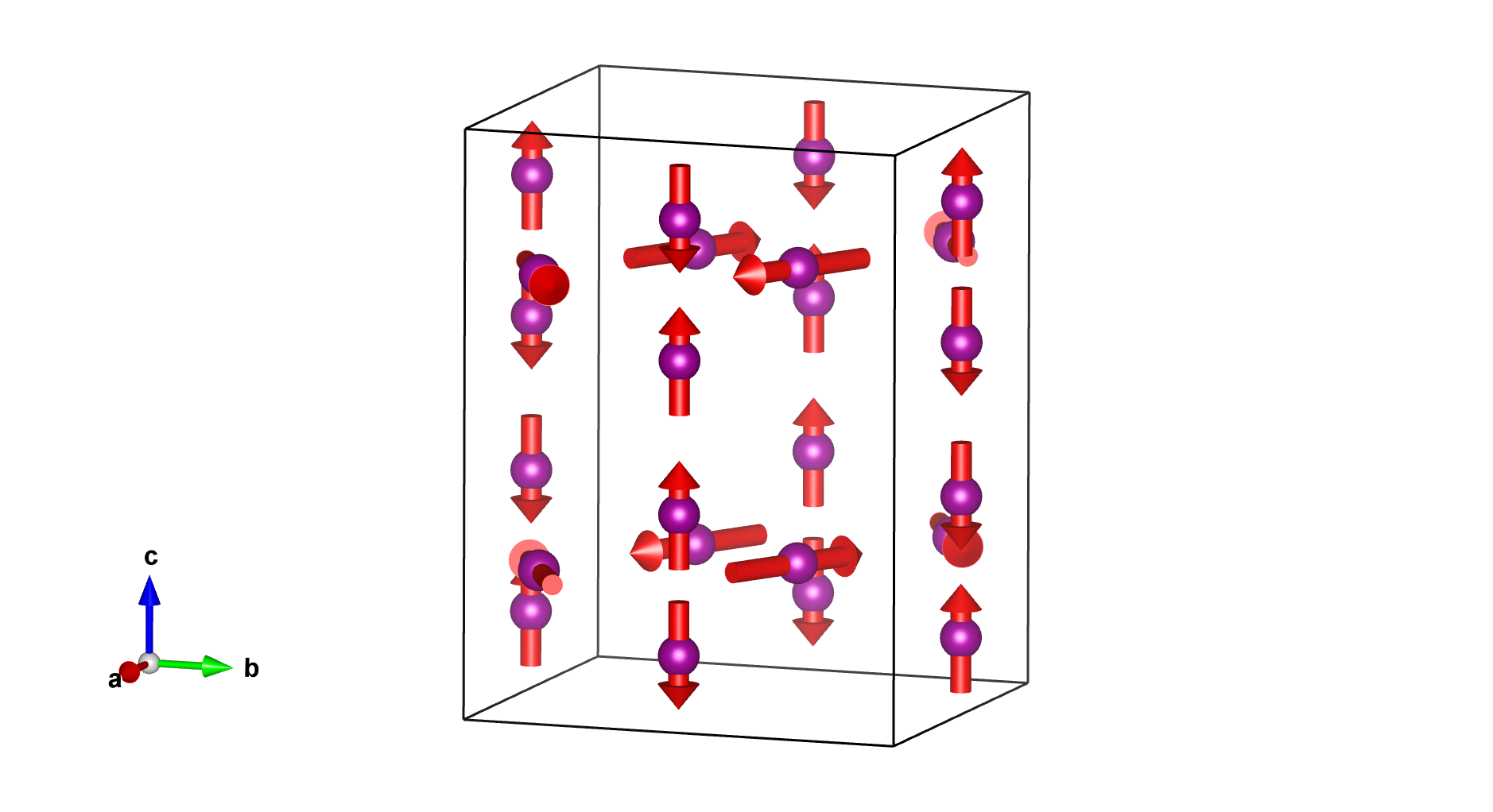

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Mn1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.50000	0.13050	0,0,m_z	0.00000	0.00000	-1.61000
2	0.50000	0.00000	0.86950	0,0,-m_z	0.00000	0.00000	1.61000
3	0.00000	0.50000	0.86950	0,0,m_z	0.00000	0.00000	-1.61000
4	0.50000	0.00000	0.13050	0,0,-m_z	0.00000	0.00000	1.61000
(0,0,1/2)' + set click here to show and hide
5	0.00000	0.50000	0.63050	0,0,-m_z	0.00000	0.00000	1.61000
6	0.50000	0.00000	0.36950	0,0,m_z	0.00000	0.00000	-1.61000
7	0.00000	0.50000	0.36950	0,0,-m_z	0.00000	0.00000	1.61000
8	0.50000	0.00000	0.63050	0,0,m_z	0.00000	0.00000	-1.61000

Set of atoms in the unit cell related by symmetry with the magnetic atom Mn2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.41140	0.35330	0.25000	m_x,m_y,0	2.28000	-1.23000	0.00000
2	0.91140	0.14670	0.75000	m_x,-m_y,0	2.28000	1.23000	0.00000
3	0.08860	0.85330	0.75000	-m_x,m_y,0	-2.28000	-1.23000	0.00000
4	0.58860	0.64670	0.25000	-m_x,-m_y,0	-2.28000	1.23000	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.41140	0.35330	0.75000	-m_x,-m_y,0	-2.28000	1.23000	0.00000
6	0.91140	0.14670	0.25000	-m_x,m_y,0	-2.28000	-1.23000	0.00000
7	0.08860	0.85330	0.25000	m_x,-m_y,0	2.28000	1.23000	0.00000
8	0.58860	0.64670	0.75000	m_x,m_y,0	2.28000	-1.23000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom La1:

Atom	x	y	z
1	0.14510	0.17360	0.00000
2	0.64510	0.32640	0.00000
3	0.35490	0.67360	0.00000
4	0.85490	0.82640	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.14510	0.17360	0.50000
6	0.64510	0.32640	0.50000
7	0.35490	0.67360	0.50000
8	0.85490	0.82640	0.50000

Set of atoms in the unit cell related by symmetry with the atom O1:

Atom	x	y	z
1	0.00000	0.00000	0.13905
2	0.50000	0.50000	0.86095
3	0.00000	0.00000	0.86095
4	0.50000	0.50000	0.13905
(0,0,1/2)' + set click here to show and hide
5	0.00000	0.00000	0.63905
6	0.50000	0.50000	0.36095
7	0.00000	0.00000	0.36095
8	0.50000	0.50000	0.63905

Set of atoms in the unit cell related by symmetry with the atom O2:

Atom	x	y	z
1	0.15250	0.44970	0.00000
2	0.65250	0.05030	0.00000
3	0.34750	0.94970	0.00000
4	0.84750	0.55030	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.15250	0.44970	0.50000
6	0.65250	0.05030	0.50000
7	0.34750	0.94970	0.50000
8	0.84750	0.55030	0.50000

Set of atoms in the unit cell related by symmetry with the atom O3:

Atom	x	y	z
1	0.15250	0.43740	0.25000
2	0.65250	0.06260	0.75000
3	0.34750	0.93740	0.75000
4	0.84750	0.56260	0.25000
(0,0,1/2)' + set click here to show and hide
5	0.15250	0.43740	0.75000
6	0.65250	0.06260	0.25000
7	0.34750	0.93740	0.25000
8	0.84750	0.56260	0.75000

Set of atoms in the unit cell related by symmetry with the atom O4:

Atom	x	y	z
1	0.40680	0.20610	0.12700
2	0.90680	0.29390	0.87300
3	0.09320	0.70610	0.87300
4	0.59320	0.79390	0.12700
5	0.59320	0.79390	0.87300
6	0.09320	0.70610	0.12700
7	0.90680	0.29390	0.12700
8	0.40680	0.20610	0.87300
(0,0,1/2)' + set click here to show and hide
9	0.40680	0.20610	0.62700
10	0.90680	0.29390	0.37300
11	0.09320	0.70610	0.37300
12	0.59320	0.79390	0.62700
13	0.59320	0.79390	0.37300
14	0.09320	0.70610	0.62700
15	0.90680	0.29390	0.62700
16	0.40680	0.20610	0.37300

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.50000	0.13050	8	0,0,m_z	0.0	0.0	-1.61(7)	1.61
Mn2	Mn	0.41140	0.35330	0.25000	8	m_x,m_y,0	2.28(4)	-1.23(8)	0.0	2.59

label	dim. small irrep	dim. full irrep	action	number of modes
mZ1+	1	1	primary	3
