MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,y,-z,+1	{ 2₀₁₀ \| 0 }
3	-x,-y,-z,+1	{ -1 \| 0 }
4	x,-y,z,+1	{ m₀₁₀ \| 0 }
(1/4,1/2,3/4) + set click here to show and hide
5	x+1/4,y+1/2,z+3/4,+1	{ 1 \| 1/4 1/2 3/4 }
6	-x+1/4,y+1/2,-z+3/4,+1	{ 2₀₁₀ \| 1/4 1/2 3/4 }
7	-x+1/4,-y+1/2,-z+3/4,+1	{ -1 \| 1/4 1/2 3/4 }
8	x+1/4,-y+1/2,z+3/4,+1	{ m₀₁₀ \| 1/4 1/2 3/4 }
(1/2,0,1/2) + set click here to show and hide
9	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
10	-x+1/2,y,-z+1/2,+1	{ 2₀₁₀ \| 1/2 0 1/2 }
11	-x+1/2,-y,-z+1/2,+1	{ -1 \| 1/2 0 1/2 }
12	x+1/2,-y,z+1/2,+1	{ m₀₁₀ \| 1/2 0 1/2 }
(3/4,1/2,1/4) + set click here to show and hide
13	x+3/4,y+1/2,z+1/4,+1	{ 1 \| 3/4 1/2 1/4 }
14	-x+3/4,y+1/2,-z+1/4,+1	{ 2₀₁₀ \| 3/4 1/2 1/4 }
15	-x+3/4,-y+1/2,-z+1/4,+1	{ -1 \| 3/4 1/2 1/4 }
16	x+3/4,-y+1/2,z+1/4,+1	{ m₀₁₀ \| 3/4 1/2 1/4 }
(1/2,0,0)' + set click here to show and hide
17	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
18	-x+1/2,y,-z,-1	{ 2'₀₁₀ \| 1/2 0 0 }
19	-x+1/2,-y,-z,-1	{ -1' \| 1/2 0 0 }
20	x+1/2,-y,z,-1	{ m'₀₁₀ \| 1/2 0 0 }
(3/4,1/2,3/4)' + set click here to show and hide
21	x+3/4,y+1/2,z+3/4,-1	{ 1' \| 3/4 1/2 3/4 }
22	-x+3/4,y+1/2,-z+3/4,-1	{ 2'₀₁₀ \| 3/4 1/2 3/4 }
23	-x+3/4,-y+1/2,-z+3/4,-1	{ -1' \| 3/4 1/2 3/4 }
24	x+3/4,-y+1/2,z+3/4,-1	{ m'₀₁₀ \| 3/4 1/2 3/4 }
(0,0,1/2)' + set click here to show and hide
25	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
26	-x,y,-z+1/2,-1	{ 2'₀₁₀ \| 0 0 1/2 }
27	-x,-y,-z+1/2,-1	{ -1' \| 0 0 1/2 }
28	x,-y,z+1/2,-1	{ m'₀₁₀ \| 0 0 1/2 }
(1/4,1/2,1/4)' + set click here to show and hide
29	x+1/4,y+1/2,z+1/4,-1	{ 1' \| 1/4 1/2 1/4 }
30	-x+1/4,y+1/2,-z+1/4,-1	{ 2'₀₁₀ \| 1/4 1/2 1/4 }
31	-x+1/4,-y+1/2,-z+1/4,-1	{ -1' \| 1/4 1/2 1/4 }
32	x+1/4,-y+1/2,z+1/4,-1	{ m'₀₁₀ \| 1/4 1/2 1/4 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,y,-z,+1	2₀₁₀
3	-x,-y,-z,+1	-1
4	x,-y,z,+1	m₀₁₀
1' + set click here to show and hide
5	x,y,z,-1	1'
6	-x,y,-z,-1	2'₀₁₀
7	-x,-y,-z,-1	-1'
8	x,-y,z,-1	m'₀₁₀

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.00000	0.00000	0.00000	8	0,m_y,0	0.0	6.5	0.0	6.50

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Cu1	Cu	0.00000	0.50000	0.12500	16
Si1	Si	0.00000	0.00000	0.18700	16

[Show all atoms in unit cell and their moment relations]

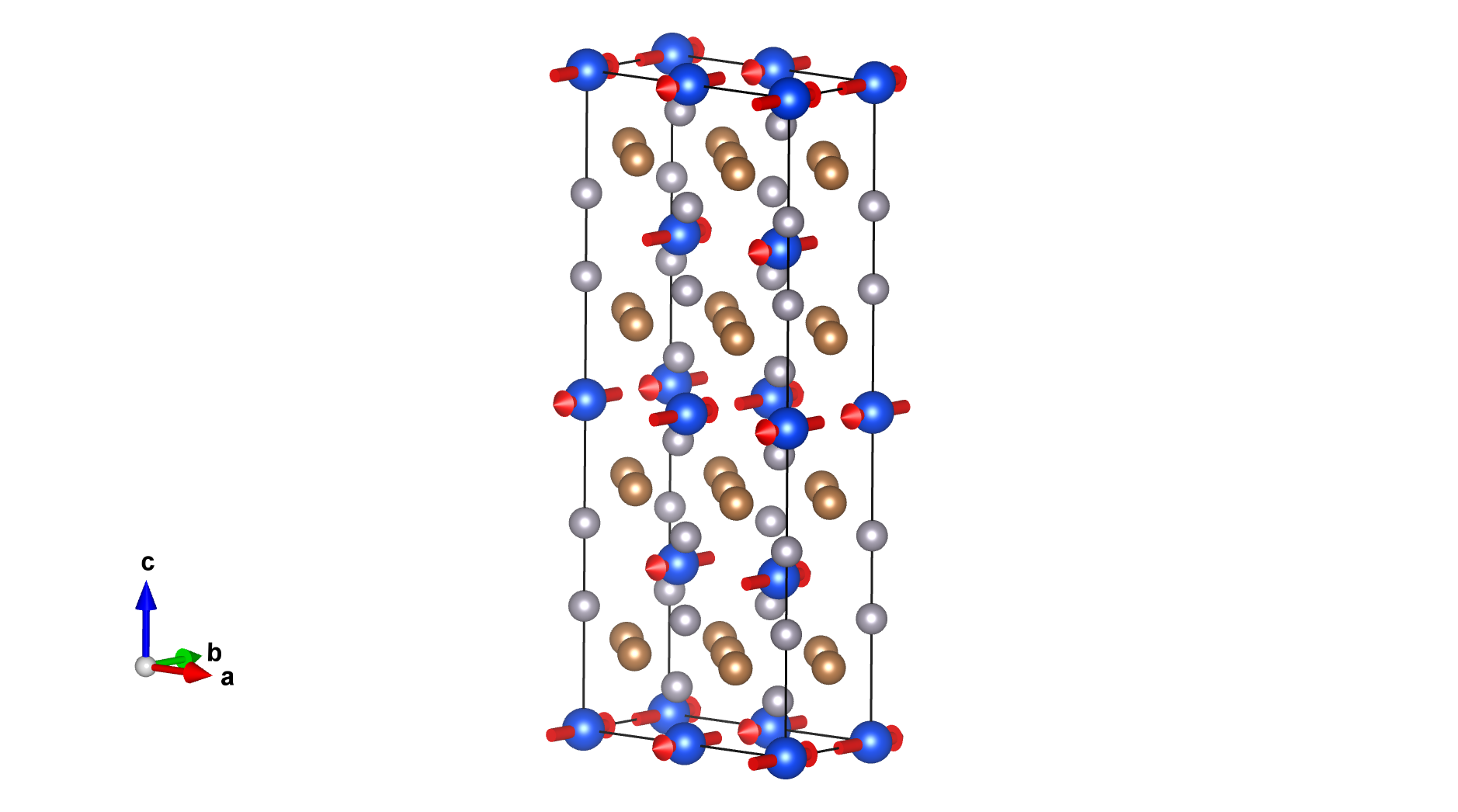

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

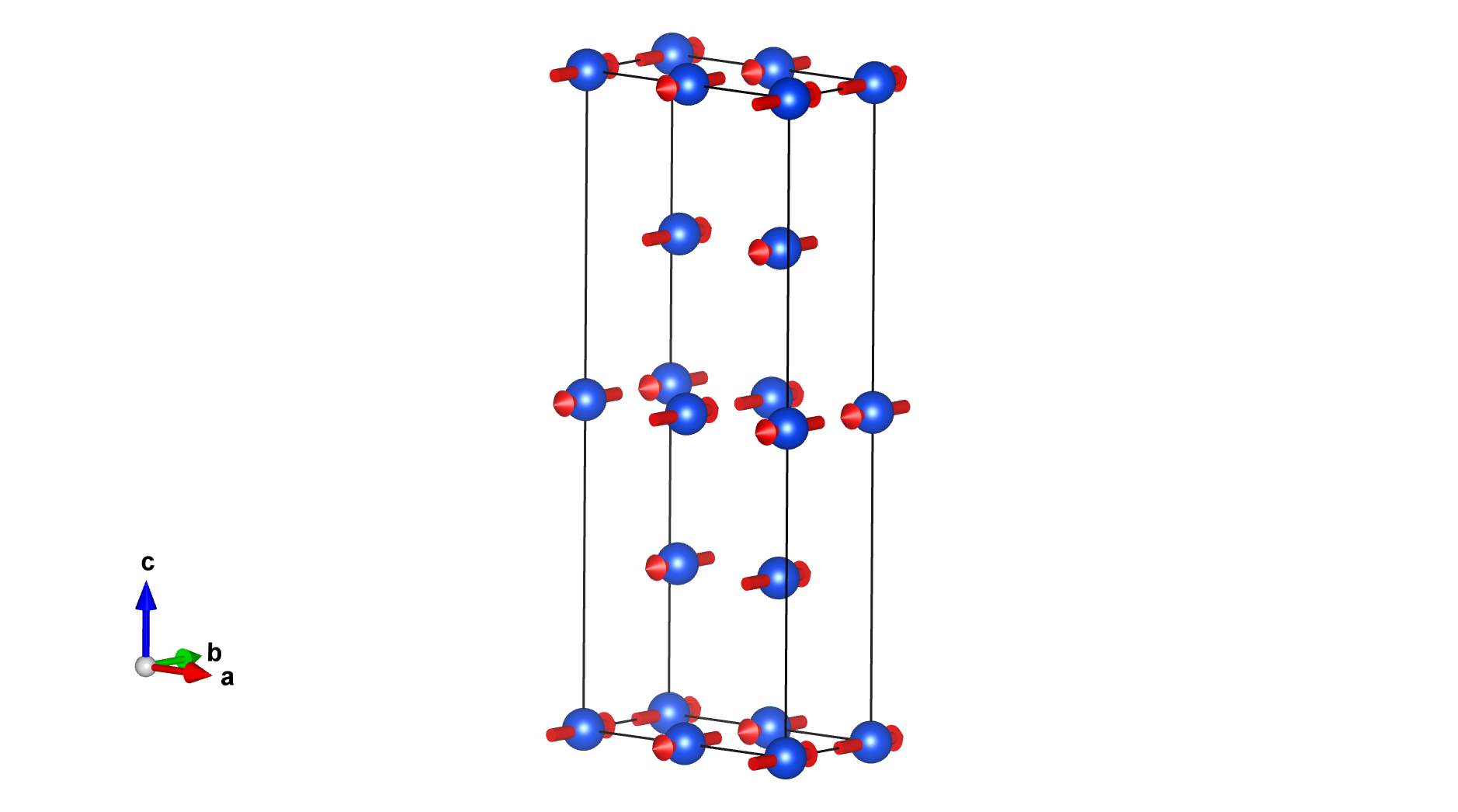

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ho1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,m_y,0	0.00000	6.50000	0.00000
(1/4,1/2,3/4) + set click here to show and hide
2	0.25000	0.50000	0.75000	0,m_y,0	0.00000	6.50000	0.00000
(1/2,0,1/2) + set click here to show and hide
3	0.50000	0.00000	0.50000	0,m_y,0	0.00000	6.50000	0.00000
(3/4,1/2,1/4) + set click here to show and hide
4	0.75000	0.50000	0.25000	0,m_y,0	0.00000	6.50000	0.00000
(1/2,0,0)' + set click here to show and hide
5	0.50000	0.00000	0.00000	0,-m_y,0	0.00000	-6.50000	0.00000
(3/4,1/2,3/4)' + set click here to show and hide
6	0.75000	0.50000	0.75000	0,-m_y,0	0.00000	-6.50000	0.00000
(0,0,1/2)' + set click here to show and hide
7	0.00000	0.00000	0.50000	0,-m_y,0	0.00000	-6.50000	0.00000
(1/4,1/2,1/4)' + set click here to show and hide
8	0.25000	0.50000	0.25000	0,-m_y,0	0.00000	-6.50000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Cu1:

Atom	x	y	z
1	0.00000	0.50000	0.12500
2	0.00000	0.50000	0.87500
(1/4,1/2,3/4) + set click here to show and hide
3	0.25000	0.00000	0.87500
4	0.25000	0.00000	0.62500
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.50000	0.62500
6	0.50000	0.50000	0.37500
(3/4,1/2,1/4) + set click here to show and hide
7	0.75000	0.00000	0.37500
8	0.75000	0.00000	0.12500
(1/2,0,0)' + set click here to show and hide
9	0.50000	0.50000	0.12500
10	0.50000	0.50000	0.87500
(3/4,1/2,3/4)' + set click here to show and hide
11	0.75000	0.00000	0.87500
12	0.75000	0.00000	0.62500
(0,0,1/2)' + set click here to show and hide
13	0.00000	0.50000	0.62500
14	0.00000	0.50000	0.37500
(1/4,1/2,1/4)' + set click here to show and hide
15	0.25000	0.00000	0.37500
16	0.25000	0.00000	0.12500

Set of atoms in the unit cell related by symmetry with the atom Si1:

Atom	x	y	z
1	0.00000	0.00000	0.18700
2	0.00000	0.00000	0.81300
(1/4,1/2,3/4) + set click here to show and hide
3	0.25000	0.50000	0.93700
4	0.25000	0.50000	0.56300
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.00000	0.68700
6	0.50000	0.00000	0.31300
(3/4,1/2,1/4) + set click here to show and hide
7	0.75000	0.50000	0.43700
8	0.75000	0.50000	0.06300
(1/2,0,0)' + set click here to show and hide
9	0.50000	0.00000	0.18700
10	0.50000	0.00000	0.81300
(3/4,1/2,3/4)' + set click here to show and hide
11	0.75000	0.50000	0.93700
12	0.75000	0.50000	0.56300
(0,0,1/2)' + set click here to show and hide
13	0.00000	0.00000	0.68700
14	0.00000	0.00000	0.31300
(1/4,1/2,1/4)' + set click here to show and hide
15	0.25000	0.50000	0.43700
16	0.25000	0.50000	0.06300

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.00000	0.00000	0.00000	8	0,m_y,0	0.0	6.5	0.0	6.50

[Show all magnetic atoms in unit cell and their moment relations]

label	dim. small irrep	dim. full irrep	action	number of modes
mN1+	1	1	primary	1

MAGNDATA: A Collection of magnetic structures with portable cif-type files

HoCu₂Si₂ (#1.366)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

HoCu2Si2 (#1.366)

HoCu₂Si₂ (#1.366)
