MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x+1/2,y,-z,+1	{ 2₀₁₀ \| 1/2 0 0 }
3	-x+1/2,-y+1/2,z,+1	{ 2₀₀₁ \| 1/2 1/2 0 }
4	x,-y+1/2,-z,+1	{ 2₁₀₀ \| 0 1/2 0 }
5	-x,-y+1/2,-z,+1	{ -1 \| 0 1/2 0 }
6	x+1/2,-y+1/2,z,+1	{ m₀₁₀ \| 1/2 1/2 0 }
7	x+1/2,y,-z,+1	{ m₀₀₁ \| 1/2 0 0 }
8	-x,y,z,+1	{ m₁₀₀ \| 0 }
(1/2,1/2,0)' + set click here to show and hide
9	x+1/2,y+1/2,z,-1	{ 1' \| 1/2 1/2 0 }
10	-x,y+1/2,-z,-1	{ 2'₀₁₀ \| 0 1/2 0 }
11	-x,-y,z,-1	{ 2'₀₀₁ \| 0 }
12	x+1/2,-y,-z,-1	{ 2'₁₀₀ \| 1/2 0 0 }
13	-x+1/2,-y,-z,-1	{ -1' \| 1/2 0 0 }
14	x,-y,z,-1	{ m'₀₁₀ \| 0 }
15	x,y+1/2,-z,-1	{ m'₀₀₁ \| 0 1/2 0 }
16	-x+1/2,y+1/2,z,-1	{ m'₁₀₀ \| 1/2 1/2 0 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,y,-z,+1	2₀₁₀
3	-x,-y,z,+1	2₀₀₁
4	x,-y,-z,+1	2₁₀₀
5	-x,-y,-z,+1	-1
6	x,-y,z,+1	m₀₁₀
7	x,y,-z,+1	m₀₀₁
8	-x,y,z,+1	m₁₀₀
1' + set click here to show and hide
9	x,y,z,-1	1'
10	-x,y,-z,-1	2'₀₁₀
11	-x,-y,z,-1	2'₀₀₁
12	x,-y,-z,-1	2'₁₀₀
13	-x,-y,-z,-1	-1'
14	x,-y,z,-1	m'₀₁₀
15	x,y,-z,-1	m'₀₀₁
16	-x,y,z,-1	m'₁₀₀

[Hide]

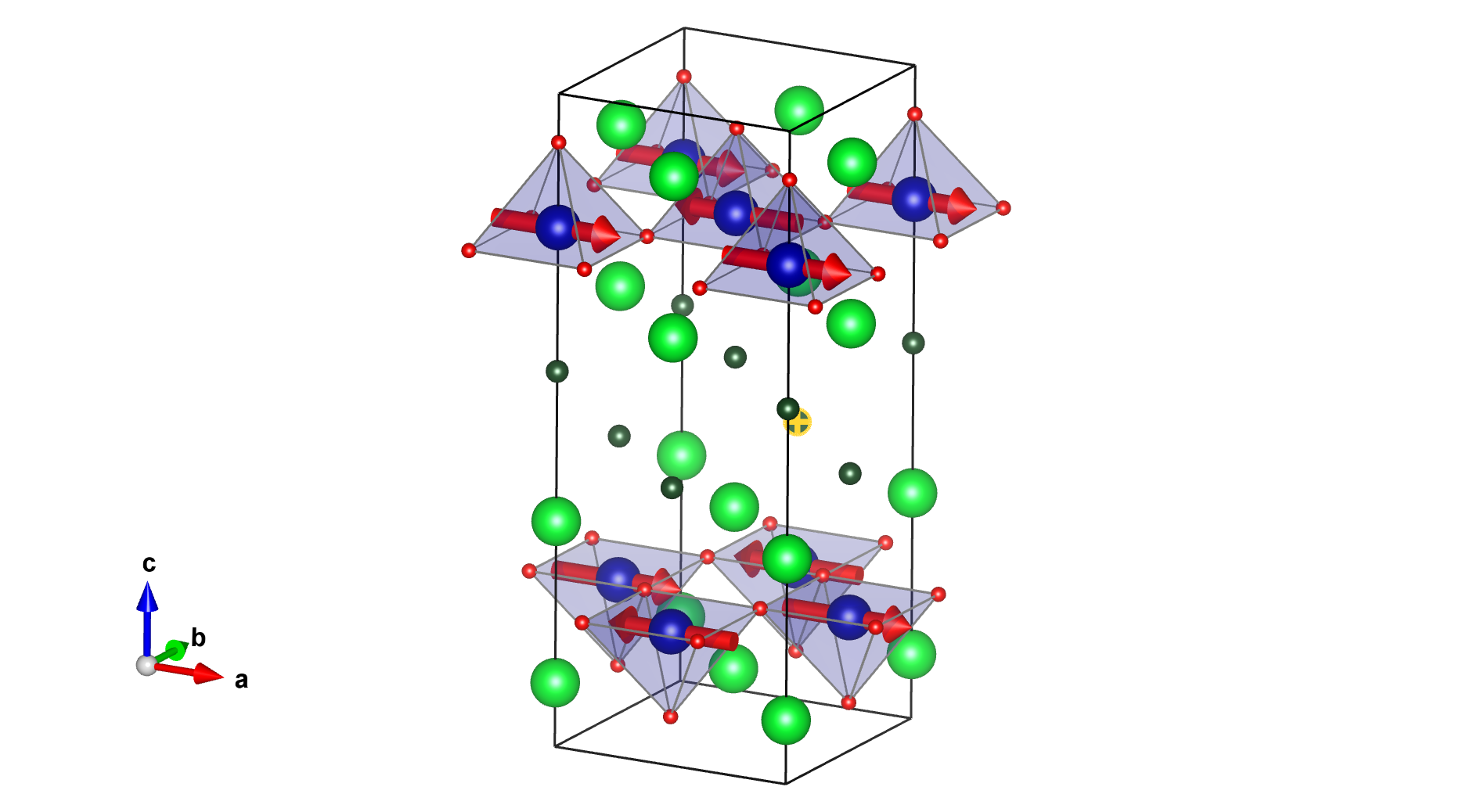

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.00000	0.00000	0.7951(4)	4	m_x,0,0	2.82(3)	0.0	0.0	2.82

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Sr1	Sr	0.00000	0.00000	0.098(1)	4
Sr2	Sr	0.00000	0.00000	0.3452(1)	4
O1	O	0.25000	0.25000	0.2294(1)	8
O2	O	0.00000	0.00000	0.9253(2)	4
Cl1	Cl	0.00000	0.00000	0.5748(1)	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.79510	m_x,0,0	2.82000	0.00000	0.00000
2	0.50000	0.00000	0.20490	-m_x,0,0	-2.82000	0.00000	0.00000
(1/2,1/2,0)' + set click here to show and hide
3	0.50000	0.50000	0.79510	-m_x,0,0	-2.82000	0.00000	0.00000
4	0.00000	0.50000	0.20490	m_x,0,0	2.82000	0.00000	0.00000

Atom	x	y	z
1	0.00000	0.00000	0.09800
2	0.50000	0.00000	0.90200
(1/2,1/2,0)' + set click here to show and hide
3	0.50000	0.50000	0.09800
4	0.00000	0.50000	0.90200

Atom	x	y	z
1	0.00000	0.00000	0.34520
2	0.50000	0.00000	0.65480
(1/2,1/2,0)' + set click here to show and hide
3	0.50000	0.50000	0.34520
4	0.00000	0.50000	0.65480

Atom	x	y	z
1	0.25000	0.25000	0.22940
2	0.25000	0.25000	0.77060
3	0.75000	0.25000	0.77060
4	0.75000	0.25000	0.22940
(1/2,1/2,0)' + set click here to show and hide
5	0.75000	0.75000	0.22940
6	0.75000	0.75000	0.77060
7	0.25000	0.75000	0.77060
8	0.25000	0.75000	0.22940

Atom	x	y	z
1	0.00000	0.00000	0.92530
2	0.50000	0.00000	0.07470
(1/2,1/2,0)' + set click here to show and hide
3	0.50000	0.50000	0.92530
4	0.00000	0.50000	0.07470

Atom	x	y	z
1	0.00000	0.00000	0.57480
2	0.50000	0.00000	0.42520
(1/2,1/2,0)' + set click here to show and hide
3	0.50000	0.50000	0.57480
4	0.00000	0.50000	0.42520

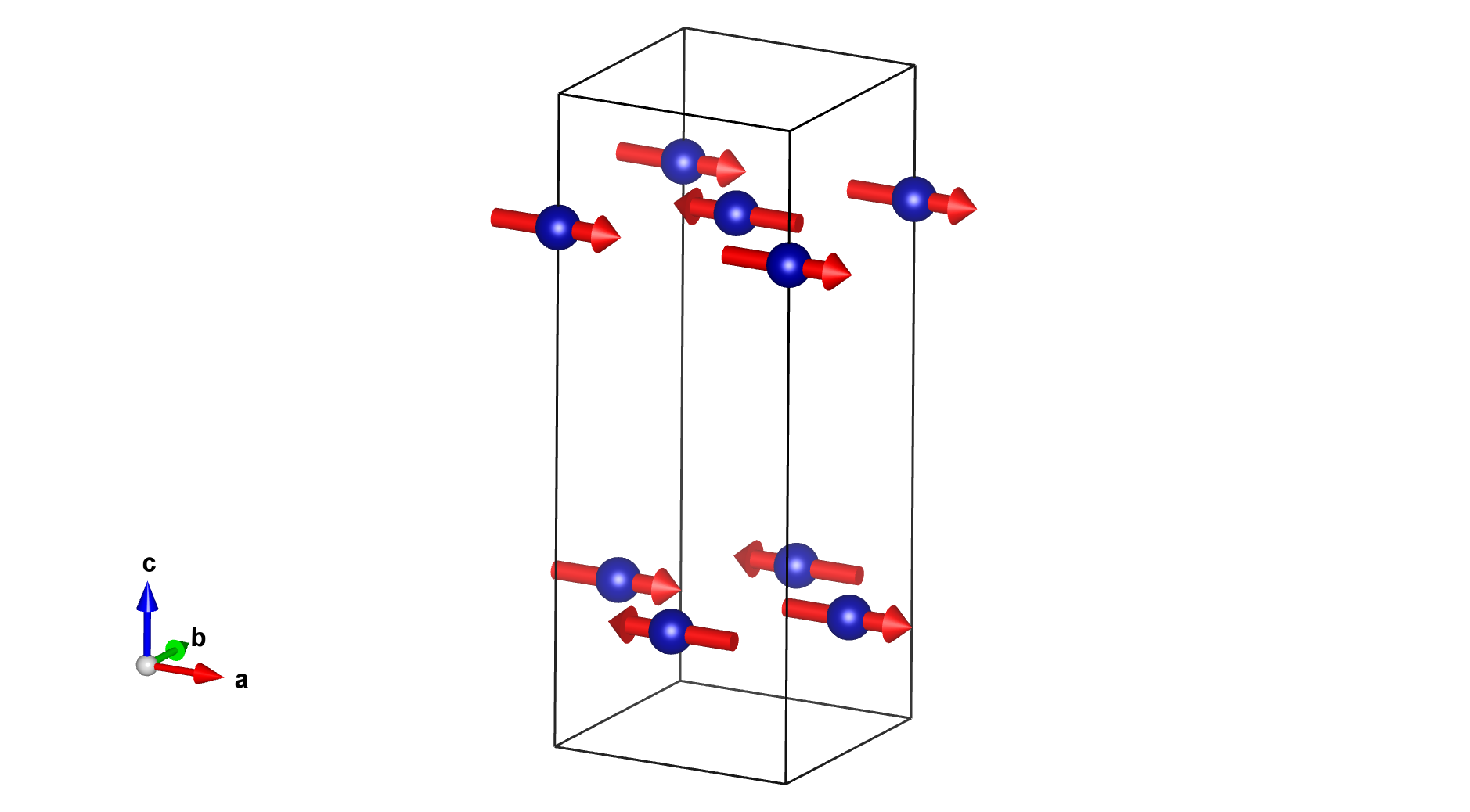

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.00000	0.00000	0.7951(4)	4	m_x,0,0	2.82(3)	0.0	0.0	2.82

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.79510	m_x,0,0	2.82000	0.00000	0.00000
2	0.50000	0.00000	0.20490	-m_x,0,0	-2.82000	0.00000	0.00000
(1/2,1/2,0)' + set click here to show and hide
3	0.50000	0.50000	0.79510	-m_x,0,0	-2.82000	0.00000	0.00000
4	0.00000	0.50000	0.20490	m_x,0,0	2.82000	0.00000	0.00000

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mM2	2	2	special	primary	1
