Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x,-y,-z,+1	{ 2₁₀₀ \| 0 }
3	-x+1/4,-y+1/2,-z,+1	{ -1 \| 1/4 1/2 0 }
4	-x+1/4,y+1/2,z,+1	{ m₁₀₀ \| 1/4 1/2 0 }
(1/2,0,1/2) + set click here to show and hide
5	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
6	x+1/2,-y,-z+1/2,+1	{ 2₁₀₀ \| 1/2 0 1/2 }
7	-x+3/4,-y+1/2,-z+1/2,+1	{ -1 \| 3/4 1/2 1/2 }
8	-x+3/4,y+1/2,z+1/2,+1	{ m₁₀₀ \| 3/4 1/2 1/2 }
(0,0,1/2)' + set click here to show and hide
9	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
10	x,-y,-z+1/2,-1	{ 2'₁₀₀ \| 0 0 1/2 }
11	-x+1/4,-y+1/2,-z+1/2,-1	{ -1' \| 1/4 1/2 1/2 }
12	-x+1/4,y+1/2,z+1/2,-1	{ m'₁₀₀ \| 1/4 1/2 1/2 }
(1/2,0,0)' + set click here to show and hide
13	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
14	x+1/2,-y,-z,-1	{ 2'₁₀₀ \| 1/2 0 0 }
15	-x+3/4,-y+1/2,-z,-1	{ -1' \| 3/4 1/2 0 }
16	-x+3/4,y+1/2,z,-1	{ m'₁₀₀ \| 3/4 1/2 0 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	x,-y,-z,+1	2₁₀₀
3	-x,-y,-z,+1	-1
4	-x,y,z,+1	m₁₀₀
1' + set click here to show and hide
5	x,y,z,-1	1'
6	x,-y,-z,-1	2'₁₀₀
7	-x,-y,-z,-1	-1'
8	-x,y,z,-1	m'₁₀₀

[Hide]

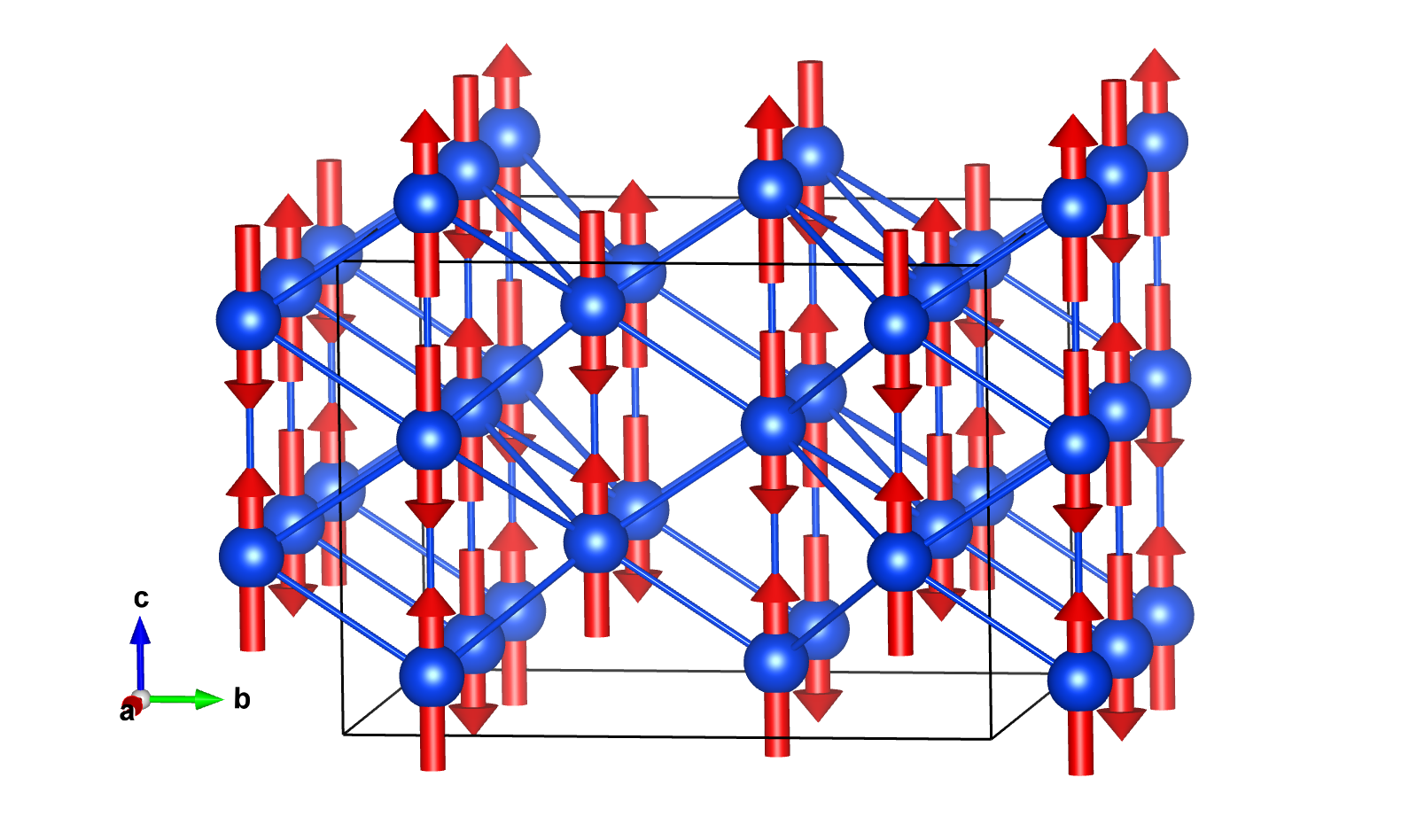

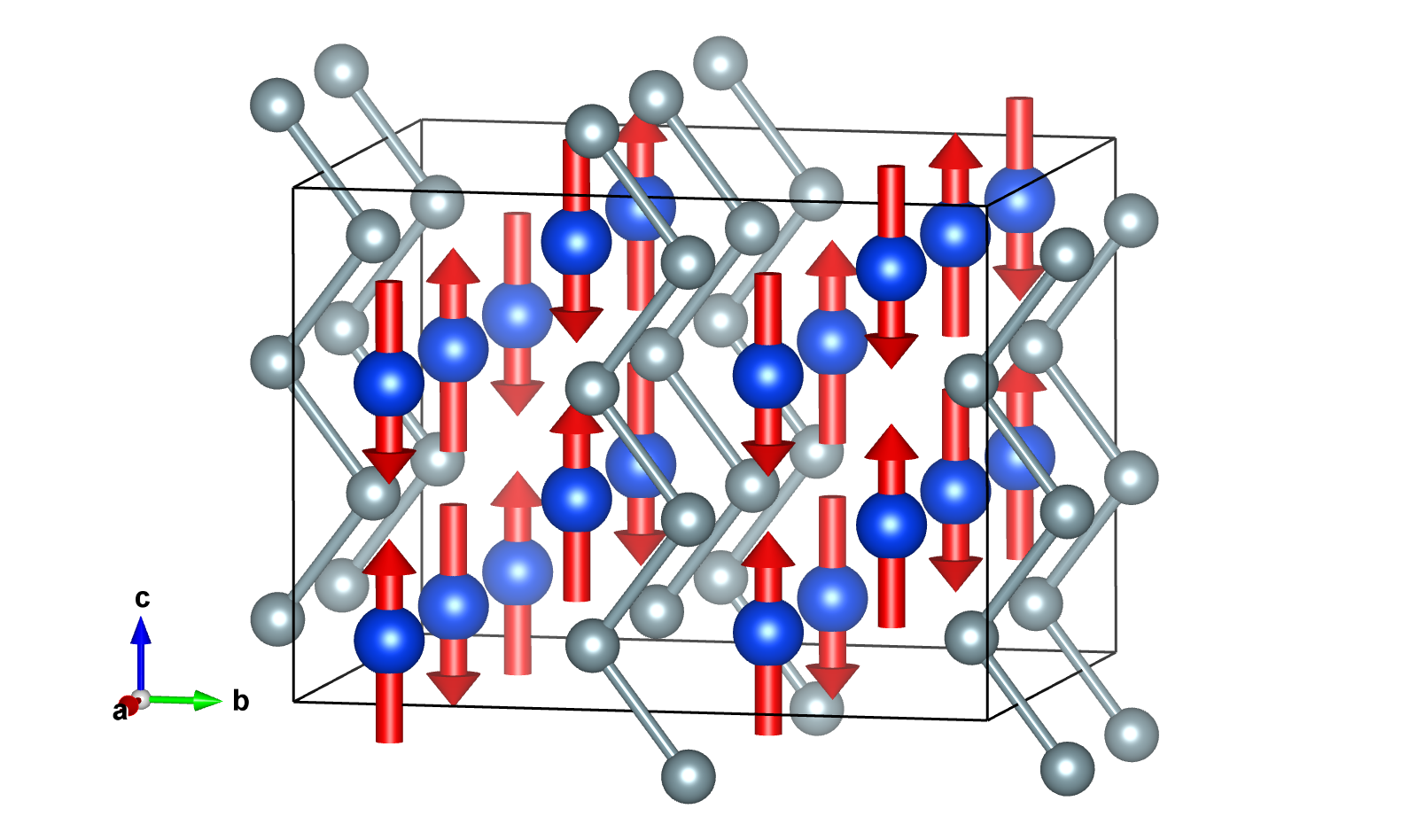

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.00000	0.13800	0.12500	16	m_x,m_y,m_z	0.0	0.0	8.6(2)	8.60

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Si1	Si	0.00000	0.43100	0.12500	16

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.13800	0.12500	m_x,m_y,m_z	0.00000	0.00000	8.60000
2	0.00000	0.86200	0.87500	m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
3	0.25000	0.36200	0.87500	m_x,m_y,m_z	0.00000	0.00000	8.60000
4	0.25000	0.63800	0.12500	m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.13800	0.62500	m_x,m_y,m_z	0.00000	0.00000	8.60000
6	0.50000	0.86200	0.37500	m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
7	0.75000	0.36200	0.37500	m_x,m_y,m_z	0.00000	0.00000	8.60000
8	0.75000	0.63800	0.62500	m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
(0,0,1/2)' + set click here to show and hide
9	0.00000	0.13800	0.62500	-m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
10	0.00000	0.86200	0.37500	-m_x,m_y,m_z	0.00000	0.00000	8.60000
11	0.25000	0.36200	0.37500	-m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
12	0.25000	0.63800	0.62500	-m_x,m_y,m_z	0.00000	0.00000	8.60000
(1/2,0,0)' + set click here to show and hide
13	0.50000	0.13800	0.12500	-m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
14	0.50000	0.86200	0.87500	-m_x,m_y,m_z	0.00000	0.00000	8.60000
15	0.75000	0.36200	0.87500	-m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
16	0.75000	0.63800	0.12500	-m_x,m_y,m_z	0.00000	0.00000	8.60000

Atom	x	y	z
1	0.00000	0.43100	0.12500
2	0.00000	0.56900	0.87500
3	0.25000	0.06900	0.87500
4	0.25000	0.93100	0.12500
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.43100	0.62500
6	0.50000	0.56900	0.37500
7	0.75000	0.06900	0.37500
8	0.75000	0.93100	0.62500
(0,0,1/2)' + set click here to show and hide
9	0.00000	0.43100	0.62500
10	0.00000	0.56900	0.37500
11	0.25000	0.06900	0.37500
12	0.25000	0.93100	0.62500
(1/2,0,0)' + set click here to show and hide
13	0.50000	0.43100	0.12500
14	0.50000	0.56900	0.87500
15	0.75000	0.06900	0.87500
16	0.75000	0.93100	0.12500

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.00000	0.13800	0.12500	16	m_x,m_y,m_z	0.0	0.0	8.6(2)	8.60

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.13800	0.12500	m_x,m_y,m_z	0.00000	0.00000	8.60000
2	0.00000	0.86200	0.87500	m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
3	0.25000	0.36200	0.87500	m_x,m_y,m_z	0.00000	0.00000	8.60000
4	0.25000	0.63800	0.12500	m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.13800	0.62500	m_x,m_y,m_z	0.00000	0.00000	8.60000
6	0.50000	0.86200	0.37500	m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
7	0.75000	0.36200	0.37500	m_x,m_y,m_z	0.00000	0.00000	8.60000
8	0.75000	0.63800	0.62500	m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
(0,0,1/2)' + set click here to show and hide
9	0.00000	0.13800	0.62500	-m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
10	0.00000	0.86200	0.37500	-m_x,m_y,m_z	0.00000	0.00000	8.60000
11	0.25000	0.36200	0.37500	-m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
12	0.25000	0.63800	0.62500	-m_x,m_y,m_z	0.00000	0.00000	8.60000
(1/2,0,0)' + set click here to show and hide
13	0.50000	0.13800	0.12500	-m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
14	0.50000	0.86200	0.87500	-m_x,m_y,m_z	0.00000	0.00000	8.60000
15	0.75000	0.36200	0.87500	-m_x,-m_y,-m_z	0.00000	0.00000	-8.60000
16	0.75000	0.63800	0.12500	-m_x,m_y,m_z	0.00000	0.00000	8.60000

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mA1	4	2	special	primary	3
