MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-z,-y,-x,+1	{ 2_-101 \| 0 }
(0,1/4,3/4) + set click here to show and hide
3	x,y+1/4,z+3/4,+1	{ 1 \| 0 1/4 3/4 }
4	-z,-y+1/4,-x+3/4,+1	{ 2_-101 \| 0 1/4 3/4 }
(0,1/2,1/2) + set click here to show and hide
5	x,y+1/2,z+1/2,+1	{ 1 \| 0 1/2 1/2 }
6	-z,-y+1/2,-x+1/2,+1	{ 2_-101 \| 0 1/2 1/2 }
(0,3/4,1/4) + set click here to show and hide
7	x,y+3/4,z+1/4,+1	{ 1 \| 0 3/4 1/4 }
8	-z,-y+3/4,-x+1/4,+1	{ 2_-101 \| 0 3/4 1/4 }
(1/4,0,3/4) + set click here to show and hide
9	x+1/4,y,z+3/4,+1	{ 1 \| 1/4 0 3/4 }
10	-z+1/4,-y,-x+3/4,+1	{ 2_-101 \| 1/4 0 3/4 }
(1/4,1/4,1/2) + set click here to show and hide
11	x+1/4,y+1/4,z+1/2,+1	{ 1 \| 1/4 1/4 1/2 }
12	-z+1/4,-y+1/4,-x+1/2,+1	{ 2_-101 \| 1/4 1/4 1/2 }
(1/4,1/2,1/4) + set click here to show and hide
13	x+1/4,y+1/2,z+1/4,+1	{ 1 \| 1/4 1/2 1/4 }
14	-z+1/4,-y+1/2,-x+1/4,+1	{ 2_-101 \| 1/4 1/2 1/4 }
(1/4,3/4,0) + set click here to show and hide
15	x+1/4,y+3/4,z,+1	{ 1 \| 1/4 3/4 0 }
16	-z+1/4,-y+3/4,-x,+1	{ 2_-101 \| 1/4 3/4 0 }
(1/2,0,1/2) + set click here to show and hide
17	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
18	-z+1/2,-y,-x+1/2,+1	{ 2_-101 \| 1/2 0 1/2 }
(1/2,1/4,1/4) + set click here to show and hide
19	x+1/2,y+1/4,z+1/4,+1	{ 1 \| 1/2 1/4 1/4 }
20	-z+1/2,-y+1/4,-x+1/4,+1	{ 2_-101 \| 1/2 1/4 1/4 }
(1/2,1/2,0) + set click here to show and hide
21	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
22	-z+1/2,-y+1/2,-x,+1	{ 2_-101 \| 1/2 1/2 0 }
(1/2,3/4,3/4) + set click here to show and hide
23	x+1/2,y+3/4,z+3/4,+1	{ 1 \| 1/2 3/4 3/4 }
24	-z+1/2,-y+3/4,-x+3/4,+1	{ 2_-101 \| 1/2 3/4 3/4 }
(3/4,0,1/4) + set click here to show and hide
25	x+3/4,y,z+1/4,+1	{ 1 \| 3/4 0 1/4 }
26	-z+3/4,-y,-x+1/4,+1	{ 2_-101 \| 3/4 0 1/4 }
(3/4,1/4,0) + set click here to show and hide
27	x+3/4,y+1/4,z,+1	{ 1 \| 3/4 1/4 0 }
28	-z+3/4,-y+1/4,-x,+1	{ 2_-101 \| 3/4 1/4 0 }
(3/4,1/2,3/4) + set click here to show and hide
29	x+3/4,y+1/2,z+3/4,+1	{ 1 \| 3/4 1/2 3/4 }
30	-z+3/4,-y+1/2,-x+3/4,+1	{ 2_-101 \| 3/4 1/2 3/4 }
(3/4,3/4,1/2) + set click here to show and hide
31	x+3/4,y+3/4,z+1/2,+1	{ 1 \| 3/4 3/4 1/2 }
32	-z+3/4,-y+3/4,-x+1/2,+1	{ 2_-101 \| 3/4 3/4 1/2 }
(1/4,0,1/4)' + set click here to show and hide
33	x+1/4,y,z+1/4,-1	{ 1' \| 1/4 0 1/4 }
34	-z+1/4,-y,-x+1/4,-1	{ 2'_-101 \| 1/4 0 1/4 }
(1/4,1/4,0)' + set click here to show and hide
35	x+1/4,y+1/4,z,-1	{ 1' \| 1/4 1/4 0 }
36	-z+1/4,-y+1/4,-x,-1	{ 2'_-101 \| 1/4 1/4 0 }
(1/4,1/2,3/4)' + set click here to show and hide
37	x+1/4,y+1/2,z+3/4,-1	{ 1' \| 1/4 1/2 3/4 }
38	-z+1/4,-y+1/2,-x+3/4,-1	{ 2'_-101 \| 1/4 1/2 3/4 }
(1/4,3/4,1/2)' + set click here to show and hide
39	x+1/4,y+3/4,z+1/2,-1	{ 1' \| 1/4 3/4 1/2 }
40	-z+1/4,-y+3/4,-x+1/2,-1	{ 2'_-101 \| 1/4 3/4 1/2 }
(1/2,0,0)' + set click here to show and hide
41	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
42	-z+1/2,-y,-x,-1	{ 2'_-101 \| 1/2 0 0 }
(1/2,1/4,3/4)' + set click here to show and hide
43	x+1/2,y+1/4,z+3/4,-1	{ 1' \| 1/2 1/4 3/4 }
44	-z+1/2,-y+1/4,-x+3/4,-1	{ 2'_-101 \| 1/2 1/4 3/4 }
(1/2,1/2,1/2)' + set click here to show and hide
45	x+1/2,y+1/2,z+1/2,-1	{ 1' \| 1/2 1/2 1/2 }
46	-z+1/2,-y+1/2,-x+1/2,-1	{ 2'_-101 \| 1/2 1/2 1/2 }
(1/2,3/4,1/4)' + set click here to show and hide
47	x+1/2,y+3/4,z+1/4,-1	{ 1' \| 1/2 3/4 1/4 }
48	-z+1/2,-y+3/4,-x+1/4,-1	{ 2'_-101 \| 1/2 3/4 1/4 }
(3/4,0,3/4)' + set click here to show and hide
49	x+3/4,y,z+3/4,-1	{ 1' \| 3/4 0 3/4 }
50	-z+3/4,-y,-x+3/4,-1	{ 2'_-101 \| 3/4 0 3/4 }
(3/4,1/4,1/2)' + set click here to show and hide
51	x+3/4,y+1/4,z+1/2,-1	{ 1' \| 3/4 1/4 1/2 }
52	-z+3/4,-y+1/4,-x+1/2,-1	{ 2'_-101 \| 3/4 1/4 1/2 }
(3/4,1/2,1/4)' + set click here to show and hide
53	x+3/4,y+1/2,z+1/4,-1	{ 1' \| 3/4 1/2 1/4 }
54	-z+3/4,-y+1/2,-x+1/4,-1	{ 2'_-101 \| 3/4 1/2 1/4 }
(3/4,3/4,0)' + set click here to show and hide
55	x+3/4,y+3/4,z,-1	{ 1' \| 3/4 3/4 0 }
56	-z+3/4,-y+3/4,-x,-1	{ 2'_-101 \| 3/4 3/4 0 }
(0,0,1/2)' + set click here to show and hide
57	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
58	-z,-y,-x+1/2,-1	{ 2'_-101 \| 0 0 1/2 }
(0,1/4,1/4)' + set click here to show and hide
59	x,y+1/4,z+1/4,-1	{ 1' \| 0 1/4 1/4 }
60	-z,-y+1/4,-x+1/4,-1	{ 2'_-101 \| 0 1/4 1/4 }
(0,1/2,0)' + set click here to show and hide
61	x,y+1/2,z,-1	{ 1' \| 0 1/2 0 }
62	-z,-y+1/2,-x,-1	{ 2'_-101 \| 0 1/2 0 }
(0,3/4,3/4)' + set click here to show and hide
63	x,y+3/4,z+3/4,-1	{ 1' \| 0 3/4 3/4 }
64	-z,-y+3/4,-x+3/4,-1	{ 2'_-101 \| 0 3/4 3/4 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-z,-y,-x,+1	2_-101
1' + set click here to show and hide
3	x,y,z,-1	1'
4	-z,-y,-x,-1	2'_-101

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ni1_1	Ni	0.25000	0.25000	0.25000	32	m_x,m_y,m_x	0.75	0.75	0.75	1.30
Ni1_2	Ni	0.12500	0.37500	0.00000	64	m_x,m_y,m_z	1.415	0.0	-1.415	2.00
Ni1_3	Ni	0.37500	0.00000	0.12500	32	m_x,0,-m_x	1.415	0.0	-1.415	2.00

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ge1	Ge	0.06250	0.06250	0.06250	64
O1_1	O	0.12520	0.12520	0.12520	64
O1_2	O	0.24980	0.99980	0.37520	64
O1_3	O	0.99980	0.37520	0.24980	64
O1_4	O	0.37520	0.24980	0.99980	64

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.25000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(0,1/4,3/4) + set click here to show and hide
2	0.25000	0.50000	0.00000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(0,1/2,1/2) + set click here to show and hide
3	0.25000	0.75000	0.75000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(0,3/4,1/4) + set click here to show and hide
4	0.25000	0.00000	0.50000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/4,0,3/4) + set click here to show and hide
5	0.50000	0.25000	0.00000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/4,1/4,1/2) + set click here to show and hide
6	0.50000	0.50000	0.75000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/4,1/2,1/4) + set click here to show and hide
7	0.50000	0.75000	0.50000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/4,3/4,0) + set click here to show and hide
8	0.50000	0.00000	0.25000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/2,0,1/2) + set click here to show and hide
9	0.75000	0.25000	0.75000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/2,1/4,1/4) + set click here to show and hide
10	0.75000	0.50000	0.50000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/2,1/2,0) + set click here to show and hide
11	0.75000	0.75000	0.25000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/2,3/4,3/4) + set click here to show and hide
12	0.75000	0.00000	0.00000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(3/4,0,1/4) + set click here to show and hide
13	0.00000	0.25000	0.50000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(3/4,1/4,0) + set click here to show and hide
14	0.00000	0.50000	0.25000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(3/4,1/2,3/4) + set click here to show and hide
15	0.00000	0.75000	0.00000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(3/4,3/4,1/2) + set click here to show and hide
16	0.00000	0.00000	0.75000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/4,0,1/4)' + set click here to show and hide
17	0.50000	0.25000	0.50000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/4,1/4,0)' + set click here to show and hide
18	0.50000	0.50000	0.25000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/4,1/2,3/4)' + set click here to show and hide
19	0.50000	0.75000	0.00000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/4,3/4,1/2)' + set click here to show and hide
20	0.50000	0.00000	0.75000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/2,0,0)' + set click here to show and hide
21	0.75000	0.25000	0.25000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/2,1/4,3/4)' + set click here to show and hide
22	0.75000	0.50000	0.00000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/2,1/2,1/2)' + set click here to show and hide
23	0.75000	0.75000	0.75000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/2,3/4,1/4)' + set click here to show and hide
24	0.75000	0.00000	0.50000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(3/4,0,3/4)' + set click here to show and hide
25	0.00000	0.25000	0.00000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(3/4,1/4,1/2)' + set click here to show and hide
26	0.00000	0.50000	0.75000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(3/4,1/2,1/4)' + set click here to show and hide
27	0.00000	0.75000	0.50000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(3/4,3/4,0)' + set click here to show and hide
28	0.00000	0.00000	0.25000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(0,0,1/2)' + set click here to show and hide
29	0.25000	0.25000	0.75000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(0,1/4,1/4)' + set click here to show and hide
30	0.25000	0.50000	0.50000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(0,1/2,0)' + set click here to show and hide
31	0.25000	0.75000	0.25000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(0,3/4,3/4)' + set click here to show and hide
32	0.25000	0.00000	0.00000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.12500	0.37500	0.00000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
2	0.00000	0.62500	0.87500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(0,1/4,3/4) + set click here to show and hide
3	0.12500	0.62500	0.75000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
4	0.00000	0.87500	0.62500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(0,1/2,1/2) + set click here to show and hide
5	0.12500	0.87500	0.50000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
6	0.00000	0.12500	0.37500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(0,3/4,1/4) + set click here to show and hide
7	0.12500	0.12500	0.25000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
8	0.00000	0.37500	0.12500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/4,0,3/4) + set click here to show and hide
9	0.37500	0.37500	0.75000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
10	0.25000	0.62500	0.62500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/4,1/4,1/2) + set click here to show and hide
11	0.37500	0.62500	0.50000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
12	0.25000	0.87500	0.37500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/4,1/2,1/4) + set click here to show and hide
13	0.37500	0.87500	0.25000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
14	0.25000	0.12500	0.12500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/4,3/4,0) + set click here to show and hide
15	0.37500	0.12500	0.00000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
16	0.25000	0.37500	0.87500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/2,0,1/2) + set click here to show and hide
17	0.62500	0.37500	0.50000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
18	0.50000	0.62500	0.37500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/2,1/4,1/4) + set click here to show and hide
19	0.62500	0.62500	0.25000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
20	0.50000	0.87500	0.12500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/2,1/2,0) + set click here to show and hide
21	0.62500	0.87500	0.00000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
22	0.50000	0.12500	0.87500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/2,3/4,3/4) + set click here to show and hide
23	0.62500	0.12500	0.75000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
24	0.50000	0.37500	0.62500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(3/4,0,1/4) + set click here to show and hide
25	0.87500	0.37500	0.25000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
26	0.75000	0.62500	0.12500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(3/4,1/4,0) + set click here to show and hide
27	0.87500	0.62500	0.00000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
28	0.75000	0.87500	0.87500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(3/4,1/2,3/4) + set click here to show and hide
29	0.87500	0.87500	0.75000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
30	0.75000	0.12500	0.62500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(3/4,3/4,1/2) + set click here to show and hide
31	0.87500	0.12500	0.50000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
32	0.75000	0.37500	0.37500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/4,0,1/4)' + set click here to show and hide
33	0.37500	0.37500	0.25000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
34	0.25000	0.62500	0.12500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/4,1/4,0)' + set click here to show and hide
35	0.37500	0.62500	0.00000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
36	0.25000	0.87500	0.87500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/4,1/2,3/4)' + set click here to show and hide
37	0.37500	0.87500	0.75000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
38	0.25000	0.12500	0.62500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/4,3/4,1/2)' + set click here to show and hide
39	0.37500	0.12500	0.50000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
40	0.25000	0.37500	0.37500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/2,0,0)' + set click here to show and hide
41	0.62500	0.37500	0.00000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
42	0.50000	0.62500	0.87500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/2,1/4,3/4)' + set click here to show and hide
43	0.62500	0.62500	0.75000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
44	0.50000	0.87500	0.62500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/2,1/2,1/2)' + set click here to show and hide
45	0.62500	0.87500	0.50000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
46	0.50000	0.12500	0.37500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/2,3/4,1/4)' + set click here to show and hide
47	0.62500	0.12500	0.25000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
48	0.50000	0.37500	0.12500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(3/4,0,3/4)' + set click here to show and hide
49	0.87500	0.37500	0.75000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
50	0.75000	0.62500	0.62500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(3/4,1/4,1/2)' + set click here to show and hide
51	0.87500	0.62500	0.50000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
52	0.75000	0.87500	0.37500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(3/4,1/2,1/4)' + set click here to show and hide
53	0.87500	0.87500	0.25000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
54	0.75000	0.12500	0.12500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(3/4,3/4,0)' + set click here to show and hide
55	0.87500	0.12500	0.00000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
56	0.75000	0.37500	0.87500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(0,0,1/2)' + set click here to show and hide
57	0.12500	0.37500	0.50000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
58	0.00000	0.62500	0.37500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(0,1/4,1/4)' + set click here to show and hide
59	0.12500	0.62500	0.25000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
60	0.00000	0.87500	0.12500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(0,1/2,0)' + set click here to show and hide
61	0.12500	0.87500	0.00000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
62	0.00000	0.12500	0.87500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(0,3/4,3/4)' + set click here to show and hide
63	0.12500	0.12500	0.75000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
64	0.00000	0.37500	0.62500	m_z,m_y,m_x	-1.41500	0.00000	1.41500

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1_3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.37500	0.00000	0.12500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(0,1/4,3/4) + set click here to show and hide
2	0.37500	0.25000	0.87500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(0,1/2,1/2) + set click here to show and hide
3	0.37500	0.50000	0.62500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(0,3/4,1/4) + set click here to show and hide
4	0.37500	0.75000	0.37500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/4,0,3/4) + set click here to show and hide
5	0.62500	0.00000	0.87500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/4,1/4,1/2) + set click here to show and hide
6	0.62500	0.25000	0.62500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/4,1/2,1/4) + set click here to show and hide
7	0.62500	0.50000	0.37500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/4,3/4,0) + set click here to show and hide
8	0.62500	0.75000	0.12500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/2,0,1/2) + set click here to show and hide
9	0.87500	0.00000	0.62500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/2,1/4,1/4) + set click here to show and hide
10	0.87500	0.25000	0.37500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/2,1/2,0) + set click here to show and hide
11	0.87500	0.50000	0.12500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/2,3/4,3/4) + set click here to show and hide
12	0.87500	0.75000	0.87500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(3/4,0,1/4) + set click here to show and hide
13	0.12500	0.00000	0.37500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(3/4,1/4,0) + set click here to show and hide
14	0.12500	0.25000	0.12500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(3/4,1/2,3/4) + set click here to show and hide
15	0.12500	0.50000	0.87500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(3/4,3/4,1/2) + set click here to show and hide
16	0.12500	0.75000	0.62500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/4,0,1/4)' + set click here to show and hide
17	0.62500	0.00000	0.37500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/4,1/4,0)' + set click here to show and hide
18	0.62500	0.25000	0.12500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/4,1/2,3/4)' + set click here to show and hide
19	0.62500	0.50000	0.87500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/4,3/4,1/2)' + set click here to show and hide
20	0.62500	0.75000	0.62500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/2,0,0)' + set click here to show and hide
21	0.87500	0.00000	0.12500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/2,1/4,3/4)' + set click here to show and hide
22	0.87500	0.25000	0.87500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/2,1/2,1/2)' + set click here to show and hide
23	0.87500	0.50000	0.62500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/2,3/4,1/4)' + set click here to show and hide
24	0.87500	0.75000	0.37500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(3/4,0,3/4)' + set click here to show and hide
25	0.12500	0.00000	0.87500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(3/4,1/4,1/2)' + set click here to show and hide
26	0.12500	0.25000	0.62500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(3/4,1/2,1/4)' + set click here to show and hide
27	0.12500	0.50000	0.37500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(3/4,3/4,0)' + set click here to show and hide
28	0.12500	0.75000	0.12500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(0,0,1/2)' + set click here to show and hide
29	0.37500	0.00000	0.62500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(0,1/4,1/4)' + set click here to show and hide
30	0.37500	0.25000	0.37500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(0,1/2,0)' + set click here to show and hide
31	0.37500	0.50000	0.12500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(0,3/4,3/4)' + set click here to show and hide
32	0.37500	0.75000	0.87500	-m_x,0,m_x	-1.41500	0.00000	1.41500

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Ge1:

Atom	x	y	z
1	0.06250	0.06250	0.06250
2	0.93750	0.93750	0.93750
(0,1/4,3/4) + set click here to show and hide
3	0.06250	0.31250	0.81250
4	0.93750	0.18750	0.68750
(0,1/2,1/2) + set click here to show and hide
5	0.06250	0.56250	0.56250
6	0.93750	0.43750	0.43750
(0,3/4,1/4) + set click here to show and hide
7	0.06250	0.81250	0.31250
8	0.93750	0.68750	0.18750
(1/4,0,3/4) + set click here to show and hide
9	0.31250	0.06250	0.81250
10	0.18750	0.93750	0.68750
(1/4,1/4,1/2) + set click here to show and hide
11	0.31250	0.31250	0.56250
12	0.18750	0.18750	0.43750
(1/4,1/2,1/4) + set click here to show and hide
13	0.31250	0.56250	0.31250
14	0.18750	0.43750	0.18750
(1/4,3/4,0) + set click here to show and hide
15	0.31250	0.81250	0.06250
16	0.18750	0.68750	0.93750
(1/2,0,1/2) + set click here to show and hide
17	0.56250	0.06250	0.56250
18	0.43750	0.93750	0.43750
(1/2,1/4,1/4) + set click here to show and hide
19	0.56250	0.31250	0.31250
20	0.43750	0.18750	0.18750
(1/2,1/2,0) + set click here to show and hide
21	0.56250	0.56250	0.06250
22	0.43750	0.43750	0.93750
(1/2,3/4,3/4) + set click here to show and hide
23	0.56250	0.81250	0.81250
24	0.43750	0.68750	0.68750
(3/4,0,1/4) + set click here to show and hide
25	0.81250	0.06250	0.31250
26	0.68750	0.93750	0.18750
(3/4,1/4,0) + set click here to show and hide
27	0.81250	0.31250	0.06250
28	0.68750	0.18750	0.93750
(3/4,1/2,3/4) + set click here to show and hide
29	0.81250	0.56250	0.81250
30	0.68750	0.43750	0.68750
(3/4,3/4,1/2) + set click here to show and hide
31	0.81250	0.81250	0.56250
32	0.68750	0.68750	0.43750
(1/4,0,1/4)' + set click here to show and hide
33	0.31250	0.06250	0.31250
34	0.18750	0.93750	0.18750
(1/4,1/4,0)' + set click here to show and hide
35	0.31250	0.31250	0.06250
36	0.18750	0.18750	0.93750
(1/4,1/2,3/4)' + set click here to show and hide
37	0.31250	0.56250	0.81250
38	0.18750	0.43750	0.68750
(1/4,3/4,1/2)' + set click here to show and hide
39	0.31250	0.81250	0.56250
40	0.18750	0.68750	0.43750
(1/2,0,0)' + set click here to show and hide
41	0.56250	0.06250	0.06250
42	0.43750	0.93750	0.93750
(1/2,1/4,3/4)' + set click here to show and hide
43	0.56250	0.31250	0.81250
44	0.43750	0.18750	0.68750
(1/2,1/2,1/2)' + set click here to show and hide
45	0.56250	0.56250	0.56250
46	0.43750	0.43750	0.43750
(1/2,3/4,1/4)' + set click here to show and hide
47	0.56250	0.81250	0.31250
48	0.43750	0.68750	0.18750
(3/4,0,3/4)' + set click here to show and hide
49	0.81250	0.06250	0.81250
50	0.68750	0.93750	0.68750
(3/4,1/4,1/2)' + set click here to show and hide
51	0.81250	0.31250	0.56250
52	0.68750	0.18750	0.43750
(3/4,1/2,1/4)' + set click here to show and hide
53	0.81250	0.56250	0.31250
54	0.68750	0.43750	0.18750
(3/4,3/4,0)' + set click here to show and hide
55	0.81250	0.81250	0.06250
56	0.68750	0.68750	0.93750
(0,0,1/2)' + set click here to show and hide
57	0.06250	0.06250	0.56250
58	0.93750	0.93750	0.43750
(0,1/4,1/4)' + set click here to show and hide
59	0.06250	0.31250	0.31250
60	0.93750	0.18750	0.18750
(0,1/2,0)' + set click here to show and hide
61	0.06250	0.56250	0.06250
62	0.93750	0.43750	0.93750
(0,3/4,3/4)' + set click here to show and hide
63	0.06250	0.81250	0.81250
64	0.93750	0.68750	0.68750

Set of atoms in the unit cell related by symmetry with the atom O1_1:

Atom	x	y	z
1	0.12520	0.12520	0.12520
2	0.87480	0.87480	0.87480
(0,1/4,3/4) + set click here to show and hide
3	0.12520	0.37520	0.87520
4	0.87480	0.12480	0.62480
(0,1/2,1/2) + set click here to show and hide
5	0.12520	0.62520	0.62520
6	0.87480	0.37480	0.37480
(0,3/4,1/4) + set click here to show and hide
7	0.12520	0.87520	0.37520
8	0.87480	0.62480	0.12480
(1/4,0,3/4) + set click here to show and hide
9	0.37520	0.12520	0.87520
10	0.12480	0.87480	0.62480
(1/4,1/4,1/2) + set click here to show and hide
11	0.37520	0.37520	0.62520
12	0.12480	0.12480	0.37480
(1/4,1/2,1/4) + set click here to show and hide
13	0.37520	0.62520	0.37520
14	0.12480	0.37480	0.12480
(1/4,3/4,0) + set click here to show and hide
15	0.37520	0.87520	0.12520
16	0.12480	0.62480	0.87480
(1/2,0,1/2) + set click here to show and hide
17	0.62520	0.12520	0.62520
18	0.37480	0.87480	0.37480
(1/2,1/4,1/4) + set click here to show and hide
19	0.62520	0.37520	0.37520
20	0.37480	0.12480	0.12480
(1/2,1/2,0) + set click here to show and hide
21	0.62520	0.62520	0.12520
22	0.37480	0.37480	0.87480
(1/2,3/4,3/4) + set click here to show and hide
23	0.62520	0.87520	0.87520
24	0.37480	0.62480	0.62480
(3/4,0,1/4) + set click here to show and hide
25	0.87520	0.12520	0.37520
26	0.62480	0.87480	0.12480
(3/4,1/4,0) + set click here to show and hide
27	0.87520	0.37520	0.12520
28	0.62480	0.12480	0.87480
(3/4,1/2,3/4) + set click here to show and hide
29	0.87520	0.62520	0.87520
30	0.62480	0.37480	0.62480
(3/4,3/4,1/2) + set click here to show and hide
31	0.87520	0.87520	0.62520
32	0.62480	0.62480	0.37480
(1/4,0,1/4)' + set click here to show and hide
33	0.37520	0.12520	0.37520
34	0.12480	0.87480	0.12480
(1/4,1/4,0)' + set click here to show and hide
35	0.37520	0.37520	0.12520
36	0.12480	0.12480	0.87480
(1/4,1/2,3/4)' + set click here to show and hide
37	0.37520	0.62520	0.87520
38	0.12480	0.37480	0.62480
(1/4,3/4,1/2)' + set click here to show and hide
39	0.37520	0.87520	0.62520
40	0.12480	0.62480	0.37480
(1/2,0,0)' + set click here to show and hide
41	0.62520	0.12520	0.12520
42	0.37480	0.87480	0.87480
(1/2,1/4,3/4)' + set click here to show and hide
43	0.62520	0.37520	0.87520
44	0.37480	0.12480	0.62480
(1/2,1/2,1/2)' + set click here to show and hide
45	0.62520	0.62520	0.62520
46	0.37480	0.37480	0.37480
(1/2,3/4,1/4)' + set click here to show and hide
47	0.62520	0.87520	0.37520
48	0.37480	0.62480	0.12480
(3/4,0,3/4)' + set click here to show and hide
49	0.87520	0.12520	0.87520
50	0.62480	0.87480	0.62480
(3/4,1/4,1/2)' + set click here to show and hide
51	0.87520	0.37520	0.62520
52	0.62480	0.12480	0.37480
(3/4,1/2,1/4)' + set click here to show and hide
53	0.87520	0.62520	0.37520
54	0.62480	0.37480	0.12480
(3/4,3/4,0)' + set click here to show and hide
55	0.87520	0.87520	0.12520
56	0.62480	0.62480	0.87480
(0,0,1/2)' + set click here to show and hide
57	0.12520	0.12520	0.62520
58	0.87480	0.87480	0.37480
(0,1/4,1/4)' + set click here to show and hide
59	0.12520	0.37520	0.37520
60	0.87480	0.12480	0.12480
(0,1/2,0)' + set click here to show and hide
61	0.12520	0.62520	0.12520
62	0.87480	0.37480	0.87480
(0,3/4,3/4)' + set click here to show and hide
63	0.12520	0.87520	0.87520
64	0.87480	0.62480	0.62480

Set of atoms in the unit cell related by symmetry with the atom O1_2:

Atom	x	y	z
1	0.24980	0.99980	0.37520
2	0.62480	0.00020	0.75020
(0,1/4,3/4) + set click here to show and hide
3	0.24980	0.24980	0.12520
4	0.62480	0.25020	0.50020
(0,1/2,1/2) + set click here to show and hide
5	0.24980	0.49980	0.87520
6	0.62480	0.50020	0.25020
(0,3/4,1/4) + set click here to show and hide
7	0.24980	0.74980	0.62520
8	0.62480	0.75020	0.00020
(1/4,0,3/4) + set click here to show and hide
9	0.49980	0.99980	0.12520
10	0.87480	0.00020	0.50020
(1/4,1/4,1/2) + set click here to show and hide
11	0.49980	0.24980	0.87520
12	0.87480	0.25020	0.25020
(1/4,1/2,1/4) + set click here to show and hide
13	0.49980	0.49980	0.62520
14	0.87480	0.50020	0.00020
(1/4,3/4,0) + set click here to show and hide
15	0.49980	0.74980	0.37520
16	0.87480	0.75020	0.75020
(1/2,0,1/2) + set click here to show and hide
17	0.74980	0.99980	0.87520
18	0.12480	0.00020	0.25020
(1/2,1/4,1/4) + set click here to show and hide
19	0.74980	0.24980	0.62520
20	0.12480	0.25020	0.00020
(1/2,1/2,0) + set click here to show and hide
21	0.74980	0.49980	0.37520
22	0.12480	0.50020	0.75020
(1/2,3/4,3/4) + set click here to show and hide
23	0.74980	0.74980	0.12520
24	0.12480	0.75020	0.50020
(3/4,0,1/4) + set click here to show and hide
25	0.99980	0.99980	0.62520
26	0.37480	0.00020	0.00020
(3/4,1/4,0) + set click here to show and hide
27	0.99980	0.24980	0.37520
28	0.37480	0.25020	0.75020
(3/4,1/2,3/4) + set click here to show and hide
29	0.99980	0.49980	0.12520
30	0.37480	0.50020	0.50020
(3/4,3/4,1/2) + set click here to show and hide
31	0.99980	0.74980	0.87520
32	0.37480	0.75020	0.25020
(1/4,0,1/4)' + set click here to show and hide
33	0.49980	0.99980	0.62520
34	0.87480	0.00020	0.00020
(1/4,1/4,0)' + set click here to show and hide
35	0.49980	0.24980	0.37520
36	0.87480	0.25020	0.75020
(1/4,1/2,3/4)' + set click here to show and hide
37	0.49980	0.49980	0.12520
38	0.87480	0.50020	0.50020
(1/4,3/4,1/2)' + set click here to show and hide
39	0.49980	0.74980	0.87520
40	0.87480	0.75020	0.25020
(1/2,0,0)' + set click here to show and hide
41	0.74980	0.99980	0.37520
42	0.12480	0.00020	0.75020
(1/2,1/4,3/4)' + set click here to show and hide
43	0.74980	0.24980	0.12520
44	0.12480	0.25020	0.50020
(1/2,1/2,1/2)' + set click here to show and hide
45	0.74980	0.49980	0.87520
46	0.12480	0.50020	0.25020
(1/2,3/4,1/4)' + set click here to show and hide
47	0.74980	0.74980	0.62520
48	0.12480	0.75020	0.00020
(3/4,0,3/4)' + set click here to show and hide
49	0.99980	0.99980	0.12520
50	0.37480	0.00020	0.50020
(3/4,1/4,1/2)' + set click here to show and hide
51	0.99980	0.24980	0.87520
52	0.37480	0.25020	0.25020
(3/4,1/2,1/4)' + set click here to show and hide
53	0.99980	0.49980	0.62520
54	0.37480	0.50020	0.00020
(3/4,3/4,0)' + set click here to show and hide
55	0.99980	0.74980	0.37520
56	0.37480	0.75020	0.75020
(0,0,1/2)' + set click here to show and hide
57	0.24980	0.99980	0.87520
58	0.62480	0.00020	0.25020
(0,1/4,1/4)' + set click here to show and hide
59	0.24980	0.24980	0.62520
60	0.62480	0.25020	0.00020
(0,1/2,0)' + set click here to show and hide
61	0.24980	0.49980	0.37520
62	0.62480	0.50020	0.75020
(0,3/4,3/4)' + set click here to show and hide
63	0.24980	0.74980	0.12520
64	0.62480	0.75020	0.50020

Set of atoms in the unit cell related by symmetry with the atom O1_3:

Atom	x	y	z
1	0.99980	0.37520	0.24980
2	0.75020	0.62480	0.00020
(0,1/4,3/4) + set click here to show and hide
3	0.99980	0.62520	0.99980
4	0.75020	0.87480	0.75020
(0,1/2,1/2) + set click here to show and hide
5	0.99980	0.87520	0.74980
6	0.75020	0.12480	0.50020
(0,3/4,1/4) + set click here to show and hide
7	0.99980	0.12520	0.49980
8	0.75020	0.37480	0.25020
(1/4,0,3/4) + set click here to show and hide
9	0.24980	0.37520	0.99980
10	0.00020	0.62480	0.75020
(1/4,1/4,1/2) + set click here to show and hide
11	0.24980	0.62520	0.74980
12	0.00020	0.87480	0.50020
(1/4,1/2,1/4) + set click here to show and hide
13	0.24980	0.87520	0.49980
14	0.00020	0.12480	0.25020
(1/4,3/4,0) + set click here to show and hide
15	0.24980	0.12520	0.24980
16	0.00020	0.37480	0.00020
(1/2,0,1/2) + set click here to show and hide
17	0.49980	0.37520	0.74980
18	0.25020	0.62480	0.50020
(1/2,1/4,1/4) + set click here to show and hide
19	0.49980	0.62520	0.49980
20	0.25020	0.87480	0.25020
(1/2,1/2,0) + set click here to show and hide
21	0.49980	0.87520	0.24980
22	0.25020	0.12480	0.00020
(1/2,3/4,3/4) + set click here to show and hide
23	0.49980	0.12520	0.99980
24	0.25020	0.37480	0.75020
(3/4,0,1/4) + set click here to show and hide
25	0.74980	0.37520	0.49980
26	0.50020	0.62480	0.25020
(3/4,1/4,0) + set click here to show and hide
27	0.74980	0.62520	0.24980
28	0.50020	0.87480	0.00020
(3/4,1/2,3/4) + set click here to show and hide
29	0.74980	0.87520	0.99980
30	0.50020	0.12480	0.75020
(3/4,3/4,1/2) + set click here to show and hide
31	0.74980	0.12520	0.74980
32	0.50020	0.37480	0.50020
(1/4,0,1/4)' + set click here to show and hide
33	0.24980	0.37520	0.49980
34	0.00020	0.62480	0.25020
(1/4,1/4,0)' + set click here to show and hide
35	0.24980	0.62520	0.24980
36	0.00020	0.87480	0.00020
(1/4,1/2,3/4)' + set click here to show and hide
37	0.24980	0.87520	0.99980
38	0.00020	0.12480	0.75020
(1/4,3/4,1/2)' + set click here to show and hide
39	0.24980	0.12520	0.74980
40	0.00020	0.37480	0.50020
(1/2,0,0)' + set click here to show and hide
41	0.49980	0.37520	0.24980
42	0.25020	0.62480	0.00020
(1/2,1/4,3/4)' + set click here to show and hide
43	0.49980	0.62520	0.99980
44	0.25020	0.87480	0.75020
(1/2,1/2,1/2)' + set click here to show and hide
45	0.49980	0.87520	0.74980
46	0.25020	0.12480	0.50020
(1/2,3/4,1/4)' + set click here to show and hide
47	0.49980	0.12520	0.49980
48	0.25020	0.37480	0.25020
(3/4,0,3/4)' + set click here to show and hide
49	0.74980	0.37520	0.99980
50	0.50020	0.62480	0.75020
(3/4,1/4,1/2)' + set click here to show and hide
51	0.74980	0.62520	0.74980
52	0.50020	0.87480	0.50020
(3/4,1/2,1/4)' + set click here to show and hide
53	0.74980	0.87520	0.49980
54	0.50020	0.12480	0.25020
(3/4,3/4,0)' + set click here to show and hide
55	0.74980	0.12520	0.24980
56	0.50020	0.37480	0.00020
(0,0,1/2)' + set click here to show and hide
57	0.99980	0.37520	0.74980
58	0.75020	0.62480	0.50020
(0,1/4,1/4)' + set click here to show and hide
59	0.99980	0.62520	0.49980
60	0.75020	0.87480	0.25020
(0,1/2,0)' + set click here to show and hide
61	0.99980	0.87520	0.24980
62	0.75020	0.12480	0.00020
(0,3/4,3/4)' + set click here to show and hide
63	0.99980	0.12520	0.99980
64	0.75020	0.37480	0.75020

Set of atoms in the unit cell related by symmetry with the atom O1_4:

Atom	x	y	z
1	0.37520	0.24980	0.99980
2	0.00020	0.75020	0.62480
(0,1/4,3/4) + set click here to show and hide
3	0.37520	0.49980	0.74980
4	0.00020	0.00020	0.37480
(0,1/2,1/2) + set click here to show and hide
5	0.37520	0.74980	0.49980
6	0.00020	0.25020	0.12480
(0,3/4,1/4) + set click here to show and hide
7	0.37520	0.99980	0.24980
8	0.00020	0.50020	0.87480
(1/4,0,3/4) + set click here to show and hide
9	0.62520	0.24980	0.74980
10	0.25020	0.75020	0.37480
(1/4,1/4,1/2) + set click here to show and hide
11	0.62520	0.49980	0.49980
12	0.25020	0.00020	0.12480
(1/4,1/2,1/4) + set click here to show and hide
13	0.62520	0.74980	0.24980
14	0.25020	0.25020	0.87480
(1/4,3/4,0) + set click here to show and hide
15	0.62520	0.99980	0.99980
16	0.25020	0.50020	0.62480
(1/2,0,1/2) + set click here to show and hide
17	0.87520	0.24980	0.49980
18	0.50020	0.75020	0.12480
(1/2,1/4,1/4) + set click here to show and hide
19	0.87520	0.49980	0.24980
20	0.50020	0.00020	0.87480
(1/2,1/2,0) + set click here to show and hide
21	0.87520	0.74980	0.99980
22	0.50020	0.25020	0.62480
(1/2,3/4,3/4) + set click here to show and hide
23	0.87520	0.99980	0.74980
24	0.50020	0.50020	0.37480
(3/4,0,1/4) + set click here to show and hide
25	0.12520	0.24980	0.24980
26	0.75020	0.75020	0.87480
(3/4,1/4,0) + set click here to show and hide
27	0.12520	0.49980	0.99980
28	0.75020	0.00020	0.62480
(3/4,1/2,3/4) + set click here to show and hide
29	0.12520	0.74980	0.74980
30	0.75020	0.25020	0.37480
(3/4,3/4,1/2) + set click here to show and hide
31	0.12520	0.99980	0.49980
32	0.75020	0.50020	0.12480
(1/4,0,1/4)' + set click here to show and hide
33	0.62520	0.24980	0.24980
34	0.25020	0.75020	0.87480
(1/4,1/4,0)' + set click here to show and hide
35	0.62520	0.49980	0.99980
36	0.25020	0.00020	0.62480
(1/4,1/2,3/4)' + set click here to show and hide
37	0.62520	0.74980	0.74980
38	0.25020	0.25020	0.37480
(1/4,3/4,1/2)' + set click here to show and hide
39	0.62520	0.99980	0.49980
40	0.25020	0.50020	0.12480
(1/2,0,0)' + set click here to show and hide
41	0.87520	0.24980	0.99980
42	0.50020	0.75020	0.62480
(1/2,1/4,3/4)' + set click here to show and hide
43	0.87520	0.49980	0.74980
44	0.50020	0.00020	0.37480
(1/2,1/2,1/2)' + set click here to show and hide
45	0.87520	0.74980	0.49980
46	0.50020	0.25020	0.12480
(1/2,3/4,1/4)' + set click here to show and hide
47	0.87520	0.99980	0.24980
48	0.50020	0.50020	0.87480
(3/4,0,3/4)' + set click here to show and hide
49	0.12520	0.24980	0.74980
50	0.75020	0.75020	0.37480
(3/4,1/4,1/2)' + set click here to show and hide
51	0.12520	0.49980	0.49980
52	0.75020	0.00020	0.12480
(3/4,1/2,1/4)' + set click here to show and hide
53	0.12520	0.74980	0.24980
54	0.75020	0.25020	0.87480
(3/4,3/4,0)' + set click here to show and hide
55	0.12520	0.99980	0.99980
56	0.75020	0.50020	0.62480
(0,0,1/2)' + set click here to show and hide
57	0.37520	0.24980	0.49980
58	0.00020	0.75020	0.12480
(0,1/4,1/4)' + set click here to show and hide
59	0.37520	0.49980	0.24980
60	0.00020	0.00020	0.87480
(0,1/2,0)' + set click here to show and hide
61	0.37520	0.74980	0.99980
62	0.00020	0.25020	0.62480
(0,3/4,3/4)' + set click here to show and hide
63	0.37520	0.99980	0.74980
64	0.00020	0.50020	0.37480

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ni1_1	Ni	0.25000	0.25000	0.25000	32	m_x,m_y,m_x	0.75	0.75	0.75	1.30
Ni1_2	Ni	0.12500	0.37500	0.00000	64	m_x,m_y,m_z	1.415	0.0	-1.415	2.00
Ni1_3	Ni	0.37500	0.00000	0.12500	32	m_x,0,-m_x	1.415	0.0	-1.415	2.00

[Show all magnetic atoms in unit cell and their moment relations]

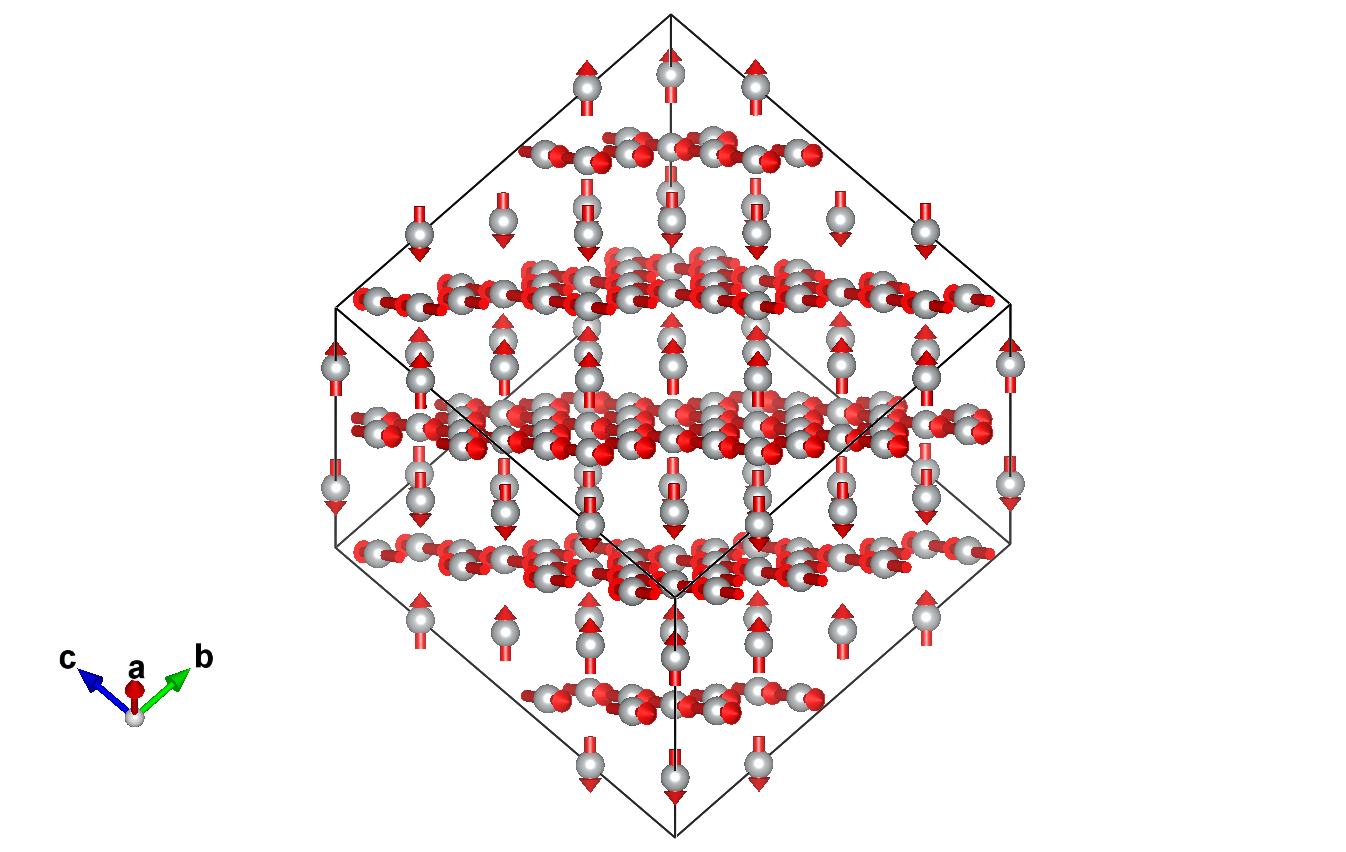

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.25000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(0,1/4,3/4) + set click here to show and hide
2	0.25000	0.50000	0.00000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(0,1/2,1/2) + set click here to show and hide
3	0.25000	0.75000	0.75000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(0,3/4,1/4) + set click here to show and hide
4	0.25000	0.00000	0.50000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/4,0,3/4) + set click here to show and hide
5	0.50000	0.25000	0.00000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/4,1/4,1/2) + set click here to show and hide
6	0.50000	0.50000	0.75000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/4,1/2,1/4) + set click here to show and hide
7	0.50000	0.75000	0.50000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/4,3/4,0) + set click here to show and hide
8	0.50000	0.00000	0.25000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/2,0,1/2) + set click here to show and hide
9	0.75000	0.25000	0.75000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/2,1/4,1/4) + set click here to show and hide
10	0.75000	0.50000	0.50000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/2,1/2,0) + set click here to show and hide
11	0.75000	0.75000	0.25000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/2,3/4,3/4) + set click here to show and hide
12	0.75000	0.00000	0.00000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(3/4,0,1/4) + set click here to show and hide
13	0.00000	0.25000	0.50000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(3/4,1/4,0) + set click here to show and hide
14	0.00000	0.50000	0.25000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(3/4,1/2,3/4) + set click here to show and hide
15	0.00000	0.75000	0.00000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(3/4,3/4,1/2) + set click here to show and hide
16	0.00000	0.00000	0.75000	m_x,m_y,m_x	0.75000	0.75000	0.75000
(1/4,0,1/4)' + set click here to show and hide
17	0.50000	0.25000	0.50000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/4,1/4,0)' + set click here to show and hide
18	0.50000	0.50000	0.25000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/4,1/2,3/4)' + set click here to show and hide
19	0.50000	0.75000	0.00000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/4,3/4,1/2)' + set click here to show and hide
20	0.50000	0.00000	0.75000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/2,0,0)' + set click here to show and hide
21	0.75000	0.25000	0.25000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/2,1/4,3/4)' + set click here to show and hide
22	0.75000	0.50000	0.00000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/2,1/2,1/2)' + set click here to show and hide
23	0.75000	0.75000	0.75000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(1/2,3/4,1/4)' + set click here to show and hide
24	0.75000	0.00000	0.50000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(3/4,0,3/4)' + set click here to show and hide
25	0.00000	0.25000	0.00000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(3/4,1/4,1/2)' + set click here to show and hide
26	0.00000	0.50000	0.75000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(3/4,1/2,1/4)' + set click here to show and hide
27	0.00000	0.75000	0.50000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(3/4,3/4,0)' + set click here to show and hide
28	0.00000	0.00000	0.25000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(0,0,1/2)' + set click here to show and hide
29	0.25000	0.25000	0.75000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(0,1/4,1/4)' + set click here to show and hide
30	0.25000	0.50000	0.50000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(0,1/2,0)' + set click here to show and hide
31	0.25000	0.75000	0.25000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000
(0,3/4,3/4)' + set click here to show and hide
32	0.25000	0.00000	0.00000	-m_x,-m_y,-m_x	-0.75000	-0.75000	-0.75000

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.12500	0.37500	0.00000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
2	0.00000	0.62500	0.87500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(0,1/4,3/4) + set click here to show and hide
3	0.12500	0.62500	0.75000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
4	0.00000	0.87500	0.62500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(0,1/2,1/2) + set click here to show and hide
5	0.12500	0.87500	0.50000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
6	0.00000	0.12500	0.37500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(0,3/4,1/4) + set click here to show and hide
7	0.12500	0.12500	0.25000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
8	0.00000	0.37500	0.12500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/4,0,3/4) + set click here to show and hide
9	0.37500	0.37500	0.75000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
10	0.25000	0.62500	0.62500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/4,1/4,1/2) + set click here to show and hide
11	0.37500	0.62500	0.50000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
12	0.25000	0.87500	0.37500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/4,1/2,1/4) + set click here to show and hide
13	0.37500	0.87500	0.25000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
14	0.25000	0.12500	0.12500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/4,3/4,0) + set click here to show and hide
15	0.37500	0.12500	0.00000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
16	0.25000	0.37500	0.87500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/2,0,1/2) + set click here to show and hide
17	0.62500	0.37500	0.50000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
18	0.50000	0.62500	0.37500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/2,1/4,1/4) + set click here to show and hide
19	0.62500	0.62500	0.25000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
20	0.50000	0.87500	0.12500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/2,1/2,0) + set click here to show and hide
21	0.62500	0.87500	0.00000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
22	0.50000	0.12500	0.87500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/2,3/4,3/4) + set click here to show and hide
23	0.62500	0.12500	0.75000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
24	0.50000	0.37500	0.62500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(3/4,0,1/4) + set click here to show and hide
25	0.87500	0.37500	0.25000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
26	0.75000	0.62500	0.12500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(3/4,1/4,0) + set click here to show and hide
27	0.87500	0.62500	0.00000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
28	0.75000	0.87500	0.87500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(3/4,1/2,3/4) + set click here to show and hide
29	0.87500	0.87500	0.75000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
30	0.75000	0.12500	0.62500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(3/4,3/4,1/2) + set click here to show and hide
31	0.87500	0.12500	0.50000	m_x,m_y,m_z	1.41500	0.00000	-1.41500
32	0.75000	0.37500	0.37500	-m_z,-m_y,-m_x	1.41500	0.00000	-1.41500
(1/4,0,1/4)' + set click here to show and hide
33	0.37500	0.37500	0.25000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
34	0.25000	0.62500	0.12500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/4,1/4,0)' + set click here to show and hide
35	0.37500	0.62500	0.00000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
36	0.25000	0.87500	0.87500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/4,1/2,3/4)' + set click here to show and hide
37	0.37500	0.87500	0.75000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
38	0.25000	0.12500	0.62500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/4,3/4,1/2)' + set click here to show and hide
39	0.37500	0.12500	0.50000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
40	0.25000	0.37500	0.37500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/2,0,0)' + set click here to show and hide
41	0.62500	0.37500	0.00000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
42	0.50000	0.62500	0.87500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/2,1/4,3/4)' + set click here to show and hide
43	0.62500	0.62500	0.75000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
44	0.50000	0.87500	0.62500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/2,1/2,1/2)' + set click here to show and hide
45	0.62500	0.87500	0.50000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
46	0.50000	0.12500	0.37500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(1/2,3/4,1/4)' + set click here to show and hide
47	0.62500	0.12500	0.25000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
48	0.50000	0.37500	0.12500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(3/4,0,3/4)' + set click here to show and hide
49	0.87500	0.37500	0.75000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
50	0.75000	0.62500	0.62500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(3/4,1/4,1/2)' + set click here to show and hide
51	0.87500	0.62500	0.50000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
52	0.75000	0.87500	0.37500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(3/4,1/2,1/4)' + set click here to show and hide
53	0.87500	0.87500	0.25000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
54	0.75000	0.12500	0.12500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(3/4,3/4,0)' + set click here to show and hide
55	0.87500	0.12500	0.00000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
56	0.75000	0.37500	0.87500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(0,0,1/2)' + set click here to show and hide
57	0.12500	0.37500	0.50000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
58	0.00000	0.62500	0.37500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(0,1/4,1/4)' + set click here to show and hide
59	0.12500	0.62500	0.25000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
60	0.00000	0.87500	0.12500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(0,1/2,0)' + set click here to show and hide
61	0.12500	0.87500	0.00000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
62	0.00000	0.12500	0.87500	m_z,m_y,m_x	-1.41500	0.00000	1.41500
(0,3/4,3/4)' + set click here to show and hide
63	0.12500	0.12500	0.75000	-m_x,-m_y,-m_z	-1.41500	0.00000	1.41500
64	0.00000	0.37500	0.62500	m_z,m_y,m_x	-1.41500	0.00000	1.41500

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1_3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.37500	0.00000	0.12500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(0,1/4,3/4) + set click here to show and hide
2	0.37500	0.25000	0.87500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(0,1/2,1/2) + set click here to show and hide
3	0.37500	0.50000	0.62500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(0,3/4,1/4) + set click here to show and hide
4	0.37500	0.75000	0.37500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/4,0,3/4) + set click here to show and hide
5	0.62500	0.00000	0.87500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/4,1/4,1/2) + set click here to show and hide
6	0.62500	0.25000	0.62500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/4,1/2,1/4) + set click here to show and hide
7	0.62500	0.50000	0.37500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/4,3/4,0) + set click here to show and hide
8	0.62500	0.75000	0.12500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/2,0,1/2) + set click here to show and hide
9	0.87500	0.00000	0.62500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/2,1/4,1/4) + set click here to show and hide
10	0.87500	0.25000	0.37500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/2,1/2,0) + set click here to show and hide
11	0.87500	0.50000	0.12500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/2,3/4,3/4) + set click here to show and hide
12	0.87500	0.75000	0.87500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(3/4,0,1/4) + set click here to show and hide
13	0.12500	0.00000	0.37500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(3/4,1/4,0) + set click here to show and hide
14	0.12500	0.25000	0.12500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(3/4,1/2,3/4) + set click here to show and hide
15	0.12500	0.50000	0.87500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(3/4,3/4,1/2) + set click here to show and hide
16	0.12500	0.75000	0.62500	m_x,0,-m_x	1.41500	0.00000	-1.41500
(1/4,0,1/4)' + set click here to show and hide
17	0.62500	0.00000	0.37500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/4,1/4,0)' + set click here to show and hide
18	0.62500	0.25000	0.12500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/4,1/2,3/4)' + set click here to show and hide
19	0.62500	0.50000	0.87500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/4,3/4,1/2)' + set click here to show and hide
20	0.62500	0.75000	0.62500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/2,0,0)' + set click here to show and hide
21	0.87500	0.00000	0.12500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/2,1/4,3/4)' + set click here to show and hide
22	0.87500	0.25000	0.87500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/2,1/2,1/2)' + set click here to show and hide
23	0.87500	0.50000	0.62500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(1/2,3/4,1/4)' + set click here to show and hide
24	0.87500	0.75000	0.37500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(3/4,0,3/4)' + set click here to show and hide
25	0.12500	0.00000	0.87500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(3/4,1/4,1/2)' + set click here to show and hide
26	0.12500	0.25000	0.62500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(3/4,1/2,1/4)' + set click here to show and hide
27	0.12500	0.50000	0.37500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(3/4,3/4,0)' + set click here to show and hide
28	0.12500	0.75000	0.12500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(0,0,1/2)' + set click here to show and hide
29	0.37500	0.00000	0.62500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(0,1/4,1/4)' + set click here to show and hide
30	0.37500	0.25000	0.37500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(0,1/2,0)' + set click here to show and hide
31	0.37500	0.50000	0.12500	-m_x,0,m_x	-1.41500	0.00000	1.41500
(0,3/4,3/4)' + set click here to show and hide
32	0.37500	0.75000	0.87500	-m_x,0,m_x	-1.41500	0.00000	1.41500

[Hide]

label	dim. full irrep	dim. small irrep	direction	action	number of modes	presence
mL3+	8	2	special	primary	3
mL1-	4	1		primary	1
mL3-	8	2	special	primary	1	no
mL1+	4	1		secondary	1	no

MAGNDATA: A Collection of magnetic structures with portable cif-type files

GeNi₂O₄ (#1.562)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

GeNi2O4 (#1.562)

GeNi₂O₄ (#1.562)
