Collection of Magnetic Structures
|
MAGNDATA
Collection of Magnetic Structures
|
 |

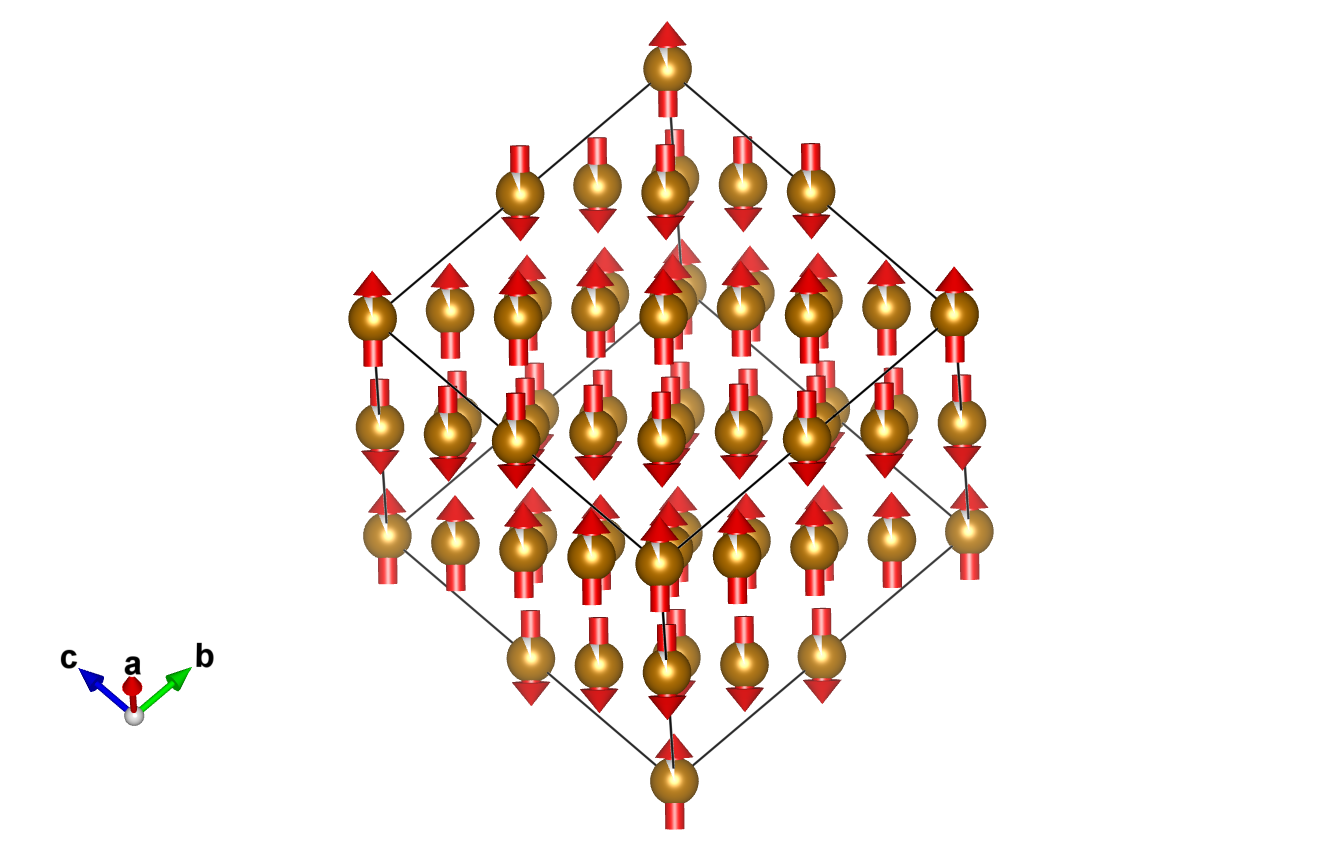

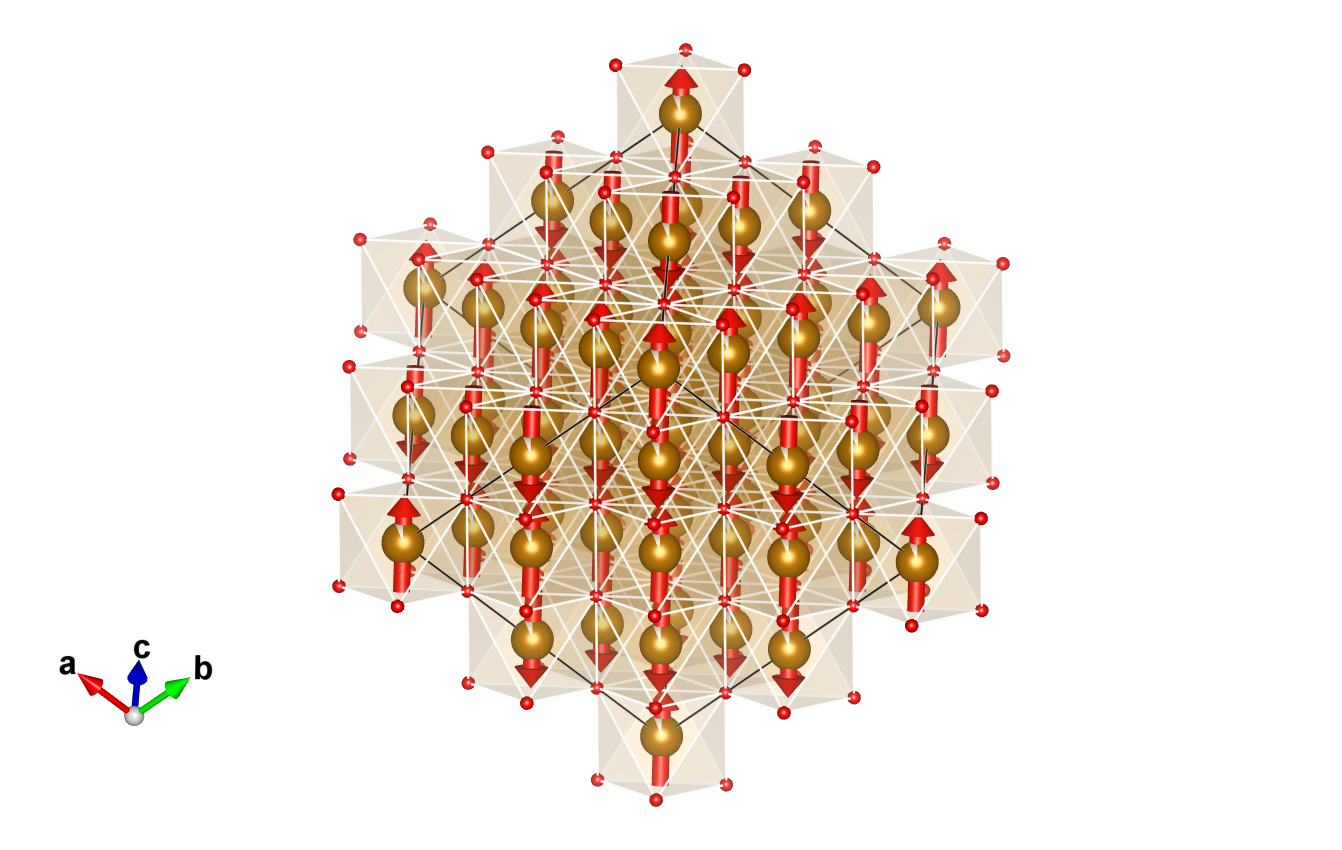

 Magnetic structure with all atoms |  Magnetic structure with only magnetic atoms |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | { 1 | 0 } | |
| 2 | z,x,y,+1 | { 3+111 | 0 } | |
| 3 | y,z,x,+1 | { 3-111 | 0 } | |
| 4 | -y+1/2,-x+1/2,-z+1/2,+1 | { 21-10 | 1/2 1/2 1/2 } | |
| 5 | -z+1/2,-y+1/2,-x+1/2,+1 | { 2-101 | 1/2 1/2 1/2 } | |
| 6 | -x+1/2,-z+1/2,-y+1/2,+1 | { 201-1 | 1/2 1/2 1/2 } | |
| 7 | -x,-y,-z,+1 | { -1 | 0 } | |
| 8 | -z,-x,-y,+1 | { -3+111 | 0 } | |
| 9 | -y,-z,-x,+1 | { -3-111 | 0 } | |
| 10 | y+1/2,x+1/2,z+1/2,+1 | { m1-10 | 1/2 1/2 1/2 } | |
| 11 | z+1/2,y+1/2,x+1/2,+1 | { m-101 | 1/2 1/2 1/2 } | |
| 12 | x+1/2,z+1/2,y+1/2,+1 | { m01-1 | 1/2 1/2 1/2 } | |
| (0,1/4,3/4) + set click here to show and hide | |||
| 13 | x,y+1/4,z+3/4,+1 | { 1 | 0 1/4 3/4 } | |
| 14 | z,x+1/4,y+3/4,+1 | { 3+111 | 0 1/4 3/4 } | |
| 15 | y,z+1/4,x+3/4,+1 | { 3-111 | 0 1/4 3/4 } | |
| 16 | -y+1/2,-x+3/4,-z+1/4,+1 | { 21-10 | 1/2 3/4 1/4 } | |
| 17 | -z+1/2,-y+3/4,-x+1/4,+1 | { 2-101 | 1/2 3/4 1/4 } | |
| 18 | -x+1/2,-z+3/4,-y+1/4,+1 | { 201-1 | 1/2 3/4 1/4 } | |
| 19 | -x,-y+1/4,-z+3/4,+1 | { -1 | 0 1/4 3/4 } | |
| 20 | -z,-x+1/4,-y+3/4,+1 | { -3+111 | 0 1/4 3/4 } | |
| 21 | -y,-z+1/4,-x+3/4,+1 | { -3-111 | 0 1/4 3/4 } | |
| 22 | y+1/2,x+3/4,z+1/4,+1 | { m1-10 | 1/2 3/4 1/4 } | |
| 23 | z+1/2,y+3/4,x+1/4,+1 | { m-101 | 1/2 3/4 1/4 } | |
| 24 | x+1/2,z+3/4,y+1/4,+1 | { m01-1 | 1/2 3/4 1/4 } | |
| (0,1/2,1/2) + set click here to show and hide | |||
| 25 | x,y+1/2,z+1/2,+1 | { 1 | 0 1/2 1/2 } | |
| 26 | z,x+1/2,y+1/2,+1 | { 3+111 | 0 1/2 1/2 } | |
| 27 | y,z+1/2,x+1/2,+1 | { 3-111 | 0 1/2 1/2 } | |
| 28 | -y+1/2,-x,-z,+1 | { 21-10 | 1/2 0 0 } | |
| 29 | -z+1/2,-y,-x,+1 | { 2-101 | 1/2 0 0 } | |
| 30 | -x+1/2,-z,-y,+1 | { 201-1 | 1/2 0 0 } | |
| 31 | -x,-y+1/2,-z+1/2,+1 | { -1 | 0 1/2 1/2 } | |
| 32 | -z,-x+1/2,-y+1/2,+1 | { -3+111 | 0 1/2 1/2 } | |
| 33 | -y,-z+1/2,-x+1/2,+1 | { -3-111 | 0 1/2 1/2 } | |
| 34 | y+1/2,x,z,+1 | { m1-10 | 1/2 0 0 } | |
| 35 | z+1/2,y,x,+1 | { m-101 | 1/2 0 0 } | |
| 36 | x+1/2,z,y,+1 | { m01-1 | 1/2 0 0 } | |
| (0,3/4,1/4) + set click here to show and hide | |||
| 37 | x,y+3/4,z+1/4,+1 | { 1 | 0 3/4 1/4 } | |
| 38 | z,x+3/4,y+1/4,+1 | { 3+111 | 0 3/4 1/4 } | |
| 39 | y,z+3/4,x+1/4,+1 | { 3-111 | 0 3/4 1/4 } | |
| 40 | -y+1/2,-x+1/4,-z+3/4,+1 | { 21-10 | 1/2 1/4 3/4 } | |
| 41 | -z+1/2,-y+1/4,-x+3/4,+1 | { 2-101 | 1/2 1/4 3/4 } | |
| 42 | -x+1/2,-z+1/4,-y+3/4,+1 | { 201-1 | 1/2 1/4 3/4 } | |
| 43 | -x,-y+3/4,-z+1/4,+1 | { -1 | 0 3/4 1/4 } | |
| 44 | -z,-x+3/4,-y+1/4,+1 | { -3+111 | 0 3/4 1/4 } | |
| 45 | -y,-z+3/4,-x+1/4,+1 | { -3-111 | 0 3/4 1/4 } | |
| 46 | y+1/2,x+1/4,z+3/4,+1 | { m1-10 | 1/2 1/4 3/4 } | |
| 47 | z+1/2,y+1/4,x+3/4,+1 | { m-101 | 1/2 1/4 3/4 } | |
| 48 | x+1/2,z+1/4,y+3/4,+1 | { m01-1 | 1/2 1/4 3/4 } | |
| (1/4,0,3/4) + set click here to show and hide | |||
| 49 | x+1/4,y,z+3/4,+1 | { 1 | 1/4 0 3/4 } | |
| 50 | z+1/4,x,y+3/4,+1 | { 3+111 | 1/4 0 3/4 } | |
| 51 | y+1/4,z,x+3/4,+1 | { 3-111 | 1/4 0 3/4 } | |
| 52 | -y+3/4,-x+1/2,-z+1/4,+1 | { 21-10 | 3/4 1/2 1/4 } | |
| 53 | -z+3/4,-y+1/2,-x+1/4,+1 | { 2-101 | 3/4 1/2 1/4 } | |
| 54 | -x+3/4,-z+1/2,-y+1/4,+1 | { 201-1 | 3/4 1/2 1/4 } | |
| 55 | -x+1/4,-y,-z+3/4,+1 | { -1 | 1/4 0 3/4 } | |
| 56 | -z+1/4,-x,-y+3/4,+1 | { -3+111 | 1/4 0 3/4 } | |
| 57 | -y+1/4,-z,-x+3/4,+1 | { -3-111 | 1/4 0 3/4 } | |
| 58 | y+3/4,x+1/2,z+1/4,+1 | { m1-10 | 3/4 1/2 1/4 } | |
| 59 | z+3/4,y+1/2,x+1/4,+1 | { m-101 | 3/4 1/2 1/4 } | |
| 60 | x+3/4,z+1/2,y+1/4,+1 | { m01-1 | 3/4 1/2 1/4 } | |
| (1/4,1/4,1/2) + set click here to show and hide | |||
| 61 | x+1/4,y+1/4,z+1/2,+1 | { 1 | 1/4 1/4 1/2 } | |
| 62 | z+1/4,x+1/4,y+1/2,+1 | { 3+111 | 1/4 1/4 1/2 } | |
| 63 | y+1/4,z+1/4,x+1/2,+1 | { 3-111 | 1/4 1/4 1/2 } | |
| 64 | -y+3/4,-x+3/4,-z,+1 | { 21-10 | 3/4 3/4 0 } | |
| 65 | -z+3/4,-y+3/4,-x,+1 | { 2-101 | 3/4 3/4 0 } | |
| 66 | -x+3/4,-z+3/4,-y,+1 | { 201-1 | 3/4 3/4 0 } | |
| 67 | -x+1/4,-y+1/4,-z+1/2,+1 | { -1 | 1/4 1/4 1/2 } | |
| 68 | -z+1/4,-x+1/4,-y+1/2,+1 | { -3+111 | 1/4 1/4 1/2 } | |
| 69 | -y+1/4,-z+1/4,-x+1/2,+1 | { -3-111 | 1/4 1/4 1/2 } | |
| 70 | y+3/4,x+3/4,z,+1 | { m1-10 | 3/4 3/4 0 } | |
| 71 | z+3/4,y+3/4,x,+1 | { m-101 | 3/4 3/4 0 } | |
| 72 | x+3/4,z+3/4,y,+1 | { m01-1 | 3/4 3/4 0 } | |
| (1/4,1/2,1/4) + set click here to show and hide | |||
| 73 | x+1/4,y+1/2,z+1/4,+1 | { 1 | 1/4 1/2 1/4 } | |
| 74 | z+1/4,x+1/2,y+1/4,+1 | { 3+111 | 1/4 1/2 1/4 } | |
| 75 | y+1/4,z+1/2,x+1/4,+1 | { 3-111 | 1/4 1/2 1/4 } | |
| 76 | -y+3/4,-x,-z+3/4,+1 | { 21-10 | 3/4 0 3/4 } | |
| 77 | -z+3/4,-y,-x+3/4,+1 | { 2-101 | 3/4 0 3/4 } | |
| 78 | -x+3/4,-z,-y+3/4,+1 | { 201-1 | 3/4 0 3/4 } | |
| 79 | -x+1/4,-y+1/2,-z+1/4,+1 | { -1 | 1/4 1/2 1/4 } | |
| 80 | -z+1/4,-x+1/2,-y+1/4,+1 | { -3+111 | 1/4 1/2 1/4 } | |
| 81 | -y+1/4,-z+1/2,-x+1/4,+1 | { -3-111 | 1/4 1/2 1/4 } | |
| 82 | y+3/4,x,z+3/4,+1 | { m1-10 | 3/4 0 3/4 } | |
| 83 | z+3/4,y,x+3/4,+1 | { m-101 | 3/4 0 3/4 } | |
| 84 | x+3/4,z,y+3/4,+1 | { m01-1 | 3/4 0 3/4 } | |
| (1/4,3/4,0) + set click here to show and hide | |||
| 85 | x+1/4,y+3/4,z,+1 | { 1 | 1/4 3/4 0 } | |
| 86 | z+1/4,x+3/4,y,+1 | { 3+111 | 1/4 3/4 0 } | |
| 87 | y+1/4,z+3/4,x,+1 | { 3-111 | 1/4 3/4 0 } | |
| 88 | -y+3/4,-x+1/4,-z+1/2,+1 | { 21-10 | 3/4 1/4 1/2 } | |
| 89 | -z+3/4,-y+1/4,-x+1/2,+1 | { 2-101 | 3/4 1/4 1/2 } | |
| 90 | -x+3/4,-z+1/4,-y+1/2,+1 | { 201-1 | 3/4 1/4 1/2 } | |
| 91 | -x+1/4,-y+3/4,-z,+1 | { -1 | 1/4 3/4 0 } | |
| 92 | -z+1/4,-x+3/4,-y,+1 | { -3+111 | 1/4 3/4 0 } | |
| 93 | -y+1/4,-z+3/4,-x,+1 | { -3-111 | 1/4 3/4 0 } | |
| 94 | y+3/4,x+1/4,z+1/2,+1 | { m1-10 | 3/4 1/4 1/2 } | |
| 95 | z+3/4,y+1/4,x+1/2,+1 | { m-101 | 3/4 1/4 1/2 } | |
| 96 | x+3/4,z+1/4,y+1/2,+1 | { m01-1 | 3/4 1/4 1/2 } | |
| (1/2,0,1/2) + set click here to show and hide | |||
| 97 | x+1/2,y,z+1/2,+1 | { 1 | 1/2 0 1/2 } | |
| 98 | z+1/2,x,y+1/2,+1 | { 3+111 | 1/2 0 1/2 } | |
| 99 | y+1/2,z,x+1/2,+1 | { 3-111 | 1/2 0 1/2 } | |
| 100 | -y,-x+1/2,-z,+1 | { 21-10 | 0 1/2 0 } | |
| 101 | -z,-y+1/2,-x,+1 | { 2-101 | 0 1/2 0 } | |
| 102 | -x,-z+1/2,-y,+1 | { 201-1 | 0 1/2 0 } | |
| 103 | -x+1/2,-y,-z+1/2,+1 | { -1 | 1/2 0 1/2 } | |
| 104 | -z+1/2,-x,-y+1/2,+1 | { -3+111 | 1/2 0 1/2 } | |
| 105 | -y+1/2,-z,-x+1/2,+1 | { -3-111 | 1/2 0 1/2 } | |
| 106 | y,x+1/2,z,+1 | { m1-10 | 0 1/2 0 } | |
| 107 | z,y+1/2,x,+1 | { m-101 | 0 1/2 0 } | |
| 108 | x,z+1/2,y,+1 | { m01-1 | 0 1/2 0 } | |
| (1/2,1/4,1/4) + set click here to show and hide | |||
| 109 | x+1/2,y+1/4,z+1/4,+1 | { 1 | 1/2 1/4 1/4 } | |
| 110 | z+1/2,x+1/4,y+1/4,+1 | { 3+111 | 1/2 1/4 1/4 } | |
| 111 | y+1/2,z+1/4,x+1/4,+1 | { 3-111 | 1/2 1/4 1/4 } | |
| 112 | -y,-x+3/4,-z+3/4,+1 | { 21-10 | 0 3/4 3/4 } | |
| 113 | -z,-y+3/4,-x+3/4,+1 | { 2-101 | 0 3/4 3/4 } | |
| 114 | -x,-z+3/4,-y+3/4,+1 | { 201-1 | 0 3/4 3/4 } | |
| 115 | -x+1/2,-y+1/4,-z+1/4,+1 | { -1 | 1/2 1/4 1/4 } | |
| 116 | -z+1/2,-x+1/4,-y+1/4,+1 | { -3+111 | 1/2 1/4 1/4 } | |
| 117 | -y+1/2,-z+1/4,-x+1/4,+1 | { -3-111 | 1/2 1/4 1/4 } | |
| 118 | y,x+3/4,z+3/4,+1 | { m1-10 | 0 3/4 3/4 } | |
| 119 | z,y+3/4,x+3/4,+1 | { m-101 | 0 3/4 3/4 } | |
| 120 | x,z+3/4,y+3/4,+1 | { m01-1 | 0 3/4 3/4 } | |
| (1/2,1/2,0) + set click here to show and hide | |||
| 121 | x+1/2,y+1/2,z,+1 | { 1 | 1/2 1/2 0 } | |
| 122 | z+1/2,x+1/2,y,+1 | { 3+111 | 1/2 1/2 0 } | |
| 123 | y+1/2,z+1/2,x,+1 | { 3-111 | 1/2 1/2 0 } | |
| 124 | -y,-x,-z+1/2,+1 | { 21-10 | 0 0 1/2 } | |
| 125 | -z,-y,-x+1/2,+1 | { 2-101 | 0 0 1/2 } | |
| 126 | -x,-z,-y+1/2,+1 | { 201-1 | 0 0 1/2 } | |
| 127 | -x+1/2,-y+1/2,-z,+1 | { -1 | 1/2 1/2 0 } | |
| 128 | -z+1/2,-x+1/2,-y,+1 | { -3+111 | 1/2 1/2 0 } | |
| 129 | -y+1/2,-z+1/2,-x,+1 | { -3-111 | 1/2 1/2 0 } | |
| 130 | y,x,z+1/2,+1 | { m1-10 | 0 0 1/2 } | |
| 131 | z,y,x+1/2,+1 | { m-101 | 0 0 1/2 } | |
| 132 | x,z,y+1/2,+1 | { m01-1 | 0 0 1/2 } | |
| (1/2,3/4,3/4) + set click here to show and hide | |||
| 133 | x+1/2,y+3/4,z+3/4,+1 | { 1 | 1/2 3/4 3/4 } | |
| 134 | z+1/2,x+3/4,y+3/4,+1 | { 3+111 | 1/2 3/4 3/4 } | |
| 135 | y+1/2,z+3/4,x+3/4,+1 | { 3-111 | 1/2 3/4 3/4 } | |
| 136 | -y,-x+1/4,-z+1/4,+1 | { 21-10 | 0 1/4 1/4 } | |
| 137 | -z,-y+1/4,-x+1/4,+1 | { 2-101 | 0 1/4 1/4 } | |
| 138 | -x,-z+1/4,-y+1/4,+1 | { 201-1 | 0 1/4 1/4 } | |
| 139 | -x+1/2,-y+3/4,-z+3/4,+1 | { -1 | 1/2 3/4 3/4 } | |
| 140 | -z+1/2,-x+3/4,-y+3/4,+1 | { -3+111 | 1/2 3/4 3/4 } | |
| 141 | -y+1/2,-z+3/4,-x+3/4,+1 | { -3-111 | 1/2 3/4 3/4 } | |
| 142 | y,x+1/4,z+1/4,+1 | { m1-10 | 0 1/4 1/4 } | |
| 143 | z,y+1/4,x+1/4,+1 | { m-101 | 0 1/4 1/4 } | |
| 144 | x,z+1/4,y+1/4,+1 | { m01-1 | 0 1/4 1/4 } | |
| (3/4,0,1/4) + set click here to show and hide | |||
| 145 | x+3/4,y,z+1/4,+1 | { 1 | 3/4 0 1/4 } | |
| 146 | z+3/4,x,y+1/4,+1 | { 3+111 | 3/4 0 1/4 } | |
| 147 | y+3/4,z,x+1/4,+1 | { 3-111 | 3/4 0 1/4 } | |
| 148 | -y+1/4,-x+1/2,-z+3/4,+1 | { 21-10 | 1/4 1/2 3/4 } | |
| 149 | -z+1/4,-y+1/2,-x+3/4,+1 | { 2-101 | 1/4 1/2 3/4 } | |
| 150 | -x+1/4,-z+1/2,-y+3/4,+1 | { 201-1 | 1/4 1/2 3/4 } | |
| 151 | -x+3/4,-y,-z+1/4,+1 | { -1 | 3/4 0 1/4 } | |
| 152 | -z+3/4,-x,-y+1/4,+1 | { -3+111 | 3/4 0 1/4 } | |
| 153 | -y+3/4,-z,-x+1/4,+1 | { -3-111 | 3/4 0 1/4 } | |
| 154 | y+1/4,x+1/2,z+3/4,+1 | { m1-10 | 1/4 1/2 3/4 } | |
| 155 | z+1/4,y+1/2,x+3/4,+1 | { m-101 | 1/4 1/2 3/4 } | |
| 156 | x+1/4,z+1/2,y+3/4,+1 | { m01-1 | 1/4 1/2 3/4 } | |
| (3/4,1/4,0) + set click here to show and hide | |||
| 157 | x+3/4,y+1/4,z,+1 | { 1 | 3/4 1/4 0 } | |
| 158 | z+3/4,x+1/4,y,+1 | { 3+111 | 3/4 1/4 0 } | |
| 159 | y+3/4,z+1/4,x,+1 | { 3-111 | 3/4 1/4 0 } | |
| 160 | -y+1/4,-x+3/4,-z+1/2,+1 | { 21-10 | 1/4 3/4 1/2 } | |
| 161 | -z+1/4,-y+3/4,-x+1/2,+1 | { 2-101 | 1/4 3/4 1/2 } | |
| 162 | -x+1/4,-z+3/4,-y+1/2,+1 | { 201-1 | 1/4 3/4 1/2 } | |
| 163 | -x+3/4,-y+1/4,-z,+1 | { -1 | 3/4 1/4 0 } | |
| 164 | -z+3/4,-x+1/4,-y,+1 | { -3+111 | 3/4 1/4 0 } | |
| 165 | -y+3/4,-z+1/4,-x,+1 | { -3-111 | 3/4 1/4 0 } | |
| 166 | y+1/4,x+3/4,z+1/2,+1 | { m1-10 | 1/4 3/4 1/2 } | |
| 167 | z+1/4,y+3/4,x+1/2,+1 | { m-101 | 1/4 3/4 1/2 } | |
| 168 | x+1/4,z+3/4,y+1/2,+1 | { m01-1 | 1/4 3/4 1/2 } | |
| (3/4,1/2,3/4) + set click here to show and hide | |||
| 169 | x+3/4,y+1/2,z+3/4,+1 | { 1 | 3/4 1/2 3/4 } | |
| 170 | z+3/4,x+1/2,y+3/4,+1 | { 3+111 | 3/4 1/2 3/4 } | |
| 171 | y+3/4,z+1/2,x+3/4,+1 | { 3-111 | 3/4 1/2 3/4 } | |
| 172 | -y+1/4,-x,-z+1/4,+1 | { 21-10 | 1/4 0 1/4 } | |
| 173 | -z+1/4,-y,-x+1/4,+1 | { 2-101 | 1/4 0 1/4 } | |
| 174 | -x+1/4,-z,-y+1/4,+1 | { 201-1 | 1/4 0 1/4 } | |
| 175 | -x+3/4,-y+1/2,-z+3/4,+1 | { -1 | 3/4 1/2 3/4 } | |
| 176 | -z+3/4,-x+1/2,-y+3/4,+1 | { -3+111 | 3/4 1/2 3/4 } | |
| 177 | -y+3/4,-z+1/2,-x+3/4,+1 | { -3-111 | 3/4 1/2 3/4 } | |
| 178 | y+1/4,x,z+1/4,+1 | { m1-10 | 1/4 0 1/4 } | |
| 179 | z+1/4,y,x+1/4,+1 | { m-101 | 1/4 0 1/4 } | |
| 180 | x+1/4,z,y+1/4,+1 | { m01-1 | 1/4 0 1/4 } | |
| (3/4,3/4,1/2) + set click here to show and hide | |||
| 181 | x+3/4,y+3/4,z+1/2,+1 | { 1 | 3/4 3/4 1/2 } | |
| 182 | z+3/4,x+3/4,y+1/2,+1 | { 3+111 | 3/4 3/4 1/2 } | |
| 183 | y+3/4,z+3/4,x+1/2,+1 | { 3-111 | 3/4 3/4 1/2 } | |
| 184 | -y+1/4,-x+1/4,-z,+1 | { 21-10 | 1/4 1/4 0 } | |
| 185 | -z+1/4,-y+1/4,-x,+1 | { 2-101 | 1/4 1/4 0 } | |
| 186 | -x+1/4,-z+1/4,-y,+1 | { 201-1 | 1/4 1/4 0 } | |
| 187 | -x+3/4,-y+3/4,-z+1/2,+1 | { -1 | 3/4 3/4 1/2 } | |
| 188 | -z+3/4,-x+3/4,-y+1/2,+1 | { -3+111 | 3/4 3/4 1/2 } | |
| 189 | -y+3/4,-z+3/4,-x+1/2,+1 | { -3-111 | 3/4 3/4 1/2 } | |
| 190 | y+1/4,x+1/4,z,+1 | { m1-10 | 1/4 1/4 0 } | |
| 191 | z+1/4,y+1/4,x,+1 | { m-101 | 1/4 1/4 0 } | |
| 192 | x+1/4,z+1/4,y,+1 | { m01-1 | 1/4 1/4 0 } | |
| (0,3/4,3/4)' + set click here to show and hide | |||
| 193 | x,y+3/4,z+3/4,-1 | { 1' | 0 3/4 3/4 } | |
| 194 | z,x+3/4,y+3/4,-1 | { 3'+111 | 0 3/4 3/4 } | |
| 195 | y,z+3/4,x+3/4,-1 | { 3'-111 | 0 3/4 3/4 } | |
| 196 | -y+1/2,-x+1/4,-z+1/4,-1 | { 2'1-10 | 1/2 1/4 1/4 } | |
| 197 | -z+1/2,-y+1/4,-x+1/4,-1 | { 2'-101 | 1/2 1/4 1/4 } | |
| 198 | -x+1/2,-z+1/4,-y+1/4,-1 | { 2'01-1 | 1/2 1/4 1/4 } | |
| 199 | -x,-y+3/4,-z+3/4,-1 | { -1' | 0 3/4 3/4 } | |
| 200 | -z,-x+3/4,-y+3/4,-1 | { -3'+111 | 0 3/4 3/4 } | |
| 201 | -y,-z+3/4,-x+3/4,-1 | { -3'-111 | 0 3/4 3/4 } | |
| 202 | y+1/2,x+1/4,z+1/4,-1 | { m'1-10 | 1/2 1/4 1/4 } | |
| 203 | z+1/2,y+1/4,x+1/4,-1 | { m'-101 | 1/2 1/4 1/4 } | |
| 204 | x+1/2,z+1/4,y+1/4,-1 | { m'01-1 | 1/2 1/4 1/4 } | |
| (0,0,1/2)' + set click here to show and hide | |||
| 205 | x,y,z+1/2,-1 | { 1' | 0 0 1/2 } | |
| 206 | z,x,y+1/2,-1 | { 3'+111 | 0 0 1/2 } | |
| 207 | y,z,x+1/2,-1 | { 3'-111 | 0 0 1/2 } | |
| 208 | -y+1/2,-x+1/2,-z,-1 | { 2'1-10 | 1/2 1/2 0 } | |
| 209 | -z+1/2,-y+1/2,-x,-1 | { 2'-101 | 1/2 1/2 0 } | |
| 210 | -x+1/2,-z+1/2,-y,-1 | { 2'01-1 | 1/2 1/2 0 } | |
| 211 | -x,-y,-z+1/2,-1 | { -1' | 0 0 1/2 } | |
| 212 | -z,-x,-y+1/2,-1 | { -3'+111 | 0 0 1/2 } | |
| 213 | -y,-z,-x+1/2,-1 | { -3'-111 | 0 0 1/2 } | |
| 214 | y+1/2,x+1/2,z,-1 | { m'1-10 | 1/2 1/2 0 } | |
| 215 | z+1/2,y+1/2,x,-1 | { m'-101 | 1/2 1/2 0 } | |
| 216 | x+1/2,z+1/2,y,-1 | { m'01-1 | 1/2 1/2 0 } | |
| (0,1/4,1/4)' + set click here to show and hide | |||
| 217 | x,y+1/4,z+1/4,-1 | { 1' | 0 1/4 1/4 } | |
| 218 | z,x+1/4,y+1/4,-1 | { 3'+111 | 0 1/4 1/4 } | |
| 219 | y,z+1/4,x+1/4,-1 | { 3'-111 | 0 1/4 1/4 } | |
| 220 | -y+1/2,-x+3/4,-z+3/4,-1 | { 2'1-10 | 1/2 3/4 3/4 } | |
| 221 | -z+1/2,-y+3/4,-x+3/4,-1 | { 2'-101 | 1/2 3/4 3/4 } | |
| 222 | -x+1/2,-z+3/4,-y+3/4,-1 | { 2'01-1 | 1/2 3/4 3/4 } | |
| 223 | -x,-y+1/4,-z+1/4,-1 | { -1' | 0 1/4 1/4 } | |
| 224 | -z,-x+1/4,-y+1/4,-1 | { -3'+111 | 0 1/4 1/4 } | |
| 225 | -y,-z+1/4,-x+1/4,-1 | { -3'-111 | 0 1/4 1/4 } | |
| 226 | y+1/2,x+3/4,z+3/4,-1 | { m'1-10 | 1/2 3/4 3/4 } | |
| 227 | z+1/2,y+3/4,x+3/4,-1 | { m'-101 | 1/2 3/4 3/4 } | |
| 228 | x+1/2,z+3/4,y+3/4,-1 | { m'01-1 | 1/2 3/4 3/4 } | |
| (0,1/2,0)' + set click here to show and hide | |||
| 229 | x,y+1/2,z,-1 | { 1' | 0 1/2 0 } | |
| 230 | z,x+1/2,y,-1 | { 3'+111 | 0 1/2 0 } | |
| 231 | y,z+1/2,x,-1 | { 3'-111 | 0 1/2 0 } | |
| 232 | -y+1/2,-x,-z+1/2,-1 | { 2'1-10 | 1/2 0 1/2 } | |
| 233 | -z+1/2,-y,-x+1/2,-1 | { 2'-101 | 1/2 0 1/2 } | |
| 234 | -x+1/2,-z,-y+1/2,-1 | { 2'01-1 | 1/2 0 1/2 } | |
| 235 | -x,-y+1/2,-z,-1 | { -1' | 0 1/2 0 } | |
| 236 | -z,-x+1/2,-y,-1 | { -3'+111 | 0 1/2 0 } | |
| 237 | -y,-z+1/2,-x,-1 | { -3'-111 | 0 1/2 0 } | |
| 238 | y+1/2,x,z+1/2,-1 | { m'1-10 | 1/2 0 1/2 } | |
| 239 | z+1/2,y,x+1/2,-1 | { m'-101 | 1/2 0 1/2 } | |
| 240 | x+1/2,z,y+1/2,-1 | { m'01-1 | 1/2 0 1/2 } | |
| (1/4,3/4,1/2)' + set click here to show and hide | |||
| 241 | x+1/4,y+3/4,z+1/2,-1 | { 1' | 1/4 3/4 1/2 } | |
| 242 | z+1/4,x+3/4,y+1/2,-1 | { 3'+111 | 1/4 3/4 1/2 } | |
| 243 | y+1/4,z+3/4,x+1/2,-1 | { 3'-111 | 1/4 3/4 1/2 } | |
| 244 | -y+3/4,-x+1/4,-z,-1 | { 2'1-10 | 3/4 1/4 0 } | |
| 245 | -z+3/4,-y+1/4,-x,-1 | { 2'-101 | 3/4 1/4 0 } | |
| 246 | -x+3/4,-z+1/4,-y,-1 | { 2'01-1 | 3/4 1/4 0 } | |
| 247 | -x+1/4,-y+3/4,-z+1/2,-1 | { -1' | 1/4 3/4 1/2 } | |
| 248 | -z+1/4,-x+3/4,-y+1/2,-1 | { -3'+111 | 1/4 3/4 1/2 } | |
| 249 | -y+1/4,-z+3/4,-x+1/2,-1 | { -3'-111 | 1/4 3/4 1/2 } | |
| 250 | y+3/4,x+1/4,z,-1 | { m'1-10 | 3/4 1/4 0 } | |
| 251 | z+3/4,y+1/4,x,-1 | { m'-101 | 3/4 1/4 0 } | |
| 252 | x+3/4,z+1/4,y,-1 | { m'01-1 | 3/4 1/4 0 } | |
| (1/4,0,1/4)' + set click here to show and hide | |||
| 253 | x+1/4,y,z+1/4,-1 | { 1' | 1/4 0 1/4 } | |
| 254 | z+1/4,x,y+1/4,-1 | { 3'+111 | 1/4 0 1/4 } | |
| 255 | y+1/4,z,x+1/4,-1 | { 3'-111 | 1/4 0 1/4 } | |
| 256 | -y+3/4,-x+1/2,-z+3/4,-1 | { 2'1-10 | 3/4 1/2 3/4 } | |
| 257 | -z+3/4,-y+1/2,-x+3/4,-1 | { 2'-101 | 3/4 1/2 3/4 } | |
| 258 | -x+3/4,-z+1/2,-y+3/4,-1 | { 2'01-1 | 3/4 1/2 3/4 } | |
| 259 | -x+1/4,-y,-z+1/4,-1 | { -1' | 1/4 0 1/4 } | |
| 260 | -z+1/4,-x,-y+1/4,-1 | { -3'+111 | 1/4 0 1/4 } | |
| 261 | -y+1/4,-z,-x+1/4,-1 | { -3'-111 | 1/4 0 1/4 } | |
| 262 | y+3/4,x+1/2,z+3/4,-1 | { m'1-10 | 3/4 1/2 3/4 } | |
| 263 | z+3/4,y+1/2,x+3/4,-1 | { m'-101 | 3/4 1/2 3/4 } | |
| 264 | x+3/4,z+1/2,y+3/4,-1 | { m'01-1 | 3/4 1/2 3/4 } | |
| (1/4,1/4,0)' + set click here to show and hide | |||
| 265 | x+1/4,y+1/4,z,-1 | { 1' | 1/4 1/4 0 } | |
| 266 | z+1/4,x+1/4,y,-1 | { 3'+111 | 1/4 1/4 0 } | |
| 267 | y+1/4,z+1/4,x,-1 | { 3'-111 | 1/4 1/4 0 } | |
| 268 | -y+3/4,-x+3/4,-z+1/2,-1 | { 2'1-10 | 3/4 3/4 1/2 } | |
| 269 | -z+3/4,-y+3/4,-x+1/2,-1 | { 2'-101 | 3/4 3/4 1/2 } | |
| 270 | -x+3/4,-z+3/4,-y+1/2,-1 | { 2'01-1 | 3/4 3/4 1/2 } | |
| 271 | -x+1/4,-y+1/4,-z,-1 | { -1' | 1/4 1/4 0 } | |
| 272 | -z+1/4,-x+1/4,-y,-1 | { -3'+111 | 1/4 1/4 0 } | |
| 273 | -y+1/4,-z+1/4,-x,-1 | { -3'-111 | 1/4 1/4 0 } | |
| 274 | y+3/4,x+3/4,z+1/2,-1 | { m'1-10 | 3/4 3/4 1/2 } | |
| 275 | z+3/4,y+3/4,x+1/2,-1 | { m'-101 | 3/4 3/4 1/2 } | |
| 276 | x+3/4,z+3/4,y+1/2,-1 | { m'01-1 | 3/4 3/4 1/2 } | |
| (1/4,1/2,3/4)' + set click here to show and hide | |||
| 277 | x+1/4,y+1/2,z+3/4,-1 | { 1' | 1/4 1/2 3/4 } | |
| 278 | z+1/4,x+1/2,y+3/4,-1 | { 3'+111 | 1/4 1/2 3/4 } | |
| 279 | y+1/4,z+1/2,x+3/4,-1 | { 3'-111 | 1/4 1/2 3/4 } | |
| 280 | -y+3/4,-x,-z+1/4,-1 | { 2'1-10 | 3/4 0 1/4 } | |
| 281 | -z+3/4,-y,-x+1/4,-1 | { 2'-101 | 3/4 0 1/4 } | |
| 282 | -x+3/4,-z,-y+1/4,-1 | { 2'01-1 | 3/4 0 1/4 } | |
| 283 | -x+1/4,-y+1/2,-z+3/4,-1 | { -1' | 1/4 1/2 3/4 } | |
| 284 | -z+1/4,-x+1/2,-y+3/4,-1 | { -3'+111 | 1/4 1/2 3/4 } | |
| 285 | -y+1/4,-z+1/2,-x+3/4,-1 | { -3'-111 | 1/4 1/2 3/4 } | |
| 286 | y+3/4,x,z+1/4,-1 | { m'1-10 | 3/4 0 1/4 } | |
| 287 | z+3/4,y,x+1/4,-1 | { m'-101 | 3/4 0 1/4 } | |
| 288 | x+3/4,z,y+1/4,-1 | { m'01-1 | 3/4 0 1/4 } | |
| (1/2,3/4,1/4)' + set click here to show and hide | |||
| 289 | x+1/2,y+3/4,z+1/4,-1 | { 1' | 1/2 3/4 1/4 } | |
| 290 | z+1/2,x+3/4,y+1/4,-1 | { 3'+111 | 1/2 3/4 1/4 } | |
| 291 | y+1/2,z+3/4,x+1/4,-1 | { 3'-111 | 1/2 3/4 1/4 } | |
| 292 | -y,-x+1/4,-z+3/4,-1 | { 2'1-10 | 0 1/4 3/4 } | |
| 293 | -z,-y+1/4,-x+3/4,-1 | { 2'-101 | 0 1/4 3/4 } | |
| 294 | -x,-z+1/4,-y+3/4,-1 | { 2'01-1 | 0 1/4 3/4 } | |
| 295 | -x+1/2,-y+3/4,-z+1/4,-1 | { -1' | 1/2 3/4 1/4 } | |
| 296 | -z+1/2,-x+3/4,-y+1/4,-1 | { -3'+111 | 1/2 3/4 1/4 } | |
| 297 | -y+1/2,-z+3/4,-x+1/4,-1 | { -3'-111 | 1/2 3/4 1/4 } | |
| 298 | y,x+1/4,z+3/4,-1 | { m'1-10 | 0 1/4 3/4 } | |
| 299 | z,y+1/4,x+3/4,-1 | { m'-101 | 0 1/4 3/4 } | |
| 300 | x,z+1/4,y+3/4,-1 | { m'01-1 | 0 1/4 3/4 } | |
| (1/2,0,0)' + set click here to show and hide | |||
| 301 | x+1/2,y,z,-1 | { 1' | 1/2 0 0 } | |
| 302 | z+1/2,x,y,-1 | { 3'+111 | 1/2 0 0 } | |
| 303 | y+1/2,z,x,-1 | { 3'-111 | 1/2 0 0 } | |
| 304 | -y,-x+1/2,-z+1/2,-1 | { 2'1-10 | 0 1/2 1/2 } | |
| 305 | -z,-y+1/2,-x+1/2,-1 | { 2'-101 | 0 1/2 1/2 } | |
| 306 | -x,-z+1/2,-y+1/2,-1 | { 2'01-1 | 0 1/2 1/2 } | |
| 307 | -x+1/2,-y,-z,-1 | { -1' | 1/2 0 0 } | |
| 308 | -z+1/2,-x,-y,-1 | { -3'+111 | 1/2 0 0 } | |
| 309 | -y+1/2,-z,-x,-1 | { -3'-111 | 1/2 0 0 } | |
| 310 | y,x+1/2,z+1/2,-1 | { m'1-10 | 0 1/2 1/2 } | |
| 311 | z,y+1/2,x+1/2,-1 | { m'-101 | 0 1/2 1/2 } | |
| 312 | x,z+1/2,y+1/2,-1 | { m'01-1 | 0 1/2 1/2 } | |
| (1/2,1/4,3/4)' + set click here to show and hide | |||
| 313 | x+1/2,y+1/4,z+3/4,-1 | { 1' | 1/2 1/4 3/4 } | |
| 314 | z+1/2,x+1/4,y+3/4,-1 | { 3'+111 | 1/2 1/4 3/4 } | |
| 315 | y+1/2,z+1/4,x+3/4,-1 | { 3'-111 | 1/2 1/4 3/4 } | |
| 316 | -y,-x+3/4,-z+1/4,-1 | { 2'1-10 | 0 3/4 1/4 } | |
| 317 | -z,-y+3/4,-x+1/4,-1 | { 2'-101 | 0 3/4 1/4 } | |
| 318 | -x,-z+3/4,-y+1/4,-1 | { 2'01-1 | 0 3/4 1/4 } | |
| 319 | -x+1/2,-y+1/4,-z+3/4,-1 | { -1' | 1/2 1/4 3/4 } | |
| 320 | -z+1/2,-x+1/4,-y+3/4,-1 | { -3'+111 | 1/2 1/4 3/4 } | |
| 321 | -y+1/2,-z+1/4,-x+3/4,-1 | { -3'-111 | 1/2 1/4 3/4 } | |
| 322 | y,x+3/4,z+1/4,-1 | { m'1-10 | 0 3/4 1/4 } | |
| 323 | z,y+3/4,x+1/4,-1 | { m'-101 | 0 3/4 1/4 } | |
| 324 | x,z+3/4,y+1/4,-1 | { m'01-1 | 0 3/4 1/4 } | |
| (1/2,1/2,1/2)' + set click here to show and hide | |||
| 325 | x+1/2,y+1/2,z+1/2,-1 | { 1' | 1/2 1/2 1/2 } | |
| 326 | z+1/2,x+1/2,y+1/2,-1 | { 3'+111 | 1/2 1/2 1/2 } | |
| 327 | y+1/2,z+1/2,x+1/2,-1 | { 3'-111 | 1/2 1/2 1/2 } | |
| 328 | -y,-x,-z,-1 | { 2'1-10 | 0 } | |
| 329 | -z,-y,-x,-1 | { 2'-101 | 0 } | |
| 330 | -x,-z,-y,-1 | { 2'01-1 | 0 } | |
| 331 | -x+1/2,-y+1/2,-z+1/2,-1 | { -1' | 1/2 1/2 1/2 } | |
| 332 | -z+1/2,-x+1/2,-y+1/2,-1 | { -3'+111 | 1/2 1/2 1/2 } | |
| 333 | -y+1/2,-z+1/2,-x+1/2,-1 | { -3'-111 | 1/2 1/2 1/2 } | |
| 334 | y,x,z,-1 | { m'1-10 | 0 } | |
| 335 | z,y,x,-1 | { m'-101 | 0 } | |
| 336 | x,z,y,-1 | { m'01-1 | 0 } | |
| (3/4,3/4,0)' + set click here to show and hide | |||
| 337 | x+3/4,y+3/4,z,-1 | { 1' | 3/4 3/4 0 } | |
| 338 | z+3/4,x+3/4,y,-1 | { 3'+111 | 3/4 3/4 0 } | |
| 339 | y+3/4,z+3/4,x,-1 | { 3'-111 | 3/4 3/4 0 } | |
| 340 | -y+1/4,-x+1/4,-z+1/2,-1 | { 2'1-10 | 1/4 1/4 1/2 } | |
| 341 | -z+1/4,-y+1/4,-x+1/2,-1 | { 2'-101 | 1/4 1/4 1/2 } | |
| 342 | -x+1/4,-z+1/4,-y+1/2,-1 | { 2'01-1 | 1/4 1/4 1/2 } | |
| 343 | -x+3/4,-y+3/4,-z,-1 | { -1' | 3/4 3/4 0 } | |
| 344 | -z+3/4,-x+3/4,-y,-1 | { -3'+111 | 3/4 3/4 0 } | |
| 345 | -y+3/4,-z+3/4,-x,-1 | { -3'-111 | 3/4 3/4 0 } | |
| 346 | y+1/4,x+1/4,z+1/2,-1 | { m'1-10 | 1/4 1/4 1/2 } | |
| 347 | z+1/4,y+1/4,x+1/2,-1 | { m'-101 | 1/4 1/4 1/2 } | |
| 348 | x+1/4,z+1/4,y+1/2,-1 | { m'01-1 | 1/4 1/4 1/2 } | |
| (3/4,0,3/4)' + set click here to show and hide | |||
| 349 | x+3/4,y,z+3/4,-1 | { 1' | 3/4 0 3/4 } | |
| 350 | z+3/4,x,y+3/4,-1 | { 3'+111 | 3/4 0 3/4 } | |
| 351 | y+3/4,z,x+3/4,-1 | { 3'-111 | 3/4 0 3/4 } | |
| 352 | -y+1/4,-x+1/2,-z+1/4,-1 | { 2'1-10 | 1/4 1/2 1/4 } | |
| 353 | -z+1/4,-y+1/2,-x+1/4,-1 | { 2'-101 | 1/4 1/2 1/4 } | |
| 354 | -x+1/4,-z+1/2,-y+1/4,-1 | { 2'01-1 | 1/4 1/2 1/4 } | |
| 355 | -x+3/4,-y,-z+3/4,-1 | { -1' | 3/4 0 3/4 } | |
| 356 | -z+3/4,-x,-y+3/4,-1 | { -3'+111 | 3/4 0 3/4 } | |
| 357 | -y+3/4,-z,-x+3/4,-1 | { -3'-111 | 3/4 0 3/4 } | |
| 358 | y+1/4,x+1/2,z+1/4,-1 | { m'1-10 | 1/4 1/2 1/4 } | |
| 359 | z+1/4,y+1/2,x+1/4,-1 | { m'-101 | 1/4 1/2 1/4 } | |
| 360 | x+1/4,z+1/2,y+1/4,-1 | { m'01-1 | 1/4 1/2 1/4 } | |
| (3/4,1/4,1/2)' + set click here to show and hide | |||
| 361 | x+3/4,y+1/4,z+1/2,-1 | { 1' | 3/4 1/4 1/2 } | |
| 362 | z+3/4,x+1/4,y+1/2,-1 | { 3'+111 | 3/4 1/4 1/2 } | |
| 363 | y+3/4,z+1/4,x+1/2,-1 | { 3'-111 | 3/4 1/4 1/2 } | |
| 364 | -y+1/4,-x+3/4,-z,-1 | { 2'1-10 | 1/4 3/4 0 } | |
| 365 | -z+1/4,-y+3/4,-x,-1 | { 2'-101 | 1/4 3/4 0 } | |
| 366 | -x+1/4,-z+3/4,-y,-1 | { 2'01-1 | 1/4 3/4 0 } | |
| 367 | -x+3/4,-y+1/4,-z+1/2,-1 | { -1' | 3/4 1/4 1/2 } | |
| 368 | -z+3/4,-x+1/4,-y+1/2,-1 | { -3'+111 | 3/4 1/4 1/2 } | |
| 369 | -y+3/4,-z+1/4,-x+1/2,-1 | { -3'-111 | 3/4 1/4 1/2 } | |
| 370 | y+1/4,x+3/4,z,-1 | { m'1-10 | 1/4 3/4 0 } | |
| 371 | z+1/4,y+3/4,x,-1 | { m'-101 | 1/4 3/4 0 } | |
| 372 | x+1/4,z+3/4,y,-1 | { m'01-1 | 1/4 3/4 0 } | |
| (3/4,1/2,1/4)' + set click here to show and hide | |||
| 373 | x+3/4,y+1/2,z+1/4,-1 | { 1' | 3/4 1/2 1/4 } | |
| 374 | z+3/4,x+1/2,y+1/4,-1 | { 3'+111 | 3/4 1/2 1/4 } | |
| 375 | y+3/4,z+1/2,x+1/4,-1 | { 3'-111 | 3/4 1/2 1/4 } | |
| 376 | -y+1/4,-x,-z+3/4,-1 | { 2'1-10 | 1/4 0 3/4 } | |
| 377 | -z+1/4,-y,-x+3/4,-1 | { 2'-101 | 1/4 0 3/4 } | |
| 378 | -x+1/4,-z,-y+3/4,-1 | { 2'01-1 | 1/4 0 3/4 } | |
| 379 | -x+3/4,-y+1/2,-z+1/4,-1 | { -1' | 3/4 1/2 1/4 } | |
| 380 | -z+3/4,-x+1/2,-y+1/4,-1 | { -3'+111 | 3/4 1/2 1/4 } | |
| 381 | -y+3/4,-z+1/2,-x+1/4,-1 | { -3'-111 | 3/4 1/2 1/4 } | |
| 382 | y+1/4,x,z+3/4,-1 | { m'1-10 | 1/4 0 3/4 } | |
| 383 | z+1/4,y,x+3/4,-1 | { m'-101 | 1/4 0 3/4 } | |
| 384 | x+1/4,z,y+3/4,-1 | { m'01-1 | 1/4 0 3/4 } | |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | 1 | |
| 2 | z,x,y,+1 | 3+111 | |
| 3 | y,z,x,+1 | 3-111 | |
| 4 | -y,-x,-z,+1 | 21-10 | |
| 5 | -z,-y,-x,+1 | 2-101 | |
| 6 | -x,-z,-y,+1 | 201-1 | |
| 7 | -x,-y,-z,+1 | -1 | |
| 8 | -z,-x,-y,+1 | -3+111 | |
| 9 | -y,-z,-x,+1 | -3-111 | |
| 10 | y,x,z,+1 | m1-10 | |
| 11 | z,y,x,+1 | m-101 | |
| 12 | x,z,y,+1 | m01-1 | |
| 1' + set click here to show and hide | |||
| 13 | x,y,z,-1 | 1' | |
| 14 | z,x,y,-1 | 3'+111 | |
| 15 | y,z,x,-1 | 3'-111 | |
| 16 | -y,-x,-z,-1 | 2'1-10 | |
| 17 | -z,-y,-x,-1 | 2'-101 | |
| 18 | -x,-z,-y,-1 | 2'01-1 | |
| 19 | -x,-y,-z,-1 | -1' | |
| 20 | -z,-x,-y,-1 | -3'+111 | |
| 21 | -y,-z,-x,-1 | -3'-111 | |
| 22 | y,x,z,-1 | m'1-10 | |
| 23 | z,y,x,-1 | m'-101 | |
| 24 | x,z,y,-1 | m'01-1 | |
| Label | Atom type | x | y | z | Occupancy | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fe1 | Fe | 0.00000 | 0.00000 | 0.00000 | 0.945 | 32 | mx,mx,mx | 1.915 | 1.915 | 1.915 | 3.32 |
| Label | Atom type | x | y | z | Occupancy | Multiplicity |
|---|---|---|---|---|---|---|
| O1 | O | 0.25000 | 0.25000 | 0.25000 | 1 | 32 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Fe1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.00000 | 0.00000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (0,1/4,3/4) + set click here to show and hide | |||||||
| 2 | 0.00000 | 0.25000 | 0.75000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 3 | 0.00000 | 0.50000 | 0.50000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (0,3/4,1/4) + set click here to show and hide | |||||||
| 4 | 0.00000 | 0.75000 | 0.25000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/4,0,3/4) + set click here to show and hide | |||||||
| 5 | 0.25000 | 0.00000 | 0.75000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 6 | 0.25000 | 0.25000 | 0.50000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/4,1/2,1/4) + set click here to show and hide | |||||||
| 7 | 0.25000 | 0.50000 | 0.25000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 8 | 0.25000 | 0.75000 | 0.00000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 9 | 0.50000 | 0.00000 | 0.50000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/2,1/4,1/4) + set click here to show and hide | |||||||
| 10 | 0.50000 | 0.25000 | 0.25000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 11 | 0.50000 | 0.50000 | 0.00000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/2,3/4,3/4) + set click here to show and hide | |||||||
| 12 | 0.50000 | 0.75000 | 0.75000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (3/4,0,1/4) + set click here to show and hide | |||||||
| 13 | 0.75000 | 0.00000 | 0.25000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 14 | 0.75000 | 0.25000 | 0.00000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (3/4,1/2,3/4) + set click here to show and hide | |||||||
| 15 | 0.75000 | 0.50000 | 0.75000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 16 | 0.75000 | 0.75000 | 0.50000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (0,3/4,3/4)' + set click here to show and hide | |||||||
| 17 | 0.00000 | 0.75000 | 0.75000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 18 | 0.00000 | 0.00000 | 0.50000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (0,1/4,1/4)' + set click here to show and hide | |||||||
| 19 | 0.00000 | 0.25000 | 0.25000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 20 | 0.00000 | 0.50000 | 0.00000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 21 | 0.25000 | 0.75000 | 0.50000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/4,0,1/4)' + set click here to show and hide | |||||||
| 22 | 0.25000 | 0.00000 | 0.25000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 23 | 0.25000 | 0.25000 | 0.00000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/4,1/2,3/4)' + set click here to show and hide | |||||||
| 24 | 0.25000 | 0.50000 | 0.75000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/2,3/4,1/4)' + set click here to show and hide | |||||||
| 25 | 0.50000 | 0.75000 | 0.25000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 26 | 0.50000 | 0.00000 | 0.00000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/2,1/4,3/4)' + set click here to show and hide | |||||||
| 27 | 0.50000 | 0.25000 | 0.75000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 28 | 0.50000 | 0.50000 | 0.50000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 29 | 0.75000 | 0.75000 | 0.00000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (3/4,0,3/4)' + set click here to show and hide | |||||||
| 30 | 0.75000 | 0.00000 | 0.75000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 31 | 0.75000 | 0.25000 | 0.50000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (3/4,1/2,1/4)' + set click here to show and hide | |||||||
| 32 | 0.75000 | 0.50000 | 0.25000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
Set of atoms in the unit cell related by symmetry with the atom O1:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.25000 | 0.25000 | 0.25000 | ||||
| (0,1/4,3/4) + set click here to show and hide | |||||||
| 2 | 0.25000 | 0.50000 | 0.00000 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 3 | 0.25000 | 0.75000 | 0.75000 | ||||
| (0,3/4,1/4) + set click here to show and hide | |||||||
| 4 | 0.25000 | 0.00000 | 0.50000 | ||||
| (1/4,0,3/4) + set click here to show and hide | |||||||
| 5 | 0.50000 | 0.25000 | 0.00000 | ||||
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 6 | 0.50000 | 0.50000 | 0.75000 | ||||
| (1/4,1/2,1/4) + set click here to show and hide | |||||||
| 7 | 0.50000 | 0.75000 | 0.50000 | ||||
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 8 | 0.50000 | 0.00000 | 0.25000 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 9 | 0.75000 | 0.25000 | 0.75000 | ||||
| (1/2,1/4,1/4) + set click here to show and hide | |||||||
| 10 | 0.75000 | 0.50000 | 0.50000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 11 | 0.75000 | 0.75000 | 0.25000 | ||||
| (1/2,3/4,3/4) + set click here to show and hide | |||||||
| 12 | 0.75000 | 0.00000 | 0.00000 | ||||
| (3/4,0,1/4) + set click here to show and hide | |||||||
| 13 | 0.00000 | 0.25000 | 0.50000 | ||||
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 14 | 0.00000 | 0.50000 | 0.25000 | ||||
| (3/4,1/2,3/4) + set click here to show and hide | |||||||
| 15 | 0.00000 | 0.75000 | 0.00000 | ||||
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 16 | 0.00000 | 0.00000 | 0.75000 | ||||
| (0,3/4,3/4)' + set click here to show and hide | |||||||
| 17 | 0.25000 | 0.00000 | 0.00000 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 18 | 0.25000 | 0.25000 | 0.75000 | ||||
| (0,1/4,1/4)' + set click here to show and hide | |||||||
| 19 | 0.25000 | 0.50000 | 0.50000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 20 | 0.25000 | 0.75000 | 0.25000 | ||||
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 21 | 0.50000 | 0.00000 | 0.75000 | ||||
| (1/4,0,1/4)' + set click here to show and hide | |||||||
| 22 | 0.50000 | 0.25000 | 0.50000 | ||||
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 23 | 0.50000 | 0.50000 | 0.25000 | ||||
| (1/4,1/2,3/4)' + set click here to show and hide | |||||||
| 24 | 0.50000 | 0.75000 | 0.00000 | ||||
| (1/2,3/4,1/4)' + set click here to show and hide | |||||||
| 25 | 0.75000 | 0.00000 | 0.50000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 26 | 0.75000 | 0.25000 | 0.25000 | ||||
| (1/2,1/4,3/4)' + set click here to show and hide | |||||||
| 27 | 0.75000 | 0.50000 | 0.00000 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 28 | 0.75000 | 0.75000 | 0.75000 | ||||
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 29 | 0.00000 | 0.00000 | 0.25000 | ||||
| (3/4,0,3/4)' + set click here to show and hide | |||||||
| 30 | 0.00000 | 0.25000 | 0.00000 | ||||
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 31 | 0.00000 | 0.50000 | 0.75000 | ||||
| (3/4,1/2,1/4)' + set click here to show and hide | |||||||
| 32 | 0.00000 | 0.75000 | 0.50000 | ||||
| Label | Atom type | x | y | z | Occupancy | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fe1 | Fe | 0.00000 | 0.00000 | 0.00000 | 0.945 | 32 | mx,mx,mx | 1.915 | 1.915 | 1.915 | 3.32 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Fe1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.00000 | 0.00000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (0,1/4,3/4) + set click here to show and hide | |||||||
| 2 | 0.00000 | 0.25000 | 0.75000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 3 | 0.00000 | 0.50000 | 0.50000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (0,3/4,1/4) + set click here to show and hide | |||||||
| 4 | 0.00000 | 0.75000 | 0.25000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/4,0,3/4) + set click here to show and hide | |||||||
| 5 | 0.25000 | 0.00000 | 0.75000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 6 | 0.25000 | 0.25000 | 0.50000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/4,1/2,1/4) + set click here to show and hide | |||||||
| 7 | 0.25000 | 0.50000 | 0.25000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 8 | 0.25000 | 0.75000 | 0.00000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 9 | 0.50000 | 0.00000 | 0.50000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/2,1/4,1/4) + set click here to show and hide | |||||||
| 10 | 0.50000 | 0.25000 | 0.25000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 11 | 0.50000 | 0.50000 | 0.00000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (1/2,3/4,3/4) + set click here to show and hide | |||||||
| 12 | 0.50000 | 0.75000 | 0.75000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (3/4,0,1/4) + set click here to show and hide | |||||||
| 13 | 0.75000 | 0.00000 | 0.25000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 14 | 0.75000 | 0.25000 | 0.00000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (3/4,1/2,3/4) + set click here to show and hide | |||||||
| 15 | 0.75000 | 0.50000 | 0.75000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 16 | 0.75000 | 0.75000 | 0.50000 | mx,mx,mx | 1.91500 | 1.91500 | 1.91500 |
| (0,3/4,3/4)' + set click here to show and hide | |||||||
| 17 | 0.00000 | 0.75000 | 0.75000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 18 | 0.00000 | 0.00000 | 0.50000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (0,1/4,1/4)' + set click here to show and hide | |||||||
| 19 | 0.00000 | 0.25000 | 0.25000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 20 | 0.00000 | 0.50000 | 0.00000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 21 | 0.25000 | 0.75000 | 0.50000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/4,0,1/4)' + set click here to show and hide | |||||||
| 22 | 0.25000 | 0.00000 | 0.25000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 23 | 0.25000 | 0.25000 | 0.00000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/4,1/2,3/4)' + set click here to show and hide | |||||||
| 24 | 0.25000 | 0.50000 | 0.75000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/2,3/4,1/4)' + set click here to show and hide | |||||||
| 25 | 0.50000 | 0.75000 | 0.25000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 26 | 0.50000 | 0.00000 | 0.00000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/2,1/4,3/4)' + set click here to show and hide | |||||||
| 27 | 0.50000 | 0.25000 | 0.75000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 28 | 0.50000 | 0.50000 | 0.50000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 29 | 0.75000 | 0.75000 | 0.00000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (3/4,0,3/4)' + set click here to show and hide | |||||||
| 30 | 0.75000 | 0.00000 | 0.75000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 31 | 0.75000 | 0.25000 | 0.50000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| (3/4,1/2,1/4)' + set click here to show and hide | |||||||
| 32 | 0.75000 | 0.50000 | 0.25000 | -mx,-mx,-mx | -1.91500 | -1.91500 | -1.91500 |
| label | dim. small irrep | dim. full irrep | action | number of modes |
| mL2+ | 1 | 4 | primary | 1 |
|
Bilbao Crystallographic Server https://www.cryst.ehu.es |
For comments, please mail to administrador.bcs@ehu.eus |
