Collection of Magnetic Structures
|
MAGNDATA
Collection of Magnetic Structures
|
 |

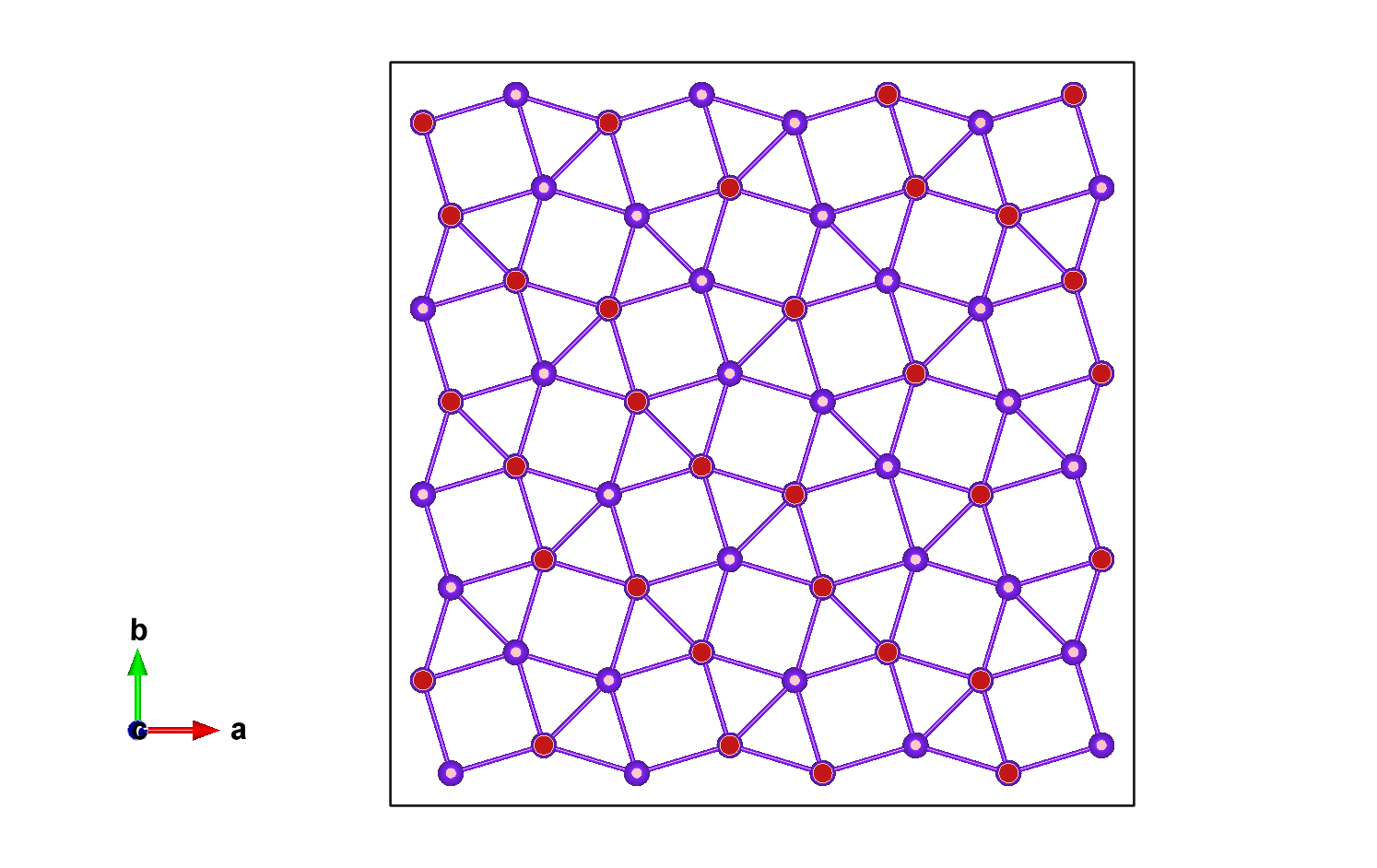

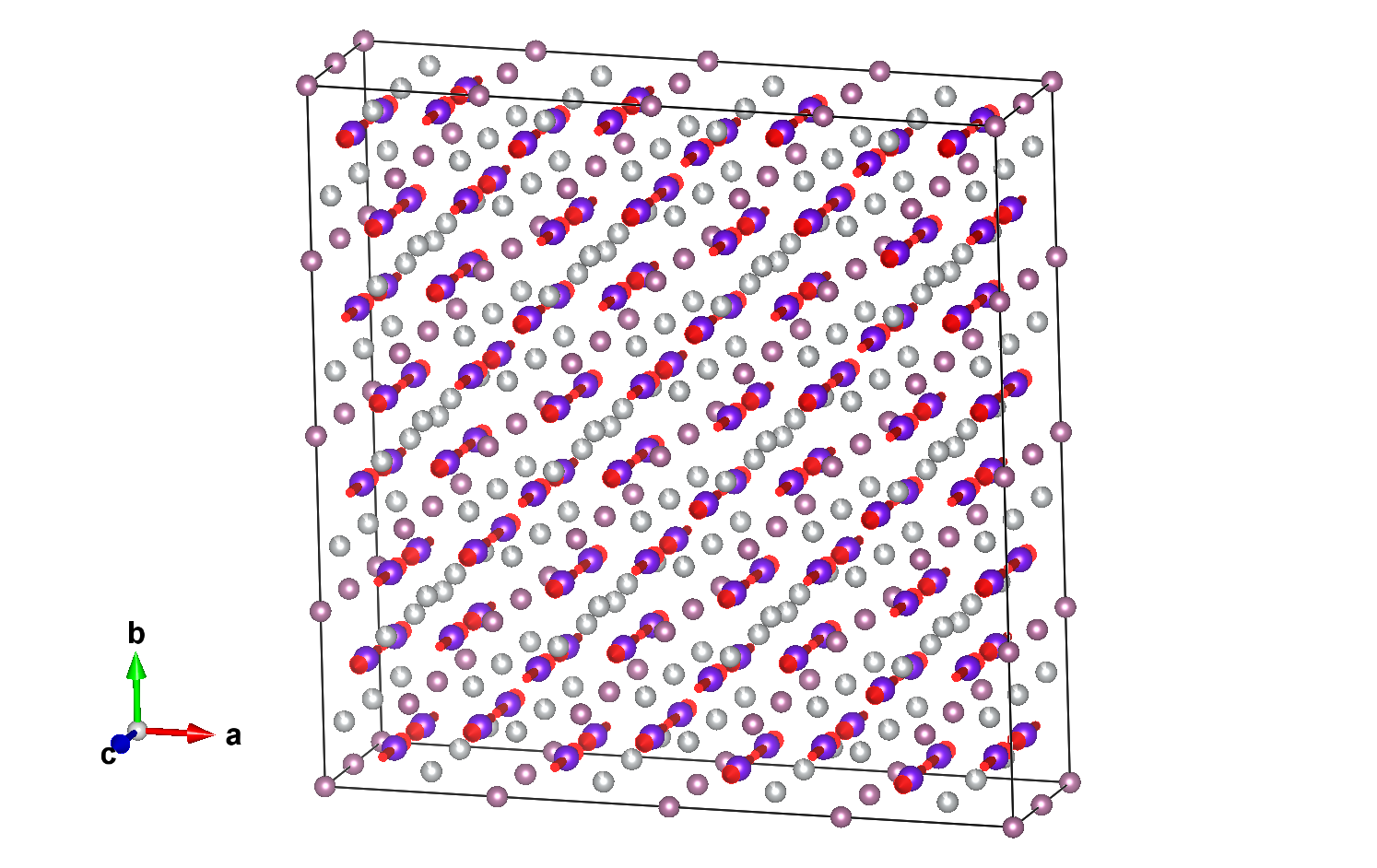

 Magnetic structure with all atoms |  Magnetic structure with only magnetic atoms |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | { 1 | 0 } | |
| 2 | -x+1/4,-y+1/4,z,+1 | { 2001 | 1/4 1/4 0 } | |
| 3 | y+1/8,x+7/8,-z,+1 | { 2110 | 1/8 7/8 0 } | |
| 4 | -y+3/8,-x+1/8,-z,+1 | { 21-10 | 3/8 1/8 0 } | |
| 5 | -x+1/4,-y+1/4,-z+1/2,+1 | { -1 | 1/4 1/4 1/2 } | |
| 6 | x,y,-z+1/2,+1 | { m001 | 0 0 1/2 } | |
| 7 | -y+3/8,-x+1/8,z+1/2,+1 | { m110 | 3/8 1/8 1/2 } | |
| 8 | y+1/8,x+7/8,z+1/2,+1 | { m1-10 | 1/8 7/8 1/2 } | |
| (0,0,1/2)' + set click here to show and hide | |||
| 9 | x,y,z+1/2,-1 | { 1' | 0 0 1/2 } | |
| 10 | -x+1/4,-y+1/4,z+1/2,-1 | { 2'001 | 1/4 1/4 1/2 } | |
| 11 | y+1/8,x+7/8,-z+1/2,-1 | { 2'110 | 1/8 7/8 1/2 } | |
| 12 | -y+3/8,-x+1/8,-z+1/2,-1 | { 2'1-10 | 3/8 1/8 1/2 } | |
| 13 | -x+1/4,-y+1/4,-z,-1 | { -1' | 1/4 1/4 0 } | |
| 14 | x,y,-z,-1 | { m'001 | 0 } | |
| 15 | -y+3/8,-x+1/8,z,-1 | { m'110 | 3/8 1/8 0 } | |
| 16 | y+1/8,x+7/8,z,-1 | { m'1-10 | 1/8 7/8 0 } | |
| (0,1/2,1/2) + set click here to show and hide | |||
| 17 | x,y+1/2,z+1/2,+1 | { 1 | 0 1/2 1/2 } | |
| 18 | -x+1/4,-y+3/4,z+1/2,+1 | { 2001 | 1/4 3/4 1/2 } | |
| 19 | y+1/8,x+3/8,-z+1/2,+1 | { 2110 | 1/8 3/8 1/2 } | |
| 20 | -y+3/8,-x+5/8,-z+1/2,+1 | { 21-10 | 3/8 5/8 1/2 } | |
| 21 | -x+1/4,-y+3/4,-z,+1 | { -1 | 1/4 3/4 0 } | |
| 22 | x,y+1/2,-z,+1 | { m001 | 0 1/2 0 } | |
| 23 | -y+3/8,-x+5/8,z,+1 | { m110 | 3/8 5/8 0 } | |
| 24 | y+1/8,x+3/8,z,+1 | { m1-10 | 1/8 3/8 0 } | |
| (0,1/2,0)' + set click here to show and hide | |||
| 25 | x,y+1/2,z,-1 | { 1' | 0 1/2 0 } | |
| 26 | -x+1/4,-y+3/4,z,-1 | { 2'001 | 1/4 3/4 0 } | |
| 27 | y+1/8,x+3/8,-z,-1 | { 2'110 | 1/8 3/8 0 } | |
| 28 | -y+3/8,-x+5/8,-z,-1 | { 2'1-10 | 3/8 5/8 0 } | |
| 29 | -x+1/4,-y+3/4,-z+1/2,-1 | { -1' | 1/4 3/4 1/2 } | |
| 30 | x,y+1/2,-z+1/2,-1 | { m'001 | 0 1/2 1/2 } | |
| 31 | -y+3/8,-x+5/8,z+1/2,-1 | { m'110 | 3/8 5/8 1/2 } | |
| 32 | y+1/8,x+3/8,z+1/2,-1 | { m'1-10 | 1/8 3/8 1/2 } | |
| (1/4,1/4,1/2) + set click here to show and hide | |||
| 33 | x+1/4,y+1/4,z+1/2,+1 | { 1 | 1/4 1/4 1/2 } | |
| 34 | -x+1/2,-y+1/2,z+1/2,+1 | { 2001 | 1/2 1/2 1/2 } | |
| 35 | y+3/8,x+1/8,-z+1/2,+1 | { 2110 | 3/8 1/8 1/2 } | |
| 36 | -y+5/8,-x+3/8,-z+1/2,+1 | { 21-10 | 5/8 3/8 1/2 } | |
| 37 | -x+1/2,-y+1/2,-z,+1 | { -1 | 1/2 1/2 0 } | |
| 38 | x+1/4,y+1/4,-z,+1 | { m001 | 1/4 1/4 0 } | |
| 39 | -y+5/8,-x+3/8,z,+1 | { m110 | 5/8 3/8 0 } | |
| 40 | y+3/8,x+1/8,z,+1 | { m1-10 | 3/8 1/8 0 } | |
| (1/4,1/4,0)' + set click here to show and hide | |||
| 41 | x+1/4,y+1/4,z,-1 | { 1' | 1/4 1/4 0 } | |
| 42 | -x+1/2,-y+1/2,z,-1 | { 2'001 | 1/2 1/2 0 } | |
| 43 | y+3/8,x+1/8,-z,-1 | { 2'110 | 3/8 1/8 0 } | |
| 44 | -y+5/8,-x+3/8,-z,-1 | { 2'1-10 | 5/8 3/8 0 } | |
| 45 | -x+1/2,-y+1/2,-z+1/2,-1 | { -1' | 1/2 1/2 1/2 } | |
| 46 | x+1/4,y+1/4,-z+1/2,-1 | { m'001 | 1/4 1/4 1/2 } | |
| 47 | -y+5/8,-x+3/8,z+1/2,-1 | { m'110 | 5/8 3/8 1/2 } | |
| 48 | y+3/8,x+1/8,z+1/2,-1 | { m'1-10 | 3/8 1/8 1/2 } | |
| (1/4,3/4,0) + set click here to show and hide | |||
| 49 | x+1/4,y+3/4,z,+1 | { 1 | 1/4 3/4 0 } | |
| 50 | -x+1/2,-y,z,+1 | { 2001 | 1/2 0 0 } | |
| 51 | y+3/8,x+5/8,-z,+1 | { 2110 | 3/8 5/8 0 } | |
| 52 | -y+5/8,-x+7/8,-z,+1 | { 21-10 | 5/8 7/8 0 } | |
| 53 | -x+1/2,-y,-z+1/2,+1 | { -1 | 1/2 0 1/2 } | |
| 54 | x+1/4,y+3/4,-z+1/2,+1 | { m001 | 1/4 3/4 1/2 } | |
| 55 | -y+5/8,-x+7/8,z+1/2,+1 | { m110 | 5/8 7/8 1/2 } | |
| 56 | y+3/8,x+5/8,z+1/2,+1 | { m1-10 | 3/8 5/8 1/2 } | |
| (1/4,3/4,1/2)' + set click here to show and hide | |||
| 57 | x+1/4,y+3/4,z+1/2,-1 | { 1' | 1/4 3/4 1/2 } | |
| 58 | -x+1/2,-y,z+1/2,-1 | { 2'001 | 1/2 0 1/2 } | |
| 59 | y+3/8,x+5/8,-z+1/2,-1 | { 2'110 | 3/8 5/8 1/2 } | |
| 60 | -y+5/8,-x+7/8,-z+1/2,-1 | { 2'1-10 | 5/8 7/8 1/2 } | |
| 61 | -x+1/2,-y,-z,-1 | { -1' | 1/2 0 0 } | |
| 62 | x+1/4,y+3/4,-z,-1 | { m'001 | 1/4 3/4 0 } | |
| 63 | -y+5/8,-x+7/8,z,-1 | { m'110 | 5/8 7/8 0 } | |
| 64 | y+3/8,x+5/8,z,-1 | { m'1-10 | 3/8 5/8 0 } | |
| (1/2,0,1/2) + set click here to show and hide | |||
| 65 | x+1/2,y,z+1/2,+1 | { 1 | 1/2 0 1/2 } | |
| 66 | -x+3/4,-y+1/4,z+1/2,+1 | { 2001 | 3/4 1/4 1/2 } | |
| 67 | y+5/8,x+7/8,-z+1/2,+1 | { 2110 | 5/8 7/8 1/2 } | |
| 68 | -y+7/8,-x+1/8,-z+1/2,+1 | { 21-10 | 7/8 1/8 1/2 } | |
| 69 | -x+3/4,-y+1/4,-z,+1 | { -1 | 3/4 1/4 0 } | |
| 70 | x+1/2,y,-z,+1 | { m001 | 1/2 0 0 } | |
| 71 | -y+7/8,-x+1/8,z,+1 | { m110 | 7/8 1/8 0 } | |
| 72 | y+5/8,x+7/8,z,+1 | { m1-10 | 5/8 7/8 0 } | |
| (1/2,0,0)' + set click here to show and hide | |||
| 73 | x+1/2,y,z,-1 | { 1' | 1/2 0 0 } | |
| 74 | -x+3/4,-y+1/4,z,-1 | { 2'001 | 3/4 1/4 0 } | |
| 75 | y+5/8,x+7/8,-z,-1 | { 2'110 | 5/8 7/8 0 } | |
| 76 | -y+7/8,-x+1/8,-z,-1 | { 2'1-10 | 7/8 1/8 0 } | |
| 77 | -x+3/4,-y+1/4,-z+1/2,-1 | { -1' | 3/4 1/4 1/2 } | |
| 78 | x+1/2,y,-z+1/2,-1 | { m'001 | 1/2 0 1/2 } | |
| 79 | -y+7/8,-x+1/8,z+1/2,-1 | { m'110 | 7/8 1/8 1/2 } | |
| 80 | y+5/8,x+7/8,z+1/2,-1 | { m'1-10 | 5/8 7/8 1/2 } | |
| (1/2,1/2,0) + set click here to show and hide | |||
| 81 | x+1/2,y+1/2,z,+1 | { 1 | 1/2 1/2 0 } | |
| 82 | -x+3/4,-y+3/4,z,+1 | { 2001 | 3/4 3/4 0 } | |
| 83 | y+5/8,x+3/8,-z,+1 | { 2110 | 5/8 3/8 0 } | |
| 84 | -y+7/8,-x+5/8,-z,+1 | { 21-10 | 7/8 5/8 0 } | |
| 85 | -x+3/4,-y+3/4,-z+1/2,+1 | { -1 | 3/4 3/4 1/2 } | |
| 86 | x+1/2,y+1/2,-z+1/2,+1 | { m001 | 1/2 1/2 1/2 } | |
| 87 | -y+7/8,-x+5/8,z+1/2,+1 | { m110 | 7/8 5/8 1/2 } | |
| 88 | y+5/8,x+3/8,z+1/2,+1 | { m1-10 | 5/8 3/8 1/2 } | |
| (1/2,1/2,1/2)' + set click here to show and hide | |||
| 89 | x+1/2,y+1/2,z+1/2,-1 | { 1' | 1/2 1/2 1/2 } | |
| 90 | -x+3/4,-y+3/4,z+1/2,-1 | { 2'001 | 3/4 3/4 1/2 } | |
| 91 | y+5/8,x+3/8,-z+1/2,-1 | { 2'110 | 5/8 3/8 1/2 } | |
| 92 | -y+7/8,-x+5/8,-z+1/2,-1 | { 2'1-10 | 7/8 5/8 1/2 } | |
| 93 | -x+3/4,-y+3/4,-z,-1 | { -1' | 3/4 3/4 0 } | |
| 94 | x+1/2,y+1/2,-z,-1 | { m'001 | 1/2 1/2 0 } | |
| 95 | -y+7/8,-x+5/8,z,-1 | { m'110 | 7/8 5/8 0 } | |
| 96 | y+5/8,x+3/8,z,-1 | { m'1-10 | 5/8 3/8 0 } | |
| (3/4,1/4,0) + set click here to show and hide | |||
| 97 | x+3/4,y+1/4,z,+1 | { 1 | 3/4 1/4 0 } | |
| 98 | -x,-y+1/2,z,+1 | { 2001 | 0 1/2 0 } | |
| 99 | y+7/8,x+1/8,-z,+1 | { 2110 | 7/8 1/8 0 } | |
| 100 | -y+1/8,-x+3/8,-z,+1 | { 21-10 | 1/8 3/8 0 } | |
| 101 | -x,-y+1/2,-z+1/2,+1 | { -1 | 0 1/2 1/2 } | |
| 102 | x+3/4,y+1/4,-z+1/2,+1 | { m001 | 3/4 1/4 1/2 } | |
| 103 | -y+1/8,-x+3/8,z+1/2,+1 | { m110 | 1/8 3/8 1/2 } | |
| 104 | y+7/8,x+1/8,z+1/2,+1 | { m1-10 | 7/8 1/8 1/2 } | |
| (3/4,1/4,1/2)' + set click here to show and hide | |||
| 105 | x+3/4,y+1/4,z+1/2,-1 | { 1' | 3/4 1/4 1/2 } | |
| 106 | -x,-y+1/2,z+1/2,-1 | { 2'001 | 0 1/2 1/2 } | |
| 107 | y+7/8,x+1/8,-z+1/2,-1 | { 2'110 | 7/8 1/8 1/2 } | |
| 108 | -y+1/8,-x+3/8,-z+1/2,-1 | { 2'1-10 | 1/8 3/8 1/2 } | |
| 109 | -x,-y+1/2,-z,-1 | { -1' | 0 1/2 0 } | |
| 110 | x+3/4,y+1/4,-z,-1 | { m'001 | 3/4 1/4 0 } | |
| 111 | -y+1/8,-x+3/8,z,-1 | { m'110 | 1/8 3/8 0 } | |
| 112 | y+7/8,x+1/8,z,-1 | { m'1-10 | 7/8 1/8 0 } | |
| (3/4,3/4,1/2) + set click here to show and hide | |||
| 113 | x+3/4,y+3/4,z+1/2,+1 | { 1 | 3/4 3/4 1/2 } | |
| 114 | -x,-y,z+1/2,+1 | { 2001 | 0 0 1/2 } | |
| 115 | y+7/8,x+5/8,-z+1/2,+1 | { 2110 | 7/8 5/8 1/2 } | |
| 116 | -y+1/8,-x+7/8,-z+1/2,+1 | { 21-10 | 1/8 7/8 1/2 } | |
| 117 | -x,-y,-z,+1 | { -1 | 0 } | |
| 118 | x+3/4,y+3/4,-z,+1 | { m001 | 3/4 3/4 0 } | |
| 119 | -y+1/8,-x+7/8,z,+1 | { m110 | 1/8 7/8 0 } | |
| 120 | y+7/8,x+5/8,z,+1 | { m1-10 | 7/8 5/8 0 } | |
| (3/4,3/4,0)' + set click here to show and hide | |||
| 121 | x+3/4,y+3/4,z,-1 | { 1' | 3/4 3/4 0 } | |
| 122 | -x,-y,z,-1 | { 2'001 | 0 } | |
| 123 | y+7/8,x+5/8,-z,-1 | { 2'110 | 7/8 5/8 0 } | |
| 124 | -y+1/8,-x+7/8,-z,-1 | { 2'1-10 | 1/8 7/8 0 } | |
| 125 | -x,-y,-z+1/2,-1 | { -1' | 0 0 1/2 } | |
| 126 | x+3/4,y+3/4,-z+1/2,-1 | { m'001 | 3/4 3/4 1/2 } | |
| 127 | -y+1/8,-x+7/8,z+1/2,-1 | { m'110 | 1/8 7/8 1/2 } | |
| 128 | y+7/8,x+5/8,z+1/2,-1 | { m'1-10 | 7/8 5/8 1/2 } | |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | 1 | |
| 2 | -x,-y,z,+1 | 2001 | |
| 3 | y,x,-z,+1 | 2110 | |
| 4 | -y,-x,-z,+1 | 21-10 | |
| 5 | -x,-y,-z,+1 | -1 | |
| 6 | x,y,-z,+1 | m001 | |
| 7 | -y,-x,z,+1 | m110 | |
| 8 | y,x,z,+1 | m1-10 | |
| 1' + set click here to show and hide | |||
| 9 | x,y,z,-1 | 1' | |
| 10 | -x,-y,z,-1 | 2'001 | |
| 11 | y,x,-z,-1 | 2'110 | |
| 12 | -y,-x,-z,-1 | 2'1-10 | |
| 13 | -x,-y,-z,-1 | -1' | |
| 14 | x,y,-z,-1 | m'001 | |
| 15 | -y,-x,z,-1 | m'110 | |
| 16 | y,x,z,-1 | m'1-10 | |
| Label | Atom type | x | y | z | Occupancy | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tb1_1 | Tb | -0.04371 | 0.83129 | 0.75000 | 1.00000 | 32 | 0,0,mz | 0.0 | 0.0 | -7.55(5) | 7.55 |
| Tb1_2 | Tb | 0.04371 | -0.08129 | 0.75000 | 1.00000 | 32 | 0,0,mz | 0.0 | 0.0 | 7.55(5) | 7.55 |
| Tb1_3 | Tb | 0.33129 | 0.29371 | 0.75000 | 1.00000 | 64 | 0,0,mz | 0.0 | 0.0 | 7.55(5) | 7.55 |
| Label | Atom type | x | y | z | Occupancy | Multiplicity |
|---|---|---|---|---|---|---|
| Ni1_1 | Ni | 0.15538 | 0.03038 | 0.00000 | 0.89000 | 32 |
| Ni1_2 | Ni | 0.34462 | 0.21962 | 0.00000 | 0.89000 | 32 |
| Ni1_3 | Ni | 0.21962 | 0.15538 | 0.00000 | 0.89000 | 64 |
| In1_1 | In | 0.75000 | 0.75000 | 0.00000 | 1.00000 | 32 |
| In1_2 | In | 0.12500 | 0.12500 | 0.00000 | 1.00000 | 32 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Tb1_1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.95629 | 0.83129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 2 | 0.29371 | 0.41871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 3 | 0.95629 | 0.83129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 4 | 0.29371 | 0.41871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.95629 | 0.33129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 6 | 0.29371 | 0.91871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 7 | 0.95629 | 0.33129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 8 | 0.29371 | 0.91871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 9 | 0.20629 | 0.08129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 10 | 0.54371 | 0.66871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 11 | 0.20629 | 0.08129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 12 | 0.54371 | 0.66871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 13 | 0.20629 | 0.58129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 14 | 0.54371 | 0.16871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 15 | 0.20629 | 0.58129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 16 | 0.54371 | 0.16871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 17 | 0.45629 | 0.83129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 18 | 0.79371 | 0.41871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 19 | 0.45629 | 0.83129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 20 | 0.79371 | 0.41871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 21 | 0.45629 | 0.33129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 22 | 0.79371 | 0.91871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 23 | 0.45629 | 0.33129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 24 | 0.79371 | 0.91871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 25 | 0.70629 | 0.08129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 26 | 0.04371 | 0.66871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 27 | 0.70629 | 0.08129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 28 | 0.04371 | 0.66871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 29 | 0.70629 | 0.58129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 30 | 0.04371 | 0.16871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 31 | 0.70629 | 0.58129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 32 | 0.04371 | 0.16871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Tb1_2:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.04371 | 0.91871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 2 | 0.20629 | 0.33129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 3 | 0.04371 | 0.91871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 4 | 0.20629 | 0.33129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.04371 | 0.41871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 6 | 0.20629 | 0.83129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 7 | 0.04371 | 0.41871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 8 | 0.20629 | 0.83129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 9 | 0.29371 | 0.16871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 10 | 0.45629 | 0.58129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 11 | 0.29371 | 0.16871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 12 | 0.45629 | 0.58129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 13 | 0.29371 | 0.66871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 14 | 0.45629 | 0.08129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 15 | 0.29371 | 0.66871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 16 | 0.45629 | 0.08129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 17 | 0.54371 | 0.91871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 18 | 0.70629 | 0.33129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 19 | 0.54371 | 0.91871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 20 | 0.70629 | 0.33129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 21 | 0.54371 | 0.41871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 22 | 0.70629 | 0.83129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 23 | 0.54371 | 0.41871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 24 | 0.70629 | 0.83129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 25 | 0.79371 | 0.16871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 26 | 0.95629 | 0.58129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 27 | 0.79371 | 0.16871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 28 | 0.95629 | 0.58129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 29 | 0.79371 | 0.66871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 30 | 0.95629 | 0.08129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 31 | 0.79371 | 0.66871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 32 | 0.95629 | 0.08129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Tb1_3:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.33129 | 0.29371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 2 | 0.91871 | 0.95629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 3 | 0.41871 | 0.20629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 4 | 0.08129 | 0.79371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 5 | 0.33129 | 0.29371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 6 | 0.91871 | 0.95629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 7 | 0.41871 | 0.20629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 8 | 0.08129 | 0.79371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 9 | 0.33129 | 0.79371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 10 | 0.91871 | 0.45629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 11 | 0.41871 | 0.70629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 12 | 0.08129 | 0.29371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 13 | 0.33129 | 0.79371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 14 | 0.91871 | 0.45629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 15 | 0.41871 | 0.70629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 16 | 0.08129 | 0.29371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 17 | 0.58129 | 0.54371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 18 | 0.16871 | 0.20629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 19 | 0.66871 | 0.45629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 20 | 0.33129 | 0.04371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 21 | 0.58129 | 0.54371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 22 | 0.16871 | 0.20629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 23 | 0.66871 | 0.45629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 24 | 0.33129 | 0.04371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 25 | 0.58129 | 0.04371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 26 | 0.16871 | 0.70629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 27 | 0.66871 | 0.95629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 28 | 0.33129 | 0.54371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 29 | 0.58129 | 0.04371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 30 | 0.16871 | 0.70629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 31 | 0.66871 | 0.95629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 32 | 0.33129 | 0.54371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 33 | 0.83129 | 0.29371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 34 | 0.41871 | 0.95629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 35 | 0.91871 | 0.20629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 36 | 0.58129 | 0.79371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 37 | 0.83129 | 0.29371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 38 | 0.41871 | 0.95629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 39 | 0.91871 | 0.20629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 40 | 0.58129 | 0.79371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 41 | 0.83129 | 0.79371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 42 | 0.41871 | 0.45629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 43 | 0.91871 | 0.70629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 44 | 0.58129 | 0.29371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 45 | 0.83129 | 0.79371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 46 | 0.41871 | 0.45629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 47 | 0.91871 | 0.70629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 48 | 0.58129 | 0.29371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 49 | 0.08129 | 0.54371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 50 | 0.66871 | 0.20629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 51 | 0.16871 | 0.45629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 52 | 0.83129 | 0.04371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 53 | 0.08129 | 0.54371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 54 | 0.66871 | 0.20629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 55 | 0.16871 | 0.45629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 56 | 0.83129 | 0.04371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 57 | 0.08129 | 0.04371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 58 | 0.66871 | 0.70629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 59 | 0.16871 | 0.95629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 60 | 0.83129 | 0.54371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 61 | 0.08129 | 0.04371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 62 | 0.66871 | 0.70629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 63 | 0.16871 | 0.95629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 64 | 0.83129 | 0.54371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
Set of atoms in the unit cell related by symmetry with the atom Ni1_1:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.15538 | 0.03038 | 0.00000 | ||||
| 2 | 0.09462 | 0.21962 | 0.00000 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 3 | 0.15538 | 0.03038 | 0.50000 | ||||
| 4 | 0.09462 | 0.21962 | 0.50000 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.15538 | 0.53038 | 0.50000 | ||||
| 6 | 0.09462 | 0.71962 | 0.50000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 7 | 0.15538 | 0.53038 | 0.00000 | ||||
| 8 | 0.09462 | 0.71962 | 0.00000 | ||||
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 9 | 0.40538 | 0.28038 | 0.50000 | ||||
| 10 | 0.34462 | 0.46962 | 0.50000 | ||||
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 11 | 0.40538 | 0.28038 | 0.00000 | ||||
| 12 | 0.34462 | 0.46962 | 0.00000 | ||||
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 13 | 0.40538 | 0.78038 | 0.00000 | ||||
| 14 | 0.34462 | 0.96962 | 0.00000 | ||||
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 15 | 0.40538 | 0.78038 | 0.50000 | ||||
| 16 | 0.34462 | 0.96962 | 0.50000 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 17 | 0.65538 | 0.03038 | 0.50000 | ||||
| 18 | 0.59462 | 0.21962 | 0.50000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 19 | 0.65538 | 0.03038 | 0.00000 | ||||
| 20 | 0.59462 | 0.21962 | 0.00000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 21 | 0.65538 | 0.53038 | 0.00000 | ||||
| 22 | 0.59462 | 0.71962 | 0.00000 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 23 | 0.65538 | 0.53038 | 0.50000 | ||||
| 24 | 0.59462 | 0.71962 | 0.50000 | ||||
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 25 | 0.90538 | 0.28038 | 0.00000 | ||||
| 26 | 0.84462 | 0.46962 | 0.00000 | ||||
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 27 | 0.90538 | 0.28038 | 0.50000 | ||||
| 28 | 0.84462 | 0.46962 | 0.50000 | ||||
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 29 | 0.90538 | 0.78038 | 0.50000 | ||||
| 30 | 0.84462 | 0.96962 | 0.50000 | ||||
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 31 | 0.90538 | 0.78038 | 0.00000 | ||||
| 32 | 0.84462 | 0.96962 | 0.00000 | ||||
Set of atoms in the unit cell related by symmetry with the atom Ni1_2:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.34462 | 0.21962 | 0.00000 | ||||
| 2 | 0.90538 | 0.03038 | 0.00000 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 3 | 0.34462 | 0.21962 | 0.50000 | ||||
| 4 | 0.90538 | 0.03038 | 0.50000 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.34462 | 0.71962 | 0.50000 | ||||
| 6 | 0.90538 | 0.53038 | 0.50000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 7 | 0.34462 | 0.71962 | 0.00000 | ||||
| 8 | 0.90538 | 0.53038 | 0.00000 | ||||
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 9 | 0.59462 | 0.46962 | 0.50000 | ||||
| 10 | 0.15538 | 0.28038 | 0.50000 | ||||
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 11 | 0.59462 | 0.46962 | 0.00000 | ||||
| 12 | 0.15538 | 0.28038 | 0.00000 | ||||
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 13 | 0.59462 | 0.96962 | 0.00000 | ||||
| 14 | 0.15538 | 0.78038 | 0.00000 | ||||
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 15 | 0.59462 | 0.96962 | 0.50000 | ||||
| 16 | 0.15538 | 0.78038 | 0.50000 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 17 | 0.84462 | 0.21962 | 0.50000 | ||||
| 18 | 0.40538 | 0.03038 | 0.50000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 19 | 0.84462 | 0.21962 | 0.00000 | ||||
| 20 | 0.40538 | 0.03038 | 0.00000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 21 | 0.84462 | 0.71962 | 0.00000 | ||||
| 22 | 0.40538 | 0.53038 | 0.00000 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 23 | 0.84462 | 0.71962 | 0.50000 | ||||
| 24 | 0.40538 | 0.53038 | 0.50000 | ||||
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 25 | 0.09462 | 0.46962 | 0.00000 | ||||
| 26 | 0.65538 | 0.28038 | 0.00000 | ||||
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 27 | 0.09462 | 0.46962 | 0.50000 | ||||
| 28 | 0.65538 | 0.28038 | 0.50000 | ||||
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 29 | 0.09462 | 0.96962 | 0.50000 | ||||
| 30 | 0.65538 | 0.78038 | 0.50000 | ||||
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 31 | 0.09462 | 0.96962 | 0.00000 | ||||
| 32 | 0.65538 | 0.78038 | 0.00000 | ||||
Set of atoms in the unit cell related by symmetry with the atom Ni1_3:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.21962 | 0.15538 | 0.00000 | ||||
| 2 | 0.03038 | 0.09462 | 0.00000 | ||||
| 3 | 0.28038 | 0.09462 | 0.00000 | ||||
| 4 | 0.21962 | 0.90538 | 0.00000 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 5 | 0.21962 | 0.15538 | 0.50000 | ||||
| 6 | 0.03038 | 0.09462 | 0.50000 | ||||
| 7 | 0.28038 | 0.09462 | 0.50000 | ||||
| 8 | 0.21962 | 0.90538 | 0.50000 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 9 | 0.21962 | 0.65538 | 0.50000 | ||||
| 10 | 0.03038 | 0.59462 | 0.50000 | ||||
| 11 | 0.28038 | 0.59462 | 0.50000 | ||||
| 12 | 0.21962 | 0.40538 | 0.50000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 13 | 0.21962 | 0.65538 | 0.00000 | ||||
| 14 | 0.03038 | 0.59462 | 0.00000 | ||||
| 15 | 0.28038 | 0.59462 | 0.00000 | ||||
| 16 | 0.21962 | 0.40538 | 0.00000 | ||||
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 17 | 0.46962 | 0.40538 | 0.50000 | ||||
| 18 | 0.28038 | 0.34462 | 0.50000 | ||||
| 19 | 0.53038 | 0.34462 | 0.50000 | ||||
| 20 | 0.46962 | 0.15538 | 0.50000 | ||||
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 21 | 0.46962 | 0.40538 | 0.00000 | ||||
| 22 | 0.28038 | 0.34462 | 0.00000 | ||||
| 23 | 0.53038 | 0.34462 | 0.00000 | ||||
| 24 | 0.46962 | 0.15538 | 0.00000 | ||||
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 25 | 0.46962 | 0.90538 | 0.00000 | ||||
| 26 | 0.28038 | 0.84462 | 0.00000 | ||||
| 27 | 0.53038 | 0.84462 | 0.00000 | ||||
| 28 | 0.46962 | 0.65538 | 0.00000 | ||||
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 29 | 0.46962 | 0.90538 | 0.50000 | ||||
| 30 | 0.28038 | 0.84462 | 0.50000 | ||||
| 31 | 0.53038 | 0.84462 | 0.50000 | ||||
| 32 | 0.46962 | 0.65538 | 0.50000 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 33 | 0.71962 | 0.15538 | 0.50000 | ||||
| 34 | 0.53038 | 0.09462 | 0.50000 | ||||
| 35 | 0.78038 | 0.09462 | 0.50000 | ||||
| 36 | 0.71962 | 0.90538 | 0.50000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 37 | 0.71962 | 0.15538 | 0.00000 | ||||
| 38 | 0.53038 | 0.09462 | 0.00000 | ||||
| 39 | 0.78038 | 0.09462 | 0.00000 | ||||
| 40 | 0.71962 | 0.90538 | 0.00000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 41 | 0.71962 | 0.65538 | 0.00000 | ||||
| 42 | 0.53038 | 0.59462 | 0.00000 | ||||
| 43 | 0.78038 | 0.59462 | 0.00000 | ||||
| 44 | 0.71962 | 0.40538 | 0.00000 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 45 | 0.71962 | 0.65538 | 0.50000 | ||||
| 46 | 0.53038 | 0.59462 | 0.50000 | ||||
| 47 | 0.78038 | 0.59462 | 0.50000 | ||||
| 48 | 0.71962 | 0.40538 | 0.50000 | ||||
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 49 | 0.96962 | 0.40538 | 0.00000 | ||||
| 50 | 0.78038 | 0.34462 | 0.00000 | ||||
| 51 | 0.03038 | 0.34462 | 0.00000 | ||||
| 52 | 0.96962 | 0.15538 | 0.00000 | ||||
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 53 | 0.96962 | 0.40538 | 0.50000 | ||||
| 54 | 0.78038 | 0.34462 | 0.50000 | ||||
| 55 | 0.03038 | 0.34462 | 0.50000 | ||||
| 56 | 0.96962 | 0.15538 | 0.50000 | ||||
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 57 | 0.96962 | 0.90538 | 0.50000 | ||||
| 58 | 0.78038 | 0.84462 | 0.50000 | ||||
| 59 | 0.03038 | 0.84462 | 0.50000 | ||||
| 60 | 0.96962 | 0.65538 | 0.50000 | ||||
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 61 | 0.96962 | 0.90538 | 0.00000 | ||||
| 62 | 0.78038 | 0.84462 | 0.00000 | ||||
| 63 | 0.03038 | 0.84462 | 0.00000 | ||||
| 64 | 0.96962 | 0.65538 | 0.00000 | ||||
Set of atoms in the unit cell related by symmetry with the atom In1_1:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.75000 | 0.75000 | 0.00000 | ||||
| 2 | 0.87500 | 0.62500 | 0.00000 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 3 | 0.75000 | 0.75000 | 0.50000 | ||||
| 4 | 0.87500 | 0.62500 | 0.50000 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.75000 | 0.25000 | 0.50000 | ||||
| 6 | 0.87500 | 0.12500 | 0.50000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 7 | 0.75000 | 0.25000 | 0.00000 | ||||
| 8 | 0.87500 | 0.12500 | 0.00000 | ||||
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 9 | 0.00000 | 0.00000 | 0.50000 | ||||
| 10 | 0.12500 | 0.87500 | 0.50000 | ||||
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 11 | 0.00000 | 0.00000 | 0.00000 | ||||
| 12 | 0.12500 | 0.87500 | 0.00000 | ||||
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 13 | 0.00000 | 0.50000 | 0.00000 | ||||
| 14 | 0.12500 | 0.37500 | 0.00000 | ||||
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 15 | 0.00000 | 0.50000 | 0.50000 | ||||
| 16 | 0.12500 | 0.37500 | 0.50000 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 17 | 0.25000 | 0.75000 | 0.50000 | ||||
| 18 | 0.37500 | 0.62500 | 0.50000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 19 | 0.25000 | 0.75000 | 0.00000 | ||||
| 20 | 0.37500 | 0.62500 | 0.00000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 21 | 0.25000 | 0.25000 | 0.00000 | ||||
| 22 | 0.37500 | 0.12500 | 0.00000 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 23 | 0.25000 | 0.25000 | 0.50000 | ||||
| 24 | 0.37500 | 0.12500 | 0.50000 | ||||
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 25 | 0.50000 | 0.00000 | 0.00000 | ||||
| 26 | 0.62500 | 0.87500 | 0.00000 | ||||
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 27 | 0.50000 | 0.00000 | 0.50000 | ||||
| 28 | 0.62500 | 0.87500 | 0.50000 | ||||
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 29 | 0.50000 | 0.50000 | 0.50000 | ||||
| 30 | 0.62500 | 0.37500 | 0.50000 | ||||
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 31 | 0.50000 | 0.50000 | 0.00000 | ||||
| 32 | 0.62500 | 0.37500 | 0.00000 | ||||
Set of atoms in the unit cell related by symmetry with the atom In1_2:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.12500 | 0.12500 | 0.00000 | ||||
| 2 | 0.25000 | 0.00000 | 0.00000 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 3 | 0.12500 | 0.12500 | 0.50000 | ||||
| 4 | 0.25000 | 0.00000 | 0.50000 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.12500 | 0.62500 | 0.50000 | ||||
| 6 | 0.25000 | 0.50000 | 0.50000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 7 | 0.12500 | 0.62500 | 0.00000 | ||||
| 8 | 0.25000 | 0.50000 | 0.00000 | ||||
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 9 | 0.37500 | 0.37500 | 0.50000 | ||||
| 10 | 0.50000 | 0.25000 | 0.50000 | ||||
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 11 | 0.37500 | 0.37500 | 0.00000 | ||||
| 12 | 0.50000 | 0.25000 | 0.00000 | ||||
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 13 | 0.37500 | 0.87500 | 0.00000 | ||||
| 14 | 0.50000 | 0.75000 | 0.00000 | ||||
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 15 | 0.37500 | 0.87500 | 0.50000 | ||||
| 16 | 0.50000 | 0.75000 | 0.50000 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 17 | 0.62500 | 0.12500 | 0.50000 | ||||
| 18 | 0.75000 | 0.00000 | 0.50000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 19 | 0.62500 | 0.12500 | 0.00000 | ||||
| 20 | 0.75000 | 0.00000 | 0.00000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 21 | 0.62500 | 0.62500 | 0.00000 | ||||
| 22 | 0.75000 | 0.50000 | 0.00000 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 23 | 0.62500 | 0.62500 | 0.50000 | ||||
| 24 | 0.75000 | 0.50000 | 0.50000 | ||||
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 25 | 0.87500 | 0.37500 | 0.00000 | ||||
| 26 | 0.00000 | 0.25000 | 0.00000 | ||||
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 27 | 0.87500 | 0.37500 | 0.50000 | ||||
| 28 | 0.00000 | 0.25000 | 0.50000 | ||||
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 29 | 0.87500 | 0.87500 | 0.50000 | ||||
| 30 | 0.00000 | 0.75000 | 0.50000 | ||||
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 31 | 0.87500 | 0.87500 | 0.00000 | ||||
| 32 | 0.00000 | 0.75000 | 0.00000 | ||||
| Label | Atom type | x | y | z | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|
| Tb1_1 | Tb | -0.04371 | 0.83129 | 0.75000 | 32 | 0,0,mz | 0.0 | 0.0 | -7.55(5) | 7.55 |
| Tb1_2 | Tb | 0.04371 | -0.08129 | 0.75000 | 32 | 0,0,mz | 0.0 | 0.0 | 7.55(5) | 7.55 |
| Tb1_3 | Tb | 0.33129 | 0.29371 | 0.75000 | 64 | 0,0,mz | 0.0 | 0.0 | 7.55(5) | 7.55 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Tb1_1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.95629 | 0.83129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 2 | 0.29371 | 0.41871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 3 | 0.95629 | 0.83129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 4 | 0.29371 | 0.41871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.95629 | 0.33129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 6 | 0.29371 | 0.91871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 7 | 0.95629 | 0.33129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 8 | 0.29371 | 0.91871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 9 | 0.20629 | 0.08129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 10 | 0.54371 | 0.66871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 11 | 0.20629 | 0.08129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 12 | 0.54371 | 0.66871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 13 | 0.20629 | 0.58129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 14 | 0.54371 | 0.16871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 15 | 0.20629 | 0.58129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 16 | 0.54371 | 0.16871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 17 | 0.45629 | 0.83129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 18 | 0.79371 | 0.41871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 19 | 0.45629 | 0.83129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 20 | 0.79371 | 0.41871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 21 | 0.45629 | 0.33129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 22 | 0.79371 | 0.91871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 23 | 0.45629 | 0.33129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 24 | 0.79371 | 0.91871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 25 | 0.70629 | 0.08129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 26 | 0.04371 | 0.66871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 27 | 0.70629 | 0.08129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 28 | 0.04371 | 0.66871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 29 | 0.70629 | 0.58129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| 30 | 0.04371 | 0.16871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 31 | 0.70629 | 0.58129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
| 32 | 0.04371 | 0.16871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | 7.55000 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Tb1_2:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.04371 | 0.91871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 2 | 0.20629 | 0.33129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 3 | 0.04371 | 0.91871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 4 | 0.20629 | 0.33129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.04371 | 0.41871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 6 | 0.20629 | 0.83129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 7 | 0.04371 | 0.41871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 8 | 0.20629 | 0.83129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 9 | 0.29371 | 0.16871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 10 | 0.45629 | 0.58129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 11 | 0.29371 | 0.16871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 12 | 0.45629 | 0.58129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 13 | 0.29371 | 0.66871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 14 | 0.45629 | 0.08129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 15 | 0.29371 | 0.66871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 16 | 0.45629 | 0.08129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 17 | 0.54371 | 0.91871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 18 | 0.70629 | 0.33129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 19 | 0.54371 | 0.91871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 20 | 0.70629 | 0.33129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 21 | 0.54371 | 0.41871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 22 | 0.70629 | 0.83129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 23 | 0.54371 | 0.41871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 24 | 0.70629 | 0.83129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 25 | 0.79371 | 0.16871 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 26 | 0.95629 | 0.58129 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 27 | 0.79371 | 0.16871 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 28 | 0.95629 | 0.58129 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 29 | 0.79371 | 0.66871 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 30 | 0.95629 | 0.08129 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 31 | 0.79371 | 0.66871 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 32 | 0.95629 | 0.08129 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Tb1_3:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.33129 | 0.29371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 2 | 0.91871 | 0.95629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 3 | 0.41871 | 0.20629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 4 | 0.08129 | 0.79371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 5 | 0.33129 | 0.29371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 6 | 0.91871 | 0.95629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 7 | 0.41871 | 0.20629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 8 | 0.08129 | 0.79371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 9 | 0.33129 | 0.79371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 10 | 0.91871 | 0.45629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 11 | 0.41871 | 0.70629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 12 | 0.08129 | 0.29371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 13 | 0.33129 | 0.79371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 14 | 0.91871 | 0.45629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 15 | 0.41871 | 0.70629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 16 | 0.08129 | 0.29371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,1/4,1/2) + set click here to show and hide | |||||||
| 17 | 0.58129 | 0.54371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 18 | 0.16871 | 0.20629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 19 | 0.66871 | 0.45629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 20 | 0.33129 | 0.04371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 21 | 0.58129 | 0.54371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 22 | 0.16871 | 0.20629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 23 | 0.66871 | 0.45629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 24 | 0.33129 | 0.04371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 25 | 0.58129 | 0.04371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 26 | 0.16871 | 0.70629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 27 | 0.66871 | 0.95629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 28 | 0.33129 | 0.54371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/4,3/4,1/2)' + set click here to show and hide | |||||||
| 29 | 0.58129 | 0.04371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 30 | 0.16871 | 0.70629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 31 | 0.66871 | 0.95629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 32 | 0.33129 | 0.54371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 33 | 0.83129 | 0.29371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 34 | 0.41871 | 0.95629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 35 | 0.91871 | 0.20629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 36 | 0.58129 | 0.79371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 37 | 0.83129 | 0.29371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 38 | 0.41871 | 0.95629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 39 | 0.91871 | 0.20629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 40 | 0.58129 | 0.79371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 41 | 0.83129 | 0.79371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 42 | 0.41871 | 0.45629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 43 | 0.91871 | 0.70629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 44 | 0.58129 | 0.29371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 45 | 0.83129 | 0.79371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 46 | 0.41871 | 0.45629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 47 | 0.91871 | 0.70629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 48 | 0.58129 | 0.29371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 49 | 0.08129 | 0.54371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 50 | 0.66871 | 0.20629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 51 | 0.16871 | 0.45629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 52 | 0.83129 | 0.04371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,1/4,1/2)' + set click here to show and hide | |||||||
| 53 | 0.08129 | 0.54371 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 54 | 0.66871 | 0.20629 | 0.25000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 55 | 0.16871 | 0.45629 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 56 | 0.83129 | 0.04371 | 0.75000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| (3/4,3/4,1/2) + set click here to show and hide | |||||||
| 57 | 0.08129 | 0.04371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 58 | 0.66871 | 0.70629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 59 | 0.16871 | 0.95629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 60 | 0.83129 | 0.54371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 61 | 0.08129 | 0.04371 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 62 | 0.66871 | 0.70629 | 0.75000 | 0,0,-mz | 0.00000 | 0.00000 | -7.55000 |
| 63 | 0.16871 | 0.95629 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| 64 | 0.83129 | 0.54371 | 0.25000 | 0,0,mz | 0.00000 | 0.00000 | 7.55000 |
| label | dim. full irrep | dim. small irrep | direction | action | number of modes |
| mS4 | 4 | 2 | special | primary | 3 |
|
Bilbao Crystallographic Server https://www.cryst.ehu.es |
For comments, please mail to administrador.bcs@ehu.eus |
