MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	y+1/2,x+1/2,-z+1/2,+1	{ 2₁₁₀ \| 1/2 1/2 1/2 }
3	y+3/4,x+3/4,z,+1	{ m_1-10 \| 3/4 3/4 0 }
4	x+1/4,y+1/4,-z+1/2,+1	{ m₀₀₁ \| 1/4 1/4 1/2 }
(0,1/2,1/2) + set click here to show and hide
5	x,y+1/2,z+1/2,+1	{ 1 \| 0 1/2 1/2 }
6	y+1/2,x,-z,+1	{ 2₁₁₀ \| 1/2 0 0 }
7	y+3/4,x+1/4,z+1/2,+1	{ m_1-10 \| 3/4 1/4 1/2 }
8	x+1/4,y+3/4,-z,+1	{ m₀₀₁ \| 1/4 3/4 0 }
(1/4,1/4,1/2) + set click here to show and hide
9	x+1/4,y+1/4,z+1/2,+1	{ 1 \| 1/4 1/4 1/2 }
10	y+3/4,x+3/4,-z,+1	{ 2₁₁₀ \| 3/4 3/4 0 }
11	y,x,z+1/2,+1	{ m_1-10 \| 0 0 1/2 }
12	x+1/2,y+1/2,-z,+1	{ m₀₀₁ \| 1/2 1/2 0 }
(1/4,3/4,0) + set click here to show and hide
13	x+1/4,y+3/4,z,+1	{ 1 \| 1/4 3/4 0 }
14	y+3/4,x+1/4,-z+1/2,+1	{ 2₁₁₀ \| 3/4 1/4 1/2 }
15	y,x+1/2,z,+1	{ m_1-10 \| 0 1/2 0 }
16	x+1/2,y,-z+1/2,+1	{ m₀₀₁ \| 1/2 0 1/2 }
(1/2,0,1/2) + set click here to show and hide
17	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
18	y,x+1/2,-z,+1	{ 2₁₁₀ \| 0 1/2 0 }
19	y+1/4,x+3/4,z+1/2,+1	{ m_1-10 \| 1/4 3/4 1/2 }
20	x+3/4,y+1/4,-z,+1	{ m₀₀₁ \| 3/4 1/4 0 }
(1/2,1/2,0) + set click here to show and hide
21	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
22	y,x,-z+1/2,+1	{ 2₁₁₀ \| 0 0 1/2 }
23	y+1/4,x+1/4,z,+1	{ m_1-10 \| 1/4 1/4 0 }
24	x+3/4,y+3/4,-z+1/2,+1	{ m₀₀₁ \| 3/4 3/4 1/2 }
(3/4,1/4,0) + set click here to show and hide
25	x+3/4,y+1/4,z,+1	{ 1 \| 3/4 1/4 0 }
26	y+1/4,x+3/4,-z+1/2,+1	{ 2₁₁₀ \| 1/4 3/4 1/2 }
27	y+1/2,x,z,+1	{ m_1-10 \| 1/2 0 0 }
28	x,y+1/2,-z+1/2,+1	{ m₀₀₁ \| 0 1/2 1/2 }
(3/4,3/4,1/2) + set click here to show and hide
29	x+3/4,y+3/4,z+1/2,+1	{ 1 \| 3/4 3/4 1/2 }
30	y+1/4,x+1/4,-z,+1	{ 2₁₁₀ \| 1/4 1/4 0 }
31	y+1/2,x+1/2,z+1/2,+1	{ m_1-10 \| 1/2 1/2 1/2 }
32	x,y,-z,+1	{ m₀₀₁ \| 0 }
(0,0,1/2)' + set click here to show and hide
33	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
34	y+1/2,x+1/2,-z,-1	{ 2'₁₁₀ \| 1/2 1/2 0 }
35	y+3/4,x+3/4,z+1/2,-1	{ m'_1-10 \| 3/4 3/4 1/2 }
36	x+1/4,y+1/4,-z,-1	{ m'₀₀₁ \| 1/4 1/4 0 }
(0,1/2,0)' + set click here to show and hide
37	x,y+1/2,z,-1	{ 1' \| 0 1/2 0 }
38	y+1/2,x,-z+1/2,-1	{ 2'₁₁₀ \| 1/2 0 1/2 }
39	y+3/4,x+1/4,z,-1	{ m'_1-10 \| 3/4 1/4 0 }
40	x+1/4,y+3/4,-z+1/2,-1	{ m'₀₀₁ \| 1/4 3/4 1/2 }
(1/4,1/4,0)' + set click here to show and hide
41	x+1/4,y+1/4,z,-1	{ 1' \| 1/4 1/4 0 }
42	y+3/4,x+3/4,-z+1/2,-1	{ 2'₁₁₀ \| 3/4 3/4 1/2 }
43	y,x,z,-1	{ m'_1-10 \| 0 }
44	x+1/2,y+1/2,-z+1/2,-1	{ m'₀₀₁ \| 1/2 1/2 1/2 }
(1/4,3/4,1/2)' + set click here to show and hide
45	x+1/4,y+3/4,z+1/2,-1	{ 1' \| 1/4 3/4 1/2 }
46	y+3/4,x+1/4,-z,-1	{ 2'₁₁₀ \| 3/4 1/4 0 }
47	y,x+1/2,z+1/2,-1	{ m'_1-10 \| 0 1/2 1/2 }
48	x+1/2,y,-z,-1	{ m'₀₀₁ \| 1/2 0 0 }
(1/2,0,0)' + set click here to show and hide
49	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
50	y,x+1/2,-z+1/2,-1	{ 2'₁₁₀ \| 0 1/2 1/2 }
51	y+1/4,x+3/4,z,-1	{ m'_1-10 \| 1/4 3/4 0 }
52	x+3/4,y+1/4,-z+1/2,-1	{ m'₀₀₁ \| 3/4 1/4 1/2 }
(1/2,1/2,1/2)' + set click here to show and hide
53	x+1/2,y+1/2,z+1/2,-1	{ 1' \| 1/2 1/2 1/2 }
54	y,x,-z,-1	{ 2'₁₁₀ \| 0 }
55	y+1/4,x+1/4,z+1/2,-1	{ m'_1-10 \| 1/4 1/4 1/2 }
56	x+3/4,y+3/4,-z,-1	{ m'₀₀₁ \| 3/4 3/4 0 }
(3/4,1/4,1/2)' + set click here to show and hide
57	x+3/4,y+1/4,z+1/2,-1	{ 1' \| 3/4 1/4 1/2 }
58	y+1/4,x+3/4,-z,-1	{ 2'₁₁₀ \| 1/4 3/4 0 }
59	y+1/2,x,z+1/2,-1	{ m'_1-10 \| 1/2 0 1/2 }
60	x,y+1/2,-z,-1	{ m'₀₀₁ \| 0 1/2 0 }
(3/4,3/4,0)' + set click here to show and hide
61	x+3/4,y+3/4,z,-1	{ 1' \| 3/4 3/4 0 }
62	y+1/4,x+1/4,-z+1/2,-1	{ 2'₁₁₀ \| 1/4 1/4 1/2 }
63	y+1/2,x+1/2,z,-1	{ m'_1-10 \| 1/2 1/2 0 }
64	x,y,-z+1/2,-1	{ m'₀₀₁ \| 0 0 1/2 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	y,x,-z,+1	2₁₁₀
3	y,x,z,+1	m_1-10
4	x,y,-z,+1	m₀₀₁
1' + set click here to show and hide
5	x,y,z,-1	1'
6	y,x,-z,-1	2'₁₁₀
7	y,x,z,-1	m'_1-10
8	x,y,-z,-1	m'₀₀₁

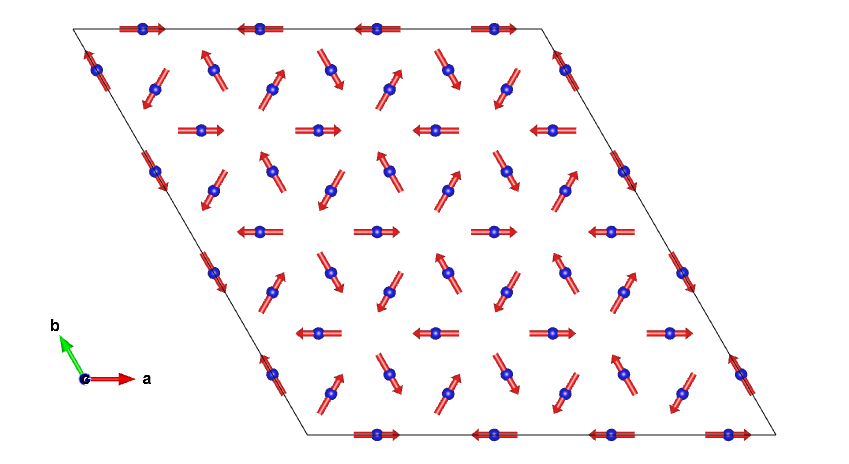

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
Tm1_1	Tm	0.14884	0.00000	0.25000	32	m_x,m_y,0	5.59(9)	0.0	5.59
Tm1_2	Tm	0.85116	0.85116	0.25000	16	m_x,m_x,0	-5.59	-5.59	5.59
Tm1_3	Tm	0.14884	0.25000	0.25000	32	m_x,m_y,0	-5.59	0.0	5.59
Tm1_4	Tm	0.85116	0.10116	0.25000	16	m_x,m_x,0	-5.59	-5.59	5.59

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Pt1_1	Pt	0.00000	0.00000	0.25000	16
Pt1_2	Pt	0.00000	0.25000	0.25000	16
Pt2_1	Pt	0.08332	0.16667	0.00000	32
Pt2_2	Pt	0.08333	0.41667	0.00000	32
In1_1	In	0.06570	0.00000	0.00000	32
In1_2	In	0.93430	0.93430	0.00000	16
In1_3	In	0.06570	0.25000	0.00000	32
In1_4	In	0.93430	0.18430	0.00000	16

[Show all atoms in unit cell and their moment relations]

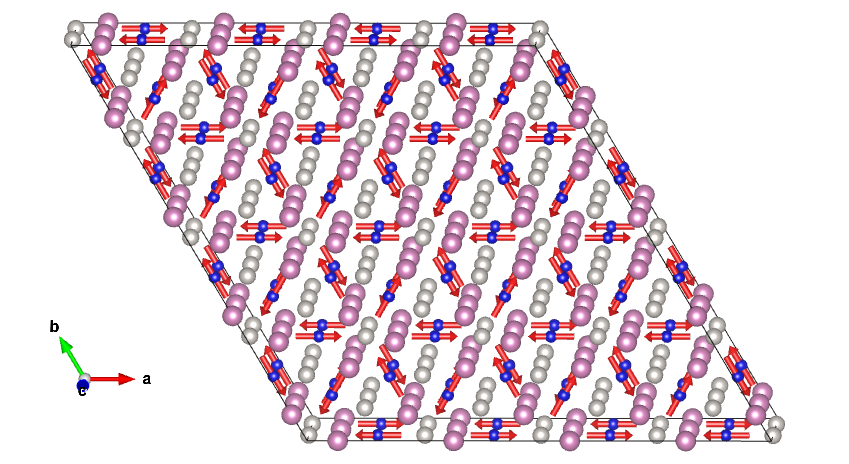

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm1_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.14884	0.00000	0.25000	m_x,m_y,0	5.59000	0.00000	0.00000
2	0.50000	0.64884	0.25000	m_y,m_x,0	0.00000	5.59000	0.00000
(0,1/2,1/2) + set click here to show and hide
3	0.14884	0.50000	0.75000	m_x,m_y,0	5.59000	0.00000	0.00000
4	0.50000	0.14884	0.75000	m_y,m_x,0	0.00000	5.59000	0.00000
(1/4,1/4,1/2) + set click here to show and hide
5	0.39884	0.25000	0.75000	m_x,m_y,0	5.59000	0.00000	0.00000
6	0.75000	0.89884	0.75000	m_y,m_x,0	0.00000	5.59000	0.00000
(1/4,3/4,0) + set click here to show and hide
7	0.39884	0.75000	0.25000	m_x,m_y,0	5.59000	0.00000	0.00000
8	0.75000	0.39884	0.25000	m_y,m_x,0	0.00000	5.59000	0.00000
(1/2,0,1/2) + set click here to show and hide
9	0.64884	0.00000	0.75000	m_x,m_y,0	5.59000	0.00000	0.00000
10	0.00000	0.64884	0.75000	m_y,m_x,0	0.00000	5.59000	0.00000
(1/2,1/2,0) + set click here to show and hide
11	0.64884	0.50000	0.25000	m_x,m_y,0	5.59000	0.00000	0.00000
12	0.00000	0.14884	0.25000	m_y,m_x,0	0.00000	5.59000	0.00000
(3/4,1/4,0) + set click here to show and hide
13	0.89884	0.25000	0.25000	m_x,m_y,0	5.59000	0.00000	0.00000
14	0.25000	0.89884	0.25000	m_y,m_x,0	0.00000	5.59000	0.00000
(3/4,3/4,1/2) + set click here to show and hide
15	0.89884	0.75000	0.75000	m_x,m_y,0	5.59000	0.00000	0.00000
16	0.25000	0.39884	0.75000	m_y,m_x,0	0.00000	5.59000	0.00000
(0,0,1/2)' + set click here to show and hide
17	0.14884	0.00000	0.75000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
18	0.50000	0.64884	0.75000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(0,1/2,0)' + set click here to show and hide
19	0.14884	0.50000	0.25000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
20	0.50000	0.14884	0.25000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(1/4,1/4,0)' + set click here to show and hide
21	0.39884	0.25000	0.25000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
22	0.75000	0.89884	0.25000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
23	0.39884	0.75000	0.75000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
24	0.75000	0.39884	0.75000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(1/2,0,0)' + set click here to show and hide
25	0.64884	0.00000	0.25000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
26	0.00000	0.64884	0.25000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
27	0.64884	0.50000	0.75000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
28	0.00000	0.14884	0.75000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
29	0.89884	0.25000	0.75000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
30	0.25000	0.89884	0.75000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(3/4,3/4,0)' + set click here to show and hide
31	0.89884	0.75000	0.25000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
32	0.25000	0.39884	0.25000	-m_y,-m_x,0	0.00000	-5.59000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm1_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.85116	0.85116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.85116	0.35116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/4,1/4,1/2) + set click here to show and hide
3	0.10116	0.10116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/4,3/4,0) + set click here to show and hide
4	0.10116	0.60116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/2,0,1/2) + set click here to show and hide
5	0.35116	0.85116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/2,1/2,0) + set click here to show and hide
6	0.35116	0.35116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(3/4,1/4,0) + set click here to show and hide
7	0.60116	0.10116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(3/4,3/4,1/2) + set click here to show and hide
8	0.60116	0.60116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(0,0,1/2)' + set click here to show and hide
9	0.85116	0.85116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(0,1/2,0)' + set click here to show and hide
10	0.85116	0.35116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/4,1/4,0)' + set click here to show and hide
11	0.10116	0.10116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
12	0.10116	0.60116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/2,0,0)' + set click here to show and hide
13	0.35116	0.85116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
14	0.35116	0.35116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
15	0.60116	0.10116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(3/4,3/4,0)' + set click here to show and hide
16	0.60116	0.60116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm1_3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.14884	0.25000	0.25000	m_x,m_y,0	-5.59000	0.00000	0.00000
2	0.75000	0.64884	0.25000	m_y,m_x,0	0.00000	-5.59000	0.00000
(0,1/2,1/2) + set click here to show and hide
3	0.14884	0.75000	0.75000	m_x,m_y,0	-5.59000	0.00000	0.00000
4	0.75000	0.14884	0.75000	m_y,m_x,0	0.00000	-5.59000	0.00000
(1/4,1/4,1/2) + set click here to show and hide
5	0.39884	0.50000	0.75000	m_x,m_y,0	-5.59000	0.00000	0.00000
6	0.00000	0.89884	0.75000	m_y,m_x,0	0.00000	-5.59000	0.00000
(1/4,3/4,0) + set click here to show and hide
7	0.39884	0.00000	0.25000	m_x,m_y,0	-5.59000	0.00000	0.00000
8	0.00000	0.39884	0.25000	m_y,m_x,0	0.00000	-5.59000	0.00000
(1/2,0,1/2) + set click here to show and hide
9	0.64884	0.25000	0.75000	m_x,m_y,0	-5.59000	0.00000	0.00000
10	0.25000	0.64884	0.75000	m_y,m_x,0	0.00000	-5.59000	0.00000
(1/2,1/2,0) + set click here to show and hide
11	0.64884	0.75000	0.25000	m_x,m_y,0	-5.59000	0.00000	0.00000
12	0.25000	0.14884	0.25000	m_y,m_x,0	0.00000	-5.59000	0.00000
(3/4,1/4,0) + set click here to show and hide
13	0.89884	0.50000	0.25000	m_x,m_y,0	-5.59000	0.00000	0.00000
14	0.50000	0.89884	0.25000	m_y,m_x,0	0.00000	-5.59000	0.00000
(3/4,3/4,1/2) + set click here to show and hide
15	0.89884	0.00000	0.75000	m_x,m_y,0	-5.59000	0.00000	0.00000
16	0.50000	0.39884	0.75000	m_y,m_x,0	0.00000	-5.59000	0.00000
(0,0,1/2)' + set click here to show and hide
17	0.14884	0.25000	0.75000	-m_x,-m_y,0	5.59000	0.00000	0.00000
18	0.75000	0.64884	0.75000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(0,1/2,0)' + set click here to show and hide
19	0.14884	0.75000	0.25000	-m_x,-m_y,0	5.59000	0.00000	0.00000
20	0.75000	0.14884	0.25000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(1/4,1/4,0)' + set click here to show and hide
21	0.39884	0.50000	0.25000	-m_x,-m_y,0	5.59000	0.00000	0.00000
22	0.00000	0.89884	0.25000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
23	0.39884	0.00000	0.75000	-m_x,-m_y,0	5.59000	0.00000	0.00000
24	0.00000	0.39884	0.75000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(1/2,0,0)' + set click here to show and hide
25	0.64884	0.25000	0.25000	-m_x,-m_y,0	5.59000	0.00000	0.00000
26	0.25000	0.64884	0.25000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
27	0.64884	0.75000	0.75000	-m_x,-m_y,0	5.59000	0.00000	0.00000
28	0.25000	0.14884	0.75000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
29	0.89884	0.50000	0.75000	-m_x,-m_y,0	5.59000	0.00000	0.00000
30	0.50000	0.89884	0.75000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(3/4,3/4,0)' + set click here to show and hide
31	0.89884	0.00000	0.25000	-m_x,-m_y,0	5.59000	0.00000	0.00000
32	0.50000	0.39884	0.25000	-m_y,-m_x,0	0.00000	5.59000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm1_4:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.85116	0.10116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.85116	0.60116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/4,1/4,1/2) + set click here to show and hide
3	0.10116	0.35116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/4,3/4,0) + set click here to show and hide
4	0.10116	0.85116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/2,0,1/2) + set click here to show and hide
5	0.35116	0.10116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/2,1/2,0) + set click here to show and hide
6	0.35116	0.60116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(3/4,1/4,0) + set click here to show and hide
7	0.60116	0.35116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(3/4,3/4,1/2) + set click here to show and hide
8	0.60116	0.85116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(0,0,1/2)' + set click here to show and hide
9	0.85116	0.10116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(0,1/2,0)' + set click here to show and hide
10	0.85116	0.60116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/4,1/4,0)' + set click here to show and hide
11	0.10116	0.35116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
12	0.10116	0.85116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/2,0,0)' + set click here to show and hide
13	0.35116	0.10116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
14	0.35116	0.60116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
15	0.60116	0.35116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(3/4,3/4,0)' + set click here to show and hide
16	0.60116	0.85116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Pt1_1:

Atom	x	y	z
1	0.00000	0.00000	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.00000	0.50000	0.75000
(1/4,1/4,1/2) + set click here to show and hide
3	0.25000	0.25000	0.75000
(1/4,3/4,0) + set click here to show and hide
4	0.25000	0.75000	0.25000
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.00000	0.75000
(1/2,1/2,0) + set click here to show and hide
6	0.50000	0.50000	0.25000
(3/4,1/4,0) + set click here to show and hide
7	0.75000	0.25000	0.25000
(3/4,3/4,1/2) + set click here to show and hide
8	0.75000	0.75000	0.75000
(0,0,1/2)' + set click here to show and hide
9	0.00000	0.00000	0.75000
(0,1/2,0)' + set click here to show and hide
10	0.00000	0.50000	0.25000
(1/4,1/4,0)' + set click here to show and hide
11	0.25000	0.25000	0.25000
(1/4,3/4,1/2)' + set click here to show and hide
12	0.25000	0.75000	0.75000
(1/2,0,0)' + set click here to show and hide
13	0.50000	0.00000	0.25000
(1/2,1/2,1/2)' + set click here to show and hide
14	0.50000	0.50000	0.75000
(3/4,1/4,1/2)' + set click here to show and hide
15	0.75000	0.25000	0.75000
(3/4,3/4,0)' + set click here to show and hide
16	0.75000	0.75000	0.25000

Set of atoms in the unit cell related by symmetry with the atom Pt1_2:

Atom	x	y	z
1	0.00000	0.25000	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.00000	0.75000	0.75000
(1/4,1/4,1/2) + set click here to show and hide
3	0.25000	0.50000	0.75000
(1/4,3/4,0) + set click here to show and hide
4	0.25000	0.00000	0.25000
(1/2,0,1/2) + set click here to show and hide
5	0.50000	0.25000	0.75000
(1/2,1/2,0) + set click here to show and hide
6	0.50000	0.75000	0.25000
(3/4,1/4,0) + set click here to show and hide
7	0.75000	0.50000	0.25000
(3/4,3/4,1/2) + set click here to show and hide
8	0.75000	0.00000	0.75000
(0,0,1/2)' + set click here to show and hide
9	0.00000	0.25000	0.75000
(0,1/2,0)' + set click here to show and hide
10	0.00000	0.75000	0.25000
(1/4,1/4,0)' + set click here to show and hide
11	0.25000	0.50000	0.25000
(1/4,3/4,1/2)' + set click here to show and hide
12	0.25000	0.00000	0.75000
(1/2,0,0)' + set click here to show and hide
13	0.50000	0.25000	0.25000
(1/2,1/2,1/2)' + set click here to show and hide
14	0.50000	0.75000	0.75000
(3/4,1/4,1/2)' + set click here to show and hide
15	0.75000	0.50000	0.75000
(3/4,3/4,0)' + set click here to show and hide
16	0.75000	0.00000	0.25000

Set of atoms in the unit cell related by symmetry with the atom Pt2_1:

Atom	x	y	z
1	0.08332	0.16667	0.00000
2	0.66667	0.58332	0.50000
(0,1/2,1/2) + set click here to show and hide
3	0.08332	0.66667	0.50000
4	0.66667	0.08332	0.00000
(1/4,1/4,1/2) + set click here to show and hide
5	0.33332	0.41667	0.50000
6	0.91667	0.83332	0.00000
(1/4,3/4,0) + set click here to show and hide
7	0.33332	0.91667	0.00000
8	0.91667	0.33332	0.50000
(1/2,0,1/2) + set click here to show and hide
9	0.58332	0.16667	0.50000
10	0.16667	0.58332	0.00000
(1/2,1/2,0) + set click here to show and hide
11	0.58332	0.66667	0.00000
12	0.16667	0.08332	0.50000
(3/4,1/4,0) + set click here to show and hide
13	0.83332	0.41667	0.00000
14	0.41667	0.83332	0.50000
(3/4,3/4,1/2) + set click here to show and hide
15	0.83332	0.91667	0.50000
16	0.41667	0.33332	0.00000
(0,0,1/2)' + set click here to show and hide
17	0.08332	0.16667	0.50000
18	0.66667	0.58332	0.00000
(0,1/2,0)' + set click here to show and hide
19	0.08332	0.66667	0.00000
20	0.66667	0.08332	0.50000
(1/4,1/4,0)' + set click here to show and hide
21	0.33332	0.41667	0.00000
22	0.91667	0.83332	0.50000
(1/4,3/4,1/2)' + set click here to show and hide
23	0.33332	0.91667	0.50000
24	0.91667	0.33332	0.00000
(1/2,0,0)' + set click here to show and hide
25	0.58332	0.16667	0.00000
26	0.16667	0.58332	0.50000
(1/2,1/2,1/2)' + set click here to show and hide
27	0.58332	0.66667	0.50000
28	0.16667	0.08332	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
29	0.83332	0.41667	0.50000
30	0.41667	0.83332	0.00000
(3/4,3/4,0)' + set click here to show and hide
31	0.83332	0.91667	0.00000
32	0.41667	0.33332	0.50000

Set of atoms in the unit cell related by symmetry with the atom Pt2_2:

Atom	x	y	z
1	0.08333	0.41667	0.00000
2	0.91667	0.58333	0.50000
(0,1/2,1/2) + set click here to show and hide
3	0.08333	0.91667	0.50000
4	0.91667	0.08333	0.00000
(1/4,1/4,1/2) + set click here to show and hide
5	0.33333	0.66667	0.50000
6	0.16667	0.83333	0.00000
(1/4,3/4,0) + set click here to show and hide
7	0.33333	0.16667	0.00000
8	0.16667	0.33333	0.50000
(1/2,0,1/2) + set click here to show and hide
9	0.58333	0.41667	0.50000
10	0.41667	0.58333	0.00000
(1/2,1/2,0) + set click here to show and hide
11	0.58333	0.91667	0.00000
12	0.41667	0.08333	0.50000
(3/4,1/4,0) + set click here to show and hide
13	0.83333	0.66667	0.00000
14	0.66667	0.83333	0.50000
(3/4,3/4,1/2) + set click here to show and hide
15	0.83333	0.16667	0.50000
16	0.66667	0.33333	0.00000
(0,0,1/2)' + set click here to show and hide
17	0.08333	0.41667	0.50000
18	0.91667	0.58333	0.00000
(0,1/2,0)' + set click here to show and hide
19	0.08333	0.91667	0.00000
20	0.91667	0.08333	0.50000
(1/4,1/4,0)' + set click here to show and hide
21	0.33333	0.66667	0.00000
22	0.16667	0.83333	0.50000
(1/4,3/4,1/2)' + set click here to show and hide
23	0.33333	0.16667	0.50000
24	0.16667	0.33333	0.00000
(1/2,0,0)' + set click here to show and hide
25	0.58333	0.41667	0.00000
26	0.41667	0.58333	0.50000
(1/2,1/2,1/2)' + set click here to show and hide
27	0.58333	0.91667	0.50000
28	0.41667	0.08333	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
29	0.83333	0.66667	0.50000
30	0.66667	0.83333	0.00000
(3/4,3/4,0)' + set click here to show and hide
31	0.83333	0.16667	0.00000
32	0.66667	0.33333	0.50000

Set of atoms in the unit cell related by symmetry with the atom In1_1:

Atom	x	y	z
1	0.06570	0.00000	0.00000
2	0.50000	0.56570	0.50000
(0,1/2,1/2) + set click here to show and hide
3	0.06570	0.50000	0.50000
4	0.50000	0.06570	0.00000
(1/4,1/4,1/2) + set click here to show and hide
5	0.31570	0.25000	0.50000
6	0.75000	0.81570	0.00000
(1/4,3/4,0) + set click here to show and hide
7	0.31570	0.75000	0.00000
8	0.75000	0.31570	0.50000
(1/2,0,1/2) + set click here to show and hide
9	0.56570	0.00000	0.50000
10	0.00000	0.56570	0.00000
(1/2,1/2,0) + set click here to show and hide
11	0.56570	0.50000	0.00000
12	0.00000	0.06570	0.50000
(3/4,1/4,0) + set click here to show and hide
13	0.81570	0.25000	0.00000
14	0.25000	0.81570	0.50000
(3/4,3/4,1/2) + set click here to show and hide
15	0.81570	0.75000	0.50000
16	0.25000	0.31570	0.00000
(0,0,1/2)' + set click here to show and hide
17	0.06570	0.00000	0.50000
18	0.50000	0.56570	0.00000
(0,1/2,0)' + set click here to show and hide
19	0.06570	0.50000	0.00000
20	0.50000	0.06570	0.50000
(1/4,1/4,0)' + set click here to show and hide
21	0.31570	0.25000	0.00000
22	0.75000	0.81570	0.50000
(1/4,3/4,1/2)' + set click here to show and hide
23	0.31570	0.75000	0.50000
24	0.75000	0.31570	0.00000
(1/2,0,0)' + set click here to show and hide
25	0.56570	0.00000	0.00000
26	0.00000	0.56570	0.50000
(1/2,1/2,1/2)' + set click here to show and hide
27	0.56570	0.50000	0.50000
28	0.00000	0.06570	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
29	0.81570	0.25000	0.50000
30	0.25000	0.81570	0.00000
(3/4,3/4,0)' + set click here to show and hide
31	0.81570	0.75000	0.00000
32	0.25000	0.31570	0.50000

Set of atoms in the unit cell related by symmetry with the atom In1_2:

Atom	x	y	z
1	0.93430	0.93430	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.93430	0.43430	0.50000
(1/4,1/4,1/2) + set click here to show and hide
3	0.18430	0.18430	0.50000
(1/4,3/4,0) + set click here to show and hide
4	0.18430	0.68430	0.00000
(1/2,0,1/2) + set click here to show and hide
5	0.43430	0.93430	0.50000
(1/2,1/2,0) + set click here to show and hide
6	0.43430	0.43430	0.00000
(3/4,1/4,0) + set click here to show and hide
7	0.68430	0.18430	0.00000
(3/4,3/4,1/2) + set click here to show and hide
8	0.68430	0.68430	0.50000
(0,0,1/2)' + set click here to show and hide
9	0.93430	0.93430	0.50000
(0,1/2,0)' + set click here to show and hide
10	0.93430	0.43430	0.00000
(1/4,1/4,0)' + set click here to show and hide
11	0.18430	0.18430	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
12	0.18430	0.68430	0.50000
(1/2,0,0)' + set click here to show and hide
13	0.43430	0.93430	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
14	0.43430	0.43430	0.50000
(3/4,1/4,1/2)' + set click here to show and hide
15	0.68430	0.18430	0.50000
(3/4,3/4,0)' + set click here to show and hide
16	0.68430	0.68430	0.00000

Set of atoms in the unit cell related by symmetry with the atom In1_3:

Atom	x	y	z
1	0.06570	0.25000	0.00000
2	0.75000	0.56570	0.50000
(0,1/2,1/2) + set click here to show and hide
3	0.06570	0.75000	0.50000
4	0.75000	0.06570	0.00000
(1/4,1/4,1/2) + set click here to show and hide
5	0.31570	0.50000	0.50000
6	0.00000	0.81570	0.00000
(1/4,3/4,0) + set click here to show and hide
7	0.31570	0.00000	0.00000
8	0.00000	0.31570	0.50000
(1/2,0,1/2) + set click here to show and hide
9	0.56570	0.25000	0.50000
10	0.25000	0.56570	0.00000
(1/2,1/2,0) + set click here to show and hide
11	0.56570	0.75000	0.00000
12	0.25000	0.06570	0.50000
(3/4,1/4,0) + set click here to show and hide
13	0.81570	0.50000	0.00000
14	0.50000	0.81570	0.50000
(3/4,3/4,1/2) + set click here to show and hide
15	0.81570	0.00000	0.50000
16	0.50000	0.31570	0.00000
(0,0,1/2)' + set click here to show and hide
17	0.06570	0.25000	0.50000
18	0.75000	0.56570	0.00000
(0,1/2,0)' + set click here to show and hide
19	0.06570	0.75000	0.00000
20	0.75000	0.06570	0.50000
(1/4,1/4,0)' + set click here to show and hide
21	0.31570	0.50000	0.00000
22	0.00000	0.81570	0.50000
(1/4,3/4,1/2)' + set click here to show and hide
23	0.31570	0.00000	0.50000
24	0.00000	0.31570	0.00000
(1/2,0,0)' + set click here to show and hide
25	0.56570	0.25000	0.00000
26	0.25000	0.56570	0.50000
(1/2,1/2,1/2)' + set click here to show and hide
27	0.56570	0.75000	0.50000
28	0.25000	0.06570	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
29	0.81570	0.50000	0.50000
30	0.50000	0.81570	0.00000
(3/4,3/4,0)' + set click here to show and hide
31	0.81570	0.00000	0.00000
32	0.50000	0.31570	0.50000

Set of atoms in the unit cell related by symmetry with the atom In1_4:

Atom	x	y	z
1	0.93430	0.18430	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.93430	0.68430	0.50000
(1/4,1/4,1/2) + set click here to show and hide
3	0.18430	0.43430	0.50000
(1/4,3/4,0) + set click here to show and hide
4	0.18430	0.93430	0.00000
(1/2,0,1/2) + set click here to show and hide
5	0.43430	0.18430	0.50000
(1/2,1/2,0) + set click here to show and hide
6	0.43430	0.68430	0.00000
(3/4,1/4,0) + set click here to show and hide
7	0.68430	0.43430	0.00000
(3/4,3/4,1/2) + set click here to show and hide
8	0.68430	0.93430	0.50000
(0,0,1/2)' + set click here to show and hide
9	0.93430	0.18430	0.50000
(0,1/2,0)' + set click here to show and hide
10	0.93430	0.68430	0.00000
(1/4,1/4,0)' + set click here to show and hide
11	0.18430	0.43430	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
12	0.18430	0.93430	0.50000
(1/2,0,0)' + set click here to show and hide
13	0.43430	0.18430	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
14	0.43430	0.68430	0.50000
(3/4,1/4,1/2)' + set click here to show and hide
15	0.68430	0.43430	0.50000
(3/4,3/4,0)' + set click here to show and hide
16	0.68430	0.93430	0.00000

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
Tm1_1	Tm	0.14884	0.00000	0.25000	32	m_x,m_y,0	5.59(9)	0.0	5.59
Tm1_2	Tm	0.85116	0.85116	0.25000	16	m_x,m_x,0	-5.59	-5.59	5.59
Tm1_3	Tm	0.14884	0.25000	0.25000	32	m_x,m_y,0	-5.59	0.0	5.59
Tm1_4	Tm	0.85116	0.10116	0.25000	16	m_x,m_x,0	-5.59	-5.59	5.59

[Show all magnetic atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm1_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.14884	0.00000	0.25000	m_x,m_y,0	5.59000	0.00000	0.00000
2	0.50000	0.64884	0.25000	m_y,m_x,0	0.00000	5.59000	0.00000
(0,1/2,1/2) + set click here to show and hide
3	0.14884	0.50000	0.75000	m_x,m_y,0	5.59000	0.00000	0.00000
4	0.50000	0.14884	0.75000	m_y,m_x,0	0.00000	5.59000	0.00000
(1/4,1/4,1/2) + set click here to show and hide
5	0.39884	0.25000	0.75000	m_x,m_y,0	5.59000	0.00000	0.00000
6	0.75000	0.89884	0.75000	m_y,m_x,0	0.00000	5.59000	0.00000
(1/4,3/4,0) + set click here to show and hide
7	0.39884	0.75000	0.25000	m_x,m_y,0	5.59000	0.00000	0.00000
8	0.75000	0.39884	0.25000	m_y,m_x,0	0.00000	5.59000	0.00000
(1/2,0,1/2) + set click here to show and hide
9	0.64884	0.00000	0.75000	m_x,m_y,0	5.59000	0.00000	0.00000
10	0.00000	0.64884	0.75000	m_y,m_x,0	0.00000	5.59000	0.00000
(1/2,1/2,0) + set click here to show and hide
11	0.64884	0.50000	0.25000	m_x,m_y,0	5.59000	0.00000	0.00000
12	0.00000	0.14884	0.25000	m_y,m_x,0	0.00000	5.59000	0.00000
(3/4,1/4,0) + set click here to show and hide
13	0.89884	0.25000	0.25000	m_x,m_y,0	5.59000	0.00000	0.00000
14	0.25000	0.89884	0.25000	m_y,m_x,0	0.00000	5.59000	0.00000
(3/4,3/4,1/2) + set click here to show and hide
15	0.89884	0.75000	0.75000	m_x,m_y,0	5.59000	0.00000	0.00000
16	0.25000	0.39884	0.75000	m_y,m_x,0	0.00000	5.59000	0.00000
(0,0,1/2)' + set click here to show and hide
17	0.14884	0.00000	0.75000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
18	0.50000	0.64884	0.75000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(0,1/2,0)' + set click here to show and hide
19	0.14884	0.50000	0.25000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
20	0.50000	0.14884	0.25000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(1/4,1/4,0)' + set click here to show and hide
21	0.39884	0.25000	0.25000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
22	0.75000	0.89884	0.25000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
23	0.39884	0.75000	0.75000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
24	0.75000	0.39884	0.75000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(1/2,0,0)' + set click here to show and hide
25	0.64884	0.00000	0.25000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
26	0.00000	0.64884	0.25000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
27	0.64884	0.50000	0.75000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
28	0.00000	0.14884	0.75000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
29	0.89884	0.25000	0.75000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
30	0.25000	0.89884	0.75000	-m_y,-m_x,0	0.00000	-5.59000	0.00000
(3/4,3/4,0)' + set click here to show and hide
31	0.89884	0.75000	0.25000	-m_x,-m_y,0	-5.59000	0.00000	0.00000
32	0.25000	0.39884	0.25000	-m_y,-m_x,0	0.00000	-5.59000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm1_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.85116	0.85116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.85116	0.35116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/4,1/4,1/2) + set click here to show and hide
3	0.10116	0.10116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/4,3/4,0) + set click here to show and hide
4	0.10116	0.60116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/2,0,1/2) + set click here to show and hide
5	0.35116	0.85116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/2,1/2,0) + set click here to show and hide
6	0.35116	0.35116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(3/4,1/4,0) + set click here to show and hide
7	0.60116	0.10116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(3/4,3/4,1/2) + set click here to show and hide
8	0.60116	0.60116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(0,0,1/2)' + set click here to show and hide
9	0.85116	0.85116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(0,1/2,0)' + set click here to show and hide
10	0.85116	0.35116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/4,1/4,0)' + set click here to show and hide
11	0.10116	0.10116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
12	0.10116	0.60116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/2,0,0)' + set click here to show and hide
13	0.35116	0.85116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
14	0.35116	0.35116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
15	0.60116	0.10116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(3/4,3/4,0)' + set click here to show and hide
16	0.60116	0.60116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm1_3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.14884	0.25000	0.25000	m_x,m_y,0	-5.59000	0.00000	0.00000
2	0.75000	0.64884	0.25000	m_y,m_x,0	0.00000	-5.59000	0.00000
(0,1/2,1/2) + set click here to show and hide
3	0.14884	0.75000	0.75000	m_x,m_y,0	-5.59000	0.00000	0.00000
4	0.75000	0.14884	0.75000	m_y,m_x,0	0.00000	-5.59000	0.00000
(1/4,1/4,1/2) + set click here to show and hide
5	0.39884	0.50000	0.75000	m_x,m_y,0	-5.59000	0.00000	0.00000
6	0.00000	0.89884	0.75000	m_y,m_x,0	0.00000	-5.59000	0.00000
(1/4,3/4,0) + set click here to show and hide
7	0.39884	0.00000	0.25000	m_x,m_y,0	-5.59000	0.00000	0.00000
8	0.00000	0.39884	0.25000	m_y,m_x,0	0.00000	-5.59000	0.00000
(1/2,0,1/2) + set click here to show and hide
9	0.64884	0.25000	0.75000	m_x,m_y,0	-5.59000	0.00000	0.00000
10	0.25000	0.64884	0.75000	m_y,m_x,0	0.00000	-5.59000	0.00000
(1/2,1/2,0) + set click here to show and hide
11	0.64884	0.75000	0.25000	m_x,m_y,0	-5.59000	0.00000	0.00000
12	0.25000	0.14884	0.25000	m_y,m_x,0	0.00000	-5.59000	0.00000
(3/4,1/4,0) + set click here to show and hide
13	0.89884	0.50000	0.25000	m_x,m_y,0	-5.59000	0.00000	0.00000
14	0.50000	0.89884	0.25000	m_y,m_x,0	0.00000	-5.59000	0.00000
(3/4,3/4,1/2) + set click here to show and hide
15	0.89884	0.00000	0.75000	m_x,m_y,0	-5.59000	0.00000	0.00000
16	0.50000	0.39884	0.75000	m_y,m_x,0	0.00000	-5.59000	0.00000
(0,0,1/2)' + set click here to show and hide
17	0.14884	0.25000	0.75000	-m_x,-m_y,0	5.59000	0.00000	0.00000
18	0.75000	0.64884	0.75000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(0,1/2,0)' + set click here to show and hide
19	0.14884	0.75000	0.25000	-m_x,-m_y,0	5.59000	0.00000	0.00000
20	0.75000	0.14884	0.25000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(1/4,1/4,0)' + set click here to show and hide
21	0.39884	0.50000	0.25000	-m_x,-m_y,0	5.59000	0.00000	0.00000
22	0.00000	0.89884	0.25000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
23	0.39884	0.00000	0.75000	-m_x,-m_y,0	5.59000	0.00000	0.00000
24	0.00000	0.39884	0.75000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(1/2,0,0)' + set click here to show and hide
25	0.64884	0.25000	0.25000	-m_x,-m_y,0	5.59000	0.00000	0.00000
26	0.25000	0.64884	0.25000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
27	0.64884	0.75000	0.75000	-m_x,-m_y,0	5.59000	0.00000	0.00000
28	0.25000	0.14884	0.75000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
29	0.89884	0.50000	0.75000	-m_x,-m_y,0	5.59000	0.00000	0.00000
30	0.50000	0.89884	0.75000	-m_y,-m_x,0	0.00000	5.59000	0.00000
(3/4,3/4,0)' + set click here to show and hide
31	0.89884	0.00000	0.25000	-m_x,-m_y,0	5.59000	0.00000	0.00000
32	0.50000	0.39884	0.25000	-m_y,-m_x,0	0.00000	5.59000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm1_4:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.85116	0.10116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.85116	0.60116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/4,1/4,1/2) + set click here to show and hide
3	0.10116	0.35116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/4,3/4,0) + set click here to show and hide
4	0.10116	0.85116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/2,0,1/2) + set click here to show and hide
5	0.35116	0.10116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(1/2,1/2,0) + set click here to show and hide
6	0.35116	0.60116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(3/4,1/4,0) + set click here to show and hide
7	0.60116	0.35116	0.25000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(3/4,3/4,1/2) + set click here to show and hide
8	0.60116	0.85116	0.75000	m_x,m_x,0	-5.59000	-5.59000	0.00000
(0,0,1/2)' + set click here to show and hide
9	0.85116	0.10116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(0,1/2,0)' + set click here to show and hide
10	0.85116	0.60116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/4,1/4,0)' + set click here to show and hide
11	0.10116	0.35116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
12	0.10116	0.85116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/2,0,0)' + set click here to show and hide
13	0.35116	0.10116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
14	0.35116	0.60116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
15	0.60116	0.35116	0.75000	-m_x,-m_x,0	5.59000	5.59000	0.00000
(3/4,3/4,0)' + set click here to show and hide
16	0.60116	0.85116	0.25000	-m_x,-m_x,0	5.59000	5.59000	0.00000

[Hide]

label	dim. full irrep	dim. small irrep	direction	action
mQ4QA4	6	2	general	primary

MAGNDATA: A Collection of magnetic structures with portable cif-type files

TmPtIn (#1.67)
