MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-y,x,z,+1	{ 4⁺₀₀₁ \| 0 }
3	y,-x,z,+1	{ 4^-₀₀₁ \| 0 }
4	-y,-x,-z+1/2,+1	{ 2_1-10 \| 0 0 1/2 }
5	y,x,-z+1/2,+1	{ 2₁₁₀ \| 0 0 1/2 }
6	-x,-y,z,+1	{ 2₀₀₁ \| 0 }
7	x,-y,-z+1/2,+1	{ 2₁₀₀ \| 0 0 1/2 }
8	-x,y,-z+1/2,+1	{ 2₀₁₀ \| 0 0 1/2 }
9	-x,-y,-z,+1	{ -1 \| 0 }
10	y,-x,-z,+1	{ -4⁺₀₀₁ \| 0 }
11	-y,x,-z,+1	{ -4^-₀₀₁ \| 0 }
12	y,x,z+1/2,+1	{ m_1-10 \| 0 0 1/2 }
13	-y,-x,z+1/2,+1	{ m₁₁₀ \| 0 0 1/2 }
14	x,y,-z,+1	{ m₀₀₁ \| 0 }
15	-x,y,z+1/2,+1	{ m₁₀₀ \| 0 0 1/2 }
16	x,-y,z+1/2,+1	{ m₀₁₀ \| 0 0 1/2 }
(0,1/2,1/2) + set click here to show and hide
17	x,y+1/2,z+1/2,+1	{ 1 \| 0 1/2 1/2 }
18	-y,x+1/2,z+1/2,+1	{ 4⁺₀₀₁ \| 0 1/2 1/2 }
19	y,-x+1/2,z+1/2,+1	{ 4^-₀₀₁ \| 0 1/2 1/2 }
20	-y,-x+1/2,-z,+1	{ 2_1-10 \| 0 1/2 0 }
21	y,x+1/2,-z,+1	{ 2₁₁₀ \| 0 1/2 0 }
22	-x,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 0 1/2 1/2 }
23	x,-y+1/2,-z,+1	{ 2₁₀₀ \| 0 1/2 0 }
24	-x,y+1/2,-z,+1	{ 2₀₁₀ \| 0 1/2 0 }
25	-x,-y+1/2,-z+1/2,+1	{ -1 \| 0 1/2 1/2 }
26	y,-x+1/2,-z+1/2,+1	{ -4⁺₀₀₁ \| 0 1/2 1/2 }
27	-y,x+1/2,-z+1/2,+1	{ -4^-₀₀₁ \| 0 1/2 1/2 }
28	y,x+1/2,z,+1	{ m_1-10 \| 0 1/2 0 }
29	-y,-x+1/2,z,+1	{ m₁₁₀ \| 0 1/2 0 }
30	x,y+1/2,-z+1/2,+1	{ m₀₀₁ \| 0 1/2 1/2 }
31	-x,y+1/2,z,+1	{ m₁₀₀ \| 0 1/2 0 }
32	x,-y+1/2,z,+1	{ m₀₁₀ \| 0 1/2 0 }
(1/2,0,1/2) + set click here to show and hide
33	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
34	-y+1/2,x,z+1/2,+1	{ 4⁺₀₀₁ \| 1/2 0 1/2 }
35	y+1/2,-x,z+1/2,+1	{ 4^-₀₀₁ \| 1/2 0 1/2 }
36	-y+1/2,-x,-z,+1	{ 2_1-10 \| 1/2 0 0 }
37	y+1/2,x,-z,+1	{ 2₁₁₀ \| 1/2 0 0 }
38	-x+1/2,-y,z+1/2,+1	{ 2₀₀₁ \| 1/2 0 1/2 }
39	x+1/2,-y,-z,+1	{ 2₁₀₀ \| 1/2 0 0 }
40	-x+1/2,y,-z,+1	{ 2₀₁₀ \| 1/2 0 0 }
41	-x+1/2,-y,-z+1/2,+1	{ -1 \| 1/2 0 1/2 }
42	y+1/2,-x,-z+1/2,+1	{ -4⁺₀₀₁ \| 1/2 0 1/2 }
43	-y+1/2,x,-z+1/2,+1	{ -4^-₀₀₁ \| 1/2 0 1/2 }
44	y+1/2,x,z,+1	{ m_1-10 \| 1/2 0 0 }
45	-y+1/2,-x,z,+1	{ m₁₁₀ \| 1/2 0 0 }
46	x+1/2,y,-z+1/2,+1	{ m₀₀₁ \| 1/2 0 1/2 }
47	-x+1/2,y,z,+1	{ m₁₀₀ \| 1/2 0 0 }
48	x+1/2,-y,z,+1	{ m₀₁₀ \| 1/2 0 0 }
(1/2,1/2,0) + set click here to show and hide
49	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
50	-y+1/2,x+1/2,z,+1	{ 4⁺₀₀₁ \| 1/2 1/2 0 }
51	y+1/2,-x+1/2,z,+1	{ 4^-₀₀₁ \| 1/2 1/2 0 }
52	-y+1/2,-x+1/2,-z+1/2,+1	{ 2_1-10 \| 1/2 1/2 1/2 }
53	y+1/2,x+1/2,-z+1/2,+1	{ 2₁₁₀ \| 1/2 1/2 1/2 }
54	-x+1/2,-y+1/2,z,+1	{ 2₀₀₁ \| 1/2 1/2 0 }
55	x+1/2,-y+1/2,-z+1/2,+1	{ 2₁₀₀ \| 1/2 1/2 1/2 }
56	-x+1/2,y+1/2,-z+1/2,+1	{ 2₀₁₀ \| 1/2 1/2 1/2 }
57	-x+1/2,-y+1/2,-z,+1	{ -1 \| 1/2 1/2 0 }
58	y+1/2,-x+1/2,-z,+1	{ -4⁺₀₀₁ \| 1/2 1/2 0 }
59	-y+1/2,x+1/2,-z,+1	{ -4^-₀₀₁ \| 1/2 1/2 0 }
60	y+1/2,x+1/2,z+1/2,+1	{ m_1-10 \| 1/2 1/2 1/2 }
61	-y+1/2,-x+1/2,z+1/2,+1	{ m₁₁₀ \| 1/2 1/2 1/2 }
62	x+1/2,y+1/2,-z,+1	{ m₀₀₁ \| 1/2 1/2 0 }
63	-x+1/2,y+1/2,z+1/2,+1	{ m₁₀₀ \| 1/2 1/2 1/2 }
64	x+1/2,-y+1/2,z+1/2,+1	{ m₀₁₀ \| 1/2 1/2 1/2 }
(0,0,1/2)' + set click here to show and hide
65	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
66	-y,x,z+1/2,-1	{ 4'⁺₀₀₁ \| 0 0 1/2 }
67	y,-x,z+1/2,-1	{ 4'^-₀₀₁ \| 0 0 1/2 }
68	-y,-x,-z,-1	{ 2'_1-10 \| 0 }
69	y,x,-z,-1	{ 2'₁₁₀ \| 0 }
70	-x,-y,z+1/2,-1	{ 2'₀₀₁ \| 0 0 1/2 }
71	x,-y,-z,-1	{ 2'₁₀₀ \| 0 }
72	-x,y,-z,-1	{ 2'₀₁₀ \| 0 }
73	-x,-y,-z+1/2,-1	{ -1' \| 0 0 1/2 }
74	y,-x,-z+1/2,-1	{ -4'⁺₀₀₁ \| 0 0 1/2 }
75	-y,x,-z+1/2,-1	{ -4'^-₀₀₁ \| 0 0 1/2 }
76	y,x,z,-1	{ m'_1-10 \| 0 }
77	-y,-x,z,-1	{ m'₁₁₀ \| 0 }
78	x,y,-z+1/2,-1	{ m'₀₀₁ \| 0 0 1/2 }
79	-x,y,z,-1	{ m'₁₀₀ \| 0 }
80	x,-y,z,-1	{ m'₀₁₀ \| 0 }
(0,1/2,0)' + set click here to show and hide
81	x,y+1/2,z,-1	{ 1' \| 0 1/2 0 }
82	-y,x+1/2,z,-1	{ 4'⁺₀₀₁ \| 0 1/2 0 }
83	y,-x+1/2,z,-1	{ 4'^-₀₀₁ \| 0 1/2 0 }
84	-y,-x+1/2,-z+1/2,-1	{ 2'_1-10 \| 0 1/2 1/2 }
85	y,x+1/2,-z+1/2,-1	{ 2'₁₁₀ \| 0 1/2 1/2 }
86	-x,-y+1/2,z,-1	{ 2'₀₀₁ \| 0 1/2 0 }
87	x,-y+1/2,-z+1/2,-1	{ 2'₁₀₀ \| 0 1/2 1/2 }
88	-x,y+1/2,-z+1/2,-1	{ 2'₀₁₀ \| 0 1/2 1/2 }
89	-x,-y+1/2,-z,-1	{ -1' \| 0 1/2 0 }
90	y,-x+1/2,-z,-1	{ -4'⁺₀₀₁ \| 0 1/2 0 }
91	-y,x+1/2,-z,-1	{ -4'^-₀₀₁ \| 0 1/2 0 }
92	y,x+1/2,z+1/2,-1	{ m'_1-10 \| 0 1/2 1/2 }
93	-y,-x+1/2,z+1/2,-1	{ m'₁₁₀ \| 0 1/2 1/2 }
94	x,y+1/2,-z,-1	{ m'₀₀₁ \| 0 1/2 0 }
95	-x,y+1/2,z+1/2,-1	{ m'₁₀₀ \| 0 1/2 1/2 }
96	x,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 0 1/2 1/2 }
(1/2,0,0)' + set click here to show and hide
97	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
98	-y+1/2,x,z,-1	{ 4'⁺₀₀₁ \| 1/2 0 0 }
99	y+1/2,-x,z,-1	{ 4'^-₀₀₁ \| 1/2 0 0 }
100	-y+1/2,-x,-z+1/2,-1	{ 2'_1-10 \| 1/2 0 1/2 }
101	y+1/2,x,-z+1/2,-1	{ 2'₁₁₀ \| 1/2 0 1/2 }
102	-x+1/2,-y,z,-1	{ 2'₀₀₁ \| 1/2 0 0 }
103	x+1/2,-y,-z+1/2,-1	{ 2'₁₀₀ \| 1/2 0 1/2 }
104	-x+1/2,y,-z+1/2,-1	{ 2'₀₁₀ \| 1/2 0 1/2 }
105	-x+1/2,-y,-z,-1	{ -1' \| 1/2 0 0 }
106	y+1/2,-x,-z,-1	{ -4'⁺₀₀₁ \| 1/2 0 0 }
107	-y+1/2,x,-z,-1	{ -4'^-₀₀₁ \| 1/2 0 0 }
108	y+1/2,x,z+1/2,-1	{ m'_1-10 \| 1/2 0 1/2 }
109	-y+1/2,-x,z+1/2,-1	{ m'₁₁₀ \| 1/2 0 1/2 }
110	x+1/2,y,-z,-1	{ m'₀₀₁ \| 1/2 0 0 }
111	-x+1/2,y,z+1/2,-1	{ m'₁₀₀ \| 1/2 0 1/2 }
112	x+1/2,-y,z+1/2,-1	{ m'₀₁₀ \| 1/2 0 1/2 }
(1/2,1/2,1/2)' + set click here to show and hide
113	x+1/2,y+1/2,z+1/2,-1	{ 1' \| 1/2 1/2 1/2 }
114	-y+1/2,x+1/2,z+1/2,-1	{ 4'⁺₀₀₁ \| 1/2 1/2 1/2 }
115	y+1/2,-x+1/2,z+1/2,-1	{ 4'^-₀₀₁ \| 1/2 1/2 1/2 }
116	-y+1/2,-x+1/2,-z,-1	{ 2'_1-10 \| 1/2 1/2 0 }
117	y+1/2,x+1/2,-z,-1	{ 2'₁₁₀ \| 1/2 1/2 0 }
118	-x+1/2,-y+1/2,z+1/2,-1	{ 2'₀₀₁ \| 1/2 1/2 1/2 }
119	x+1/2,-y+1/2,-z,-1	{ 2'₁₀₀ \| 1/2 1/2 0 }
120	-x+1/2,y+1/2,-z,-1	{ 2'₀₁₀ \| 1/2 1/2 0 }
121	-x+1/2,-y+1/2,-z+1/2,-1	{ -1' \| 1/2 1/2 1/2 }
122	y+1/2,-x+1/2,-z+1/2,-1	{ -4'⁺₀₀₁ \| 1/2 1/2 1/2 }
123	-y+1/2,x+1/2,-z+1/2,-1	{ -4'^-₀₀₁ \| 1/2 1/2 1/2 }
124	y+1/2,x+1/2,z,-1	{ m'_1-10 \| 1/2 1/2 0 }
125	-y+1/2,-x+1/2,z,-1	{ m'₁₁₀ \| 1/2 1/2 0 }
126	x+1/2,y+1/2,-z+1/2,-1	{ m'₀₀₁ \| 1/2 1/2 1/2 }
127	-x+1/2,y+1/2,z,-1	{ m'₁₀₀ \| 1/2 1/2 0 }
128	x+1/2,-y+1/2,z,-1	{ m'₀₁₀ \| 1/2 1/2 0 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-y,x,z,+1	4⁺₀₀₁
3	y,-x,z,+1	4^-₀₀₁
4	-y,-x,-z,+1	2_1-10
5	y,x,-z,+1	2₁₁₀
6	-x,-y,z,+1	2₀₀₁
7	x,-y,-z,+1	2₁₀₀
8	-x,y,-z,+1	2₀₁₀
9	-x,-y,-z,+1	-1
10	y,-x,-z,+1	-4⁺₀₀₁
11	-y,x,-z,+1	-4^-₀₀₁
12	y,x,z,+1	m_1-10
13	-y,-x,z,+1	m₁₁₀
14	x,y,-z,+1	m₀₀₁
15	-x,y,z,+1	m₁₀₀
16	x,-y,z,+1	m₀₁₀
1' + set click here to show and hide
17	x,y,z,-1	1'
18	-y,x,z,-1	4'⁺₀₀₁
19	y,-x,z,-1	4'^-₀₀₁
20	-y,-x,-z,-1	2'_1-10
21	y,x,-z,-1	2'₁₁₀
22	-x,-y,z,-1	2'₀₀₁
23	x,-y,-z,-1	2'₁₀₀
24	-x,y,-z,-1	2'₀₁₀
25	-x,-y,-z,-1	-1'
26	y,-x,-z,-1	-4'⁺₀₀₁
27	-y,x,-z,-1	-4'^-₀₀₁
28	y,x,z,-1	m'_1-10
29	-y,-x,z,-1	m'₁₁₀
30	x,y,-z,-1	m'₀₀₁
31	-x,y,z,-1	m'₁₀₀
32	x,-y,z,-1	m'₀₁₀

[Hide]

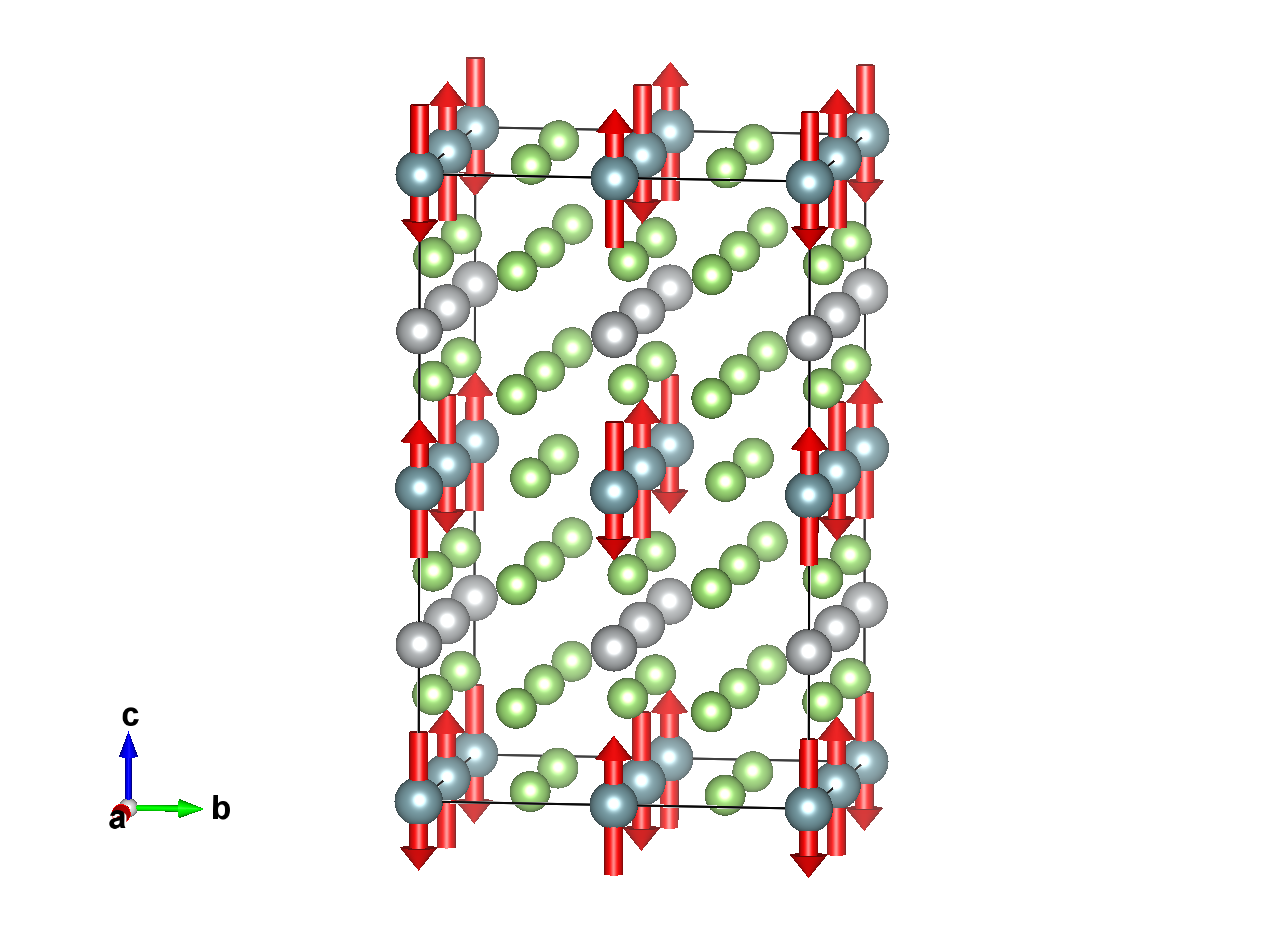

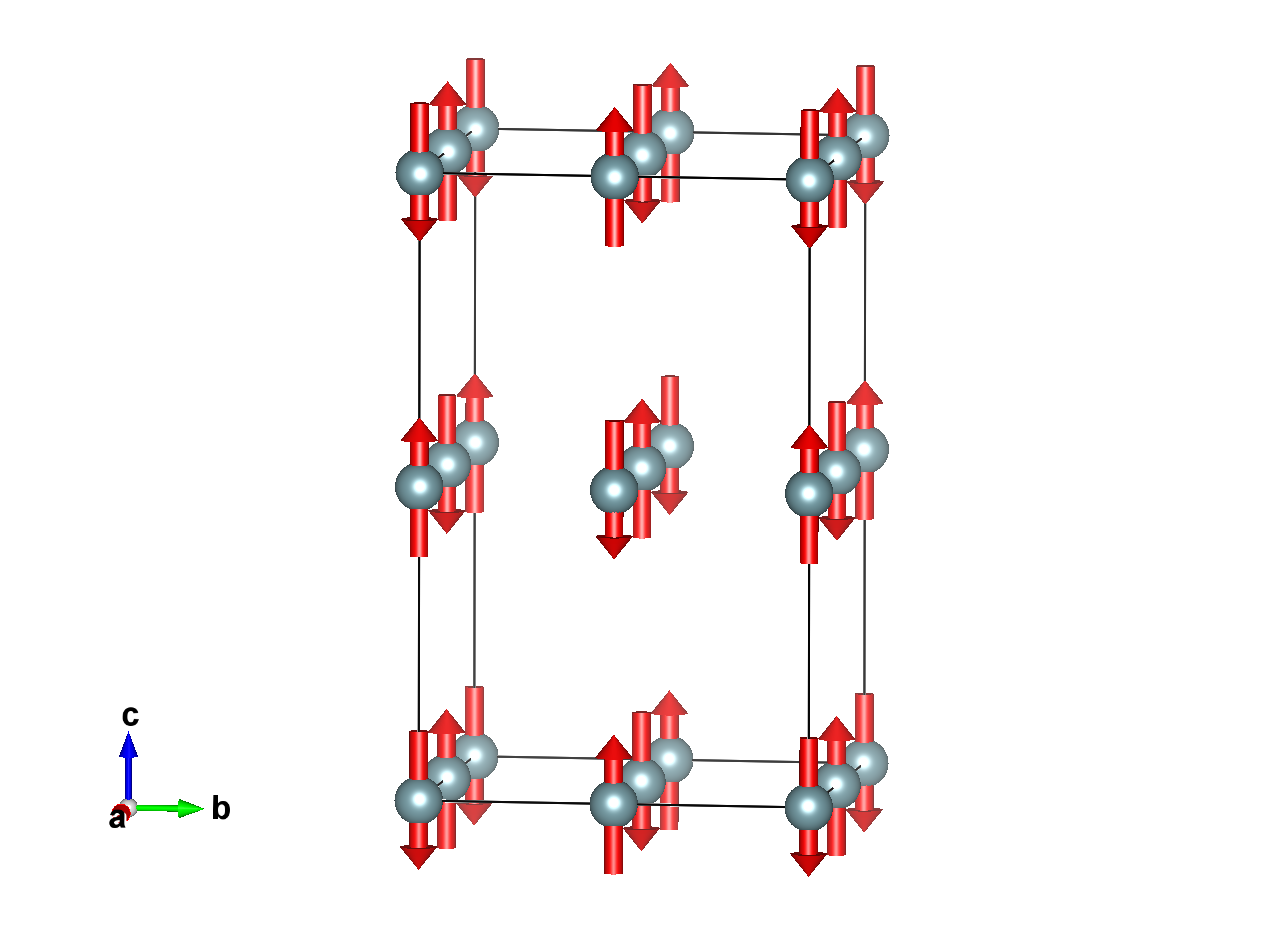

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
U1	U	0.00000	0.00000	0.00000	8	0,0,m_z	0.0	0.0	-0.75	0.75

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ga1	Ga	0.25000	0.25000	0.00000	8
Ga2	Ga	0.00000	0.25000	0.15150	32
Pd1	Pd	0.00000	0.00000	0.25000	8

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom U1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	-0.75000
(0,1/2,1/2) + set click here to show and hide
2	0.00000	0.50000	0.50000	0,0,m_z	0.00000	0.00000	-0.75000
(1/2,0,1/2) + set click here to show and hide
3	0.50000	0.00000	0.50000	0,0,m_z	0.00000	0.00000	-0.75000
(1/2,1/2,0) + set click here to show and hide
4	0.50000	0.50000	0.00000	0,0,m_z	0.00000	0.00000	-0.75000
(0,0,1/2)' + set click here to show and hide
5	0.00000	0.00000	0.50000	0,0,-m_z	0.00000	0.00000	0.75000
(0,1/2,0)' + set click here to show and hide
6	0.00000	0.50000	0.00000	0,0,-m_z	0.00000	0.00000	0.75000
(1/2,0,0)' + set click here to show and hide
7	0.50000	0.00000	0.00000	0,0,-m_z	0.00000	0.00000	0.75000
(1/2,1/2,1/2)' + set click here to show and hide
8	0.50000	0.50000	0.50000	0,0,-m_z	0.00000	0.00000	0.75000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Ga1:

Atom	x	y	z
1	0.25000	0.25000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.25000	0.75000	0.50000
(1/2,0,1/2) + set click here to show and hide
3	0.75000	0.25000	0.50000
(1/2,1/2,0) + set click here to show and hide
4	0.75000	0.75000	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.25000	0.25000	0.50000
(0,1/2,0)' + set click here to show and hide
6	0.25000	0.75000	0.00000
(1/2,0,0)' + set click here to show and hide
7	0.75000	0.25000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
8	0.75000	0.75000	0.50000

Set of atoms in the unit cell related by symmetry with the atom Ga2:

Atom	x	y	z
1	0.00000	0.25000	0.15150
2	0.75000	0.00000	0.15150
3	0.75000	0.00000	0.34850
4	0.00000	0.75000	0.34850
(0,1/2,1/2) + set click here to show and hide
5	0.00000	0.75000	0.65150
6	0.75000	0.50000	0.65150
7	0.75000	0.50000	0.84850
8	0.00000	0.25000	0.84850
(1/2,0,1/2) + set click here to show and hide
9	0.50000	0.25000	0.65150
10	0.25000	0.00000	0.65150
11	0.25000	0.00000	0.84850
12	0.50000	0.75000	0.84850
(1/2,1/2,0) + set click here to show and hide
13	0.50000	0.75000	0.15150
14	0.25000	0.50000	0.15150
15	0.25000	0.50000	0.34850
16	0.50000	0.25000	0.34850
(0,0,1/2)' + set click here to show and hide
17	0.00000	0.25000	0.65150
18	0.75000	0.00000	0.65150
19	0.75000	0.00000	0.84850
20	0.00000	0.75000	0.84850
(0,1/2,0)' + set click here to show and hide
21	0.00000	0.75000	0.15150
22	0.75000	0.50000	0.15150
23	0.75000	0.50000	0.34850
24	0.00000	0.25000	0.34850
(1/2,0,0)' + set click here to show and hide
25	0.50000	0.25000	0.15150
26	0.25000	0.00000	0.15150
27	0.25000	0.00000	0.34850
28	0.50000	0.75000	0.34850
(1/2,1/2,1/2)' + set click here to show and hide
29	0.50000	0.75000	0.65150
30	0.25000	0.50000	0.65150
31	0.25000	0.50000	0.84850
32	0.50000	0.25000	0.84850

Set of atoms in the unit cell related by symmetry with the atom Pd1:

Atom	x	y	z
1	0.00000	0.00000	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.00000	0.50000	0.75000
(1/2,0,1/2) + set click here to show and hide
3	0.50000	0.00000	0.75000
(1/2,1/2,0) + set click here to show and hide
4	0.50000	0.50000	0.25000
(0,0,1/2)' + set click here to show and hide
5	0.00000	0.00000	0.75000
(0,1/2,0)' + set click here to show and hide
6	0.00000	0.50000	0.25000
(1/2,0,0)' + set click here to show and hide
7	0.50000	0.00000	0.25000
(1/2,1/2,1/2)' + set click here to show and hide
8	0.50000	0.50000	0.75000

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
U1	U	0.00000	0.00000	0.00000	8	0,0,m_z	0.0	0.0	-0.75	0.75

[Show all magnetic atoms in unit cell and their moment relations]

label	dim. full irrep	dim. small irrep	direction	action	number of modes	presence
mA3+
1	.	primary	1	.

MAGNDATA: A Collection of magnetic structures with portable cif-type files

UPdGa₅ (#1.683)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

UPdGa5 (#1.683)

UPdGa₅ (#1.683)
