Collection of Magnetic Structures
|
MAGNDATA
Collection of Magnetic Structures
|
 |

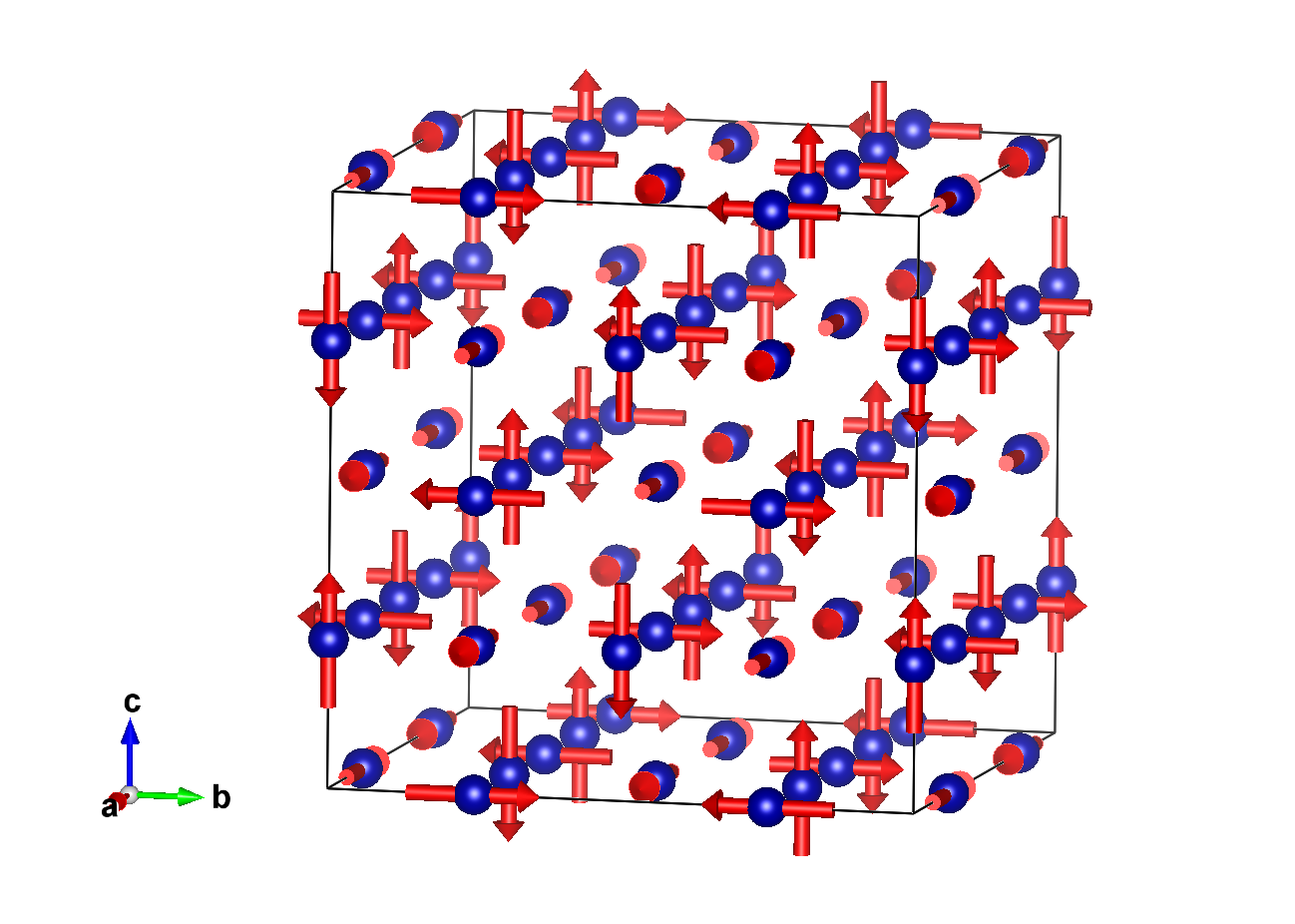

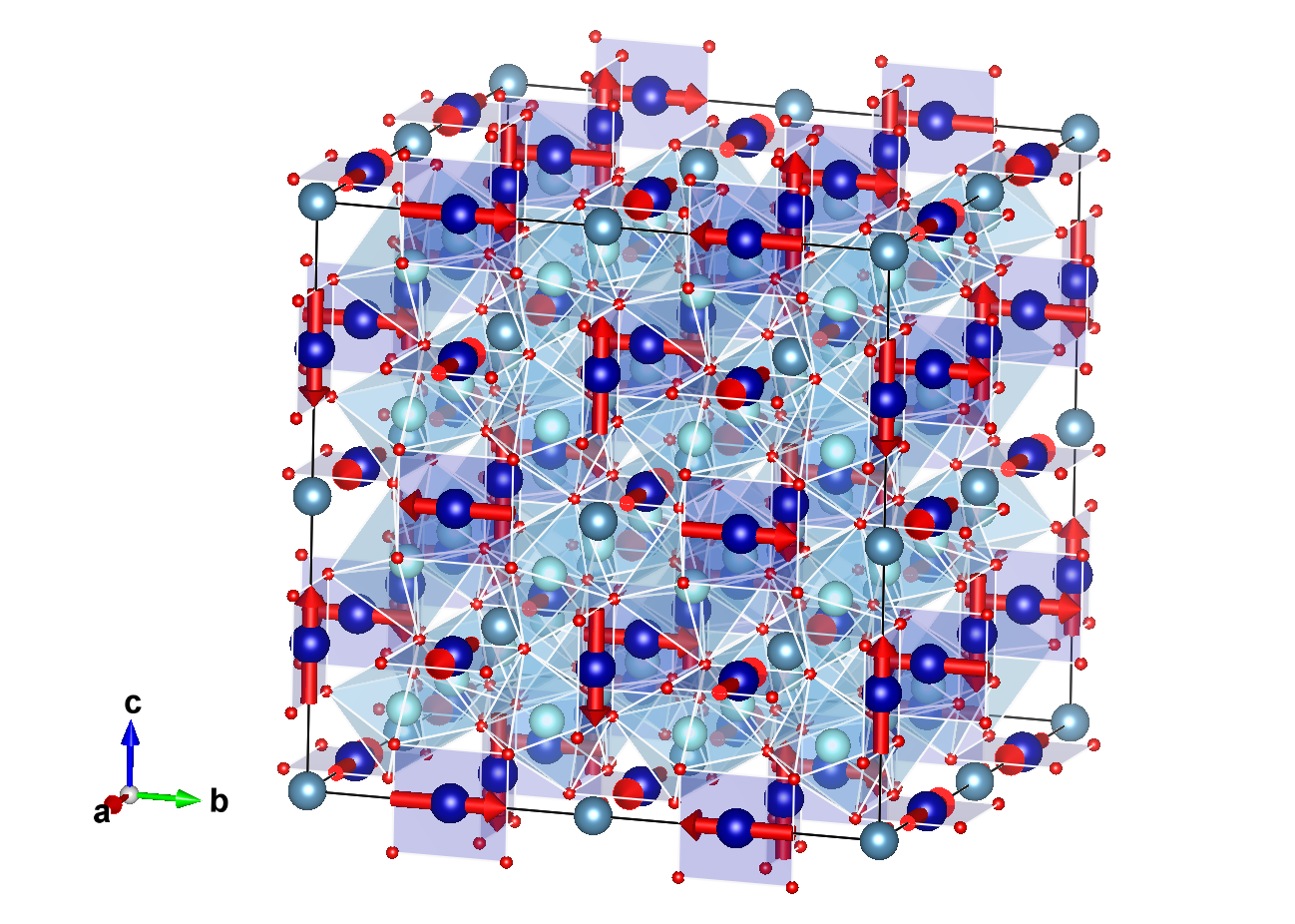

 Magnetic structure with all atoms |  Magnetic structure with only magnetic atoms |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | { 1 | 0 } | |
| 2 | x,-y,-z,+1 | { 2100 | 0 } | |
| 3 | -x,y,-z,+1 | { 2010 | 0 } | |
| 4 | -x,-y,z,+1 | { 2001 | 0 } | |
| 5 | z,x,y,+1 | { 3+111 | 0 } | |
| 6 | y,z,x,+1 | { 3-111 | 0 } | |
| 7 | -y,z,-x,+1 | { 3-1-1-1 | 0 } | |
| 8 | -z,-x,y,+1 | { 3+1-1-1 | 0 } | |
| 9 | -y,-z,x,+1 | { 3--11-1 | 0 } | |
| 10 | z,-x,-y,+1 | { 3+-11-1 | 0 } | |
| 11 | y,-z,-x,+1 | { 3--1-11 | 0 } | |
| 12 | -z,x,-y,+1 | { 3+-1-11 | 0 } | |
| 13 | -x+1/4,-y+1/4,-z+1/4,+1 | { -1 | 1/4 1/4 1/4 } | |
| 14 | -x+1/4,y+1/4,z+1/4,+1 | { m100 | 1/4 1/4 1/4 } | |
| 15 | x+1/4,-y+1/4,z+1/4,+1 | { m010 | 1/4 1/4 1/4 } | |
| 16 | x+1/4,y+1/4,-z+1/4,+1 | { m001 | 1/4 1/4 1/4 } | |
| 17 | -z+1/4,-x+1/4,-y+1/4,+1 | { -3+111 | 1/4 1/4 1/4 } | |
| 18 | -y+1/4,-z+1/4,-x+1/4,+1 | { -3-111 | 1/4 1/4 1/4 } | |
| 19 | y+1/4,-z+1/4,x+1/4,+1 | { -3-1-1-1 | 1/4 1/4 1/4 } | |
| 20 | z+1/4,x+1/4,-y+1/4,+1 | { -3+1-1-1 | 1/4 1/4 1/4 } | |
| 21 | y+1/4,z+1/4,-x+1/4,+1 | { -3--11-1 | 1/4 1/4 1/4 } | |
| 22 | -z+1/4,x+1/4,y+1/4,+1 | { -3+-11-1 | 1/4 1/4 1/4 } | |
| 23 | -y+1/4,z+1/4,x+1/4,+1 | { -3--1-11 | 1/4 1/4 1/4 } | |
| 24 | z+1/4,-x+1/4,y+1/4,+1 | { -3+-1-11 | 1/4 1/4 1/4 } | |
| (0,1/2,1/2) + set click here to show and hide | |||
| 25 | x,y+1/2,z+1/2,+1 | { 1 | 0 1/2 1/2 } | |
| 26 | x,-y+1/2,-z+1/2,+1 | { 2100 | 0 1/2 1/2 } | |
| 27 | -x,y+1/2,-z+1/2,+1 | { 2010 | 0 1/2 1/2 } | |
| 28 | -x,-y+1/2,z+1/2,+1 | { 2001 | 0 1/2 1/2 } | |
| 29 | z,x+1/2,y+1/2,+1 | { 3+111 | 0 1/2 1/2 } | |
| 30 | y,z+1/2,x+1/2,+1 | { 3-111 | 0 1/2 1/2 } | |
| 31 | -y,z+1/2,-x+1/2,+1 | { 3-1-1-1 | 0 1/2 1/2 } | |
| 32 | -z,-x+1/2,y+1/2,+1 | { 3+1-1-1 | 0 1/2 1/2 } | |
| 33 | -y,-z+1/2,x+1/2,+1 | { 3--11-1 | 0 1/2 1/2 } | |
| 34 | z,-x+1/2,-y+1/2,+1 | { 3+-11-1 | 0 1/2 1/2 } | |
| 35 | y,-z+1/2,-x+1/2,+1 | { 3--1-11 | 0 1/2 1/2 } | |
| 36 | -z,x+1/2,-y+1/2,+1 | { 3+-1-11 | 0 1/2 1/2 } | |
| 37 | -x+1/4,-y+3/4,-z+3/4,+1 | { -1 | 1/4 3/4 3/4 } | |
| 38 | -x+1/4,y+3/4,z+3/4,+1 | { m100 | 1/4 3/4 3/4 } | |
| 39 | x+1/4,-y+3/4,z+3/4,+1 | { m010 | 1/4 3/4 3/4 } | |
| 40 | x+1/4,y+3/4,-z+3/4,+1 | { m001 | 1/4 3/4 3/4 } | |
| 41 | -z+1/4,-x+3/4,-y+3/4,+1 | { -3+111 | 1/4 3/4 3/4 } | |
| 42 | -y+1/4,-z+3/4,-x+3/4,+1 | { -3-111 | 1/4 3/4 3/4 } | |
| 43 | y+1/4,-z+3/4,x+3/4,+1 | { -3-1-1-1 | 1/4 3/4 3/4 } | |
| 44 | z+1/4,x+3/4,-y+3/4,+1 | { -3+1-1-1 | 1/4 3/4 3/4 } | |
| 45 | y+1/4,z+3/4,-x+3/4,+1 | { -3--11-1 | 1/4 3/4 3/4 } | |
| 46 | -z+1/4,x+3/4,y+3/4,+1 | { -3+-11-1 | 1/4 3/4 3/4 } | |
| 47 | -y+1/4,z+3/4,x+3/4,+1 | { -3--1-11 | 1/4 3/4 3/4 } | |
| 48 | z+1/4,-x+3/4,y+3/4,+1 | { -3+-1-11 | 1/4 3/4 3/4 } | |
| (1/2,0,1/2) + set click here to show and hide | |||
| 49 | x+1/2,y,z+1/2,+1 | { 1 | 1/2 0 1/2 } | |
| 50 | x+1/2,-y,-z+1/2,+1 | { 2100 | 1/2 0 1/2 } | |
| 51 | -x+1/2,y,-z+1/2,+1 | { 2010 | 1/2 0 1/2 } | |
| 52 | -x+1/2,-y,z+1/2,+1 | { 2001 | 1/2 0 1/2 } | |
| 53 | z+1/2,x,y+1/2,+1 | { 3+111 | 1/2 0 1/2 } | |
| 54 | y+1/2,z,x+1/2,+1 | { 3-111 | 1/2 0 1/2 } | |
| 55 | -y+1/2,z,-x+1/2,+1 | { 3-1-1-1 | 1/2 0 1/2 } | |
| 56 | -z+1/2,-x,y+1/2,+1 | { 3+1-1-1 | 1/2 0 1/2 } | |
| 57 | -y+1/2,-z,x+1/2,+1 | { 3--11-1 | 1/2 0 1/2 } | |
| 58 | z+1/2,-x,-y+1/2,+1 | { 3+-11-1 | 1/2 0 1/2 } | |
| 59 | y+1/2,-z,-x+1/2,+1 | { 3--1-11 | 1/2 0 1/2 } | |
| 60 | -z+1/2,x,-y+1/2,+1 | { 3+-1-11 | 1/2 0 1/2 } | |
| 61 | -x+3/4,-y+1/4,-z+3/4,+1 | { -1 | 3/4 1/4 3/4 } | |
| 62 | -x+3/4,y+1/4,z+3/4,+1 | { m100 | 3/4 1/4 3/4 } | |
| 63 | x+3/4,-y+1/4,z+3/4,+1 | { m010 | 3/4 1/4 3/4 } | |
| 64 | x+3/4,y+1/4,-z+3/4,+1 | { m001 | 3/4 1/4 3/4 } | |
| 65 | -z+3/4,-x+1/4,-y+3/4,+1 | { -3+111 | 3/4 1/4 3/4 } | |
| 66 | -y+3/4,-z+1/4,-x+3/4,+1 | { -3-111 | 3/4 1/4 3/4 } | |
| 67 | y+3/4,-z+1/4,x+3/4,+1 | { -3-1-1-1 | 3/4 1/4 3/4 } | |
| 68 | z+3/4,x+1/4,-y+3/4,+1 | { -3+1-1-1 | 3/4 1/4 3/4 } | |
| 69 | y+3/4,z+1/4,-x+3/4,+1 | { -3--11-1 | 3/4 1/4 3/4 } | |
| 70 | -z+3/4,x+1/4,y+3/4,+1 | { -3+-11-1 | 3/4 1/4 3/4 } | |
| 71 | -y+3/4,z+1/4,x+3/4,+1 | { -3--1-11 | 3/4 1/4 3/4 } | |
| 72 | z+3/4,-x+1/4,y+3/4,+1 | { -3+-1-11 | 3/4 1/4 3/4 } | |
| (1/2,1/2,0) + set click here to show and hide | |||
| 73 | x+1/2,y+1/2,z,+1 | { 1 | 1/2 1/2 0 } | |
| 74 | x+1/2,-y+1/2,-z,+1 | { 2100 | 1/2 1/2 0 } | |
| 75 | -x+1/2,y+1/2,-z,+1 | { 2010 | 1/2 1/2 0 } | |
| 76 | -x+1/2,-y+1/2,z,+1 | { 2001 | 1/2 1/2 0 } | |
| 77 | z+1/2,x+1/2,y,+1 | { 3+111 | 1/2 1/2 0 } | |
| 78 | y+1/2,z+1/2,x,+1 | { 3-111 | 1/2 1/2 0 } | |
| 79 | -y+1/2,z+1/2,-x,+1 | { 3-1-1-1 | 1/2 1/2 0 } | |
| 80 | -z+1/2,-x+1/2,y,+1 | { 3+1-1-1 | 1/2 1/2 0 } | |
| 81 | -y+1/2,-z+1/2,x,+1 | { 3--11-1 | 1/2 1/2 0 } | |
| 82 | z+1/2,-x+1/2,-y,+1 | { 3+-11-1 | 1/2 1/2 0 } | |
| 83 | y+1/2,-z+1/2,-x,+1 | { 3--1-11 | 1/2 1/2 0 } | |
| 84 | -z+1/2,x+1/2,-y,+1 | { 3+-1-11 | 1/2 1/2 0 } | |
| 85 | -x+3/4,-y+3/4,-z+1/4,+1 | { -1 | 3/4 3/4 1/4 } | |
| 86 | -x+3/4,y+3/4,z+1/4,+1 | { m100 | 3/4 3/4 1/4 } | |
| 87 | x+3/4,-y+3/4,z+1/4,+1 | { m010 | 3/4 3/4 1/4 } | |
| 88 | x+3/4,y+3/4,-z+1/4,+1 | { m001 | 3/4 3/4 1/4 } | |
| 89 | -z+3/4,-x+3/4,-y+1/4,+1 | { -3+111 | 3/4 3/4 1/4 } | |
| 90 | -y+3/4,-z+3/4,-x+1/4,+1 | { -3-111 | 3/4 3/4 1/4 } | |
| 91 | y+3/4,-z+3/4,x+1/4,+1 | { -3-1-1-1 | 3/4 3/4 1/4 } | |
| 92 | z+3/4,x+3/4,-y+1/4,+1 | { -3+1-1-1 | 3/4 3/4 1/4 } | |
| 93 | y+3/4,z+3/4,-x+1/4,+1 | { -3--11-1 | 3/4 3/4 1/4 } | |
| 94 | -z+3/4,x+3/4,y+1/4,+1 | { -3+-11-1 | 3/4 3/4 1/4 } | |
| 95 | -y+3/4,z+3/4,x+1/4,+1 | { -3--1-11 | 3/4 3/4 1/4 } | |
| 96 | z+3/4,-x+3/4,y+1/4,+1 | { -3+-1-11 | 3/4 3/4 1/4 } | |
| (0,0,1/2)' + set click here to show and hide | |||
| 97 | x,y,z+1/2,-1 | { 1' | 0 0 1/2 } | |
| 98 | x,-y,-z+1/2,-1 | { 2'100 | 0 0 1/2 } | |
| 99 | -x,y,-z+1/2,-1 | { 2'010 | 0 0 1/2 } | |
| 100 | -x,-y,z+1/2,-1 | { 2'001 | 0 0 1/2 } | |
| 101 | z,x,y+1/2,-1 | { 3'+111 | 0 0 1/2 } | |
| 102 | y,z,x+1/2,-1 | { 3'-111 | 0 0 1/2 } | |
| 103 | -y,z,-x+1/2,-1 | { 3'-1-1-1 | 0 0 1/2 } | |
| 104 | -z,-x,y+1/2,-1 | { 3'+1-1-1 | 0 0 1/2 } | |
| 105 | -y,-z,x+1/2,-1 | { 3'--11-1 | 0 0 1/2 } | |
| 106 | z,-x,-y+1/2,-1 | { 3'+-11-1 | 0 0 1/2 } | |
| 107 | y,-z,-x+1/2,-1 | { 3'--1-11 | 0 0 1/2 } | |
| 108 | -z,x,-y+1/2,-1 | { 3'+-1-11 | 0 0 1/2 } | |
| 109 | -x+1/4,-y+1/4,-z+3/4,-1 | { -1' | 1/4 1/4 3/4 } | |
| 110 | -x+1/4,y+1/4,z+3/4,-1 | { m'100 | 1/4 1/4 3/4 } | |
| 111 | x+1/4,-y+1/4,z+3/4,-1 | { m'010 | 1/4 1/4 3/4 } | |
| 112 | x+1/4,y+1/4,-z+3/4,-1 | { m'001 | 1/4 1/4 3/4 } | |
| 113 | -z+1/4,-x+1/4,-y+3/4,-1 | { -3'+111 | 1/4 1/4 3/4 } | |
| 114 | -y+1/4,-z+1/4,-x+3/4,-1 | { -3'-111 | 1/4 1/4 3/4 } | |
| 115 | y+1/4,-z+1/4,x+3/4,-1 | { -3'-1-1-1 | 1/4 1/4 3/4 } | |
| 116 | z+1/4,x+1/4,-y+3/4,-1 | { -3'+1-1-1 | 1/4 1/4 3/4 } | |
| 117 | y+1/4,z+1/4,-x+3/4,-1 | { -3'--11-1 | 1/4 1/4 3/4 } | |
| 118 | -z+1/4,x+1/4,y+3/4,-1 | { -3'+-11-1 | 1/4 1/4 3/4 } | |
| 119 | -y+1/4,z+1/4,x+3/4,-1 | { -3'--1-11 | 1/4 1/4 3/4 } | |
| 120 | z+1/4,-x+1/4,y+3/4,-1 | { -3'+-1-11 | 1/4 1/4 3/4 } | |
| (0,1/2,0)' + set click here to show and hide | |||
| 121 | x,y+1/2,z,-1 | { 1' | 0 1/2 0 } | |
| 122 | x,-y+1/2,-z,-1 | { 2'100 | 0 1/2 0 } | |
| 123 | -x,y+1/2,-z,-1 | { 2'010 | 0 1/2 0 } | |
| 124 | -x,-y+1/2,z,-1 | { 2'001 | 0 1/2 0 } | |
| 125 | z,x+1/2,y,-1 | { 3'+111 | 0 1/2 0 } | |
| 126 | y,z+1/2,x,-1 | { 3'-111 | 0 1/2 0 } | |
| 127 | -y,z+1/2,-x,-1 | { 3'-1-1-1 | 0 1/2 0 } | |
| 128 | -z,-x+1/2,y,-1 | { 3'+1-1-1 | 0 1/2 0 } | |
| 129 | -y,-z+1/2,x,-1 | { 3'--11-1 | 0 1/2 0 } | |
| 130 | z,-x+1/2,-y,-1 | { 3'+-11-1 | 0 1/2 0 } | |
| 131 | y,-z+1/2,-x,-1 | { 3'--1-11 | 0 1/2 0 } | |
| 132 | -z,x+1/2,-y,-1 | { 3'+-1-11 | 0 1/2 0 } | |
| 133 | -x+1/4,-y+3/4,-z+1/4,-1 | { -1' | 1/4 3/4 1/4 } | |
| 134 | -x+1/4,y+3/4,z+1/4,-1 | { m'100 | 1/4 3/4 1/4 } | |
| 135 | x+1/4,-y+3/4,z+1/4,-1 | { m'010 | 1/4 3/4 1/4 } | |
| 136 | x+1/4,y+3/4,-z+1/4,-1 | { m'001 | 1/4 3/4 1/4 } | |
| 137 | -z+1/4,-x+3/4,-y+1/4,-1 | { -3'+111 | 1/4 3/4 1/4 } | |
| 138 | -y+1/4,-z+3/4,-x+1/4,-1 | { -3'-111 | 1/4 3/4 1/4 } | |
| 139 | y+1/4,-z+3/4,x+1/4,-1 | { -3'-1-1-1 | 1/4 3/4 1/4 } | |
| 140 | z+1/4,x+3/4,-y+1/4,-1 | { -3'+1-1-1 | 1/4 3/4 1/4 } | |
| 141 | y+1/4,z+3/4,-x+1/4,-1 | { -3'--11-1 | 1/4 3/4 1/4 } | |
| 142 | -z+1/4,x+3/4,y+1/4,-1 | { -3'+-11-1 | 1/4 3/4 1/4 } | |
| 143 | -y+1/4,z+3/4,x+1/4,-1 | { -3'--1-11 | 1/4 3/4 1/4 } | |
| 144 | z+1/4,-x+3/4,y+1/4,-1 | { -3'+-1-11 | 1/4 3/4 1/4 } | |
| (1/2,0,0)' + set click here to show and hide | |||
| 145 | x+1/2,y,z,-1 | { 1' | 1/2 0 0 } | |
| 146 | x+1/2,-y,-z,-1 | { 2'100 | 1/2 0 0 } | |
| 147 | -x+1/2,y,-z,-1 | { 2'010 | 1/2 0 0 } | |
| 148 | -x+1/2,-y,z,-1 | { 2'001 | 1/2 0 0 } | |
| 149 | z+1/2,x,y,-1 | { 3'+111 | 1/2 0 0 } | |
| 150 | y+1/2,z,x,-1 | { 3'-111 | 1/2 0 0 } | |
| 151 | -y+1/2,z,-x,-1 | { 3'-1-1-1 | 1/2 0 0 } | |
| 152 | -z+1/2,-x,y,-1 | { 3'+1-1-1 | 1/2 0 0 } | |
| 153 | -y+1/2,-z,x,-1 | { 3'--11-1 | 1/2 0 0 } | |
| 154 | z+1/2,-x,-y,-1 | { 3'+-11-1 | 1/2 0 0 } | |
| 155 | y+1/2,-z,-x,-1 | { 3'--1-11 | 1/2 0 0 } | |
| 156 | -z+1/2,x,-y,-1 | { 3'+-1-11 | 1/2 0 0 } | |
| 157 | -x+3/4,-y+1/4,-z+1/4,-1 | { -1' | 3/4 1/4 1/4 } | |
| 158 | -x+3/4,y+1/4,z+1/4,-1 | { m'100 | 3/4 1/4 1/4 } | |
| 159 | x+3/4,-y+1/4,z+1/4,-1 | { m'010 | 3/4 1/4 1/4 } | |
| 160 | x+3/4,y+1/4,-z+1/4,-1 | { m'001 | 3/4 1/4 1/4 } | |
| 161 | -z+3/4,-x+1/4,-y+1/4,-1 | { -3'+111 | 3/4 1/4 1/4 } | |
| 162 | -y+3/4,-z+1/4,-x+1/4,-1 | { -3'-111 | 3/4 1/4 1/4 } | |
| 163 | y+3/4,-z+1/4,x+1/4,-1 | { -3'-1-1-1 | 3/4 1/4 1/4 } | |
| 164 | z+3/4,x+1/4,-y+1/4,-1 | { -3'+1-1-1 | 3/4 1/4 1/4 } | |
| 165 | y+3/4,z+1/4,-x+1/4,-1 | { -3'--11-1 | 3/4 1/4 1/4 } | |
| 166 | -z+3/4,x+1/4,y+1/4,-1 | { -3'+-11-1 | 3/4 1/4 1/4 } | |
| 167 | -y+3/4,z+1/4,x+1/4,-1 | { -3'--1-11 | 3/4 1/4 1/4 } | |
| 168 | z+3/4,-x+1/4,y+1/4,-1 | { -3'+-1-11 | 3/4 1/4 1/4 } | |
| (1/2,1/2,1/2)' + set click here to show and hide | |||
| 169 | x+1/2,y+1/2,z+1/2,-1 | { 1' | 1/2 1/2 1/2 } | |
| 170 | x+1/2,-y+1/2,-z+1/2,-1 | { 2'100 | 1/2 1/2 1/2 } | |
| 171 | -x+1/2,y+1/2,-z+1/2,-1 | { 2'010 | 1/2 1/2 1/2 } | |
| 172 | -x+1/2,-y+1/2,z+1/2,-1 | { 2'001 | 1/2 1/2 1/2 } | |
| 173 | z+1/2,x+1/2,y+1/2,-1 | { 3'+111 | 1/2 1/2 1/2 } | |
| 174 | y+1/2,z+1/2,x+1/2,-1 | { 3'-111 | 1/2 1/2 1/2 } | |
| 175 | -y+1/2,z+1/2,-x+1/2,-1 | { 3'-1-1-1 | 1/2 1/2 1/2 } | |
| 176 | -z+1/2,-x+1/2,y+1/2,-1 | { 3'+1-1-1 | 1/2 1/2 1/2 } | |
| 177 | -y+1/2,-z+1/2,x+1/2,-1 | { 3'--11-1 | 1/2 1/2 1/2 } | |
| 178 | z+1/2,-x+1/2,-y+1/2,-1 | { 3'+-11-1 | 1/2 1/2 1/2 } | |
| 179 | y+1/2,-z+1/2,-x+1/2,-1 | { 3'--1-11 | 1/2 1/2 1/2 } | |
| 180 | -z+1/2,x+1/2,-y+1/2,-1 | { 3'+-1-11 | 1/2 1/2 1/2 } | |
| 181 | -x+3/4,-y+3/4,-z+3/4,-1 | { -1' | 3/4 3/4 3/4 } | |
| 182 | -x+3/4,y+3/4,z+3/4,-1 | { m'100 | 3/4 3/4 3/4 } | |
| 183 | x+3/4,-y+3/4,z+3/4,-1 | { m'010 | 3/4 3/4 3/4 } | |
| 184 | x+3/4,y+3/4,-z+3/4,-1 | { m'001 | 3/4 3/4 3/4 } | |
| 185 | -z+3/4,-x+3/4,-y+3/4,-1 | { -3'+111 | 3/4 3/4 3/4 } | |
| 186 | -y+3/4,-z+3/4,-x+3/4,-1 | { -3'-111 | 3/4 3/4 3/4 } | |
| 187 | y+3/4,-z+3/4,x+3/4,-1 | { -3'-1-1-1 | 3/4 3/4 3/4 } | |
| 188 | z+3/4,x+3/4,-y+3/4,-1 | { -3'+1-1-1 | 3/4 3/4 3/4 } | |
| 189 | y+3/4,z+3/4,-x+3/4,-1 | { -3'--11-1 | 3/4 3/4 3/4 } | |
| 190 | -z+3/4,x+3/4,y+3/4,-1 | { -3'+-11-1 | 3/4 3/4 3/4 } | |
| 191 | -y+3/4,z+3/4,x+3/4,-1 | { -3'--1-11 | 3/4 3/4 3/4 } | |
| 192 | z+3/4,-x+3/4,y+3/4,-1 | { -3'+-1-11 | 3/4 3/4 3/4 } | |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | 1 | |
| 2 | x,-y,-z,+1 | 2100 | |
| 3 | -x,y,-z,+1 | 2010 | |
| 4 | -x,-y,z,+1 | 2001 | |
| 5 | z,x,y,+1 | 3+111 | |
| 6 | y,z,x,+1 | 3-111 | |
| 7 | -y,z,-x,+1 | 3-1-1-1 | |
| 8 | -z,-x,y,+1 | 3+1-1-1 | |
| 9 | -y,-z,x,+1 | 3--11-1 | |
| 10 | z,-x,-y,+1 | 3+-11-1 | |
| 11 | y,-z,-x,+1 | 3--1-11 | |
| 12 | -z,x,-y,+1 | 3+-1-11 | |
| 13 | -x,-y,-z,+1 | -1 | |
| 14 | -x,y,z,+1 | m100 | |
| 15 | x,-y,z,+1 | m010 | |
| 16 | x,y,-z,+1 | m001 | |
| 17 | -z,-x,-y,+1 | -3+111 | |
| 18 | -y,-z,-x,+1 | -3-111 | |
| 19 | y,-z,x,+1 | -3-1-1-1 | |
| 20 | z,x,-y,+1 | -3+1-1-1 | |
| 21 | y,z,-x,+1 | -3--11-1 | |
| 22 | -z,x,y,+1 | -3+-11-1 | |
| 23 | -y,z,x,+1 | -3--1-11 | |
| 24 | z,-x,y,+1 | -3+-1-11 | |
| 1' + set click here to show and hide | |||
| 25 | x,y,z,-1 | 1' | |
| 26 | x,-y,-z,-1 | 2'100 | |
| 27 | -x,y,-z,-1 | 2'010 | |
| 28 | -x,-y,z,-1 | 2'001 | |
| 29 | z,x,y,-1 | 3'+111 | |
| 30 | y,z,x,-1 | 3'-111 | |
| 31 | -y,z,-x,-1 | 3'-1-1-1 | |
| 32 | -z,-x,y,-1 | 3'+1-1-1 | |
| 33 | -y,-z,x,-1 | 3'--11-1 | |
| 34 | z,-x,-y,-1 | 3'+-11-1 | |
| 35 | y,-z,-x,-1 | 3'--1-11 | |
| 36 | -z,x,-y,-1 | 3'+-1-11 | |
| 37 | -x,-y,-z,-1 | -1' | |
| 38 | -x,y,z,-1 | m'100 | |
| 39 | x,-y,z,-1 | m'010 | |
| 40 | x,y,-z,-1 | m'001 | |
| 41 | -z,-x,-y,-1 | -3'+111 | |
| 42 | -y,-z,-x,-1 | -3'-111 | |
| 43 | y,-z,x,-1 | -3'-1-1-1 | |
| 44 | z,x,-y,-1 | -3'+1-1-1 | |
| 45 | y,z,-x,-1 | -3'--11-1 | |
| 46 | -z,x,y,-1 | -3'+-11-1 | |
| 47 | -y,z,x,-1 | -3'--1-11 | |
| 48 | z,-x,y,-1 | -3'+-1-11 | |
| Label | Atom type | x | y | z | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|
| Co1 | Co | 0.00000 | 0.25000 | 0.25000 | 48 | mx,0,0 | 3.76(1) | 0.0 | 0.0 | 3.76 |
| Label | Atom type | x | y | z | Multiplicity |
|---|---|---|---|---|---|
| Ca1 | Ca | 0.00000 | 0.00000 | 0.00000 | 16 |
| Ti1_1 | Ti | 0.12500 | 0.12500 | 0.12500 | 32 |
| Ti1_2 | Ti | 0.37500 | 0.37500 | 0.37500 | 32 |
| O1 | O | 0.00000 | 0.15050 | 0.09180 | 192 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Co1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.25000 | 0.25000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 2 | 0.25000 | 0.00000 | 0.25000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 3 | 0.25000 | 0.25000 | 0.00000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| 4 | 0.25000 | 0.00000 | 0.00000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 5 | 0.00000 | 0.25000 | 0.00000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 6 | 0.00000 | 0.00000 | 0.25000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 7 | 0.00000 | 0.75000 | 0.75000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 8 | 0.25000 | 0.50000 | 0.75000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 9 | 0.25000 | 0.75000 | 0.50000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| 10 | 0.25000 | 0.50000 | 0.50000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 11 | 0.00000 | 0.75000 | 0.50000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 12 | 0.00000 | 0.50000 | 0.75000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 13 | 0.50000 | 0.25000 | 0.75000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 14 | 0.75000 | 0.00000 | 0.75000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 15 | 0.75000 | 0.25000 | 0.50000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| 16 | 0.75000 | 0.00000 | 0.50000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 17 | 0.50000 | 0.25000 | 0.50000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 18 | 0.50000 | 0.00000 | 0.75000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 19 | 0.50000 | 0.75000 | 0.25000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 20 | 0.75000 | 0.50000 | 0.25000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 21 | 0.75000 | 0.75000 | 0.00000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| 22 | 0.75000 | 0.50000 | 0.00000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 23 | 0.50000 | 0.75000 | 0.00000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 24 | 0.50000 | 0.50000 | 0.25000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 25 | 0.00000 | 0.25000 | 0.75000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 26 | 0.25000 | 0.00000 | 0.75000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 27 | 0.25000 | 0.25000 | 0.50000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| 28 | 0.25000 | 0.00000 | 0.50000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 29 | 0.00000 | 0.25000 | 0.50000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 30 | 0.00000 | 0.00000 | 0.75000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 31 | 0.00000 | 0.75000 | 0.25000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 32 | 0.25000 | 0.50000 | 0.25000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 33 | 0.25000 | 0.75000 | 0.00000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| 34 | 0.25000 | 0.50000 | 0.00000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 35 | 0.00000 | 0.75000 | 0.00000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 36 | 0.00000 | 0.50000 | 0.25000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 37 | 0.50000 | 0.25000 | 0.25000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 38 | 0.75000 | 0.00000 | 0.25000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 39 | 0.75000 | 0.25000 | 0.00000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| 40 | 0.75000 | 0.00000 | 0.00000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 41 | 0.50000 | 0.25000 | 0.00000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 42 | 0.50000 | 0.00000 | 0.25000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 43 | 0.50000 | 0.75000 | 0.75000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 44 | 0.75000 | 0.50000 | 0.75000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 45 | 0.75000 | 0.75000 | 0.50000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| 46 | 0.75000 | 0.50000 | 0.50000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 47 | 0.50000 | 0.75000 | 0.50000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 48 | 0.50000 | 0.50000 | 0.75000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
Set of atoms in the unit cell related by symmetry with the atom Ca1:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.00000 | 0.00000 | ||||
| 2 | 0.25000 | 0.25000 | 0.25000 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 3 | 0.00000 | 0.50000 | 0.50000 | ||||
| 4 | 0.25000 | 0.75000 | 0.75000 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 5 | 0.50000 | 0.00000 | 0.50000 | ||||
| 6 | 0.75000 | 0.25000 | 0.75000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 7 | 0.50000 | 0.50000 | 0.00000 | ||||
| 8 | 0.75000 | 0.75000 | 0.25000 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 9 | 0.00000 | 0.00000 | 0.50000 | ||||
| 10 | 0.25000 | 0.25000 | 0.75000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 11 | 0.00000 | 0.50000 | 0.00000 | ||||
| 12 | 0.25000 | 0.75000 | 0.25000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 13 | 0.50000 | 0.00000 | 0.00000 | ||||
| 14 | 0.75000 | 0.25000 | 0.25000 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 15 | 0.50000 | 0.50000 | 0.50000 | ||||
| 16 | 0.75000 | 0.75000 | 0.75000 | ||||
Set of atoms in the unit cell related by symmetry with the atom Ti1_1:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.12500 | 0.12500 | 0.12500 | ||||
| 2 | 0.12500 | 0.87500 | 0.87500 | ||||
| 3 | 0.87500 | 0.12500 | 0.87500 | ||||
| 4 | 0.87500 | 0.87500 | 0.12500 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.12500 | 0.62500 | 0.62500 | ||||
| 6 | 0.12500 | 0.37500 | 0.37500 | ||||
| 7 | 0.87500 | 0.62500 | 0.37500 | ||||
| 8 | 0.87500 | 0.37500 | 0.62500 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 9 | 0.62500 | 0.12500 | 0.62500 | ||||
| 10 | 0.62500 | 0.87500 | 0.37500 | ||||
| 11 | 0.37500 | 0.12500 | 0.37500 | ||||
| 12 | 0.37500 | 0.87500 | 0.62500 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 13 | 0.62500 | 0.62500 | 0.12500 | ||||
| 14 | 0.62500 | 0.37500 | 0.87500 | ||||
| 15 | 0.37500 | 0.62500 | 0.87500 | ||||
| 16 | 0.37500 | 0.37500 | 0.12500 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 17 | 0.12500 | 0.12500 | 0.62500 | ||||
| 18 | 0.12500 | 0.87500 | 0.37500 | ||||
| 19 | 0.87500 | 0.12500 | 0.37500 | ||||
| 20 | 0.87500 | 0.87500 | 0.62500 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 21 | 0.12500 | 0.62500 | 0.12500 | ||||
| 22 | 0.12500 | 0.37500 | 0.87500 | ||||
| 23 | 0.87500 | 0.62500 | 0.87500 | ||||
| 24 | 0.87500 | 0.37500 | 0.12500 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 25 | 0.62500 | 0.12500 | 0.12500 | ||||
| 26 | 0.62500 | 0.87500 | 0.87500 | ||||
| 27 | 0.37500 | 0.12500 | 0.87500 | ||||
| 28 | 0.37500 | 0.87500 | 0.12500 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 29 | 0.62500 | 0.62500 | 0.62500 | ||||
| 30 | 0.62500 | 0.37500 | 0.37500 | ||||
| 31 | 0.37500 | 0.62500 | 0.37500 | ||||
| 32 | 0.37500 | 0.37500 | 0.62500 | ||||
Set of atoms in the unit cell related by symmetry with the atom Ti1_2:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.37500 | 0.37500 | 0.37500 | ||||
| 2 | 0.37500 | 0.62500 | 0.62500 | ||||
| 3 | 0.62500 | 0.37500 | 0.62500 | ||||
| 4 | 0.62500 | 0.62500 | 0.37500 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.37500 | 0.87500 | 0.87500 | ||||
| 6 | 0.37500 | 0.12500 | 0.12500 | ||||
| 7 | 0.62500 | 0.87500 | 0.12500 | ||||
| 8 | 0.62500 | 0.12500 | 0.87500 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 9 | 0.87500 | 0.37500 | 0.87500 | ||||
| 10 | 0.87500 | 0.62500 | 0.12500 | ||||
| 11 | 0.12500 | 0.37500 | 0.12500 | ||||
| 12 | 0.12500 | 0.62500 | 0.87500 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 13 | 0.87500 | 0.87500 | 0.37500 | ||||
| 14 | 0.87500 | 0.12500 | 0.62500 | ||||
| 15 | 0.12500 | 0.87500 | 0.62500 | ||||
| 16 | 0.12500 | 0.12500 | 0.37500 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 17 | 0.37500 | 0.37500 | 0.87500 | ||||
| 18 | 0.37500 | 0.62500 | 0.12500 | ||||
| 19 | 0.62500 | 0.37500 | 0.12500 | ||||
| 20 | 0.62500 | 0.62500 | 0.87500 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 21 | 0.37500 | 0.87500 | 0.37500 | ||||
| 22 | 0.37500 | 0.12500 | 0.62500 | ||||
| 23 | 0.62500 | 0.87500 | 0.62500 | ||||
| 24 | 0.62500 | 0.12500 | 0.37500 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 25 | 0.87500 | 0.37500 | 0.37500 | ||||
| 26 | 0.87500 | 0.62500 | 0.62500 | ||||
| 27 | 0.12500 | 0.37500 | 0.62500 | ||||
| 28 | 0.12500 | 0.62500 | 0.37500 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 29 | 0.87500 | 0.87500 | 0.87500 | ||||
| 30 | 0.87500 | 0.12500 | 0.12500 | ||||
| 31 | 0.12500 | 0.87500 | 0.12500 | ||||
| 32 | 0.12500 | 0.12500 | 0.87500 | ||||
Set of atoms in the unit cell related by symmetry with the atom O1:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.15050 | 0.09180 | ||||
| 2 | 0.00000 | 0.84950 | 0.90820 | ||||
| 3 | 0.00000 | 0.15050 | 0.90820 | ||||
| 4 | 0.00000 | 0.84950 | 0.09180 | ||||
| 5 | 0.09180 | 0.00000 | 0.15050 | ||||
| 6 | 0.15050 | 0.09180 | 0.00000 | ||||
| 7 | 0.84950 | 0.09180 | 0.00000 | ||||
| 8 | 0.90820 | 0.00000 | 0.15050 | ||||
| 9 | 0.84950 | 0.90820 | 0.00000 | ||||
| 10 | 0.09180 | 0.00000 | 0.84950 | ||||
| 11 | 0.15050 | 0.90820 | 0.00000 | ||||
| 12 | 0.90820 | 0.00000 | 0.84950 | ||||
| 13 | 0.25000 | 0.09950 | 0.15820 | ||||
| 14 | 0.25000 | 0.40050 | 0.34180 | ||||
| 15 | 0.25000 | 0.09950 | 0.34180 | ||||
| 16 | 0.25000 | 0.40050 | 0.15820 | ||||
| 17 | 0.15820 | 0.25000 | 0.09950 | ||||
| 18 | 0.09950 | 0.15820 | 0.25000 | ||||
| 19 | 0.40050 | 0.15820 | 0.25000 | ||||
| 20 | 0.34180 | 0.25000 | 0.09950 | ||||
| 21 | 0.40050 | 0.34180 | 0.25000 | ||||
| 22 | 0.15820 | 0.25000 | 0.40050 | ||||
| 23 | 0.09950 | 0.34180 | 0.25000 | ||||
| 24 | 0.34180 | 0.25000 | 0.40050 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 25 | 0.00000 | 0.65050 | 0.59180 | ||||
| 26 | 0.00000 | 0.34950 | 0.40820 | ||||
| 27 | 0.00000 | 0.65050 | 0.40820 | ||||
| 28 | 0.00000 | 0.34950 | 0.59180 | ||||
| 29 | 0.09180 | 0.50000 | 0.65050 | ||||
| 30 | 0.15050 | 0.59180 | 0.50000 | ||||
| 31 | 0.84950 | 0.59180 | 0.50000 | ||||
| 32 | 0.90820 | 0.50000 | 0.65050 | ||||
| 33 | 0.84950 | 0.40820 | 0.50000 | ||||
| 34 | 0.09180 | 0.50000 | 0.34950 | ||||
| 35 | 0.15050 | 0.40820 | 0.50000 | ||||
| 36 | 0.90820 | 0.50000 | 0.34950 | ||||
| 37 | 0.25000 | 0.59950 | 0.65820 | ||||
| 38 | 0.25000 | 0.90050 | 0.84180 | ||||
| 39 | 0.25000 | 0.59950 | 0.84180 | ||||
| 40 | 0.25000 | 0.90050 | 0.65820 | ||||
| 41 | 0.15820 | 0.75000 | 0.59950 | ||||
| 42 | 0.09950 | 0.65820 | 0.75000 | ||||
| 43 | 0.40050 | 0.65820 | 0.75000 | ||||
| 44 | 0.34180 | 0.75000 | 0.59950 | ||||
| 45 | 0.40050 | 0.84180 | 0.75000 | ||||
| 46 | 0.15820 | 0.75000 | 0.90050 | ||||
| 47 | 0.09950 | 0.84180 | 0.75000 | ||||
| 48 | 0.34180 | 0.75000 | 0.90050 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 49 | 0.50000 | 0.15050 | 0.59180 | ||||
| 50 | 0.50000 | 0.84950 | 0.40820 | ||||
| 51 | 0.50000 | 0.15050 | 0.40820 | ||||
| 52 | 0.50000 | 0.84950 | 0.59180 | ||||
| 53 | 0.59180 | 0.00000 | 0.65050 | ||||
| 54 | 0.65050 | 0.09180 | 0.50000 | ||||
| 55 | 0.34950 | 0.09180 | 0.50000 | ||||
| 56 | 0.40820 | 0.00000 | 0.65050 | ||||
| 57 | 0.34950 | 0.90820 | 0.50000 | ||||
| 58 | 0.59180 | 0.00000 | 0.34950 | ||||
| 59 | 0.65050 | 0.90820 | 0.50000 | ||||
| 60 | 0.40820 | 0.00000 | 0.34950 | ||||
| 61 | 0.75000 | 0.09950 | 0.65820 | ||||
| 62 | 0.75000 | 0.40050 | 0.84180 | ||||
| 63 | 0.75000 | 0.09950 | 0.84180 | ||||
| 64 | 0.75000 | 0.40050 | 0.65820 | ||||
| 65 | 0.65820 | 0.25000 | 0.59950 | ||||
| 66 | 0.59950 | 0.15820 | 0.75000 | ||||
| 67 | 0.90050 | 0.15820 | 0.75000 | ||||
| 68 | 0.84180 | 0.25000 | 0.59950 | ||||
| 69 | 0.90050 | 0.34180 | 0.75000 | ||||
| 70 | 0.65820 | 0.25000 | 0.90050 | ||||
| 71 | 0.59950 | 0.34180 | 0.75000 | ||||
| 72 | 0.84180 | 0.25000 | 0.90050 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 73 | 0.50000 | 0.65050 | 0.09180 | ||||
| 74 | 0.50000 | 0.34950 | 0.90820 | ||||
| 75 | 0.50000 | 0.65050 | 0.90820 | ||||
| 76 | 0.50000 | 0.34950 | 0.09180 | ||||
| 77 | 0.59180 | 0.50000 | 0.15050 | ||||
| 78 | 0.65050 | 0.59180 | 0.00000 | ||||
| 79 | 0.34950 | 0.59180 | 0.00000 | ||||
| 80 | 0.40820 | 0.50000 | 0.15050 | ||||
| 81 | 0.34950 | 0.40820 | 0.00000 | ||||
| 82 | 0.59180 | 0.50000 | 0.84950 | ||||
| 83 | 0.65050 | 0.40820 | 0.00000 | ||||
| 84 | 0.40820 | 0.50000 | 0.84950 | ||||
| 85 | 0.75000 | 0.59950 | 0.15820 | ||||
| 86 | 0.75000 | 0.90050 | 0.34180 | ||||
| 87 | 0.75000 | 0.59950 | 0.34180 | ||||
| 88 | 0.75000 | 0.90050 | 0.15820 | ||||
| 89 | 0.65820 | 0.75000 | 0.09950 | ||||
| 90 | 0.59950 | 0.65820 | 0.25000 | ||||
| 91 | 0.90050 | 0.65820 | 0.25000 | ||||
| 92 | 0.84180 | 0.75000 | 0.09950 | ||||
| 93 | 0.90050 | 0.84180 | 0.25000 | ||||
| 94 | 0.65820 | 0.75000 | 0.40050 | ||||
| 95 | 0.59950 | 0.84180 | 0.25000 | ||||
| 96 | 0.84180 | 0.75000 | 0.40050 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 97 | 0.00000 | 0.15050 | 0.59180 | ||||
| 98 | 0.00000 | 0.84950 | 0.40820 | ||||
| 99 | 0.00000 | 0.15050 | 0.40820 | ||||
| 100 | 0.00000 | 0.84950 | 0.59180 | ||||
| 101 | 0.09180 | 0.00000 | 0.65050 | ||||
| 102 | 0.15050 | 0.09180 | 0.50000 | ||||
| 103 | 0.84950 | 0.09180 | 0.50000 | ||||
| 104 | 0.90820 | 0.00000 | 0.65050 | ||||
| 105 | 0.84950 | 0.90820 | 0.50000 | ||||
| 106 | 0.09180 | 0.00000 | 0.34950 | ||||
| 107 | 0.15050 | 0.90820 | 0.50000 | ||||
| 108 | 0.90820 | 0.00000 | 0.34950 | ||||
| 109 | 0.25000 | 0.09950 | 0.65820 | ||||
| 110 | 0.25000 | 0.40050 | 0.84180 | ||||
| 111 | 0.25000 | 0.09950 | 0.84180 | ||||
| 112 | 0.25000 | 0.40050 | 0.65820 | ||||
| 113 | 0.15820 | 0.25000 | 0.59950 | ||||
| 114 | 0.09950 | 0.15820 | 0.75000 | ||||
| 115 | 0.40050 | 0.15820 | 0.75000 | ||||
| 116 | 0.34180 | 0.25000 | 0.59950 | ||||
| 117 | 0.40050 | 0.34180 | 0.75000 | ||||
| 118 | 0.15820 | 0.25000 | 0.90050 | ||||
| 119 | 0.09950 | 0.34180 | 0.75000 | ||||
| 120 | 0.34180 | 0.25000 | 0.90050 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 121 | 0.00000 | 0.65050 | 0.09180 | ||||
| 122 | 0.00000 | 0.34950 | 0.90820 | ||||
| 123 | 0.00000 | 0.65050 | 0.90820 | ||||
| 124 | 0.00000 | 0.34950 | 0.09180 | ||||
| 125 | 0.09180 | 0.50000 | 0.15050 | ||||
| 126 | 0.15050 | 0.59180 | 0.00000 | ||||
| 127 | 0.84950 | 0.59180 | 0.00000 | ||||
| 128 | 0.90820 | 0.50000 | 0.15050 | ||||
| 129 | 0.84950 | 0.40820 | 0.00000 | ||||
| 130 | 0.09180 | 0.50000 | 0.84950 | ||||
| 131 | 0.15050 | 0.40820 | 0.00000 | ||||
| 132 | 0.90820 | 0.50000 | 0.84950 | ||||
| 133 | 0.25000 | 0.59950 | 0.15820 | ||||
| 134 | 0.25000 | 0.90050 | 0.34180 | ||||
| 135 | 0.25000 | 0.59950 | 0.34180 | ||||
| 136 | 0.25000 | 0.90050 | 0.15820 | ||||
| 137 | 0.15820 | 0.75000 | 0.09950 | ||||
| 138 | 0.09950 | 0.65820 | 0.25000 | ||||
| 139 | 0.40050 | 0.65820 | 0.25000 | ||||
| 140 | 0.34180 | 0.75000 | 0.09950 | ||||
| 141 | 0.40050 | 0.84180 | 0.25000 | ||||
| 142 | 0.15820 | 0.75000 | 0.40050 | ||||
| 143 | 0.09950 | 0.84180 | 0.25000 | ||||
| 144 | 0.34180 | 0.75000 | 0.40050 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 145 | 0.50000 | 0.15050 | 0.09180 | ||||
| 146 | 0.50000 | 0.84950 | 0.90820 | ||||
| 147 | 0.50000 | 0.15050 | 0.90820 | ||||
| 148 | 0.50000 | 0.84950 | 0.09180 | ||||
| 149 | 0.59180 | 0.00000 | 0.15050 | ||||
| 150 | 0.65050 | 0.09180 | 0.00000 | ||||
| 151 | 0.34950 | 0.09180 | 0.00000 | ||||
| 152 | 0.40820 | 0.00000 | 0.15050 | ||||
| 153 | 0.34950 | 0.90820 | 0.00000 | ||||
| 154 | 0.59180 | 0.00000 | 0.84950 | ||||
| 155 | 0.65050 | 0.90820 | 0.00000 | ||||
| 156 | 0.40820 | 0.00000 | 0.84950 | ||||
| 157 | 0.75000 | 0.09950 | 0.15820 | ||||
| 158 | 0.75000 | 0.40050 | 0.34180 | ||||
| 159 | 0.75000 | 0.09950 | 0.34180 | ||||
| 160 | 0.75000 | 0.40050 | 0.15820 | ||||
| 161 | 0.65820 | 0.25000 | 0.09950 | ||||
| 162 | 0.59950 | 0.15820 | 0.25000 | ||||
| 163 | 0.90050 | 0.15820 | 0.25000 | ||||
| 164 | 0.84180 | 0.25000 | 0.09950 | ||||
| 165 | 0.90050 | 0.34180 | 0.25000 | ||||
| 166 | 0.65820 | 0.25000 | 0.40050 | ||||
| 167 | 0.59950 | 0.34180 | 0.25000 | ||||
| 168 | 0.84180 | 0.25000 | 0.40050 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 169 | 0.50000 | 0.65050 | 0.59180 | ||||
| 170 | 0.50000 | 0.34950 | 0.40820 | ||||
| 171 | 0.50000 | 0.65050 | 0.40820 | ||||
| 172 | 0.50000 | 0.34950 | 0.59180 | ||||
| 173 | 0.59180 | 0.50000 | 0.65050 | ||||
| 174 | 0.65050 | 0.59180 | 0.50000 | ||||
| 175 | 0.34950 | 0.59180 | 0.50000 | ||||
| 176 | 0.40820 | 0.50000 | 0.65050 | ||||
| 177 | 0.34950 | 0.40820 | 0.50000 | ||||
| 178 | 0.59180 | 0.50000 | 0.34950 | ||||
| 179 | 0.65050 | 0.40820 | 0.50000 | ||||
| 180 | 0.40820 | 0.50000 | 0.34950 | ||||
| 181 | 0.75000 | 0.59950 | 0.65820 | ||||
| 182 | 0.75000 | 0.90050 | 0.84180 | ||||
| 183 | 0.75000 | 0.59950 | 0.84180 | ||||
| 184 | 0.75000 | 0.90050 | 0.65820 | ||||
| 185 | 0.65820 | 0.75000 | 0.59950 | ||||
| 186 | 0.59950 | 0.65820 | 0.75000 | ||||
| 187 | 0.90050 | 0.65820 | 0.75000 | ||||
| 188 | 0.84180 | 0.75000 | 0.59950 | ||||
| 189 | 0.90050 | 0.84180 | 0.75000 | ||||
| 190 | 0.65820 | 0.75000 | 0.90050 | ||||
| 191 | 0.59950 | 0.84180 | 0.75000 | ||||
| 192 | 0.84180 | 0.75000 | 0.90050 | ||||
| Label | Atom type | x | y | z | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|
| Co1 | Co | 0.00000 | 0.25000 | 0.25000 | 48 | mx,0,0 | 3.76(1) | 0.0 | 0.0 | 3.76 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Co1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.25000 | 0.25000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 2 | 0.25000 | 0.00000 | 0.25000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 3 | 0.25000 | 0.25000 | 0.00000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| 4 | 0.25000 | 0.00000 | 0.00000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 5 | 0.00000 | 0.25000 | 0.00000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 6 | 0.00000 | 0.00000 | 0.25000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 7 | 0.00000 | 0.75000 | 0.75000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 8 | 0.25000 | 0.50000 | 0.75000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 9 | 0.25000 | 0.75000 | 0.50000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| 10 | 0.25000 | 0.50000 | 0.50000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 11 | 0.00000 | 0.75000 | 0.50000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 12 | 0.00000 | 0.50000 | 0.75000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 13 | 0.50000 | 0.25000 | 0.75000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 14 | 0.75000 | 0.00000 | 0.75000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 15 | 0.75000 | 0.25000 | 0.50000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| 16 | 0.75000 | 0.00000 | 0.50000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 17 | 0.50000 | 0.25000 | 0.50000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 18 | 0.50000 | 0.00000 | 0.75000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 19 | 0.50000 | 0.75000 | 0.25000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 20 | 0.75000 | 0.50000 | 0.25000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 21 | 0.75000 | 0.75000 | 0.00000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| 22 | 0.75000 | 0.50000 | 0.00000 | mx,0,0 | 3.76000 | 0.00000 | 0.00000 |
| 23 | 0.50000 | 0.75000 | 0.00000 | 0,mx,0 | 0.00000 | 3.76000 | 0.00000 |
| 24 | 0.50000 | 0.50000 | 0.25000 | 0,0,mx | 0.00000 | 0.00000 | 3.76000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 25 | 0.00000 | 0.25000 | 0.75000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 26 | 0.25000 | 0.00000 | 0.75000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 27 | 0.25000 | 0.25000 | 0.50000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| 28 | 0.25000 | 0.00000 | 0.50000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 29 | 0.00000 | 0.25000 | 0.50000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 30 | 0.00000 | 0.00000 | 0.75000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 31 | 0.00000 | 0.75000 | 0.25000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 32 | 0.25000 | 0.50000 | 0.25000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 33 | 0.25000 | 0.75000 | 0.00000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| 34 | 0.25000 | 0.50000 | 0.00000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 35 | 0.00000 | 0.75000 | 0.00000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 36 | 0.00000 | 0.50000 | 0.25000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 37 | 0.50000 | 0.25000 | 0.25000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 38 | 0.75000 | 0.00000 | 0.25000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 39 | 0.75000 | 0.25000 | 0.00000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| 40 | 0.75000 | 0.00000 | 0.00000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 41 | 0.50000 | 0.25000 | 0.00000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 42 | 0.50000 | 0.00000 | 0.25000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 43 | 0.50000 | 0.75000 | 0.75000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 44 | 0.75000 | 0.50000 | 0.75000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 45 | 0.75000 | 0.75000 | 0.50000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| 46 | 0.75000 | 0.50000 | 0.50000 | -mx,0,0 | -3.76000 | 0.00000 | 0.00000 |
| 47 | 0.50000 | 0.75000 | 0.50000 | 0,-mx,0 | 0.00000 | -3.76000 | 0.00000 |
| 48 | 0.50000 | 0.50000 | 0.75000 | 0,0,-mx | 0.00000 | 0.00000 | -3.76000 |
| label | dim. full irrep | dim. small irrep | direction | action | number of modes |
| mP1 | 2 | 1 | special | primary | 1 |
|
Bilbao Crystallographic Server https://www.cryst.ehu.es |
For comments, please mail to administrador.bcs@ehu.eus |
