Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,-y,-z,+1	{ -1 \| 0 }
(1/4,3/4,0) + set click here to show and hide
3	x+1/4,y+3/4,z,+1	{ 1 \| 1/4 3/4 0 }
4	-x+1/4,-y+3/4,-z,+1	{ -1 \| 1/4 3/4 0 }
(1/2,1/2,0) + set click here to show and hide
5	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
6	-x+1/2,-y+1/2,-z,+1	{ -1 \| 1/2 1/2 0 }
(3/4,1/4,0) + set click here to show and hide
7	x+3/4,y+1/4,z,+1	{ 1 \| 3/4 1/4 0 }
8	-x+3/4,-y+1/4,-z,+1	{ -1 \| 3/4 1/4 0 }
(3/4,3/4,0)' + set click here to show and hide
9	x+3/4,y+3/4,z,-1	{ 1' \| 3/4 3/4 0 }
10	-x+3/4,-y+3/4,-z,-1	{ -1' \| 3/4 3/4 0 }
(0,1/2,0)' + set click here to show and hide
11	x,y+1/2,z,-1	{ 1' \| 0 1/2 0 }
12	-x,-y+1/2,-z,-1	{ -1' \| 0 1/2 0 }
(1/4,1/4,0)' + set click here to show and hide
13	x+1/4,y+1/4,z,-1	{ 1' \| 1/4 1/4 0 }
14	-x+1/4,-y+1/4,-z,-1	{ -1' \| 1/4 1/4 0 }
(1/2,0,0)' + set click here to show and hide
15	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
16	-x+1/2,-y,-z,-1	{ -1' \| 1/2 0 0 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,-y,-z,+1	-1
1' + set click here to show and hide
3	x,y,z,-1	1'
4	-x,-y,-z,-1	-1'

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Pr1	Pr	0.00000	0.00000	0.00000	8	m_x,m_y,m_z	0.88(7)	-0.79(5)	0.0	1.18

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ir1	Ir	0.00000	0.25000	0.50000	8
Ir2_1	Ir	0.12500	0.12500	0.50000	8
Ir2_2	Ir	0.37500	0.12500	0.50000	8
B1	B	0.00000	0.16200	0.00000	16

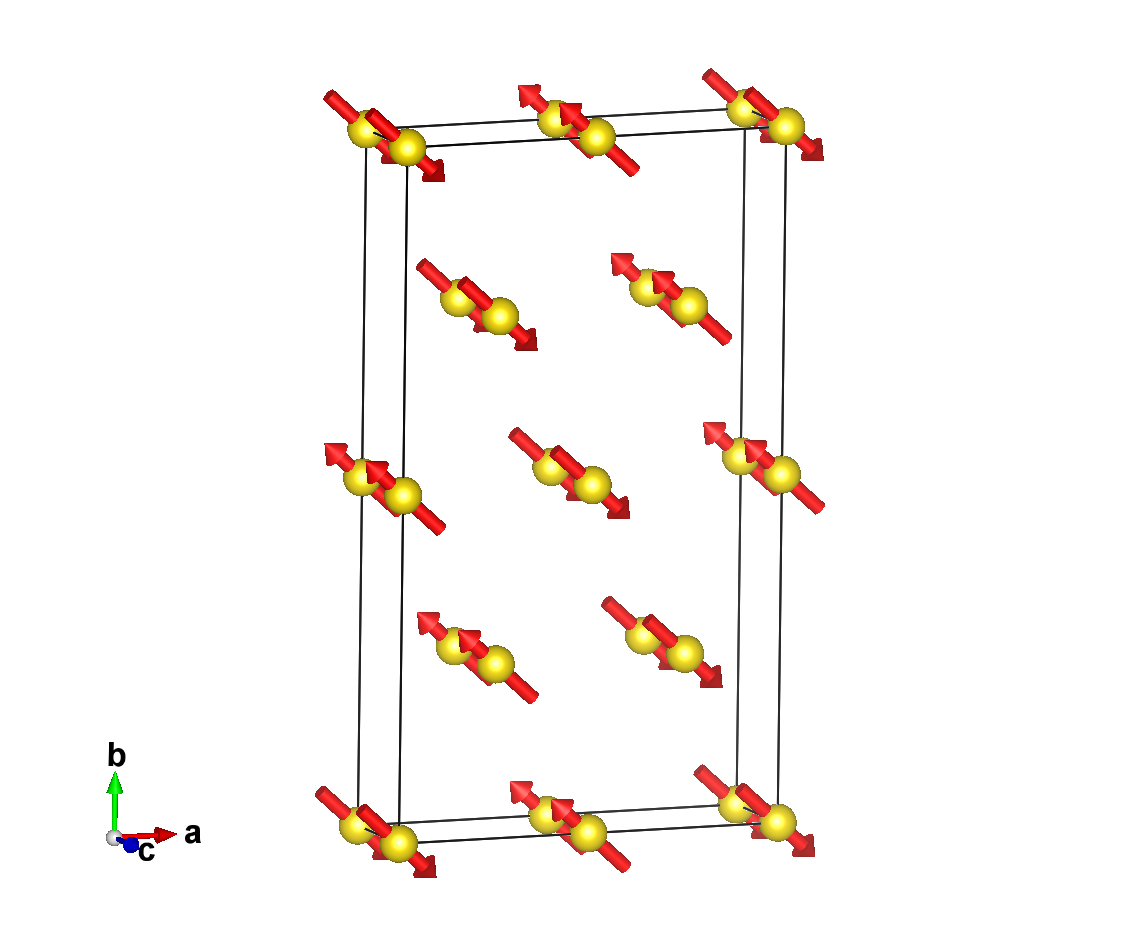

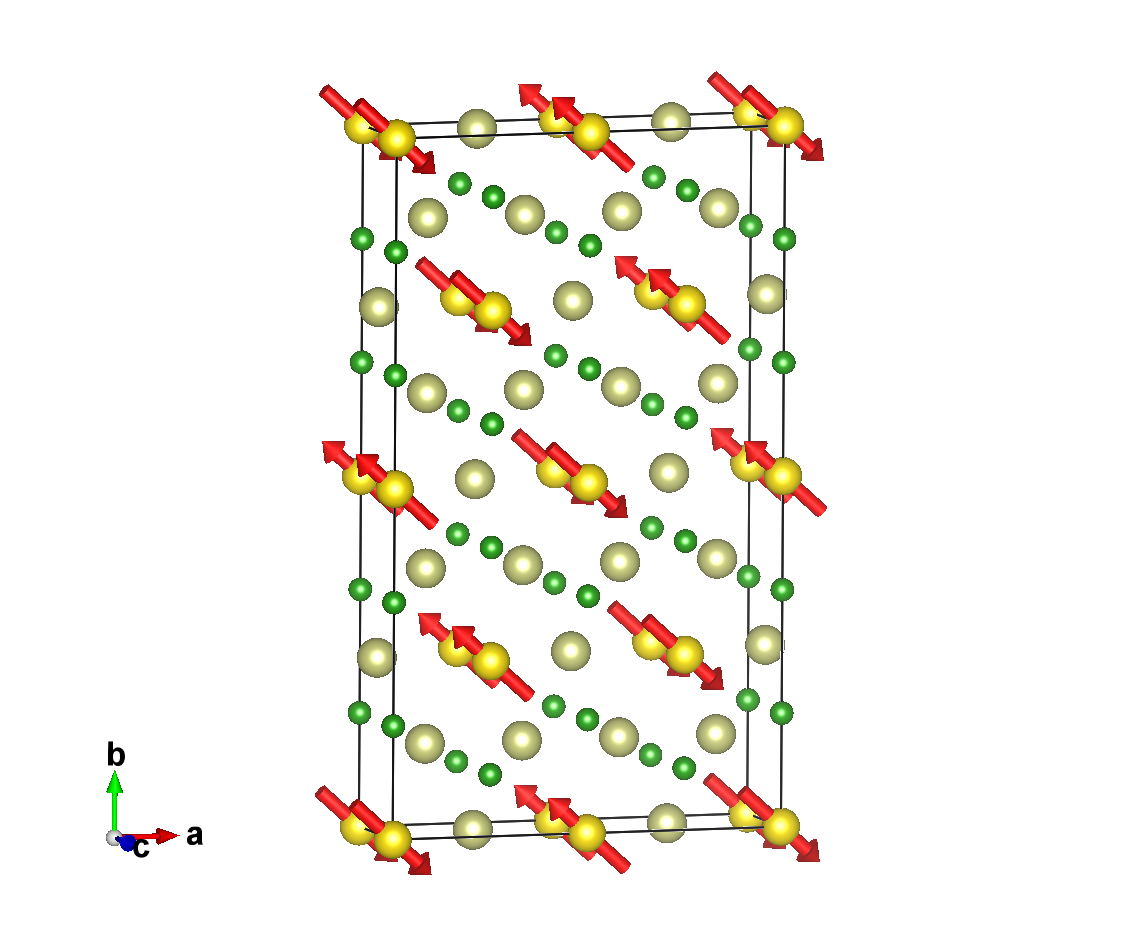

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Pr1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_y,m_z	0.88000	-0.79000	0.00000
(1/4,3/4,0) + set click here to show and hide
2	0.25000	0.75000	0.00000	m_x,m_y,m_z	0.88000	-0.79000	0.00000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.50000	0.00000	m_x,m_y,m_z	0.88000	-0.79000	0.00000
(3/4,1/4,0) + set click here to show and hide
4	0.75000	0.25000	0.00000	m_x,m_y,m_z	0.88000	-0.79000	0.00000
(3/4,3/4,0)' + set click here to show and hide
5	0.75000	0.75000	0.00000	-m_x,-m_y,-m_z	-0.88000	0.79000	0.00000
(0,1/2,0)' + set click here to show and hide
6	0.00000	0.50000	0.00000	-m_x,-m_y,-m_z	-0.88000	0.79000	0.00000
(1/4,1/4,0)' + set click here to show and hide
7	0.25000	0.25000	0.00000	-m_x,-m_y,-m_z	-0.88000	0.79000	0.00000
(1/2,0,0)' + set click here to show and hide
8	0.50000	0.00000	0.00000	-m_x,-m_y,-m_z	-0.88000	0.79000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Ir1:

Atom	x	y	z
1	0.00000	0.25000	0.50000
(1/4,3/4,0) + set click here to show and hide
2	0.25000	0.00000	0.50000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.75000	0.50000
(3/4,1/4,0) + set click here to show and hide
4	0.75000	0.50000	0.50000
(3/4,3/4,0)' + set click here to show and hide
5	0.75000	0.00000	0.50000
(0,1/2,0)' + set click here to show and hide
6	0.00000	0.75000	0.50000
(1/4,1/4,0)' + set click here to show and hide
7	0.25000	0.50000	0.50000
(1/2,0,0)' + set click here to show and hide
8	0.50000	0.25000	0.50000

Set of atoms in the unit cell related by symmetry with the atom Ir2_1:

Atom	x	y	z
1	0.12500	0.12500	0.50000
(1/4,3/4,0) + set click here to show and hide
2	0.37500	0.87500	0.50000
(1/2,1/2,0) + set click here to show and hide
3	0.62500	0.62500	0.50000
(3/4,1/4,0) + set click here to show and hide
4	0.87500	0.37500	0.50000
(3/4,3/4,0)' + set click here to show and hide
5	0.87500	0.87500	0.50000
(0,1/2,0)' + set click here to show and hide
6	0.12500	0.62500	0.50000
(1/4,1/4,0)' + set click here to show and hide
7	0.37500	0.37500	0.50000
(1/2,0,0)' + set click here to show and hide
8	0.62500	0.12500	0.50000

Set of atoms in the unit cell related by symmetry with the atom Ir2_2:

Atom	x	y	z
1	0.37500	0.12500	0.50000
(1/4,3/4,0) + set click here to show and hide
2	0.62500	0.87500	0.50000
(1/2,1/2,0) + set click here to show and hide
3	0.87500	0.62500	0.50000
(3/4,1/4,0) + set click here to show and hide
4	0.12500	0.37500	0.50000
(3/4,3/4,0)' + set click here to show and hide
5	0.12500	0.87500	0.50000
(0,1/2,0)' + set click here to show and hide
6	0.37500	0.62500	0.50000
(1/4,1/4,0)' + set click here to show and hide
7	0.62500	0.37500	0.50000
(1/2,0,0)' + set click here to show and hide
8	0.87500	0.12500	0.50000

Set of atoms in the unit cell related by symmetry with the atom B1:

Atom	x	y	z
1	0.00000	0.16200	0.00000
2	0.00000	0.83800	0.00000
(1/4,3/4,0) + set click here to show and hide
3	0.25000	0.91200	0.00000
4	0.25000	0.58800	0.00000
(1/2,1/2,0) + set click here to show and hide
5	0.50000	0.66200	0.00000
6	0.50000	0.33800	0.00000
(3/4,1/4,0) + set click here to show and hide
7	0.75000	0.41200	0.00000
8	0.75000	0.08800	0.00000
(3/4,3/4,0)' + set click here to show and hide
9	0.75000	0.91200	0.00000
10	0.75000	0.58800	0.00000
(0,1/2,0)' + set click here to show and hide
11	0.00000	0.66200	0.00000
12	0.00000	0.33800	0.00000
(1/4,1/4,0)' + set click here to show and hide
13	0.25000	0.41200	0.00000
14	0.25000	0.08800	0.00000
(1/2,0,0)' + set click here to show and hide
15	0.50000	0.16200	0.00000
16	0.50000	0.83800	0.00000

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Pr1	Pr	0.00000	0.00000	0.00000	8	m_x,m_y,m_z	0.88(7)	-0.79(5)	0.0	1.18

label	dim. small irrep	dim. full irrep	action	number of modes
mV1+	1	2	primary	3
