MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	y,x,z,-1	{ m'_1-10 \| 0 }
3	-y,-x,z,-1	{ m'₁₁₀ \| 0 }
4	-x,y,-z,-1	{ 2'₀₁₀ \| 0 }
5	x,-y,-z,-1	{ 2'₁₀₀ \| 0 }
6	-y,x,-z,+1	{ -4^-₀₀₁ \| 0 }
7	-x,-y,z,+1	{ 2₀₀₁ \| 0 }
8	y,-x,-z,+1	{ -4⁺₀₀₁ \| 0 }
(1/2,1/2,0)' + set click here to show and hide
9	x+1/2,y+1/2,z,-1	{ 1' \| 1/2 1/2 0 }
10	y+1/2,x+1/2,z,+1	{ m_1-10 \| 1/2 1/2 0 }
11	-y+1/2,-x+1/2,z,+1	{ m₁₁₀ \| 1/2 1/2 0 }
12	-x+1/2,y+1/2,-z,+1	{ 2₀₁₀ \| 1/2 1/2 0 }
13	x+1/2,-y+1/2,-z,+1	{ 2₁₀₀ \| 1/2 1/2 0 }
14	-y+1/2,x+1/2,-z,-1	{ -4'^-₀₀₁ \| 1/2 1/2 0 }
15	-x+1/2,-y+1/2,z,-1	{ 2'₀₀₁ \| 1/2 1/2 0 }
16	y+1/2,-x+1/2,-z,-1	{ -4'⁺₀₀₁ \| 1/2 1/2 0 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
6	-y,x,-z,+1	-4^-₀₀₁
7	-x,-y,z,+1	2₀₀₁
8	y,-x,-z,+1	-4⁺₀₀₁
10	y,x,z,+1	m_1-10
11	-y,-x,z,+1	m₁₁₀
12	-x,y,-z,+1	2₀₁₀
13	x,-y,-z,+1	2₁₀₀
1' + set click here to show and hide
9	x,y,z,-1	1'
10	-y,x,-z,-1	-4'^-₀₀₁
11	-x,-y,z,-1	2'₀₀₁
12	y,-x,-z,-1	-4'⁺₀₀₁
13	y,x,z,-1	m'_1-10
14	-y,-x,z,-1	m'₁₁₀
15	-x,y,-z,-1	2'₀₁₀
16	x,-y,-z,-1	2'₁₀₀

[Hide]

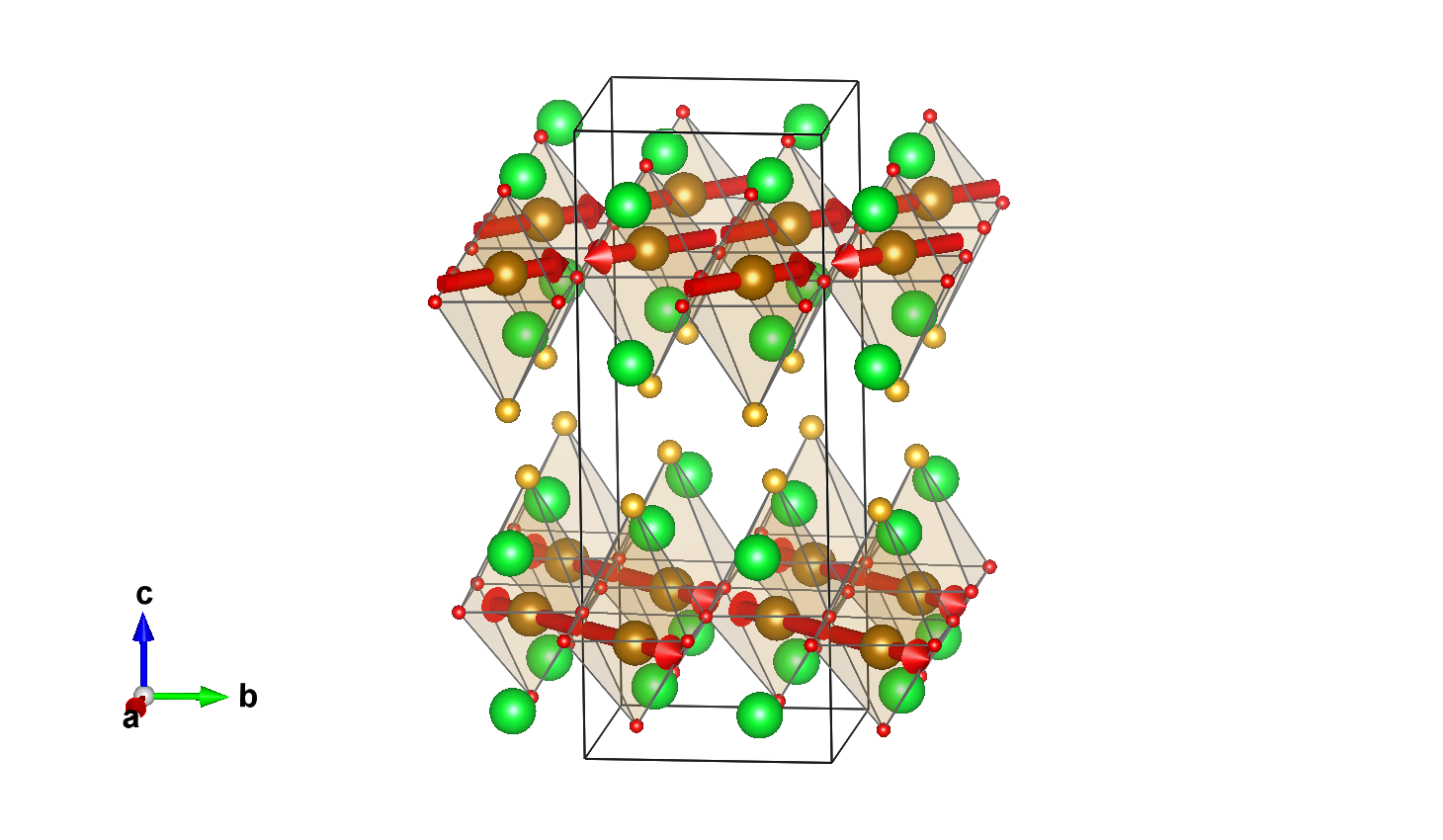

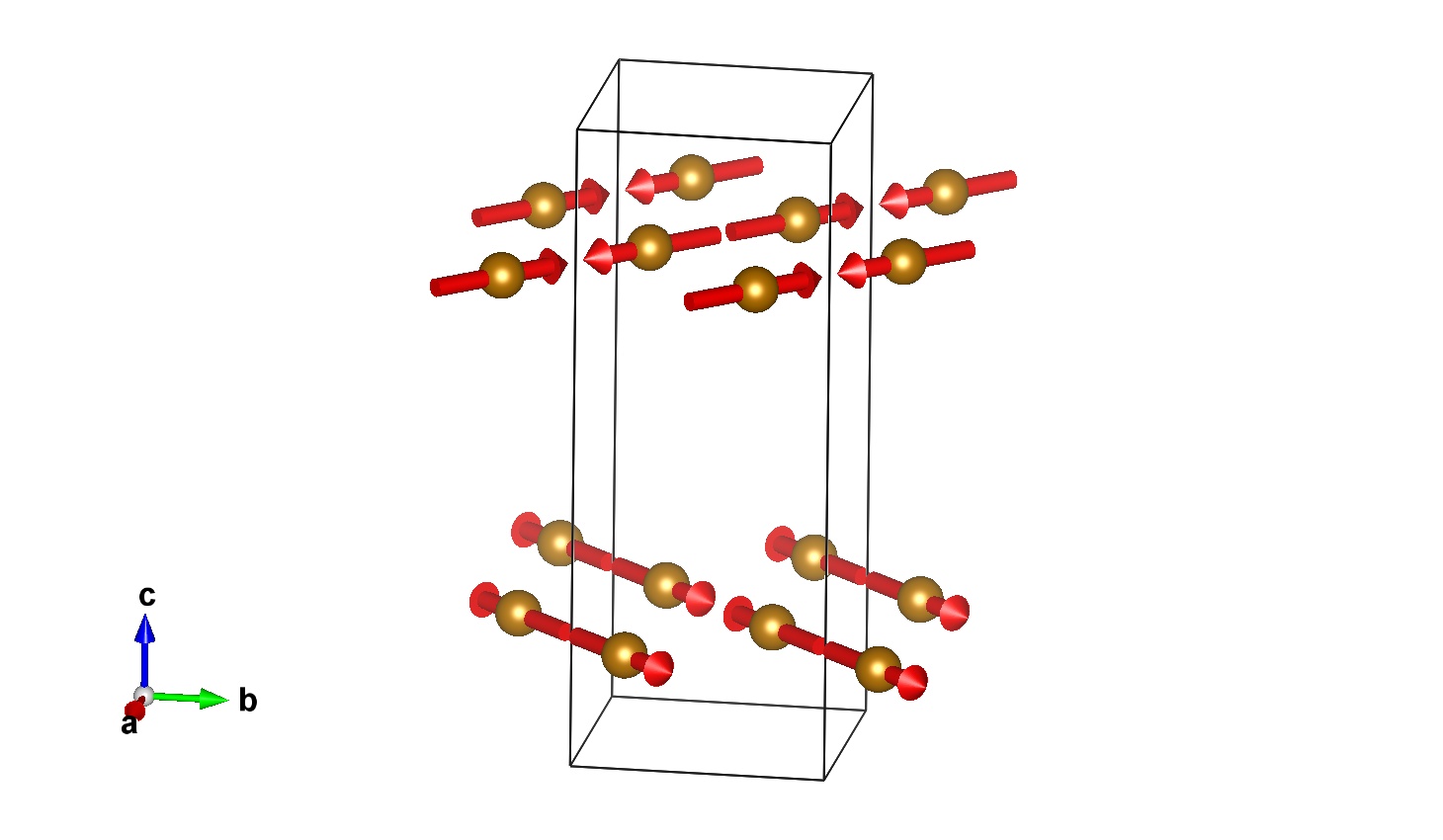

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.25000	0.25000	0.20731(14)	4	m_x,m_x,0	2.778(14)	2.778(14)	0.0	3.93

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Sr1	Sr	0.25000	0.75000	0.09557(18)	4
Sr2	Sr	0.25000	0.75000	0.3469(2)	4
O1_1	O	0.00000	0.00000	0.2332(6)	4
O1_2	O	0.00000	0.50000	0.2299(6)	4
O2	O	0.25000	0.25000	0.0753(2)	4
Cl1	Cl	0.25000	0.25000	0.42569(14)	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.20731	m_x,m_x,0	2.77800	2.77800	0.00000
2	0.75000	0.25000	0.79269	m_x,-m_x,0	2.77800	-2.77800	0.00000
(1/2,1/2,0)' + set click here to show and hide
3	0.75000	0.75000	0.20731	-m_x,-m_x,0	-2.77800	-2.77800	0.00000
4	0.25000	0.75000	0.79269	-m_x,m_x,0	-2.77800	2.77800	0.00000

Atom	x	y	z
1	0.25000	0.75000	0.09557
2	0.75000	0.75000	0.90443
(1/2,1/2,0)' + set click here to show and hide
3	0.75000	0.25000	0.09557
4	0.25000	0.25000	0.90443

Atom	x	y	z
1	0.25000	0.75000	0.34690
2	0.75000	0.75000	0.65310
(1/2,1/2,0)' + set click here to show and hide
3	0.75000	0.25000	0.34690
4	0.25000	0.25000	0.65310

Atom	x	y	z
1	0.00000	0.00000	0.23320
2	0.00000	0.00000	0.76680
(1/2,1/2,0)' + set click here to show and hide
3	0.50000	0.50000	0.23320
4	0.50000	0.50000	0.76680

Atom	x	y	z
1	0.00000	0.50000	0.22990
2	0.00000	0.50000	0.77010
(1/2,1/2,0)' + set click here to show and hide
3	0.50000	0.00000	0.22990
4	0.50000	0.00000	0.77010

Atom	x	y	z
1	0.25000	0.25000	0.07530
2	0.75000	0.25000	0.92470
(1/2,1/2,0)' + set click here to show and hide
3	0.75000	0.75000	0.07530
4	0.25000	0.75000	0.92470

Atom	x	y	z
1	0.25000	0.25000	0.42569
2	0.75000	0.25000	0.57431
(1/2,1/2,0)' + set click here to show and hide
3	0.75000	0.75000	0.42569
4	0.25000	0.75000	0.57431

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.25000	0.25000	0.20731(14)	4	m_x,m_x,0	2.778(14)	2.778(14)	0.0	3.93

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25000	0.25000	0.20731	m_x,m_x,0	2.77800	2.77800	0.00000
2	0.75000	0.25000	0.79269	m_x,-m_x,0	2.77800	-2.77800	0.00000
(1/2,1/2,0)' + set click here to show and hide
3	0.75000	0.75000	0.20731	-m_x,-m_x,0	-2.77800	-2.77800	0.00000
4	0.25000	0.75000	0.79269	-m_x,m_x,0	-2.77800	2.77800	0.00000

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mM1	2	2	special	primary	1
