Collection of Magnetic Structures
|
MAGNDATA
Collection of Magnetic Structures
|
 |

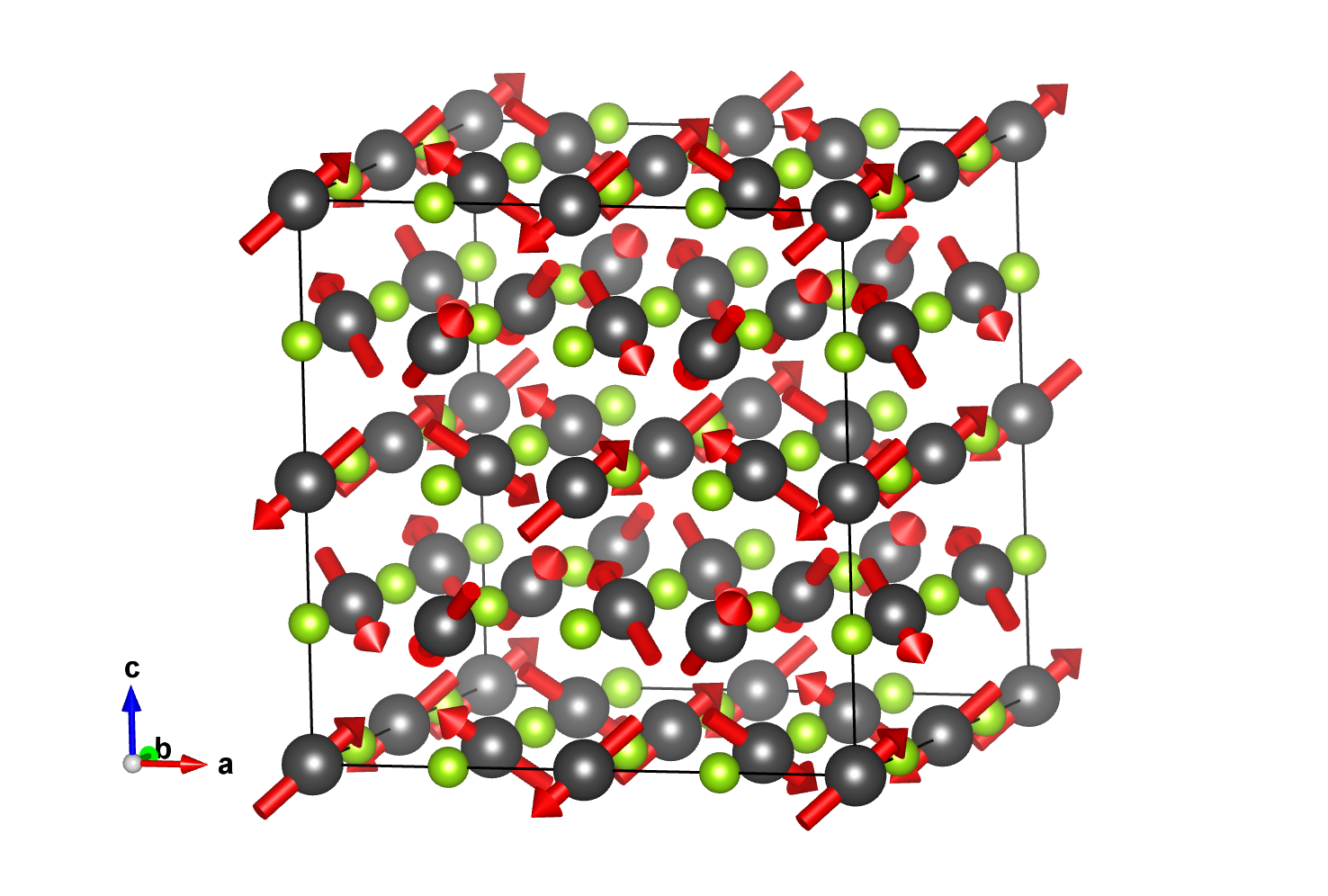

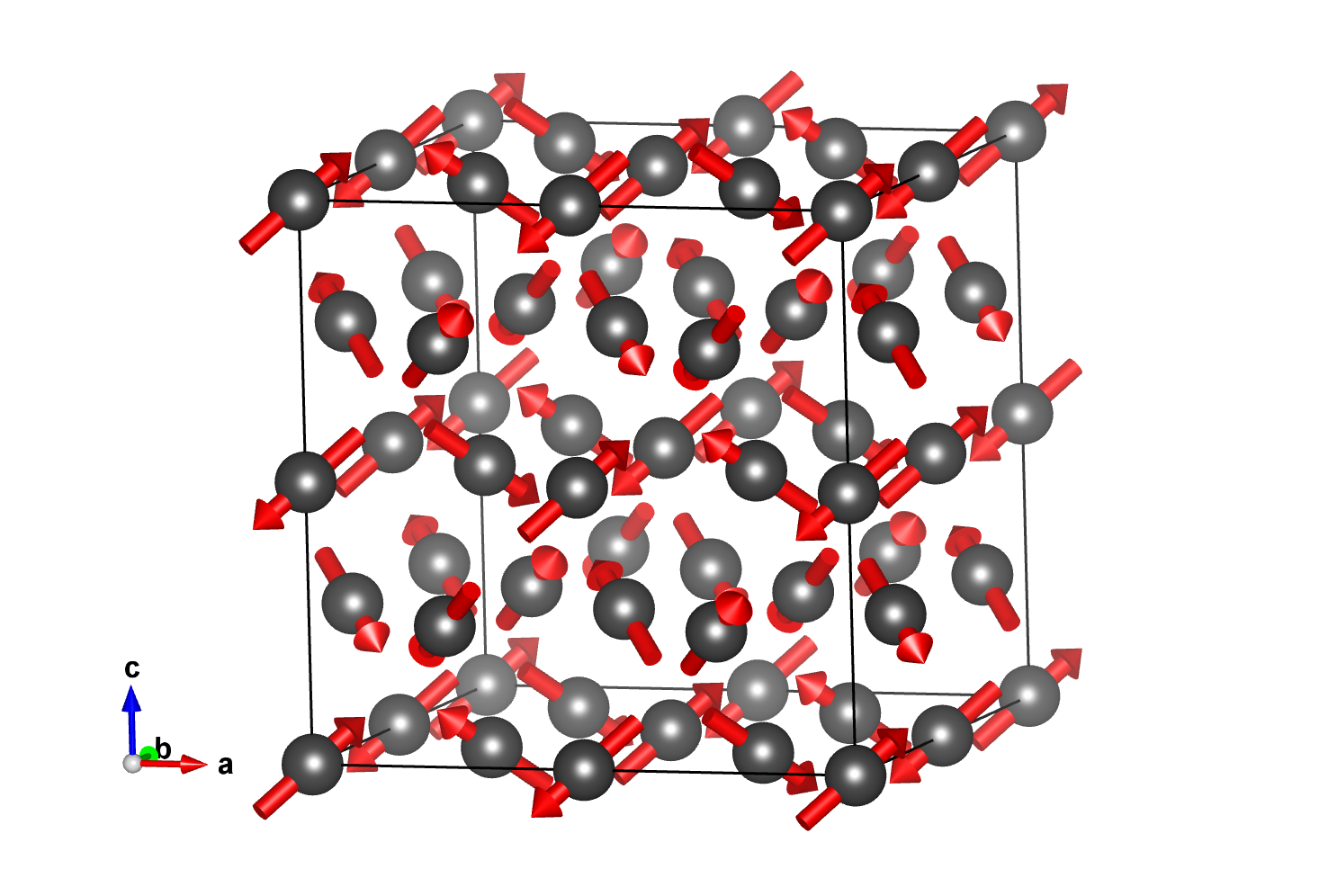

 Magnetic structure with all atoms |  Magnetic structure with only magnetic atoms |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | { 1 | 0 } | |
| 2 | x+1/4,-z+1/2,y+1/4,+1 | { 4+100 | 1/4 1/2 1/4 } | |
| 3 | x+1/4,z+1/4,-y+1/2,+1 | { 4-100 | 1/4 1/4 1/2 } | |
| 4 | z+1/4,y+1/4,-x+1/2,+1 | { 4+010 | 1/4 1/4 1/2 } | |
| 5 | -z+1/2,y+1/4,x+1/4,+1 | { 4-010 | 1/2 1/4 1/4 } | |
| 6 | -y+1/2,x+1/4,z+1/4,+1 | { 4+001 | 1/2 1/4 1/4 } | |
| 7 | y+1/4,-x+1/2,z+1/4,+1 | { 4-001 | 1/4 1/2 1/4 } | |
| 8 | x,-y+1/4,-z+1/4,+1 | { 2100 | 0 1/4 1/4 } | |
| 9 | -x+1/4,y,-z+1/4,+1 | { 2010 | 1/4 0 1/4 } | |
| 10 | -x+1/4,-y+1/4,z,+1 | { 2001 | 1/4 1/4 0 } | |
| 11 | y+1/4,x+1/4,-z+1/2,+1 | { 2110 | 1/4 1/4 1/2 } | |
| 12 | -y+1/2,-x+1/2,-z+1/2,+1 | { 21-10 | 1/2 1/2 1/2 } | |
| 13 | -x+1/2,z+1/4,y+1/4,+1 | { 2011 | 1/2 1/4 1/4 } | |
| 14 | -x+1/2,-z+1/2,-y+1/2,+1 | { 201-1 | 1/2 1/2 1/2 } | |
| 15 | z+1/4,-y+1/2,x+1/4,+1 | { 2101 | 1/4 1/2 1/4 } | |
| 16 | -z+1/2,-y+1/2,-x+1/2,+1 | { 2-101 | 1/2 1/2 1/2 } | |
| 17 | z,x,y,+1 | { 3+111 | 0 } | |
| 18 | y,z,x,+1 | { 3-111 | 0 } | |
| 19 | -y+1/4,z,-x+1/4,+1 | { 3-1-1-1 | 1/4 0 1/4 } | |
| 20 | -z+1/4,-x+1/4,y,+1 | { 3+1-1-1 | 1/4 1/4 0 } | |
| 21 | -y+1/4,-z+1/4,x,+1 | { 3--11-1 | 1/4 1/4 0 } | |
| 22 | z,-x+1/4,-y+1/4,+1 | { 3+-11-1 | 0 1/4 1/4 } | |
| 23 | y,-z+1/4,-x+1/4,+1 | { 3--1-11 | 0 1/4 1/4 } | |
| 24 | -z+1/4,x,-y+1/4,+1 | { 3+-1-11 | 1/4 0 1/4 } | |
| 25 | -x,-y,-z,+1 | { -1 | 0 } | |
| 26 | -x+1/4,z+1/2,-y+1/4,+1 | { -4+100 | 1/4 1/2 1/4 } | |
| 27 | -x+1/4,-z+1/4,y+1/2,+1 | { -4-100 | 1/4 1/4 1/2 } | |
| 28 | -z+1/4,-y+1/4,x+1/2,+1 | { -4+010 | 1/4 1/4 1/2 } | |
| 29 | z+1/2,-y+1/4,-x+1/4,+1 | { -4-010 | 1/2 1/4 1/4 } | |
| 30 | y+1/2,-x+1/4,-z+1/4,+1 | { -4+001 | 1/2 1/4 1/4 } | |
| 31 | -y+1/4,x+1/2,-z+1/4,+1 | { -4-001 | 1/4 1/2 1/4 } | |
| 32 | -x,y+1/4,z+1/4,+1 | { m100 | 0 1/4 1/4 } | |
| 33 | x+1/4,-y,z+1/4,+1 | { m010 | 1/4 0 1/4 } | |
| 34 | x+1/4,y+1/4,-z,+1 | { m001 | 1/4 1/4 0 } | |
| 35 | -y+1/4,-x+1/4,z+1/2,+1 | { m110 | 1/4 1/4 1/2 } | |
| 36 | y+1/2,x+1/2,z+1/2,+1 | { m1-10 | 1/2 1/2 1/2 } | |
| 37 | x+1/2,-z+1/4,-y+1/4,+1 | { m011 | 1/2 1/4 1/4 } | |
| 38 | x+1/2,z+1/2,y+1/2,+1 | { m01-1 | 1/2 1/2 1/2 } | |
| 39 | -z+1/4,y+1/2,-x+1/4,+1 | { m101 | 1/4 1/2 1/4 } | |
| 40 | z+1/2,y+1/2,x+1/2,+1 | { m-101 | 1/2 1/2 1/2 } | |
| 41 | -z,-x,-y,+1 | { -3+111 | 0 } | |
| 42 | -y,-z,-x,+1 | { -3-111 | 0 } | |
| 43 | y+1/4,-z,x+1/4,+1 | { -3-1-1-1 | 1/4 0 1/4 } | |
| 44 | z+1/4,x+1/4,-y,+1 | { -3+1-1-1 | 1/4 1/4 0 } | |
| 45 | y+1/4,z+1/4,-x,+1 | { -3--11-1 | 1/4 1/4 0 } | |
| 46 | -z,x+1/4,y+1/4,+1 | { -3+-11-1 | 0 1/4 1/4 } | |
| 47 | -y,z+1/4,x+1/4,+1 | { -3--1-11 | 0 1/4 1/4 } | |
| 48 | z+1/4,-x,y+1/4,+1 | { -3+-1-11 | 1/4 0 1/4 } | |
| (0,1/2,1/2) + set click here to show and hide | |||
| 49 | x,y+1/2,z+1/2,+1 | { 1 | 0 1/2 1/2 } | |
| 50 | x+1/4,-z,y+3/4,+1 | { 4+100 | 1/4 0 3/4 } | |
| 51 | x+1/4,z+3/4,-y,+1 | { 4-100 | 1/4 3/4 0 } | |
| 52 | z+1/4,y+3/4,-x,+1 | { 4+010 | 1/4 3/4 0 } | |
| 53 | -z+1/2,y+3/4,x+3/4,+1 | { 4-010 | 1/2 3/4 3/4 } | |
| 54 | -y+1/2,x+3/4,z+3/4,+1 | { 4+001 | 1/2 3/4 3/4 } | |
| 55 | y+1/4,-x,z+3/4,+1 | { 4-001 | 1/4 0 3/4 } | |
| 56 | x,-y+3/4,-z+3/4,+1 | { 2100 | 0 3/4 3/4 } | |
| 57 | -x+1/4,y+1/2,-z+3/4,+1 | { 2010 | 1/4 1/2 3/4 } | |
| 58 | -x+1/4,-y+3/4,z+1/2,+1 | { 2001 | 1/4 3/4 1/2 } | |
| 59 | y+1/4,x+3/4,-z,+1 | { 2110 | 1/4 3/4 0 } | |
| 60 | -y+1/2,-x,-z,+1 | { 21-10 | 1/2 0 0 } | |
| 61 | -x+1/2,z+3/4,y+3/4,+1 | { 2011 | 1/2 3/4 3/4 } | |
| 62 | -x+1/2,-z,-y,+1 | { 201-1 | 1/2 0 0 } | |
| 63 | z+1/4,-y,x+3/4,+1 | { 2101 | 1/4 0 3/4 } | |
| 64 | -z+1/2,-y,-x,+1 | { 2-101 | 1/2 0 0 } | |
| 65 | z,x+1/2,y+1/2,+1 | { 3+111 | 0 1/2 1/2 } | |
| 66 | y,z+1/2,x+1/2,+1 | { 3-111 | 0 1/2 1/2 } | |
| 67 | -y+1/4,z+1/2,-x+3/4,+1 | { 3-1-1-1 | 1/4 1/2 3/4 } | |
| 68 | -z+1/4,-x+3/4,y+1/2,+1 | { 3+1-1-1 | 1/4 3/4 1/2 } | |
| 69 | -y+1/4,-z+3/4,x+1/2,+1 | { 3--11-1 | 1/4 3/4 1/2 } | |
| 70 | z,-x+3/4,-y+3/4,+1 | { 3+-11-1 | 0 3/4 3/4 } | |
| 71 | y,-z+3/4,-x+3/4,+1 | { 3--1-11 | 0 3/4 3/4 } | |
| 72 | -z+1/4,x+1/2,-y+3/4,+1 | { 3+-1-11 | 1/4 1/2 3/4 } | |
| 73 | -x,-y+1/2,-z+1/2,+1 | { -1 | 0 1/2 1/2 } | |
| 74 | -x+1/4,z,-y+3/4,+1 | { -4+100 | 1/4 0 3/4 } | |
| 75 | -x+1/4,-z+3/4,y,+1 | { -4-100 | 1/4 3/4 0 } | |
| 76 | -z+1/4,-y+3/4,x,+1 | { -4+010 | 1/4 3/4 0 } | |
| 77 | z+1/2,-y+3/4,-x+3/4,+1 | { -4-010 | 1/2 3/4 3/4 } | |
| 78 | y+1/2,-x+3/4,-z+3/4,+1 | { -4+001 | 1/2 3/4 3/4 } | |
| 79 | -y+1/4,x,-z+3/4,+1 | { -4-001 | 1/4 0 3/4 } | |
| 80 | -x,y+3/4,z+3/4,+1 | { m100 | 0 3/4 3/4 } | |
| 81 | x+1/4,-y+1/2,z+3/4,+1 | { m010 | 1/4 1/2 3/4 } | |
| 82 | x+1/4,y+3/4,-z+1/2,+1 | { m001 | 1/4 3/4 1/2 } | |
| 83 | -y+1/4,-x+3/4,z,+1 | { m110 | 1/4 3/4 0 } | |
| 84 | y+1/2,x,z,+1 | { m1-10 | 1/2 0 0 } | |
| 85 | x+1/2,-z+3/4,-y+3/4,+1 | { m011 | 1/2 3/4 3/4 } | |
| 86 | x+1/2,z,y,+1 | { m01-1 | 1/2 0 0 } | |
| 87 | -z+1/4,y,-x+3/4,+1 | { m101 | 1/4 0 3/4 } | |
| 88 | z+1/2,y,x,+1 | { m-101 | 1/2 0 0 } | |
| 89 | -z,-x+1/2,-y+1/2,+1 | { -3+111 | 0 1/2 1/2 } | |
| 90 | -y,-z+1/2,-x+1/2,+1 | { -3-111 | 0 1/2 1/2 } | |
| 91 | y+1/4,-z+1/2,x+3/4,+1 | { -3-1-1-1 | 1/4 1/2 3/4 } | |
| 92 | z+1/4,x+3/4,-y+1/2,+1 | { -3+1-1-1 | 1/4 3/4 1/2 } | |
| 93 | y+1/4,z+3/4,-x+1/2,+1 | { -3--11-1 | 1/4 3/4 1/2 } | |
| 94 | -z,x+3/4,y+3/4,+1 | { -3+-11-1 | 0 3/4 3/4 } | |
| 95 | -y,z+3/4,x+3/4,+1 | { -3--1-11 | 0 3/4 3/4 } | |
| 96 | z+1/4,-x+1/2,y+3/4,+1 | { -3+-1-11 | 1/4 1/2 3/4 } | |
| (1/2,0,1/2) + set click here to show and hide | |||
| 97 | x+1/2,y,z+1/2,+1 | { 1 | 1/2 0 1/2 } | |
| 98 | x+3/4,-z+1/2,y+3/4,+1 | { 4+100 | 3/4 1/2 3/4 } | |
| 99 | x+3/4,z+1/4,-y,+1 | { 4-100 | 3/4 1/4 0 } | |
| 100 | z+3/4,y+1/4,-x,+1 | { 4+010 | 3/4 1/4 0 } | |
| 101 | -z,y+1/4,x+3/4,+1 | { 4-010 | 0 1/4 3/4 } | |
| 102 | -y,x+1/4,z+3/4,+1 | { 4+001 | 0 1/4 3/4 } | |
| 103 | y+3/4,-x+1/2,z+3/4,+1 | { 4-001 | 3/4 1/2 3/4 } | |
| 104 | x+1/2,-y+1/4,-z+3/4,+1 | { 2100 | 1/2 1/4 3/4 } | |
| 105 | -x+3/4,y,-z+3/4,+1 | { 2010 | 3/4 0 3/4 } | |
| 106 | -x+3/4,-y+1/4,z+1/2,+1 | { 2001 | 3/4 1/4 1/2 } | |
| 107 | y+3/4,x+1/4,-z,+1 | { 2110 | 3/4 1/4 0 } | |
| 108 | -y,-x+1/2,-z,+1 | { 21-10 | 0 1/2 0 } | |
| 109 | -x,z+1/4,y+3/4,+1 | { 2011 | 0 1/4 3/4 } | |
| 110 | -x,-z+1/2,-y,+1 | { 201-1 | 0 1/2 0 } | |
| 111 | z+3/4,-y+1/2,x+3/4,+1 | { 2101 | 3/4 1/2 3/4 } | |
| 112 | -z,-y+1/2,-x,+1 | { 2-101 | 0 1/2 0 } | |
| 113 | z+1/2,x,y+1/2,+1 | { 3+111 | 1/2 0 1/2 } | |
| 114 | y+1/2,z,x+1/2,+1 | { 3-111 | 1/2 0 1/2 } | |
| 115 | -y+3/4,z,-x+3/4,+1 | { 3-1-1-1 | 3/4 0 3/4 } | |
| 116 | -z+3/4,-x+1/4,y+1/2,+1 | { 3+1-1-1 | 3/4 1/4 1/2 } | |
| 117 | -y+3/4,-z+1/4,x+1/2,+1 | { 3--11-1 | 3/4 1/4 1/2 } | |
| 118 | z+1/2,-x+1/4,-y+3/4,+1 | { 3+-11-1 | 1/2 1/4 3/4 } | |
| 119 | y+1/2,-z+1/4,-x+3/4,+1 | { 3--1-11 | 1/2 1/4 3/4 } | |
| 120 | -z+3/4,x,-y+3/4,+1 | { 3+-1-11 | 3/4 0 3/4 } | |
| 121 | -x+1/2,-y,-z+1/2,+1 | { -1 | 1/2 0 1/2 } | |
| 122 | -x+3/4,z+1/2,-y+3/4,+1 | { -4+100 | 3/4 1/2 3/4 } | |
| 123 | -x+3/4,-z+1/4,y,+1 | { -4-100 | 3/4 1/4 0 } | |
| 124 | -z+3/4,-y+1/4,x,+1 | { -4+010 | 3/4 1/4 0 } | |
| 125 | z,-y+1/4,-x+3/4,+1 | { -4-010 | 0 1/4 3/4 } | |
| 126 | y,-x+1/4,-z+3/4,+1 | { -4+001 | 0 1/4 3/4 } | |
| 127 | -y+3/4,x+1/2,-z+3/4,+1 | { -4-001 | 3/4 1/2 3/4 } | |
| 128 | -x+1/2,y+1/4,z+3/4,+1 | { m100 | 1/2 1/4 3/4 } | |
| 129 | x+3/4,-y,z+3/4,+1 | { m010 | 3/4 0 3/4 } | |
| 130 | x+3/4,y+1/4,-z+1/2,+1 | { m001 | 3/4 1/4 1/2 } | |
| 131 | -y+3/4,-x+1/4,z,+1 | { m110 | 3/4 1/4 0 } | |
| 132 | y,x+1/2,z,+1 | { m1-10 | 0 1/2 0 } | |
| 133 | x,-z+1/4,-y+3/4,+1 | { m011 | 0 1/4 3/4 } | |
| 134 | x,z+1/2,y,+1 | { m01-1 | 0 1/2 0 } | |
| 135 | -z+3/4,y+1/2,-x+3/4,+1 | { m101 | 3/4 1/2 3/4 } | |
| 136 | z,y+1/2,x,+1 | { m-101 | 0 1/2 0 } | |
| 137 | -z+1/2,-x,-y+1/2,+1 | { -3+111 | 1/2 0 1/2 } | |
| 138 | -y+1/2,-z,-x+1/2,+1 | { -3-111 | 1/2 0 1/2 } | |
| 139 | y+3/4,-z,x+3/4,+1 | { -3-1-1-1 | 3/4 0 3/4 } | |
| 140 | z+3/4,x+1/4,-y+1/2,+1 | { -3+1-1-1 | 3/4 1/4 1/2 } | |
| 141 | y+3/4,z+1/4,-x+1/2,+1 | { -3--11-1 | 3/4 1/4 1/2 } | |
| 142 | -z+1/2,x+1/4,y+3/4,+1 | { -3+-11-1 | 1/2 1/4 3/4 } | |
| 143 | -y+1/2,z+1/4,x+3/4,+1 | { -3--1-11 | 1/2 1/4 3/4 } | |
| 144 | z+3/4,-x,y+3/4,+1 | { -3+-1-11 | 3/4 0 3/4 } | |
| (1/2,1/2,0) + set click here to show and hide | |||
| 145 | x+1/2,y+1/2,z,+1 | { 1 | 1/2 1/2 0 } | |
| 146 | x+3/4,-z,y+1/4,+1 | { 4+100 | 3/4 0 1/4 } | |
| 147 | x+3/4,z+3/4,-y+1/2,+1 | { 4-100 | 3/4 3/4 1/2 } | |
| 148 | z+3/4,y+3/4,-x+1/2,+1 | { 4+010 | 3/4 3/4 1/2 } | |
| 149 | -z,y+3/4,x+1/4,+1 | { 4-010 | 0 3/4 1/4 } | |
| 150 | -y,x+3/4,z+1/4,+1 | { 4+001 | 0 3/4 1/4 } | |
| 151 | y+3/4,-x,z+1/4,+1 | { 4-001 | 3/4 0 1/4 } | |
| 152 | x+1/2,-y+3/4,-z+1/4,+1 | { 2100 | 1/2 3/4 1/4 } | |
| 153 | -x+3/4,y+1/2,-z+1/4,+1 | { 2010 | 3/4 1/2 1/4 } | |
| 154 | -x+3/4,-y+3/4,z,+1 | { 2001 | 3/4 3/4 0 } | |
| 155 | y+3/4,x+3/4,-z+1/2,+1 | { 2110 | 3/4 3/4 1/2 } | |
| 156 | -y,-x,-z+1/2,+1 | { 21-10 | 0 0 1/2 } | |
| 157 | -x,z+3/4,y+1/4,+1 | { 2011 | 0 3/4 1/4 } | |
| 158 | -x,-z,-y+1/2,+1 | { 201-1 | 0 0 1/2 } | |
| 159 | z+3/4,-y,x+1/4,+1 | { 2101 | 3/4 0 1/4 } | |
| 160 | -z,-y,-x+1/2,+1 | { 2-101 | 0 0 1/2 } | |
| 161 | z+1/2,x+1/2,y,+1 | { 3+111 | 1/2 1/2 0 } | |
| 162 | y+1/2,z+1/2,x,+1 | { 3-111 | 1/2 1/2 0 } | |
| 163 | -y+3/4,z+1/2,-x+1/4,+1 | { 3-1-1-1 | 3/4 1/2 1/4 } | |
| 164 | -z+3/4,-x+3/4,y,+1 | { 3+1-1-1 | 3/4 3/4 0 } | |
| 165 | -y+3/4,-z+3/4,x,+1 | { 3--11-1 | 3/4 3/4 0 } | |
| 166 | z+1/2,-x+3/4,-y+1/4,+1 | { 3+-11-1 | 1/2 3/4 1/4 } | |
| 167 | y+1/2,-z+3/4,-x+1/4,+1 | { 3--1-11 | 1/2 3/4 1/4 } | |
| 168 | -z+3/4,x+1/2,-y+1/4,+1 | { 3+-1-11 | 3/4 1/2 1/4 } | |
| 169 | -x+1/2,-y+1/2,-z,+1 | { -1 | 1/2 1/2 0 } | |
| 170 | -x+3/4,z,-y+1/4,+1 | { -4+100 | 3/4 0 1/4 } | |
| 171 | -x+3/4,-z+3/4,y+1/2,+1 | { -4-100 | 3/4 3/4 1/2 } | |
| 172 | -z+3/4,-y+3/4,x+1/2,+1 | { -4+010 | 3/4 3/4 1/2 } | |
| 173 | z,-y+3/4,-x+1/4,+1 | { -4-010 | 0 3/4 1/4 } | |
| 174 | y,-x+3/4,-z+1/4,+1 | { -4+001 | 0 3/4 1/4 } | |
| 175 | -y+3/4,x,-z+1/4,+1 | { -4-001 | 3/4 0 1/4 } | |
| 176 | -x+1/2,y+3/4,z+1/4,+1 | { m100 | 1/2 3/4 1/4 } | |
| 177 | x+3/4,-y+1/2,z+1/4,+1 | { m010 | 3/4 1/2 1/4 } | |
| 178 | x+3/4,y+3/4,-z,+1 | { m001 | 3/4 3/4 0 } | |
| 179 | -y+3/4,-x+3/4,z+1/2,+1 | { m110 | 3/4 3/4 1/2 } | |
| 180 | y,x,z+1/2,+1 | { m1-10 | 0 0 1/2 } | |
| 181 | x,-z+3/4,-y+1/4,+1 | { m011 | 0 3/4 1/4 } | |
| 182 | x,z,y+1/2,+1 | { m01-1 | 0 0 1/2 } | |
| 183 | -z+3/4,y,-x+1/4,+1 | { m101 | 3/4 0 1/4 } | |
| 184 | z,y,x+1/2,+1 | { m-101 | 0 0 1/2 } | |
| 185 | -z+1/2,-x+1/2,-y,+1 | { -3+111 | 1/2 1/2 0 } | |
| 186 | -y+1/2,-z+1/2,-x,+1 | { -3-111 | 1/2 1/2 0 } | |
| 187 | y+3/4,-z+1/2,x+1/4,+1 | { -3-1-1-1 | 3/4 1/2 1/4 } | |
| 188 | z+3/4,x+3/4,-y,+1 | { -3+1-1-1 | 3/4 3/4 0 } | |
| 189 | y+3/4,z+3/4,-x,+1 | { -3--11-1 | 3/4 3/4 0 } | |
| 190 | -z+1/2,x+3/4,y+1/4,+1 | { -3+-11-1 | 1/2 3/4 1/4 } | |
| 191 | -y+1/2,z+3/4,x+1/4,+1 | { -3--1-11 | 1/2 3/4 1/4 } | |
| 192 | z+3/4,-x+1/2,y+1/4,+1 | { -3+-1-11 | 3/4 1/2 1/4 } | |
| (0,0,1/2)' + set click here to show and hide | |||
| 193 | x,y,z+1/2,-1 | { 1' | 0 0 1/2 } | |
| 194 | x+1/4,-z+1/2,y+3/4,-1 | { 4'+100 | 1/4 1/2 3/4 } | |
| 195 | x+1/4,z+1/4,-y,-1 | { 4'-100 | 1/4 1/4 0 } | |
| 196 | z+1/4,y+1/4,-x,-1 | { 4'+010 | 1/4 1/4 0 } | |
| 197 | -z+1/2,y+1/4,x+3/4,-1 | { 4'-010 | 1/2 1/4 3/4 } | |
| 198 | -y+1/2,x+1/4,z+3/4,-1 | { 4'+001 | 1/2 1/4 3/4 } | |
| 199 | y+1/4,-x+1/2,z+3/4,-1 | { 4'-001 | 1/4 1/2 3/4 } | |
| 200 | x,-y+1/4,-z+3/4,-1 | { 2'100 | 0 1/4 3/4 } | |
| 201 | -x+1/4,y,-z+3/4,-1 | { 2'010 | 1/4 0 3/4 } | |
| 202 | -x+1/4,-y+1/4,z+1/2,-1 | { 2'001 | 1/4 1/4 1/2 } | |
| 203 | y+1/4,x+1/4,-z,-1 | { 2'110 | 1/4 1/4 0 } | |
| 204 | -y+1/2,-x+1/2,-z,-1 | { 2'1-10 | 1/2 1/2 0 } | |
| 205 | -x+1/2,z+1/4,y+3/4,-1 | { 2'011 | 1/2 1/4 3/4 } | |
| 206 | -x+1/2,-z+1/2,-y,-1 | { 2'01-1 | 1/2 1/2 0 } | |
| 207 | z+1/4,-y+1/2,x+3/4,-1 | { 2'101 | 1/4 1/2 3/4 } | |
| 208 | -z+1/2,-y+1/2,-x,-1 | { 2'-101 | 1/2 1/2 0 } | |
| 209 | z,x,y+1/2,-1 | { 3'+111 | 0 0 1/2 } | |
| 210 | y,z,x+1/2,-1 | { 3'-111 | 0 0 1/2 } | |
| 211 | -y+1/4,z,-x+3/4,-1 | { 3'-1-1-1 | 1/4 0 3/4 } | |
| 212 | -z+1/4,-x+1/4,y+1/2,-1 | { 3'+1-1-1 | 1/4 1/4 1/2 } | |
| 213 | -y+1/4,-z+1/4,x+1/2,-1 | { 3'--11-1 | 1/4 1/4 1/2 } | |
| 214 | z,-x+1/4,-y+3/4,-1 | { 3'+-11-1 | 0 1/4 3/4 } | |
| 215 | y,-z+1/4,-x+3/4,-1 | { 3'--1-11 | 0 1/4 3/4 } | |
| 216 | -z+1/4,x,-y+3/4,-1 | { 3'+-1-11 | 1/4 0 3/4 } | |
| 217 | -x,-y,-z+1/2,-1 | { -1' | 0 0 1/2 } | |
| 218 | -x+1/4,z+1/2,-y+3/4,-1 | { -4'+100 | 1/4 1/2 3/4 } | |
| 219 | -x+1/4,-z+1/4,y,-1 | { -4'-100 | 1/4 1/4 0 } | |
| 220 | -z+1/4,-y+1/4,x,-1 | { -4'+010 | 1/4 1/4 0 } | |
| 221 | z+1/2,-y+1/4,-x+3/4,-1 | { -4'-010 | 1/2 1/4 3/4 } | |
| 222 | y+1/2,-x+1/4,-z+3/4,-1 | { -4'+001 | 1/2 1/4 3/4 } | |
| 223 | -y+1/4,x+1/2,-z+3/4,-1 | { -4'-001 | 1/4 1/2 3/4 } | |
| 224 | -x,y+1/4,z+3/4,-1 | { m'100 | 0 1/4 3/4 } | |
| 225 | x+1/4,-y,z+3/4,-1 | { m'010 | 1/4 0 3/4 } | |
| 226 | x+1/4,y+1/4,-z+1/2,-1 | { m'001 | 1/4 1/4 1/2 } | |
| 227 | -y+1/4,-x+1/4,z,-1 | { m'110 | 1/4 1/4 0 } | |
| 228 | y+1/2,x+1/2,z,-1 | { m'1-10 | 1/2 1/2 0 } | |
| 229 | x+1/2,-z+1/4,-y+3/4,-1 | { m'011 | 1/2 1/4 3/4 } | |
| 230 | x+1/2,z+1/2,y,-1 | { m'01-1 | 1/2 1/2 0 } | |
| 231 | -z+1/4,y+1/2,-x+3/4,-1 | { m'101 | 1/4 1/2 3/4 } | |
| 232 | z+1/2,y+1/2,x,-1 | { m'-101 | 1/2 1/2 0 } | |
| 233 | -z,-x,-y+1/2,-1 | { -3'+111 | 0 0 1/2 } | |
| 234 | -y,-z,-x+1/2,-1 | { -3'-111 | 0 0 1/2 } | |
| 235 | y+1/4,-z,x+3/4,-1 | { -3'-1-1-1 | 1/4 0 3/4 } | |
| 236 | z+1/4,x+1/4,-y+1/2,-1 | { -3'+1-1-1 | 1/4 1/4 1/2 } | |
| 237 | y+1/4,z+1/4,-x+1/2,-1 | { -3'--11-1 | 1/4 1/4 1/2 } | |
| 238 | -z,x+1/4,y+3/4,-1 | { -3'+-11-1 | 0 1/4 3/4 } | |
| 239 | -y,z+1/4,x+3/4,-1 | { -3'--1-11 | 0 1/4 3/4 } | |
| 240 | z+1/4,-x,y+3/4,-1 | { -3'+-1-11 | 1/4 0 3/4 } | |
| (0,1/2,0)' + set click here to show and hide | |||
| 241 | x,y+1/2,z,-1 | { 1' | 0 1/2 0 } | |
| 242 | x+1/4,-z,y+1/4,-1 | { 4'+100 | 1/4 0 1/4 } | |
| 243 | x+1/4,z+3/4,-y+1/2,-1 | { 4'-100 | 1/4 3/4 1/2 } | |
| 244 | z+1/4,y+3/4,-x+1/2,-1 | { 4'+010 | 1/4 3/4 1/2 } | |
| 245 | -z+1/2,y+3/4,x+1/4,-1 | { 4'-010 | 1/2 3/4 1/4 } | |
| 246 | -y+1/2,x+3/4,z+1/4,-1 | { 4'+001 | 1/2 3/4 1/4 } | |
| 247 | y+1/4,-x,z+1/4,-1 | { 4'-001 | 1/4 0 1/4 } | |
| 248 | x,-y+3/4,-z+1/4,-1 | { 2'100 | 0 3/4 1/4 } | |
| 249 | -x+1/4,y+1/2,-z+1/4,-1 | { 2'010 | 1/4 1/2 1/4 } | |
| 250 | -x+1/4,-y+3/4,z,-1 | { 2'001 | 1/4 3/4 0 } | |
| 251 | y+1/4,x+3/4,-z+1/2,-1 | { 2'110 | 1/4 3/4 1/2 } | |
| 252 | -y+1/2,-x,-z+1/2,-1 | { 2'1-10 | 1/2 0 1/2 } | |
| 253 | -x+1/2,z+3/4,y+1/4,-1 | { 2'011 | 1/2 3/4 1/4 } | |
| 254 | -x+1/2,-z,-y+1/2,-1 | { 2'01-1 | 1/2 0 1/2 } | |
| 255 | z+1/4,-y,x+1/4,-1 | { 2'101 | 1/4 0 1/4 } | |
| 256 | -z+1/2,-y,-x+1/2,-1 | { 2'-101 | 1/2 0 1/2 } | |
| 257 | z,x+1/2,y,-1 | { 3'+111 | 0 1/2 0 } | |
| 258 | y,z+1/2,x,-1 | { 3'-111 | 0 1/2 0 } | |
| 259 | -y+1/4,z+1/2,-x+1/4,-1 | { 3'-1-1-1 | 1/4 1/2 1/4 } | |
| 260 | -z+1/4,-x+3/4,y,-1 | { 3'+1-1-1 | 1/4 3/4 0 } | |
| 261 | -y+1/4,-z+3/4,x,-1 | { 3'--11-1 | 1/4 3/4 0 } | |
| 262 | z,-x+3/4,-y+1/4,-1 | { 3'+-11-1 | 0 3/4 1/4 } | |
| 263 | y,-z+3/4,-x+1/4,-1 | { 3'--1-11 | 0 3/4 1/4 } | |
| 264 | -z+1/4,x+1/2,-y+1/4,-1 | { 3'+-1-11 | 1/4 1/2 1/4 } | |
| 265 | -x,-y+1/2,-z,-1 | { -1' | 0 1/2 0 } | |
| 266 | -x+1/4,z,-y+1/4,-1 | { -4'+100 | 1/4 0 1/4 } | |
| 267 | -x+1/4,-z+3/4,y+1/2,-1 | { -4'-100 | 1/4 3/4 1/2 } | |
| 268 | -z+1/4,-y+3/4,x+1/2,-1 | { -4'+010 | 1/4 3/4 1/2 } | |
| 269 | z+1/2,-y+3/4,-x+1/4,-1 | { -4'-010 | 1/2 3/4 1/4 } | |
| 270 | y+1/2,-x+3/4,-z+1/4,-1 | { -4'+001 | 1/2 3/4 1/4 } | |
| 271 | -y+1/4,x,-z+1/4,-1 | { -4'-001 | 1/4 0 1/4 } | |
| 272 | -x,y+3/4,z+1/4,-1 | { m'100 | 0 3/4 1/4 } | |
| 273 | x+1/4,-y+1/2,z+1/4,-1 | { m'010 | 1/4 1/2 1/4 } | |
| 274 | x+1/4,y+3/4,-z,-1 | { m'001 | 1/4 3/4 0 } | |
| 275 | -y+1/4,-x+3/4,z+1/2,-1 | { m'110 | 1/4 3/4 1/2 } | |
| 276 | y+1/2,x,z+1/2,-1 | { m'1-10 | 1/2 0 1/2 } | |
| 277 | x+1/2,-z+3/4,-y+1/4,-1 | { m'011 | 1/2 3/4 1/4 } | |
| 278 | x+1/2,z,y+1/2,-1 | { m'01-1 | 1/2 0 1/2 } | |
| 279 | -z+1/4,y,-x+1/4,-1 | { m'101 | 1/4 0 1/4 } | |
| 280 | z+1/2,y,x+1/2,-1 | { m'-101 | 1/2 0 1/2 } | |
| 281 | -z,-x+1/2,-y,-1 | { -3'+111 | 0 1/2 0 } | |
| 282 | -y,-z+1/2,-x,-1 | { -3'-111 | 0 1/2 0 } | |
| 283 | y+1/4,-z+1/2,x+1/4,-1 | { -3'-1-1-1 | 1/4 1/2 1/4 } | |
| 284 | z+1/4,x+3/4,-y,-1 | { -3'+1-1-1 | 1/4 3/4 0 } | |
| 285 | y+1/4,z+3/4,-x,-1 | { -3'--11-1 | 1/4 3/4 0 } | |
| 286 | -z,x+3/4,y+1/4,-1 | { -3'+-11-1 | 0 3/4 1/4 } | |
| 287 | -y,z+3/4,x+1/4,-1 | { -3'--1-11 | 0 3/4 1/4 } | |
| 288 | z+1/4,-x+1/2,y+1/4,-1 | { -3'+-1-11 | 1/4 1/2 1/4 } | |
| (1/2,0,0)' + set click here to show and hide | |||
| 289 | x+1/2,y,z,-1 | { 1' | 1/2 0 0 } | |
| 290 | x+3/4,-z+1/2,y+1/4,-1 | { 4'+100 | 3/4 1/2 1/4 } | |
| 291 | x+3/4,z+1/4,-y+1/2,-1 | { 4'-100 | 3/4 1/4 1/2 } | |
| 292 | z+3/4,y+1/4,-x+1/2,-1 | { 4'+010 | 3/4 1/4 1/2 } | |
| 293 | -z,y+1/4,x+1/4,-1 | { 4'-010 | 0 1/4 1/4 } | |
| 294 | -y,x+1/4,z+1/4,-1 | { 4'+001 | 0 1/4 1/4 } | |
| 295 | y+3/4,-x+1/2,z+1/4,-1 | { 4'-001 | 3/4 1/2 1/4 } | |
| 296 | x+1/2,-y+1/4,-z+1/4,-1 | { 2'100 | 1/2 1/4 1/4 } | |
| 297 | -x+3/4,y,-z+1/4,-1 | { 2'010 | 3/4 0 1/4 } | |
| 298 | -x+3/4,-y+1/4,z,-1 | { 2'001 | 3/4 1/4 0 } | |
| 299 | y+3/4,x+1/4,-z+1/2,-1 | { 2'110 | 3/4 1/4 1/2 } | |
| 300 | -y,-x+1/2,-z+1/2,-1 | { 2'1-10 | 0 1/2 1/2 } | |
| 301 | -x,z+1/4,y+1/4,-1 | { 2'011 | 0 1/4 1/4 } | |
| 302 | -x,-z+1/2,-y+1/2,-1 | { 2'01-1 | 0 1/2 1/2 } | |
| 303 | z+3/4,-y+1/2,x+1/4,-1 | { 2'101 | 3/4 1/2 1/4 } | |
| 304 | -z,-y+1/2,-x+1/2,-1 | { 2'-101 | 0 1/2 1/2 } | |
| 305 | z+1/2,x,y,-1 | { 3'+111 | 1/2 0 0 } | |
| 306 | y+1/2,z,x,-1 | { 3'-111 | 1/2 0 0 } | |
| 307 | -y+3/4,z,-x+1/4,-1 | { 3'-1-1-1 | 3/4 0 1/4 } | |
| 308 | -z+3/4,-x+1/4,y,-1 | { 3'+1-1-1 | 3/4 1/4 0 } | |
| 309 | -y+3/4,-z+1/4,x,-1 | { 3'--11-1 | 3/4 1/4 0 } | |
| 310 | z+1/2,-x+1/4,-y+1/4,-1 | { 3'+-11-1 | 1/2 1/4 1/4 } | |
| 311 | y+1/2,-z+1/4,-x+1/4,-1 | { 3'--1-11 | 1/2 1/4 1/4 } | |
| 312 | -z+3/4,x,-y+1/4,-1 | { 3'+-1-11 | 3/4 0 1/4 } | |
| 313 | -x+1/2,-y,-z,-1 | { -1' | 1/2 0 0 } | |
| 314 | -x+3/4,z+1/2,-y+1/4,-1 | { -4'+100 | 3/4 1/2 1/4 } | |
| 315 | -x+3/4,-z+1/4,y+1/2,-1 | { -4'-100 | 3/4 1/4 1/2 } | |
| 316 | -z+3/4,-y+1/4,x+1/2,-1 | { -4'+010 | 3/4 1/4 1/2 } | |
| 317 | z,-y+1/4,-x+1/4,-1 | { -4'-010 | 0 1/4 1/4 } | |
| 318 | y,-x+1/4,-z+1/4,-1 | { -4'+001 | 0 1/4 1/4 } | |
| 319 | -y+3/4,x+1/2,-z+1/4,-1 | { -4'-001 | 3/4 1/2 1/4 } | |
| 320 | -x+1/2,y+1/4,z+1/4,-1 | { m'100 | 1/2 1/4 1/4 } | |
| 321 | x+3/4,-y,z+1/4,-1 | { m'010 | 3/4 0 1/4 } | |
| 322 | x+3/4,y+1/4,-z,-1 | { m'001 | 3/4 1/4 0 } | |
| 323 | -y+3/4,-x+1/4,z+1/2,-1 | { m'110 | 3/4 1/4 1/2 } | |
| 324 | y,x+1/2,z+1/2,-1 | { m'1-10 | 0 1/2 1/2 } | |
| 325 | x,-z+1/4,-y+1/4,-1 | { m'011 | 0 1/4 1/4 } | |
| 326 | x,z+1/2,y+1/2,-1 | { m'01-1 | 0 1/2 1/2 } | |
| 327 | -z+3/4,y+1/2,-x+1/4,-1 | { m'101 | 3/4 1/2 1/4 } | |
| 328 | z,y+1/2,x+1/2,-1 | { m'-101 | 0 1/2 1/2 } | |
| 329 | -z+1/2,-x,-y,-1 | { -3'+111 | 1/2 0 0 } | |
| 330 | -y+1/2,-z,-x,-1 | { -3'-111 | 1/2 0 0 } | |
| 331 | y+3/4,-z,x+1/4,-1 | { -3'-1-1-1 | 3/4 0 1/4 } | |
| 332 | z+3/4,x+1/4,-y,-1 | { -3'+1-1-1 | 3/4 1/4 0 } | |
| 333 | y+3/4,z+1/4,-x,-1 | { -3'--11-1 | 3/4 1/4 0 } | |
| 334 | -z+1/2,x+1/4,y+1/4,-1 | { -3'+-11-1 | 1/2 1/4 1/4 } | |
| 335 | -y+1/2,z+1/4,x+1/4,-1 | { -3'--1-11 | 1/2 1/4 1/4 } | |
| 336 | z+3/4,-x,y+1/4,-1 | { -3'+-1-11 | 3/4 0 1/4 } | |
| (1/2,1/2,1/2)' + set click here to show and hide | |||
| 337 | x+1/2,y+1/2,z+1/2,-1 | { 1' | 1/2 1/2 1/2 } | |
| 338 | x+3/4,-z,y+3/4,-1 | { 4'+100 | 3/4 0 3/4 } | |
| 339 | x+3/4,z+3/4,-y,-1 | { 4'-100 | 3/4 3/4 0 } | |
| 340 | z+3/4,y+3/4,-x,-1 | { 4'+010 | 3/4 3/4 0 } | |
| 341 | -z,y+3/4,x+3/4,-1 | { 4'-010 | 0 3/4 3/4 } | |
| 342 | -y,x+3/4,z+3/4,-1 | { 4'+001 | 0 3/4 3/4 } | |
| 343 | y+3/4,-x,z+3/4,-1 | { 4'-001 | 3/4 0 3/4 } | |
| 344 | x+1/2,-y+3/4,-z+3/4,-1 | { 2'100 | 1/2 3/4 3/4 } | |
| 345 | -x+3/4,y+1/2,-z+3/4,-1 | { 2'010 | 3/4 1/2 3/4 } | |
| 346 | -x+3/4,-y+3/4,z+1/2,-1 | { 2'001 | 3/4 3/4 1/2 } | |
| 347 | y+3/4,x+3/4,-z,-1 | { 2'110 | 3/4 3/4 0 } | |
| 348 | -y,-x,-z,-1 | { 2'1-10 | 0 } | |
| 349 | -x,z+3/4,y+3/4,-1 | { 2'011 | 0 3/4 3/4 } | |
| 350 | -x,-z,-y,-1 | { 2'01-1 | 0 } | |
| 351 | z+3/4,-y,x+3/4,-1 | { 2'101 | 3/4 0 3/4 } | |
| 352 | -z,-y,-x,-1 | { 2'-101 | 0 } | |
| 353 | z+1/2,x+1/2,y+1/2,-1 | { 3'+111 | 1/2 1/2 1/2 } | |
| 354 | y+1/2,z+1/2,x+1/2,-1 | { 3'-111 | 1/2 1/2 1/2 } | |
| 355 | -y+3/4,z+1/2,-x+3/4,-1 | { 3'-1-1-1 | 3/4 1/2 3/4 } | |
| 356 | -z+3/4,-x+3/4,y+1/2,-1 | { 3'+1-1-1 | 3/4 3/4 1/2 } | |
| 357 | -y+3/4,-z+3/4,x+1/2,-1 | { 3'--11-1 | 3/4 3/4 1/2 } | |
| 358 | z+1/2,-x+3/4,-y+3/4,-1 | { 3'+-11-1 | 1/2 3/4 3/4 } | |
| 359 | y+1/2,-z+3/4,-x+3/4,-1 | { 3'--1-11 | 1/2 3/4 3/4 } | |
| 360 | -z+3/4,x+1/2,-y+3/4,-1 | { 3'+-1-11 | 3/4 1/2 3/4 } | |
| 361 | -x+1/2,-y+1/2,-z+1/2,-1 | { -1' | 1/2 1/2 1/2 } | |
| 362 | -x+3/4,z,-y+3/4,-1 | { -4'+100 | 3/4 0 3/4 } | |
| 363 | -x+3/4,-z+3/4,y,-1 | { -4'-100 | 3/4 3/4 0 } | |
| 364 | -z+3/4,-y+3/4,x,-1 | { -4'+010 | 3/4 3/4 0 } | |
| 365 | z,-y+3/4,-x+3/4,-1 | { -4'-010 | 0 3/4 3/4 } | |
| 366 | y,-x+3/4,-z+3/4,-1 | { -4'+001 | 0 3/4 3/4 } | |
| 367 | -y+3/4,x,-z+3/4,-1 | { -4'-001 | 3/4 0 3/4 } | |
| 368 | -x+1/2,y+3/4,z+3/4,-1 | { m'100 | 1/2 3/4 3/4 } | |
| 369 | x+3/4,-y+1/2,z+3/4,-1 | { m'010 | 3/4 1/2 3/4 } | |
| 370 | x+3/4,y+3/4,-z+1/2,-1 | { m'001 | 3/4 3/4 1/2 } | |
| 371 | -y+3/4,-x+3/4,z,-1 | { m'110 | 3/4 3/4 0 } | |
| 372 | y,x,z,-1 | { m'1-10 | 0 } | |
| 373 | x,-z+3/4,-y+3/4,-1 | { m'011 | 0 3/4 3/4 } | |
| 374 | x,z,y,-1 | { m'01-1 | 0 } | |
| 375 | -z+3/4,y,-x+3/4,-1 | { m'101 | 3/4 0 3/4 } | |
| 376 | z,y,x,-1 | { m'-101 | 0 } | |
| 377 | -z+1/2,-x+1/2,-y+1/2,-1 | { -3'+111 | 1/2 1/2 1/2 } | |
| 378 | -y+1/2,-z+1/2,-x+1/2,-1 | { -3'-111 | 1/2 1/2 1/2 } | |
| 379 | y+3/4,-z+1/2,x+3/4,-1 | { -3'-1-1-1 | 3/4 1/2 3/4 } | |
| 380 | z+3/4,x+3/4,-y+1/2,-1 | { -3'+1-1-1 | 3/4 3/4 1/2 } | |
| 381 | y+3/4,z+3/4,-x+1/2,-1 | { -3'--11-1 | 3/4 3/4 1/2 } | |
| 382 | -z+1/2,x+3/4,y+3/4,-1 | { -3'+-11-1 | 1/2 3/4 3/4 } | |
| 383 | -y+1/2,z+3/4,x+3/4,-1 | { -3'--1-11 | 1/2 3/4 3/4 } | |
| 384 | z+3/4,-x+1/2,y+3/4,-1 | { -3'+-1-11 | 3/4 1/2 3/4 } | |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | 1 | |
| 2 | x,-z,y,+1 | 4+100 | |
| 3 | x,z,-y,+1 | 4-100 | |
| 4 | z,y,-x,+1 | 4+010 | |
| 5 | -z,y,x,+1 | 4-010 | |
| 6 | -y,x,z,+1 | 4+001 | |
| 7 | y,-x,z,+1 | 4-001 | |
| 8 | x,-y,-z,+1 | 2100 | |
| 9 | -x,y,-z,+1 | 2010 | |
| 10 | -x,-y,z,+1 | 2001 | |
| 11 | y,x,-z,+1 | 2110 | |
| 12 | -y,-x,-z,+1 | 21-10 | |
| 13 | -x,z,y,+1 | 2011 | |
| 14 | -x,-z,-y,+1 | 201-1 | |
| 15 | z,-y,x,+1 | 2101 | |
| 16 | -z,-y,-x,+1 | 2-101 | |
| 17 | z,x,y,+1 | 3+111 | |
| 18 | y,z,x,+1 | 3-111 | |
| 19 | -y,z,-x,+1 | 3-1-1-1 | |
| 20 | -z,-x,y,+1 | 3+1-1-1 | |
| 21 | -y,-z,x,+1 | 3--11-1 | |
| 22 | z,-x,-y,+1 | 3+-11-1 | |
| 23 | y,-z,-x,+1 | 3--1-11 | |
| 24 | -z,x,-y,+1 | 3+-1-11 | |
| 25 | -x,-y,-z,+1 | -1 | |
| 26 | -x,z,-y,+1 | -4+100 | |
| 27 | -x,-z,y,+1 | -4-100 | |
| 28 | -z,-y,x,+1 | -4+010 | |
| 29 | z,-y,-x,+1 | -4-010 | |
| 30 | y,-x,-z,+1 | -4+001 | |
| 31 | -y,x,-z,+1 | -4-001 | |
| 32 | -x,y,z,+1 | m100 | |
| 33 | x,-y,z,+1 | m010 | |
| 34 | x,y,-z,+1 | m001 | |
| 35 | -y,-x,z,+1 | m110 | |
| 36 | y,x,z,+1 | m1-10 | |
| 37 | x,-z,-y,+1 | m011 | |
| 38 | x,z,y,+1 | m01-1 | |
| 39 | -z,y,-x,+1 | m101 | |
| 40 | z,y,x,+1 | m-101 | |
| 41 | -z,-x,-y,+1 | -3+111 | |
| 42 | -y,-z,-x,+1 | -3-111 | |
| 43 | y,-z,x,+1 | -3-1-1-1 | |
| 44 | z,x,-y,+1 | -3+1-1-1 | |
| 45 | y,z,-x,+1 | -3--11-1 | |
| 46 | -z,x,y,+1 | -3+-11-1 | |
| 47 | -y,z,x,+1 | -3--1-11 | |
| 48 | z,-x,y,+1 | -3+-1-11 | |
| 1' + set click here to show and hide | |||
| 49 | x,y,z,-1 | 1' | |
| 50 | x,-z,y,-1 | 4'+100 | |
| 51 | x,z,-y,-1 | 4'-100 | |
| 52 | z,y,-x,-1 | 4'+010 | |
| 53 | -z,y,x,-1 | 4'-010 | |
| 54 | -y,x,z,-1 | 4'+001 | |
| 55 | y,-x,z,-1 | 4'-001 | |
| 56 | x,-y,-z,-1 | 2'100 | |
| 57 | -x,y,-z,-1 | 2'010 | |
| 58 | -x,-y,z,-1 | 2'001 | |
| 59 | y,x,-z,-1 | 2'110 | |
| 60 | -y,-x,-z,-1 | 2'1-10 | |
| 61 | -x,z,y,-1 | 2'011 | |
| 62 | -x,-z,-y,-1 | 2'01-1 | |
| 63 | z,-y,x,-1 | 2'101 | |
| 64 | -z,-y,-x,-1 | 2'-101 | |
| 65 | z,x,y,-1 | 3'+111 | |
| 66 | y,z,x,-1 | 3'-111 | |
| 67 | -y,z,-x,-1 | 3'-1-1-1 | |
| 68 | -z,-x,y,-1 | 3'+1-1-1 | |
| 69 | -y,-z,x,-1 | 3'--11-1 | |
| 70 | z,-x,-y,-1 | 3'+-11-1 | |
| 71 | y,-z,-x,-1 | 3'--1-11 | |
| 72 | -z,x,-y,-1 | 3'+-1-11 | |
| 73 | -x,-y,-z,-1 | -1' | |
| 74 | -x,z,-y,-1 | -4'+100 | |
| 75 | -x,-z,y,-1 | -4'-100 | |
| 76 | -z,-y,x,-1 | -4'+010 | |
| 77 | z,-y,-x,-1 | -4'-010 | |
| 78 | y,-x,-z,-1 | -4'+001 | |
| 79 | -y,x,-z,-1 | -4'-001 | |
| 80 | -x,y,z,-1 | m'100 | |
| 81 | x,-y,z,-1 | m'010 | |
| 82 | x,y,-z,-1 | m'001 | |
| 83 | -y,-x,z,-1 | m'110 | |
| 84 | y,x,z,-1 | m'1-10 | |
| 85 | x,-z,-y,-1 | m'011 | |
| 86 | x,z,y,-1 | m'01-1 | |
| 87 | -z,y,-x,-1 | m'101 | |
| 88 | z,y,x,-1 | m'-101 | |
| 89 | -z,-x,-y,-1 | -3'+111 | |
| 90 | -y,-z,-x,-1 | -3'-111 | |
| 91 | y,-z,x,-1 | -3'-1-1-1 | |
| 92 | z,x,-y,-1 | -3'+1-1-1 | |
| 93 | y,z,-x,-1 | -3'--11-1 | |
| 94 | -z,x,y,-1 | -3'+-11-1 | |
| 95 | -y,z,x,-1 | -3'--1-11 | |
| 96 | z,-x,y,-1 | -3'+-1-11 | |
| Label | Atom type | x | y | z | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|
| Np1 | Np | 0.00000 | 0.00000 | 0.00000 | 32 | mx,mx,mx | 0.75 | 0.75 | 0.75 | 1.30 |
| Label | Atom type | x | y | z | Multiplicity |
|---|---|---|---|---|---|
| Se1 | Se | 0.25000 | 0.25000 | 0.25000 | 32 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Np1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.00000 | 0.00000 | mx,mx,mx | 0.75000 | 0.75000 | 0.75000 |
| 2 | 0.25000 | 0.50000 | 0.25000 | mx,-mx,mx | 0.75000 | -0.75000 | 0.75000 |
| 3 | 0.25000 | 0.25000 | 0.50000 | mx,mx,-mx | 0.75000 | 0.75000 | -0.75000 |
| 4 | 0.50000 | 0.25000 | 0.25000 | -mx,mx,mx | -0.75000 | 0.75000 | 0.75000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.00000 | 0.50000 | 0.50000 | mx,mx,mx | 0.75000 | 0.75000 | 0.75000 |
| 6 | 0.25000 | 0.00000 | 0.75000 | mx,-mx,mx | 0.75000 | -0.75000 | 0.75000 |
| 7 | 0.25000 | 0.75000 | 0.00000 | mx,mx,-mx | 0.75000 | 0.75000 | -0.75000 |
| 8 | 0.50000 | 0.75000 | 0.75000 | -mx,mx,mx | -0.75000 | 0.75000 | 0.75000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 9 | 0.50000 | 0.00000 | 0.50000 | mx,mx,mx | 0.75000 | 0.75000 | 0.75000 |
| 10 | 0.75000 | 0.50000 | 0.75000 | mx,-mx,mx | 0.75000 | -0.75000 | 0.75000 |
| 11 | 0.75000 | 0.25000 | 0.00000 | mx,mx,-mx | 0.75000 | 0.75000 | -0.75000 |
| 12 | 0.00000 | 0.25000 | 0.75000 | -mx,mx,mx | -0.75000 | 0.75000 | 0.75000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 13 | 0.50000 | 0.50000 | 0.00000 | mx,mx,mx | 0.75000 | 0.75000 | 0.75000 |
| 14 | 0.75000 | 0.00000 | 0.25000 | mx,-mx,mx | 0.75000 | -0.75000 | 0.75000 |
| 15 | 0.75000 | 0.75000 | 0.50000 | mx,mx,-mx | 0.75000 | 0.75000 | -0.75000 |
| 16 | 0.00000 | 0.75000 | 0.25000 | -mx,mx,mx | -0.75000 | 0.75000 | 0.75000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 17 | 0.00000 | 0.00000 | 0.50000 | -mx,-mx,-mx | -0.75000 | -0.75000 | -0.75000 |
| 18 | 0.25000 | 0.50000 | 0.75000 | -mx,mx,-mx | -0.75000 | 0.75000 | -0.75000 |
| 19 | 0.25000 | 0.25000 | 0.00000 | -mx,-mx,mx | -0.75000 | -0.75000 | 0.75000 |
| 20 | 0.50000 | 0.25000 | 0.75000 | mx,-mx,-mx | 0.75000 | -0.75000 | -0.75000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 21 | 0.00000 | 0.50000 | 0.00000 | -mx,-mx,-mx | -0.75000 | -0.75000 | -0.75000 |
| 22 | 0.25000 | 0.00000 | 0.25000 | -mx,mx,-mx | -0.75000 | 0.75000 | -0.75000 |
| 23 | 0.25000 | 0.75000 | 0.50000 | -mx,-mx,mx | -0.75000 | -0.75000 | 0.75000 |
| 24 | 0.50000 | 0.75000 | 0.25000 | mx,-mx,-mx | 0.75000 | -0.75000 | -0.75000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 25 | 0.50000 | 0.00000 | 0.00000 | -mx,-mx,-mx | -0.75000 | -0.75000 | -0.75000 |
| 26 | 0.75000 | 0.50000 | 0.25000 | -mx,mx,-mx | -0.75000 | 0.75000 | -0.75000 |
| 27 | 0.75000 | 0.25000 | 0.50000 | -mx,-mx,mx | -0.75000 | -0.75000 | 0.75000 |
| 28 | 0.00000 | 0.25000 | 0.25000 | mx,-mx,-mx | 0.75000 | -0.75000 | -0.75000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 29 | 0.50000 | 0.50000 | 0.50000 | -mx,-mx,-mx | -0.75000 | -0.75000 | -0.75000 |
| 30 | 0.75000 | 0.00000 | 0.75000 | -mx,mx,-mx | -0.75000 | 0.75000 | -0.75000 |
| 31 | 0.75000 | 0.75000 | 0.00000 | -mx,-mx,mx | -0.75000 | -0.75000 | 0.75000 |
| 32 | 0.00000 | 0.75000 | 0.75000 | mx,-mx,-mx | 0.75000 | -0.75000 | -0.75000 |
Set of atoms in the unit cell related by symmetry with the atom Se1:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.25000 | 0.25000 | 0.25000 | ||||
| 2 | 0.50000 | 0.25000 | 0.50000 | ||||
| 3 | 0.50000 | 0.50000 | 0.25000 | ||||
| 4 | 0.25000 | 0.50000 | 0.50000 | ||||
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.25000 | 0.75000 | 0.75000 | ||||
| 6 | 0.50000 | 0.75000 | 0.00000 | ||||
| 7 | 0.50000 | 0.00000 | 0.75000 | ||||
| 8 | 0.25000 | 0.00000 | 0.00000 | ||||
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 9 | 0.75000 | 0.25000 | 0.75000 | ||||
| 10 | 0.00000 | 0.25000 | 0.00000 | ||||
| 11 | 0.00000 | 0.50000 | 0.75000 | ||||
| 12 | 0.75000 | 0.50000 | 0.00000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 13 | 0.75000 | 0.75000 | 0.25000 | ||||
| 14 | 0.00000 | 0.75000 | 0.50000 | ||||
| 15 | 0.00000 | 0.00000 | 0.25000 | ||||
| 16 | 0.75000 | 0.00000 | 0.50000 | ||||
| (0,0,1/2)' + set click here to show and hide | |||||||
| 17 | 0.25000 | 0.25000 | 0.75000 | ||||
| 18 | 0.50000 | 0.25000 | 0.00000 | ||||
| 19 | 0.50000 | 0.50000 | 0.75000 | ||||
| 20 | 0.25000 | 0.50000 | 0.00000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 21 | 0.25000 | 0.75000 | 0.25000 | ||||
| 22 | 0.50000 | 0.75000 | 0.50000 | ||||
| 23 | 0.50000 | 0.00000 | 0.25000 | ||||
| 24 | 0.25000 | 0.00000 | 0.50000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 25 | 0.75000 | 0.25000 | 0.25000 | ||||
| 26 | 0.00000 | 0.25000 | 0.50000 | ||||
| 27 | 0.00000 | 0.50000 | 0.25000 | ||||
| 28 | 0.75000 | 0.50000 | 0.50000 | ||||
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 29 | 0.75000 | 0.75000 | 0.75000 | ||||
| 30 | 0.00000 | 0.75000 | 0.00000 | ||||
| 31 | 0.00000 | 0.00000 | 0.75000 | ||||
| 32 | 0.75000 | 0.00000 | 0.00000 | ||||
| Label | Atom type | x | y | z | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|
| Np1 | Np | 0.00000 | 0.00000 | 0.00000 | 32 | mx,mx,mx | 0.75 | 0.75 | 0.75 | 1.30 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Np1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.00000 | 0.00000 | mx,mx,mx | 0.75000 | 0.75000 | 0.75000 |
| 2 | 0.25000 | 0.50000 | 0.25000 | mx,-mx,mx | 0.75000 | -0.75000 | 0.75000 |
| 3 | 0.25000 | 0.25000 | 0.50000 | mx,mx,-mx | 0.75000 | 0.75000 | -0.75000 |
| 4 | 0.50000 | 0.25000 | 0.25000 | -mx,mx,mx | -0.75000 | 0.75000 | 0.75000 |
| (0,1/2,1/2) + set click here to show and hide | |||||||
| 5 | 0.00000 | 0.50000 | 0.50000 | mx,mx,mx | 0.75000 | 0.75000 | 0.75000 |
| 6 | 0.25000 | 0.00000 | 0.75000 | mx,-mx,mx | 0.75000 | -0.75000 | 0.75000 |
| 7 | 0.25000 | 0.75000 | 0.00000 | mx,mx,-mx | 0.75000 | 0.75000 | -0.75000 |
| 8 | 0.50000 | 0.75000 | 0.75000 | -mx,mx,mx | -0.75000 | 0.75000 | 0.75000 |
| (1/2,0,1/2) + set click here to show and hide | |||||||
| 9 | 0.50000 | 0.00000 | 0.50000 | mx,mx,mx | 0.75000 | 0.75000 | 0.75000 |
| 10 | 0.75000 | 0.50000 | 0.75000 | mx,-mx,mx | 0.75000 | -0.75000 | 0.75000 |
| 11 | 0.75000 | 0.25000 | 0.00000 | mx,mx,-mx | 0.75000 | 0.75000 | -0.75000 |
| 12 | 0.00000 | 0.25000 | 0.75000 | -mx,mx,mx | -0.75000 | 0.75000 | 0.75000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 13 | 0.50000 | 0.50000 | 0.00000 | mx,mx,mx | 0.75000 | 0.75000 | 0.75000 |
| 14 | 0.75000 | 0.00000 | 0.25000 | mx,-mx,mx | 0.75000 | -0.75000 | 0.75000 |
| 15 | 0.75000 | 0.75000 | 0.50000 | mx,mx,-mx | 0.75000 | 0.75000 | -0.75000 |
| 16 | 0.00000 | 0.75000 | 0.25000 | -mx,mx,mx | -0.75000 | 0.75000 | 0.75000 |
| (0,0,1/2)' + set click here to show and hide | |||||||
| 17 | 0.00000 | 0.00000 | 0.50000 | -mx,-mx,-mx | -0.75000 | -0.75000 | -0.75000 |
| 18 | 0.25000 | 0.50000 | 0.75000 | -mx,mx,-mx | -0.75000 | 0.75000 | -0.75000 |
| 19 | 0.25000 | 0.25000 | 0.00000 | -mx,-mx,mx | -0.75000 | -0.75000 | 0.75000 |
| 20 | 0.50000 | 0.25000 | 0.75000 | mx,-mx,-mx | 0.75000 | -0.75000 | -0.75000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 21 | 0.00000 | 0.50000 | 0.00000 | -mx,-mx,-mx | -0.75000 | -0.75000 | -0.75000 |
| 22 | 0.25000 | 0.00000 | 0.25000 | -mx,mx,-mx | -0.75000 | 0.75000 | -0.75000 |
| 23 | 0.25000 | 0.75000 | 0.50000 | -mx,-mx,mx | -0.75000 | -0.75000 | 0.75000 |
| 24 | 0.50000 | 0.75000 | 0.25000 | mx,-mx,-mx | 0.75000 | -0.75000 | -0.75000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 25 | 0.50000 | 0.00000 | 0.00000 | -mx,-mx,-mx | -0.75000 | -0.75000 | -0.75000 |
| 26 | 0.75000 | 0.50000 | 0.25000 | -mx,mx,-mx | -0.75000 | 0.75000 | -0.75000 |
| 27 | 0.75000 | 0.25000 | 0.50000 | -mx,-mx,mx | -0.75000 | -0.75000 | 0.75000 |
| 28 | 0.00000 | 0.25000 | 0.25000 | mx,-mx,-mx | 0.75000 | -0.75000 | -0.75000 |
| (1/2,1/2,1/2)' + set click here to show and hide | |||||||
| 29 | 0.50000 | 0.50000 | 0.50000 | -mx,-mx,-mx | -0.75000 | -0.75000 | -0.75000 |
| 30 | 0.75000 | 0.00000 | 0.75000 | -mx,mx,-mx | -0.75000 | 0.75000 | -0.75000 |
| 31 | 0.75000 | 0.75000 | 0.00000 | -mx,-mx,mx | -0.75000 | -0.75000 | 0.75000 |
| 32 | 0.00000 | 0.75000 | 0.75000 | mx,-mx,-mx | 0.75000 | -0.75000 | -0.75000 |
| label | dim. full irrep | dim. small irrep | direction | action | number of modes |
| mL2+ | 4 | 1 | special2 | primary | 1 |
|
Bilbao Crystallographic Server https://www.cryst.ehu.es |
For comments, please mail to administrador.bcs@ehu.eus |
