MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

a	b	c
1	0	0	a_p
0	1	0	b_p
0	0	1	c_p

origin shift
0	a_p
0	b_p
0	c_p

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x,-y+1/2,-z+1/2,+1	{ 2₁₀₀ \| 0 1/2 1/2 }
3	-x+1/2,y,-z+1/2,+1	{ 2₀₁₀ \| 1/2 0 1/2 }
4	-x+1/2,-y+1/2,z,+1	{ 2₀₀₁ \| 1/2 1/2 0 }
5	z,x,y,+1	{ 3⁺₁₁₁ \| 0 }
6	y,z,x,+1	{ 3^-₁₁₁ \| 0 }
7	-y+1/2,z,-x+1/2,+1	{ 3^-_1-1-1 \| 1/2 0 1/2 }
8	-z+1/2,-x+1/2,y,+1	{ 3⁺_1-1-1 \| 1/2 1/2 0 }
9	-y+1/2,-z+1/2,x,+1	{ 3^-_-11-1 \| 1/2 1/2 0 }
10	z,-x+1/2,-y+1/2,+1	{ 3⁺_-11-1 \| 0 1/2 1/2 }
11	y,-z+1/2,-x+1/2,+1	{ 3^-_-1-11 \| 0 1/2 1/2 }
12	-z+1/2,x,-y+1/2,+1	{ 3⁺_-1-11 \| 1/2 0 1/2 }
13	-x,-y,-z,+1	{ -1 \| 0 }
14	-x,y+1/2,z+1/2,+1	{ m₁₀₀ \| 0 1/2 1/2 }
15	x+1/2,-y,z+1/2,+1	{ m₀₁₀ \| 1/2 0 1/2 }
16	x+1/2,y+1/2,-z,+1	{ m₀₀₁ \| 1/2 1/2 0 }
17	-z,-x,-y,+1	{ -3⁺₁₁₁ \| 0 }
18	-y,-z,-x,+1	{ -3^-₁₁₁ \| 0 }
19	y+1/2,-z,x+1/2,+1	{ -3^-_1-1-1 \| 1/2 0 1/2 }
20	z+1/2,x+1/2,-y,+1	{ -3⁺_1-1-1 \| 1/2 1/2 0 }
21	y+1/2,z+1/2,-x,+1	{ -3^-_-11-1 \| 1/2 1/2 0 }
22	-z,x+1/2,y+1/2,+1	{ -3⁺_-11-1 \| 0 1/2 1/2 }
23	-y,z+1/2,x+1/2,+1	{ -3^-_-1-11 \| 0 1/2 1/2 }
24	z+1/2,-x,y+1/2,+1	{ -3⁺_-1-11 \| 1/2 0 1/2 }
25	x+1/2,-z,y+1/2,-1	{ 4'⁺₁₀₀ \| 1/2 0 1/2 }
26	x+1/2,z+1/2,-y,-1	{ 4'^-₁₀₀ \| 1/2 1/2 0 }
27	z+1/2,y+1/2,-x,-1	{ 4'⁺₀₁₀ \| 1/2 1/2 0 }
28	-z,y+1/2,x+1/2,-1	{ 4'^-₀₁₀ \| 0 1/2 1/2 }
29	-y,x+1/2,z+1/2,-1	{ 4'⁺₀₀₁ \| 0 1/2 1/2 }
30	y+1/2,-x,z+1/2,-1	{ 4'^-₀₀₁ \| 1/2 0 1/2 }
31	y+1/2,x+1/2,-z,-1	{ 2'₁₁₀ \| 1/2 1/2 0 }
32	-y,-x,-z,-1	{ 2'_1-10 \| 0 }
33	-x,z+1/2,y+1/2,-1	{ 2'₀₁₁ \| 0 1/2 1/2 }
34	-x,-z,-y,-1	{ 2'_01-1 \| 0 }
35	z+1/2,-y,x+1/2,-1	{ 2'₁₀₁ \| 1/2 0 1/2 }
36	-z,-y,-x,-1	{ 2'_-101 \| 0 }
37	-x+1/2,z,-y+1/2,-1	{ -4'⁺₁₀₀ \| 1/2 0 1/2 }
38	-x+1/2,-z+1/2,y,-1	{ -4'^-₁₀₀ \| 1/2 1/2 0 }
39	-z+1/2,-y+1/2,x,-1	{ -4'⁺₀₁₀ \| 1/2 1/2 0 }
40	z,-y+1/2,-x+1/2,-1	{ -4'^-₀₁₀ \| 0 1/2 1/2 }
41	y,-x+1/2,-z+1/2,-1	{ -4'⁺₀₀₁ \| 0 1/2 1/2 }
42	-y+1/2,x,-z+1/2,-1	{ -4'^-₀₀₁ \| 1/2 0 1/2 }
43	-y+1/2,-x+1/2,z,-1	{ m'₁₁₀ \| 1/2 1/2 0 }
44	y,x,z,-1	{ m'_1-10 \| 0 }
45	x,-z+1/2,-y+1/2,-1	{ m'₀₁₁ \| 0 1/2 1/2 }
46	x,z,y,-1	{ m'_01-1 \| 0 }
47	-z+1/2,y,-x+1/2,-1	{ m'₁₀₁ \| 1/2 0 1/2 }
48	z,y,x,-1	{ m'_-101 \| 0 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	x,-y,-z,+1	2₁₀₀
3	-x,y,-z,+1	2₀₁₀
4	-x,-y,z,+1	2₀₀₁
5	z,x,y,+1	3⁺₁₁₁
6	y,z,x,+1	3^-₁₁₁
7	-y,z,-x,+1	3^-_1-1-1
8	-z,-x,y,+1	3⁺_1-1-1
9	-y,-z,x,+1	3^-_-11-1
10	z,-x,-y,+1	3⁺_-11-1
11	y,-z,-x,+1	3^-_-1-11
12	-z,x,-y,+1	3⁺_-1-11
13	-x,-y,-z,+1	-1
14	-x,y,z,+1	m₁₀₀
15	x,-y,z,+1	m₀₁₀
16	x,y,-z,+1	m₀₀₁
17	-z,-x,-y,+1	-3⁺₁₁₁
18	-y,-z,-x,+1	-3^-₁₁₁
19	y,-z,x,+1	-3^-_1-1-1
20	z,x,-y,+1	-3⁺_1-1-1
21	y,z,-x,+1	-3^-_-11-1
22	-z,x,y,+1	-3⁺_-11-1
23	-y,z,x,+1	-3^-_-1-11
24	z,-x,y,+1	-3⁺_-1-11
25	x,-z,y,-1	4'⁺₁₀₀
26	x,z,-y,-1	4'^-₁₀₀
27	z,y,-x,-1	4'⁺₀₁₀
28	-z,y,x,-1	4'^-₀₁₀
29	-y,x,z,-1	4'⁺₀₀₁
30	y,-x,z,-1	4'^-₀₀₁
31	y,x,-z,-1	2'₁₁₀
32	-y,-x,-z,-1	2'_1-10
33	-x,z,y,-1	2'₀₁₁
34	-x,-z,-y,-1	2'_01-1
35	z,-y,x,-1	2'₁₀₁
36	-z,-y,-x,-1	2'_-101
37	-x,z,-y,-1	-4'⁺₁₀₀
38	-x,-z,y,-1	-4'^-₁₀₀
39	-z,-y,x,-1	-4'⁺₀₁₀
40	z,-y,-x,-1	-4'^-₀₁₀
41	y,-x,-z,-1	-4'⁺₀₀₁
42	-y,x,-z,-1	-4'^-₀₀₁
43	-y,-x,z,-1	m'₁₁₀
44	y,x,z,-1	m'_1-10
45	x,-z,-y,-1	m'₀₁₁
46	x,z,y,-1	m'_01-1
47	-z,y,-x,-1	m'₁₀₁
48	z,y,x,-1	m'_-101

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.00000	0.00000	0.00000	0.7	4	m_x,m_x,m_x	0.9	0.9	0.9	1.56

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
Mn1	Mn	0.00000	0.00000	0.00000	0.3	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_x,m_x	0.90000	0.90000	0.90000
2	0.00000	0.50000	0.50000	m_x,-m_x,-m_x	0.90000	-0.90000	-0.90000
3	0.50000	0.00000	0.50000	-m_x,m_x,-m_x	-0.90000	0.90000	-0.90000
4	0.50000	0.50000	0.00000	-m_x,-m_x,m_x	-0.90000	-0.90000	0.90000

Atom	x	y	z
1	0.00000	0.00000	0.00000
2	0.00000	0.50000	0.50000
3	0.50000	0.00000	0.50000
4	0.50000	0.50000	0.00000

[Show all atoms in unit cell and their moment relations]

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.00000	0.00000	0.00000	0.7	4	m_x,m_x,m_x	0.9	0.9	0.9	1.56

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_x,m_x	0.90000	0.90000	0.90000
2	0.00000	0.50000	0.50000	m_x,-m_x,-m_x	0.90000	-0.90000	-0.90000
3	0.50000	0.00000	0.50000	-m_x,m_x,-m_x	-0.90000	0.90000	-0.90000
4	0.50000	0.50000	0.00000	-m_x,-m_x,m_x	-0.90000	-0.90000	0.90000

[Show all magnetic atoms in unit cell and their moment relations]

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mX3+	3	1	special-2	primary	1

MAGNDATA: A Collection of magnetic structures with portable cif-type files

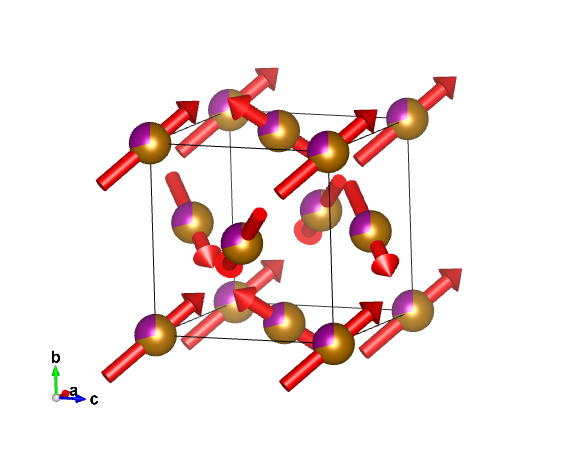

Fe_0.7Mn_0.3 (#3.5)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

Fe0.7Mn0.3 (#3.5)

Fe_0.7Mn_0.3 (#3.5)
